System designers today face a combination of constraints: tight PCB area, low module height, multi-band operation, demanding isolation targets, and increasing power density. From phased-array radar and compact SatCom terminals to 5G/6G radios and aerospace platforms, the wrong isolator or circulator can easily become the bottleneck that delays the entire project.

Procurement engineers consistently report several pain points when sourcing RF isolators and circulators:

• Standard parts do not fit the available footprint or height.
• Bandwidth is too narrow for modern wideband and multi-band systems.
• Power handling and thermal performance are insufficient for compact, high-density modules.
• Performance is not stable over temperature or across production batches.
• Existing catalog parts cannot directly replace legacy or well-known models from other brands.

HzBeat’s customization process is built to solve exactly these issues, turning abstract requirements into reliable, production-ready RF components.

HzBeat offers end-to-end customization for RF isolators and circulators, covering frequency from approximately 20 MHz to 200 GHz and multiple form factors including microstrip, SMT, drop-in and coaxial types. The process is structured into five key phases.

Custom design begins with a precise understanding of electrical targets, mechanical limits and system-level constraints.

Step 1. Requirement Analysis & Feasibility Planning

Typical buyer pain points:

• The catalog part does not match the required frequency band, bandwidth or isolation level.
• Available module space is extremely limited; a standard package simply does not fit.
• Multiple bands (for example C/X/Ku) must be covered in one compact front-end.
• Existing devices show too much variation at temperature extremes.
• There is a need to replace legacy or branded parts while keeping the same interface.

What HzBeat does in this phase:

• Collects detailed electrical requirements: frequency range, target bandwidth, insertion loss, isolation, VSWR and power levels.
• Analyzes mechanical constraints: PCB area, module height, connector or microstrip interface, mounting scheme.
• Assesses environmental conditions: operating temperature, shock, vibration and required reliability level.
• Provides an initial feasibility evaluation and recommended specification window for a custom RF isolator or circulator.

Step 2. RF Modelling, Simulation & Structural Design

Typical buyer pain points:

• Uncertainty about how miniaturization will affect isolation, insertion loss and return loss.
• Difficulty maintaining wide bandwidth when the mechanical size is reduced.
• Concerns about magnetic bias stability and thermal behaviour in compact ferrite structures.
• Challenges integrating the component into dense microstrip or SMT layouts.

How HzBeat responds:

• Uses full-wave electromagnetic simulation to optimize the junction structure, ferrite material and matching network.
• Evaluates trade-offs between footprint, bandwidth and power handling to reach a balanced design.
• Designs low-profile housings, microstrip/SMT footprints or drop-in bodies that match the customer’s layout style.
• Generates detailed mechanical drawings and 3D models (STEP/DXF) to integrate into the customer’s CAD and PCB tools.

Step 3. Prototype Fabrication & Reliability Testing

Typical buyer pain points:

• Prototype behaviour not matching simulated data.
• Isolation and VSWR drifting when temperature changes.
• Concerns about SMT reflow or assembly impact on ferrite and magnetic circuits.
• Risk that the isolator or circulator will not withstand real operating power levels.

What HzBeat provides:

• Custom RF isolator and circulator prototypes matching the agreed model and footprint.
• Full S-parameter characterization across the operating band, including insertion loss, isolation and return loss.
• Environmental reliability tests such as temperature cycling and thermal stress evaluation.
• Power tests under specified CW and peak conditions to verify stability and long-term reliability.
• Delivery of measurement reports and Touchstone files to integrate into the customer’s system-level simulation.

Step 4. Mass Production & Quality Assurance

Typical buyer pain points:

• Batch-to-batch variation causing system performance drift.
• Inconsistent isolation or insertion loss across large volumes.
• Concerns about long-term supply stability and process control.

HzBeat’s approach:

• Implements strict control over ferrite materials, magnetic components and critical mechanical tolerances.
• Applies in-line testing and outgoing quality checks for every production batch.
• Maintains traceability of critical process parameters related to RF performance.
• Offers scalable production plans aligned with the customer’s long-term project roadmap.

Step 5. Packaging, Logistics & Long-Term Support

Typical buyer pain points:

• Risk of damage or performance shift during transportation and storage.
• Need for safe logistics for magnetic and sensitive RF components.
• Requirement for long-term technical support and future upgrades.

What HzBeat delivers:

• Protective packaging designed for ferrite and magnetic assemblies.
• Clear labelling of custom RF isolator and circulator models for easy inventory management.
• Technical support for integration, troubleshooting and future redesign or band extension.
• Options for long-term cooperation including custom roadmaps and derivative product development.

To match different integration styles, HzBeat offers customization across several hardware platforms:

• Microstrip RF Circulators – ideal for low-profile, PCB-integrated front-end modules.

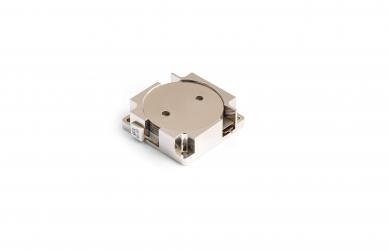

• Drop-In Circulators – robust metal housings for module-level assembly.
• Coaxial Circulators – convenient for test environments and connectorized subsystems.
• Microstrip & SMT RF Isolators – compact two-port devices optimized for one-way protection and small-form-factor layouts.

Across these platforms, HzBeat can customize frequency band, bandwidth, footprint, port orientation, power level, and environmental robustness to match the customer’s high-density design.

Q1: What information should I prepare before requesting a custom RF isolator or circulator?

It is helpful to provide target frequency band, required bandwidth, desired insertion loss and isolation, power level, operating temperature range, and any mechanical limits on footprint or height. PCB layout style (microstrip, SMT, drop-in or coaxial) and application type (radar, SatCom, telecom, test) are also important.

Q2: Will miniaturization always degrade performance?

Miniaturization introduces design challenges, but it does not automatically mean worse performance. With proper ferrite selection, magnetic bias design and impedance matching, custom miniature RF isolators and circulators can still achieve low insertion loss and high isolation while saving significant board space.

Q3: Can custom RF isolators & circulators replace existing models from other vendors?

In many cases, yes. HzBeat can design pin-compatible or footprint-compatible devices that match or improve key specifications, offering an alternative source for critical RF components.

Q4: How does HzBeat help manage risk in high-density designs?

By combining simulation, prototyping, detailed testing and controlled mass production, HzBeat ensures that each custom RF isolator or circulator is verified not only at nominal conditions but also across temperature, power and mechanical tolerances. This reduces integration risk and helps keep complex projects on schedule.

High-density microwave systems demand more than catalog components. Through a structured customization process, HzBeat transforms system-level requirements into reliable custom RF isolators and custom RF circulators that balance size, bandwidth and power. For buyers and engineers seeking compact, wideband and robust solutions, custom non-reciprocal components are no longer a luxury—they are the key to competitive, future-ready RF designs.
