Why are ferrite materials used in RF circulators and isolators?

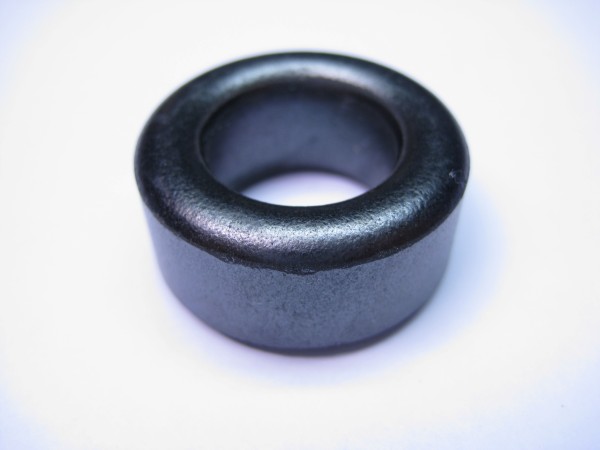

Ferrite materials are used in RF circulators and isolators because they enable non-reciprocal signal transmission, which means RF energy can be guided in one preferred direction while unwanted reflected signals are redirected or absorbed. This is the key reason why a circulator can route signals from Port 1 to Port 2, Port 2 to Port 3, and Port 3 to Port 1, and why an isolator can protect sensitive RF components such as power amplifiers from reverse power.

Ferrite materials interact with a controlled magnetic bias field, creating different propagation behavior for signals traveling in opposite directions. This makes it possible to achieve high isolation, low insertion loss, stable VSWR, and reliable power handling across demanding RF and microwave systems.

In practical applications, ferrite-based RF circulators and isolators are widely used in radar systems, satellite communication, 5G/6G base stations, test equipment, and high-power RF front ends. They help improve signal stability, protect transmit chains, reduce mismatch-related damage, and maintain system performance under complex load conditions.

At HzBeat, ferrite material selection, magnetic circuit design, and structural optimization are important parts of our RF circulator and isolator development. With expertise in wideband coverage, compact design, low insertion loss, and customized RF solutions, HzBeat provides ferrite-based circulators and isolators for systems where stable isolation and dependable RF protection are critical.
