What Does an RF Isolator Do?

An RF isolator is a passive, non-reciprocal microwave device that ensures energy flows in one direction only, protecting sensitive RF components such as power amplifiers from reflected power. In modern systems—from radar arrays to 5G base stations—these devices play a key role in maintaining system stability and high performance.

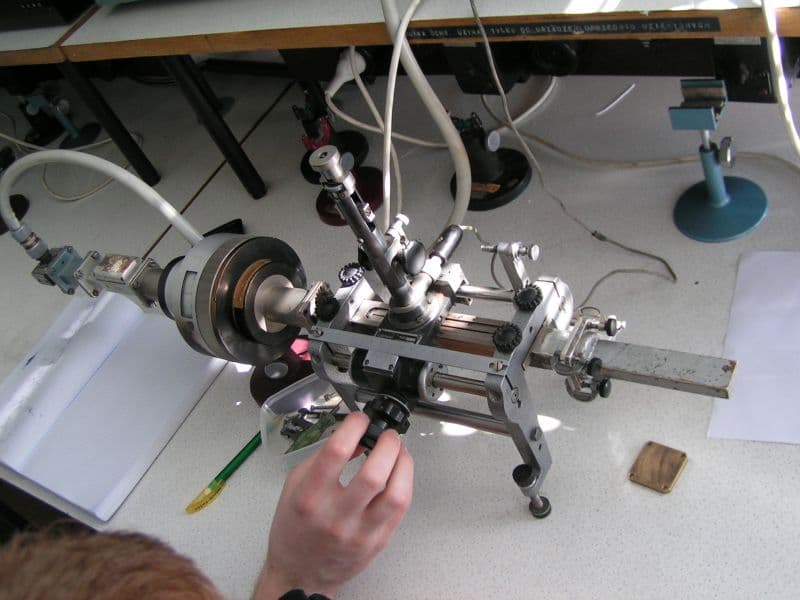

Function of an RF Isolator

The RF isolator allows RF power to travel from Port 1 to Port 2 while blocking reverse signals. It prevents standing waves and protects transmitters from load mismatch or antenna reflections. Key parameters include:

• Insertion Loss: 0.2–0.5 dB
• Isolation: 20–30 dB
• VSWR: ≤ 1.2:1

By integrating isolators into RF circulator networks, engineers achieve improved system linearity and reduced intermodulation distortion—critical in broadband communication and radar front ends.

Design and Working Principle

Inside an isolator lies a ferrite disk magnetized by a permanent magnet. When RF signals pass through the ferrite under bias, electromagnetic wave propagation becomes non-reciprocal—energy moves forward but not backward. This is the same physical principle behind a three-port ferrite RF circulator. If one port of a circulator is terminated with a matched load, it becomes an isolator.

Applications in RF and Microwave Systems

RF isolators and circulators are essential in numerous high-frequency environments:

• Radar systems – Separate transmit and receive paths to prevent receiver burnout.
• 5G/6G base stations – Stabilize PA outputs and suppress reflected signals.
• Satellite transponders – Maintain power amplifier protection and linearity.
• Medical MRI systems – Control resonance paths and maintain precise field uniformity.

RF Circulator vs RF Isolator

While both share the same ferrite foundation, their functions differ:

• RF Circulator: A three-port device routing signals from Port 1→2→3 cyclically.
• RF Isolator: A two-port circulator with one port terminated to absorb reflected power.

This design similarity explains why many RF circulator manufacturers—including HzBeat—also produce high-quality isolators covering frequencies from 20 MHz to 200 GHz. Both components form the backbone of modern RF systems.

Conclusion

RF isolators are vital for protecting amplifiers and ensuring stable operation in microwave circuits. Understanding their physics—and their direct link to RF circulators—helps engineers design systems that are robust, efficient, and reliable. Explore HzBeat’s full range of RF circulators and RF isolators to optimize your next RF chain.

FAQ

Q1: What’s the difference between an RF isolator and a circulator?
A circulator has three ports that route energy in sequence; an isolator has two ports and absorbs reflections.

Q2: Can a circulator be converted into an isolator?
Yes—by terminating one port of the circulator with a matched load.

Q3: How can I choose the right isolator?
Match your system’s frequency band, power rating, and connector type (SMA, N-type, waveguide). HzBeat provides tailored models for radar, communication, and test systems.
