Miniaturization defines the modern era of RF component engineering. From 5G base stations to low-earth-orbit (LEO) satellites, every system demands smaller, lighter, and more efficient hardware. For non-reciprocal devices like circulators and isolators, this trend collides with fundamental electromagnetic constraints. Shrinking ferrite volume risks reducing magnetic flux uniformity, increasing insertion loss, and degrading isolation. The art of miniaturized circulator design lies in overcoming these trade-offs without sacrificing stability.

To achieve this, research teams are turning to advanced ferrite compositions, micromachined waveguides, and integrated biasing structures. The result: SMT-scale devices capable of 18–40 GHz operation, suitable for compact phased arrays and radar sensors. The question is no longer whether miniaturization is possible — but how far engineers can push it while preserving electromagnetic integrity.

At the heart of every circulator is a ferrite disk magnetically biased to create non-reciprocal phase shifts. As frequencies rise above X-band, the ferrite’s physical diameter approaches or falls below a single wavelength, leading to increased fringing fields and non-uniform magnetization. This phenomenon directly impacts insertion loss and return loss.

For example, traditional 10 mm ferrite cores used at 8 GHz cannot be linearly scaled to 30 GHz without performance degradation. Designers must therefore rely on high-saturation materials such as lithium-titanium or cobalt-substituted ferrites. These compounds exhibit stronger magnetization and reduced gyromagnetic linewidth, supporting smaller diameters without losing non-reciprocity.

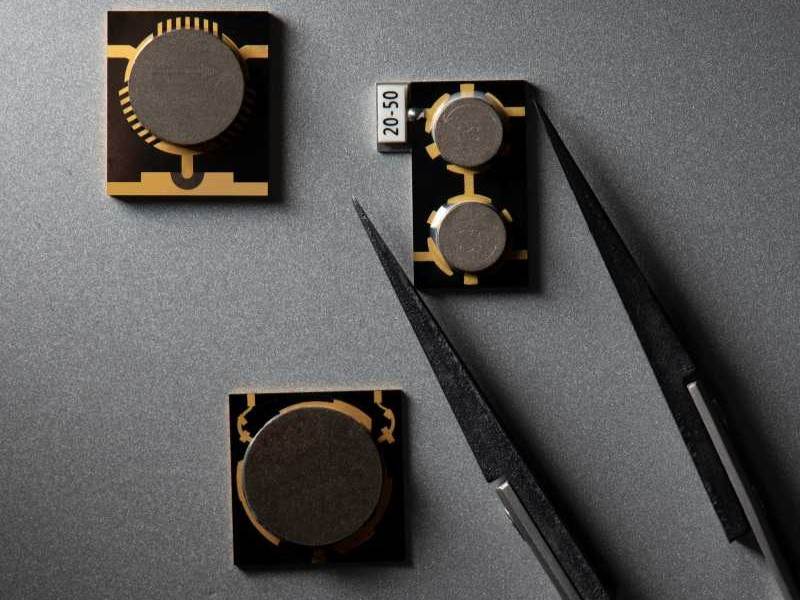

Recent breakthroughs in thin-film ferrite deposition and low-temperature co-fired ceramics (LTCC) have enabled new levels of miniaturization. Engineers can now integrate ferrite layers directly into multilayer substrates, eliminating bulky coaxial transitions and reducing parasitic capacitances. These devices are typically less than 4 mm thick yet achieve insertion losses as low as 0.4 dB.

HzBeat’s design teams employ finite-element electromagnetic modeling to optimize current density, bias field, and resonance alignment within confined geometries. By embedding rare-earth permanent magnets directly in the housing, designers eliminate external bias coils, saving board space and power. In addition, microstrip topologies allow easy integration into planar PCBs, creating a smooth path toward fully integrated front-end modules.

The combination of material science and RF engineering is redefining expectations: 20–50 GHz circulators can now be smaller than a fingertip, supporting radar, SatCom, and test instrumentation without compromising durability or frequency precision.

Miniaturization brings thermal challenges. The smaller the component, the greater the power density. Circulators in Ka-band transmitters often experience localized heating above 120°C, threatening magnetization stability. To mitigate this, engineers employ copper-tungsten composites, AlN substrates, and thermally optimized vias to spread heat efficiently.

Some advanced circulator assemblies incorporate graphene-coated ferrite films that improve both heat transfer and bias-field uniformity. Such hybrid materials demonstrate 15% lower insertion loss drift over temperature compared to conventional ferrites. In space or high-altitude radar systems, passive radiative cooling and conductive epoxy mounting further ensure stable operation across extreme environments.

Miniaturized circulators are reshaping industries where every millimeter counts:

• 5G and 6G Infrastructure — Compact SMT circulators integrated into active antenna arrays improve duplex performance and signal-to-noise ratio.
• Automotive Radar — 77 GHz front-ends employ ultra-compact circulators to isolate transmit and receive paths within limited sensor housings.
• Satellite Communication — Lightweight Ka-band modules enable low-profile payloads with enhanced thermal endurance.
• Defense Electronics — Ruggedized microstrip circulators withstand vibration and temperature shock, ideal for AESA radar systems.

HzBeat’s product line covers frequency ranges from 2 GHz to 40 GHz, delivering solutions for both prototype testing and mass production. Each circulator undergoes vector network analysis for S-parameter validation, ensuring compliance with ISO9001 and MIL-STD-883 standards.

Next-generation research points toward on-chip non-reciprocal networks leveraging magnetless metamaterials and spatio-temporal modulation. Although traditional ferrite circulators dominate in power handling, CMOS-compatible alternatives could soon support low-power transceiver applications up to 110 GHz.

Meanwhile, LTCC integration remains a key focus. Multi-ferrite layer stacking combined with 3D printed metallic vias enables compact 3-port devices for 50–67 GHz operation. These emerging platforms promise improved manufacturability, batch uniformity, and cost reduction—vital factors for consumer-grade 6G and satellite IoT markets.

As frequency bands continue to expand, the synergy between electromagnetic design, materials engineering, and automated assembly will dictate the pace of innovation. The line between passive component and integrated subsystem is rapidly blurring, ushering in an era of “functional miniaturization.”

Yes—miniaturized circulators can indeed handle high frequencies, provided they are supported by advanced ferrite materials, optimized biasing fields, and efficient thermal management. They represent not a limitation but a triumph of multidisciplinary engineering, balancing physics with manufacturability. In applications ranging from 5G to defense radar, their role is expanding as designers seek compact, reliable, and broadband non-reciprocal solutions.

• Q: What frequency range can modern miniaturized circulators handle?
  A: Commercial designs cover 2–40 GHz, while research prototypes extend to 77 GHz automotive radar bands.
• Q: What limits further miniaturization?
  A: Magnetic flux stability and thermal control remain primary constraints; however, thin-film ferrites are pushing these limits higher.
• Q: Are SMT circulators suitable for outdoor environments?
  A: Yes. Ruggedized housings and AlN substrates offer excellent resistance to temperature, humidity, and mechanical stress.
• Q: Which industries benefit most from miniaturized circulators?
  A: Telecommunications, automotive radar, satellite payloads, and high-frequency test systems.
