Ferrites are ferrimagnetic ceramics that have long enabled the development of nonreciprocal microwave components — most notably RF circulators and isolators. By biasing ferrite with a static magnetic field, engineers exploit the off-diagonal terms in the permeability tensor to achieve one-way propagation, protecting transmitters, stabilizing oscillators, and enabling radar and satellite communications. As 5G, 6G, and broadband satellite constellations expand, ferrite material science is once again in the spotlight.

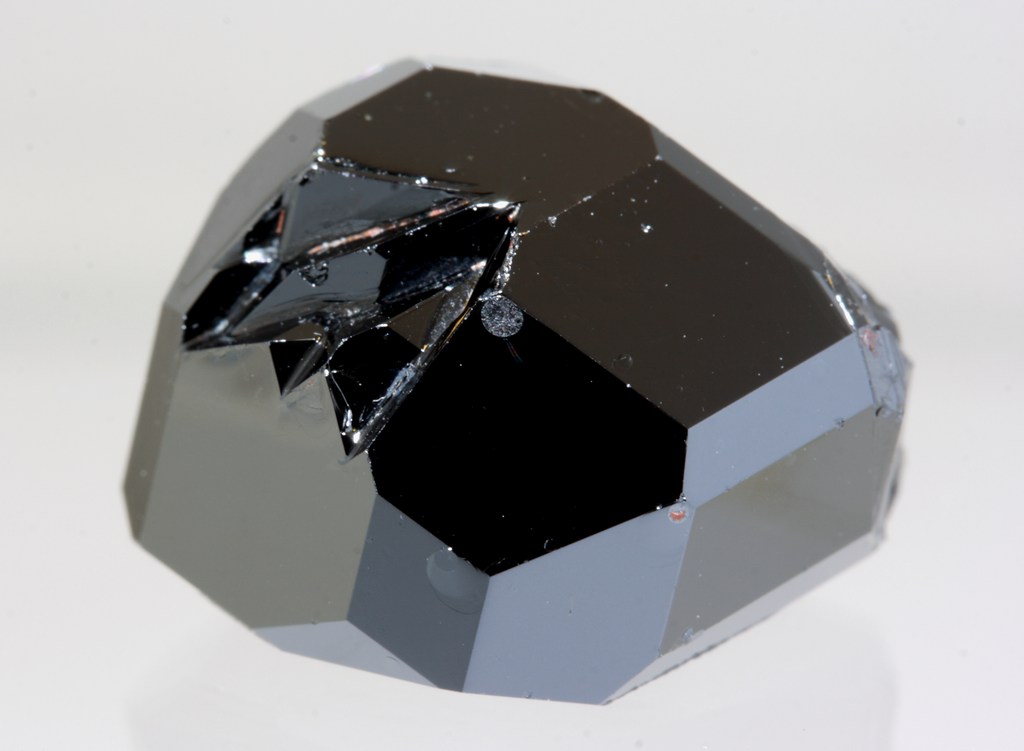

Yttrium Iron Garnet (YIG) single crystal. Photo by Krizu, CC BY-SA 3.0, via Wikimedia Commons.

Performance of ferrite-based nonreciprocal devices is dictated by several key parameters:

• Saturation Magnetization (Ms) – sets maximum frequency and bias field.
• Linewidth (ΔH) – narrower linewidth indicates lower magnetic damping and reduced insertion loss.
• Gilbert damping coefficient (α) – as low as 1×10-4 in state-of-the-art YIG films (Stognij et al.).
• Magnetic Anisotropy – crucial for nonreciprocity and frequency stability.
• Curie Temperature (Tc) – determines high-temperature resilience.

Magnetic stripe domains in ferrite-garnet thin film (Faraday imaging). Photo by DMGualtieri, CC BY-SA 3.0, via Wikimedia Commons.

Polycrystalline ferrites are ceramic materials formed by sintering fine ferrite powders. They remain the backbone for cost-sensitive designs such as coaxial circulators and microstrip isolators in L, S, C, and X bands.

Advantages include scalable manufacturing, robustness, and affordability. However, grain boundaries increase linewidth and losses at higher frequencies. Recent studies on densification and dopant engineering have demonstrated reductions in porosity and enhanced high-frequency response (Carter et al.).

Ferrite/pearlite microstructure illustrating grain-boundary effects. Public Domain, via U.S. DOE/Wikimedia Commons.

Single-crystal Yttrium Iron Garnet (YIG) remains unmatched for low-loss, high-Q microwave applications. YIG spheres and slabs are used in waveguide isolators and resonators, where insertion loss below 0.3 dB and isolation above 20 dB have been demonstrated in X-band devices (Zhang et al., 2024).

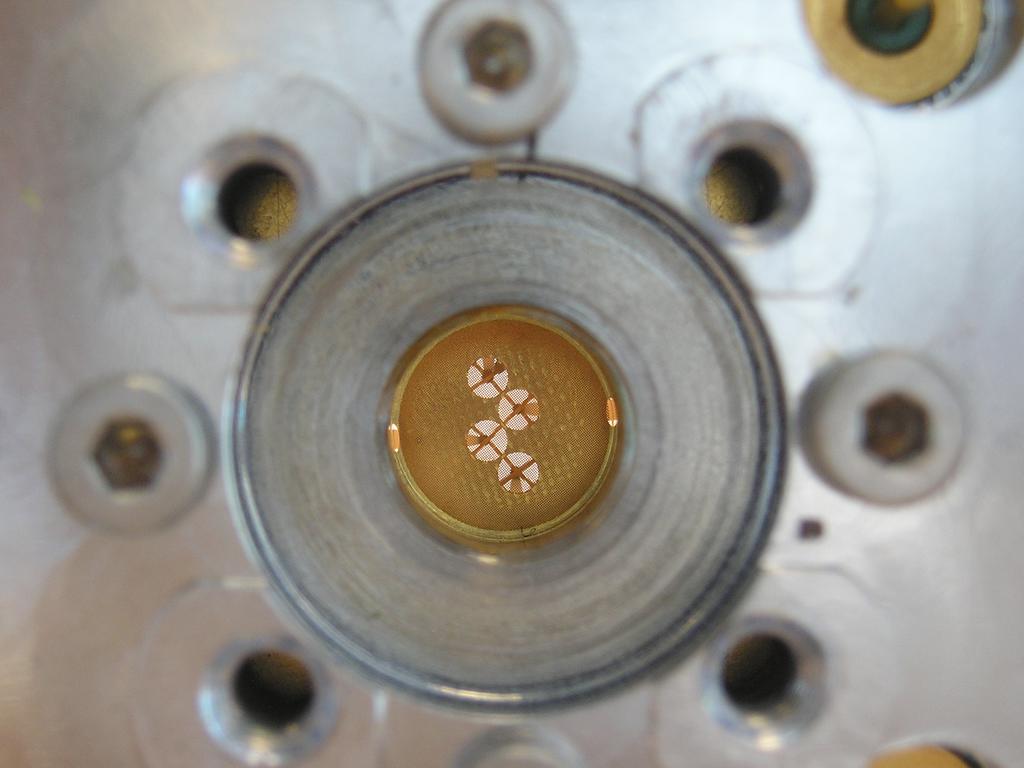

Four-sphere YIG filter. Photo by Lightbulb64, CC BY 4.0, via Wikimedia Commons.

Magnetic domains in ferrite-garnet film (MFM). Photo by Temiryazev, CC BY-SA 4.0, via Wikimedia Commons.

Recent years have seen breakthroughs in ferrite thin films for integration with MMICs. Liquid-phase epitaxy (LPE) and pulsed laser deposition (PLD) yield YIG films with Gilbert damping coefficients near 10-4. These thin films enable compact circulators at mmWave bands and are central to emerging 5G/6G front-ends (Takahashi et al.).

Nanocrystalline ferrites, produced via sol-gel and auto-combustion methods, exhibit refined grains and reduced domain-wall losses. These approaches are reported in Journal of Applied Physics and open pathways to extending ferrite utility beyond 100 GHz.

Commercial tooling. Long‑term agreements (LTAs), price‑band corridors tied to indexed inputs, and co‑investment in furnaces or sintering capacity transform adversarial sourcing into collaborative planning. Engineering then locks materials sooner and avoids late‑stage redesigns triggered by shortages.

The choice between polycrystalline, single-crystal, and thin-film ferrites strongly depends on operating frequency and power:

• Radar and Defense – High-power X-band circulators using YIG spheres achieve isolation >20 dB at peak powers up to 7 kW (Zhang et al., 2024).
• 5G/6G Wireless – Thin-film ferrites integrate with RFICs to provide compact isolation in base stations and user equipment.
• Satellite Communications – Ku/Ka-band ferrite isolators stabilize high-throughput satellite links.
• Medical Imaging – Ferrites used in MRI coils require high Curie temperature and thermal stability.

The ferrite industry relies on stable access to rare earths, particularly yttrium for garnets. China remains the largest supplier, raising diversification concerns in the U.S. and EU. Meanwhile, Asian foundries continue to refine sintering and epitaxy methods at scale.

Market analysts project the RF isolator and circulator market to grow significantly, driven by phased-array radar proliferation, satellite constellations, and 6G research (Allied Market Research).

• Reducing losses in thin films by suppressing interface roughness and defects.
• Achieving wideband isolation while retaining low insertion loss.
• Integrating ferrites directly with CMOS for chip-scale nonreciprocal devices.
• Exploring topological and magnetoplasmonic approaches as potential complements to ferrite physics (Nature Sci Reports, 2024).

Ferrite materials, from traditional polycrystalline ceramics to single-crystal YIG and thin-film innovations, remain central to nonreciprocal microwave engineering. As emerging technologies push into millimeter-wave and terahertz regimes, advances in materials science will dictate the boundaries of performance. With proper supply chain strategies and integration with semiconductor processes, ferrites will continue powering radar, satellite, wireless, and medical innovations well into the 6G era.

1. Carter R. et al., Microwave ferrites: Fundamental properties, ResearchGate (2000).
2. Stognij A. et al., Microwave properties of YIG films, ResearchGate (2015).
3. Takahashi H. et al., Low-loss YIG thick films for microwave applications, Ceramics International (2019).
4. Zhang Y. et al., Design of X-Band Circulator and Isolator for High-Peak-Power Applications, Micromachines (2024).
5. Temiryazev S., Magnetic domains in ferrite-garnet film, Wikimedia Commons (CC BY-SA 4.0).
6. DMGualtieri, Stripe domains in ferrite-garnet, Wikimedia Commons (CC BY-SA 3.0).
7. Lightbulb64, Four-sphere YIG filter photo, Wikimedia Commons (CC BY 4.0).
8. Krizu, YIG single crystal photo, Wikimedia Commons (CC BY-SA 3.0).
9. U.S. DOE, Ferrite-pearlite steel microstructure, Public Domain.
10. Nature Sci Reports, Wideband isolator based on magnetoplasmons, 2024.
11. Allied Market Research, RF Circulators & Isolators Market Report, 2023.
