The Main Applications of RF Circulators and Isolators

RF circulators and RF isolators are non-reciprocal ferrite devices used to control the direction in which RF energy can flow. They are built around magnetized ferrite materials that cause electromagnetic waves to propagate differently depending on their direction of travel.

An RF circulator is typically a three-port device that routes energy sequentially (port 1 → port 2 → port 3 → back to port 1). Engineers use circulators for duplexing between transmit/receive/antenna ports, for routing signals inside T/R modules, and for decoupling different circuit blocks.

An RF isolator is usually a two-port device that allows power to pass in one direction while providing high attenuation in the reverse direction. Many isolators are implemented using a circulator with one port internally terminated in a matched load.

In practical RF systems, circulators and isolators:

• Protect power amplifiers from destructive reverse power caused by mismatch
• Stabilize RF sources by presenting a controlled load over changing conditions
• Improve linearity and reduce distortion by minimizing standing waves
• Increase measurement accuracy and repeatability in RF test setups

Aerospace is one of the most demanding application areas for RF circulators and isolators. It combines high power, high sensitivity and extreme environments in a single platform. Flight conditions constantly change antenna loading, temperature and mechanical stress.

2.1 Why Aerospace Must Use Circulators and Isolators

Airborne RF systems on fighters, transport aircraft and UAVs face several unique engineering challenges:

• Rapidly changing load impedance: aircraft maneuvers change antenna orientation and pattern, causing VSWR to vary dynamically. Isolators keep the PA “seeing” a more stable load.
• Wide temperature range: from cold-soak at high altitude (below –50 °C) to hot ramp conditions (+70 °C or higher). Circulators must maintain low insertion loss and high isolation over the full range.
• Strong vibration and shock: structural vibration and aerodynamic loads can modulate RF connections and cause intermittent mismatch. Isolators absorb the resulting reflections.
• Compact phased-array architectures: modern AESA radars use hundreds or thousands of T/R modules, each potentially including its own circulator for local duplexing and isolation.

2.2 Detailed Uses in Airborne Platforms

SATCOM and space payloads push RF circulators and isolators to the limits of reliability. Once a satellite is in orbit, there is no possibility for repair or replacement, so RF components must operate flawlessly for many years.

3.1 RF Chains in SATCOM Ground Stations

In SATCOM gateways and teleports, circulators and isolators are deployed in:

• Uplink chains: between BUCs, high-power amplifiers (TWTAs, SSPAs) and large parabolic antennas.
• Downlink chains: ahead of low-noise amplifiers, protecting them from high-level signals and reflections.
• Redundancy and switching units: to decouple parallel transmit and receive chains.

These components help maintain low VSWR and keep critical hardware within safe operating conditions, even when antenna loading changes due to weather or pointing.

3.2 Space-Qualified Circulators and Isolators

Onboard satellite payloads use space-qualified circulators and isolators inside transponders, active antennas, frequency converters and switch matrices. Key requirements include:

• Low insertion loss to preserve link budget
• High isolation between active channels
• Radiation tolerance (total ionizing dose and single-event effects)
• Low outgassing materials suitable for vacuum
• Mechanical robustness for launch vibration and shock profiles

3.3 Launch Vehicles and Telemetry Links

During launch, telemetry and tracking systems must operate reliably while the launch vehicle experiences high vibration, acceleration and rapidly changing aerodynamic loads. RF isolators:

• Protect S-band and X-band telemetry PAs from extreme mismatch
• Absorb reflections as the launch environment changes
• Help maintain link margin to ground stations during critical phases

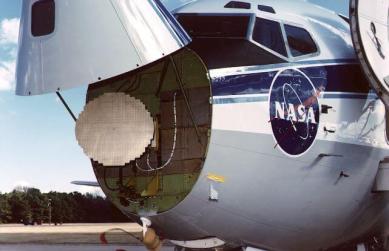

Radar transmitters routinely handle kilowatt-level peak power. Reflected power is not only a performance problem but a serious reliability and safety issue. RF circulators and isolators are therefore vital components.

4.1 High-Power PA Protection

Typical radar power levels include:

• Airborne radar: 3–20 kW peak
• Naval surveillance radar: 10–50 kW peak
• Long-range ground-based radar: >100 kW peak

Even a small fraction of reflected power at these levels can cause:

• GaN or LDMOS device breakdown
• Over-voltage on matching networks and bias circuits
• Unwanted oscillation or unstable pulse shapes

Placing an RF isolator between the PA and antenna allows reverse power to be absorbed in a controlled load, dramatically improving transmitter resilience.

4.2 T/R Duplexing in AESA Radars

Active electronically scanned arrays (AESA) replace a single high-power transmitter with many small T/R modules. Each module may use a circulator for local duplexing of transmit and receive signals:

• TX port connected to a solid-state PA
• ANT port connected to a single array element
• RX port connected to an LNA and receiver chain

This approach improves system redundancy and beam agility but also increases the number of circulators in the design, making size, loss and thermal performance even more important.

5G and emerging 6G systems rely on wideband, highly linear RF front-ends. Circulators and isolators help maintain linearity and protect integrated RF ICs in dense layouts.

5.1 Massive MIMO and Beamforming Arrays

Massive MIMO arrays place many antenna elements and PAs close together, which can lead to problematic coupling and reflections. Circulators and isolators:

• Reduce mutual coupling between adjacent channels
• Improve EVM and ACLR by stabilizing impedances
• Help maintain consistent beam patterns over time and temperature

5.2 Microstrip and SMT Isolators in Compact Designs

Microstrip and SMT isolators offer:

• Very small footprints suitable for compact PCBs
• Broadband performance for carrier aggregation
• Integration into modules that also include filters, mixers and PAs

By absorbing reflections at the PA output, they allow designers to operate closer to compression, improving overall efficiency without sacrificing linearity.

RF circulators and isolators are indispensable in R&D labs and production test stations. They serve as “insurance policies” for expensive test equipment and as tools for improving measurement accuracy.

6.1 Protecting Sensitive Instruments

Spectrum analyzers, vector network analyzers (VNAs) and other receivers are not designed for high levels of reflected power or accidental overdrive. Coaxial isolators:

• Clamp reverse power using internal terminations
• Protect front-ends from damage during DUT failures
• Allow safer testing of devices with poor or unknown VSWR

6.2 Improving Measurement Repeatability

By presenting a more stable source impedance, RF isolators reduce the influence of DUT mismatch on the measurement system. This leads to:

• Better correlation between different test benches
• More repeatable gain, noise figure and linearity measurements
• Reduced need for complex de-embedding procedures

Industrial, scientific and medical (ISM) RF systems operate with high power and highly variable loads. RF circulators and isolators are widely used to ensure safe and stable operation.

7.1 RF Heating and Plasma Generation

RF heating, drying and plasma systems use magnetrons or solid-state PAs. Load conditions vary as material properties change during processing. Isolators:

• Protect sources from large, sudden VSWR excursions
• Absorb reflected power as the plasma ignites or extinguishes
• Improve process stability and repeatability

7.2 MRI RF Systems

MRI scanners rely on precisely shaped RF pulses transmitted into resonant coils around the patient. Load conditions change with different patients and positions. High-power isolators:

• Prevent reflected power from damaging high-power RF amplifiers
• Maintain consistent pulse shapes for accurate imaging
• Help control heating and safety margins

7.3 Particle Accelerators and Research Cavities

Particle accelerators and specialized RF cavities require custom waveguide or coaxial isolators that can handle extreme power levels and duty cycles. A failure in these systems can be very costly, so robust RF protection is essential.

Although circulators and isolators share similar physical principles, they are used in different ways in RF system design. The table below summarizes the most important differences:

RF circulators and isolators provide a unique combination of non-reciprocal signal flow, PA protection, reflection absorption, duplexing, and stability improvement. Unlike filters or couplers, they operate effectively regardless of modulation format, timing or complex dynamic load conditions.

As RF power levels increase—especially with modern GaN power amplifiers—circulators and isolators become even more important for:

• Thermal safety and device lifetime
• Maintaining linearity and spectral compliance
• Ensuring long-term system reliability in harsh environments

Q1. When should I use a circulator instead of an isolator?
Use a circulator when you need to route signals between multiple ports, such as in T/R modules or measurement setups. Use an isolator when your main goal is to protect an amplifier or source from reflections and to stabilize its load.

Q2. Can a circulator be turned into an isolator?
Yes. Terminating one port of a three-port circulator with a matched load creates a two-port isolator. Many commercial isolators use this internal architecture.

Q3. Are broadband or ultra-wideband versions available?
Modern ferrite and hybrid designs support broadband and multi-octave RF circulators and isolators that are widely used in EW receivers, wideband instrumentation and software-defined radio platforms.

Q4. What information should I provide when requesting a custom design?
At minimum, provide frequency band, bandwidth, required isolation, maximum insertion loss, continuous and peak power levels, operating temperature range, preferred mechanical format (microstrip, drop-in, coaxial, waveguide), and any special environmental or regulatory constraints.
