The evolution of radio frequency (RF) technology is tightly linked to the frequency spectrum it occupies. From L-Band navigation systems to Ka-Band satellite broadband, the role of RF isolators and circulators is crucial in enabling stable, non-reciprocal signal routing. These passive components protect sensitive receivers from reflected power, minimize insertion loss across high-gain chains, and ensure robust isolation in mission-critical environments.

This article maps the future of RF isolators across the full microwave span from L through Ka (≈1–40 GHz). We examine application drivers in defense radar, satellite communications, 5G/6G, and advanced medical/industrial systems, then outline technical trends—higher power handling, miniaturization, broadband performance, and thermal robustness—that will shape the next wave of designs.

The IEEE letter designations define widely used microwave bands. Ranges are approximate and may vary by standard/regulator.

The 1–40 GHz span captures most contemporary RF sensing and communications. Isolators and circulators in these bands must balance low loss, high isolation, mechanical robustness, and manufacturability across packaging types (microstrip, drop-in, coaxial, waveguide).

Non-reciprocal protection: Isolators enforce one-way propagation to prevent reverse energy from damaging LNAs and power amplifiers. Circulators provide directional routing (e.g., Tx→Ant→Rx), with one port terminated they function as isolators.

Low insertion loss and high isolation: Microwave links and radar front-ends demand tight noise and efficiency budgets. Typical isolation targets exceed 20–30 dB (or higher, system-dependent), while insertion loss must be minimized to maintain link margin and thermal headroom.

Packaging and integration: Surface-mount or microstrip devices fit compact 5G radios and phased-array TR modules; drop-in parts simplify mechanical assembly; coaxial types serve test/measurement and modular subsystems; waveguide designs dominate high-power X/Ku/Ka terminals and earth stations.

L/S-Band: Long-range air surveillance and weather radar value lower atmospheric attenuation and larger apertures for detection range. X-Band: A core band for fire-control radar, airborne SAR, and precision tracking; isolators must withstand pulsed high power and thermal cycling. Ku/Ka-Band: Emerging for high-resolution sensors and seeker heads; components face tighter dimensional tolerances and surface finish demands to control parasitics at shorter wavelengths.

Modern radar roadmaps trend toward AESA with densely integrated TR modules. This favors isolators/circulators with improved power handling, broadband coverage (supporting multi-mission modes), and compact footprints compatible with tile-level integration.

C-Band remains a workhorse for resilient feeder links; Ku-Band powers VSAT, aero/land mobility and broadcasting; Ka-Band underpins high-throughput satellites (HTS) and LEO/MEO constellations for broadband access and backhaul. Earth-station isolators must manage high CW/peak power while maintaining low loss and high return-loss margins over extreme thermal cycles.

With 5G/6G leveraging mmWave adjacent to Ka, isolators increasingly face cross-domain constraints: phase stability over temperature, multi-carrier linearity, and ruggedization for outdoor terminals. Qualification often includes thermal shock, random vibration, humidity, and salt-fog depending on deployment class.

MRI: L/S-band isolators stabilize Tx/Rx paths, protecting low-noise receivers and improving decoupling in multi-channel coils.

NDT & Industrial Imaging: X-band microwave imaging calls for compact, broadband isolators to separate transmit and receive chains with minimal added loss. Automotive Radar: 24 GHz (K-band) and higher-frequency sensors require miniature, SMT-friendly non-reciprocal elements for ADAS safety envelopes.

Across medical/industrial platforms, the push is toward miniaturized ferrite stacks, thin-film techniques, and LTCC integration—trading volume for higher material uniformity and tighter tolerance control.

Multiple analysts project steady growth for isolators/circulators through 2030, fueled by global 5G/6G roll-outs, satellite constellations, and radar modernization. Asia-Pacific leads in manufacturing capacity; North America and Europe maintain leadership in space-qualified and defense-grade hardware. Key trends include:

• Miniaturization: LTCC and thin-film ferrites for dense arrays and mobile terminals.
• Broadband performance: Covering adjacent bands (e.g., S+C, Ku+Ka) to reduce part counts.
• Higher power & thermal robustness: Materials and geometries tuned for elevated flux density and field uniformity.
• Co-design with TR modules: Electrical + mechanical co-optimization for phased arrays.

Note: Specific market values vary by source and update cycle; always cross-check latest analyst reports for procurement planning.

From L-band navigation to Ka-band broadband, RF isolators and circulators remain the silent guardians of modern RF systems. As spectrum usage densifies and missions converge, future devices will emphasize higher power handling, broader instantaneous bandwidth, tighter form factors, and proven reliability under environmental stress. Suppliers that pair material science advances with manufacturable packaging will set the pace for the next decade.

Q1: What is the difference between an RF isolator and a circulator?

An isolator is a two-port device that allows one-way propagation; a circulator is typically three-port, routing signals directionally (e.g., Port 1→2→3→1). Terminating one port of a circulator effectively yields an isolator.

Q2: Why are Ka-band isolators in higher demand?

Ka supports HTS and LEO/MEO broadband links and overlaps with emerging mmWave access; components must meet stricter insertion-loss, linearity and thermal requirements, driving focused R&D and qualification.

Q3: Can one isolator cover multiple bands?

Broadband designs can span adjacent bands with careful ferrite selection and geometry, but trade-offs exist among loss, isolation, size, and cost.

1. IEEE Std 521-2002, IEEE Standard Letter Designations for Radar-Frequency Bands.
2. NASA Technical Reports Server (NTRS), Ka-Band Deep Space Communication Trends.
3. U.S. Naval Research Laboratory, Ferrite Materials for Microwave Applications.

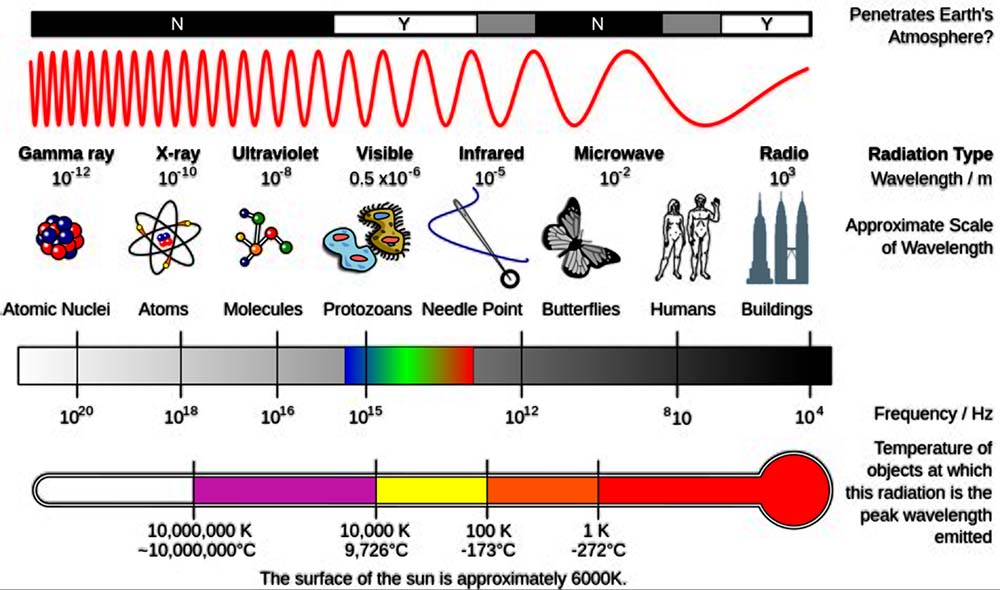

4. Wikimedia Commons, EM Spectrum Properties (edit), CC BY-SA 3.0.
