Ku-band RF circulators enable non‑reciprocal routing in satellite communications (satcom), telemetry/telecommand (TT&C), and radar. In 2025, buyers balance isolation targets of ≈18–20 dB, insertion‑loss budgets of ≈0.5–1.0 dB, and VSWR ≤1.3–1.5 across 12–18 GHz. This report summarizes selection criteria and the global supplier landscape without endorsing a specific brand.

In microwave engineering, Ku typically spans 12–18 GHz. In satcom practice, widely used downlink/uplink allocations include ~10.7–12.7 GHz (downlink) and ~12.75–14.5 GHz (uplink) for FSS/BSS, with regional variations. Circulator design focuses on low loss, stable isolation, and thermal stability across these slices.

Procurement teams evaluate suppliers along the following dimensions:

The Ku‑band circulator/isolator market remains fragmented across established microwave houses and regional specialists. Industry trackers estimate the market in the low billions USD with mid‑single‑digit CAGR through 2030. Dual‑sourcing across microstrip/waveguide and standard/broadband SKUs is common to manage schedule and risk.

Microstrip (Typical, Mini, SMT)

Interfaces directly with 50 Ω lines; ideal for compact modules. Datasheets at Ku often show IL around 0.5–0.8 dB and isolation 16–20 dB, with VSWR near 1.3–1.45 depending on stack and junction geometry.

LTCC / Ceramic

Enables multilayer integration and reduced footprint, with attention to loss dispersion and temperature drift at Ku.

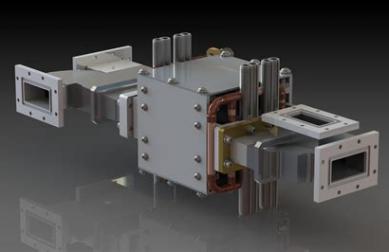

Drop‑in & Waveguide

Favored for higher‑power line‑ups and harsh thermal cycling; integration overhead traded for robustness.

Satcom Terminals & Gateways

Uplink chains (≈13–14.5 GHz) require low IL and strong isolation to protect LNAs/mixers; sink heat into chassis for bursty HPA duty cycles.

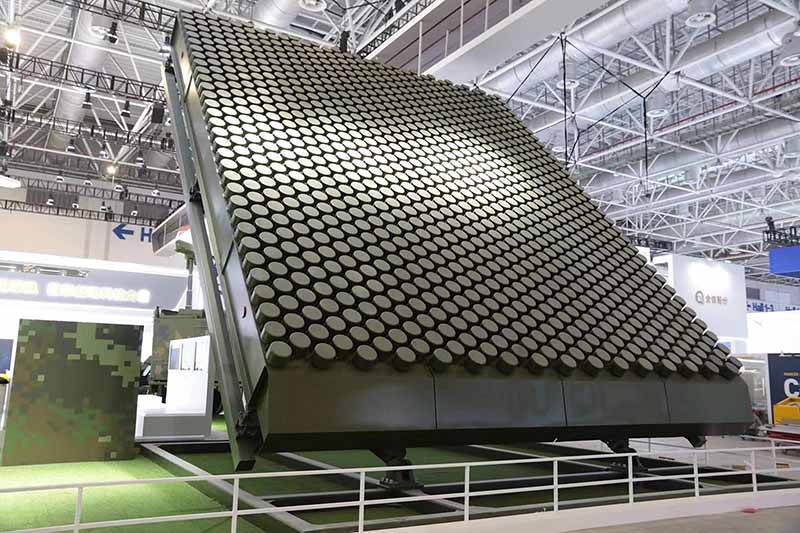

Airborne & Ground Radar

Isolation must remain stable as antenna match varies with scan angle; microstrip excels in TR modules, waveguide supports higher power apertures.

Test & Measurement

VNAs and fixtures benefit from compact, consistent circulators covering wide Ku sweeps.

Ku will remain a workhorse band for mobility satcom and radar modernization even as Ka expands. Suppliers pairing predictable lead times with robust QA and portfolio interchangeability will dominate short‑lists through 2030.

Q1: What spec targets are common at Ku?

Isolation ≈18–20 dB; IL ≈0.5–1.0 dB; VSWR ≤1.3–1.5 (verify per band/temperature).

Q2: Microstrip or waveguide?

Microstrip/SMT for compact modules; drop‑in/waveguide for HPAs and harsh thermal cycling.

Q3: Can one SKU span multiple Ku slices?

Broadband variants can, with careful attention at band edges.

• ITU‑R / ESA public materials on Ku band: definition (≈12–18 GHz) and typical satcom allocations (downlink ≈10.7–12.7 GHz; uplink ≈12.75–14.5 GHz).
• Representative Ku‑band datasheets (e.g., RF‑Lambda 12–18 GHz circulator; DiTom 8–18 GHz isolator): IL ≈0.5–0.8 dB; isolation ≈16–20 dB; VSWR ≈1.3–1.45.
• Allied Market Research & Verified Market Reports (2023–2030): market size in low billions USD; CAGR ≈4–6%.
