Waveguide isolators are indispensable RF components that ensure one‑way transmission and suppress reverse energy to protect high‑power transmitters and sensitive receivers. In 2025, demand is driven by three forces: (1) modernization of defense radar (AESA/actively scanned arrays), (2) capacity upgrades in satellite communication (especially Ka‑ and Q/V‑band), and (3) the migration of backhaul and remote sensing links to higher millimeter‑wave frequencies.

WG16 rectangular waveguide resonance isolator (CC BY-SA 3.0). Source: Wikimedia Commons user Catslash.

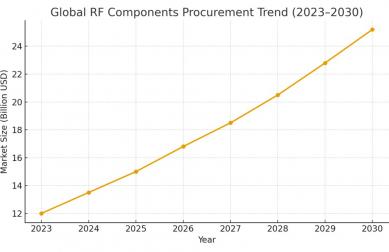

Industry analysts consistently project steady growth in the isolator segment across 2023–2032, citing the expansion of high‑power radar and satcom infrastructure. Allied Market Research, for example, estimates the global RF isolator market at $0.7B in 2022 with a projection of $1.3B by 2032 (CAGR ~5.9%). While their report spans multiple form factors (coaxial, microstrip, waveguide), the waveguide sub‑segment remains essential in high‑power and high‑frequency systems.

Our 2025 short‑list is synthesized from public specifications and program footprints, and scored qualitatively across:

• Frequency coverage & power handling (e.g., X/Ku/Ka/Q/V/W band options; CW/peak ratings)
• Insertion loss, isolation & VSWR across temperature and bias conditions
• Qualification pedigree (space/environmental screening, compliance with ECSS/ESCC/EMC)
• Lead time & global support (design‑to‑order, spares, documentation depth)

Note: This is not an endorsement; always request the latest FAI data, test curves, and environmental reports for your exact configuration.

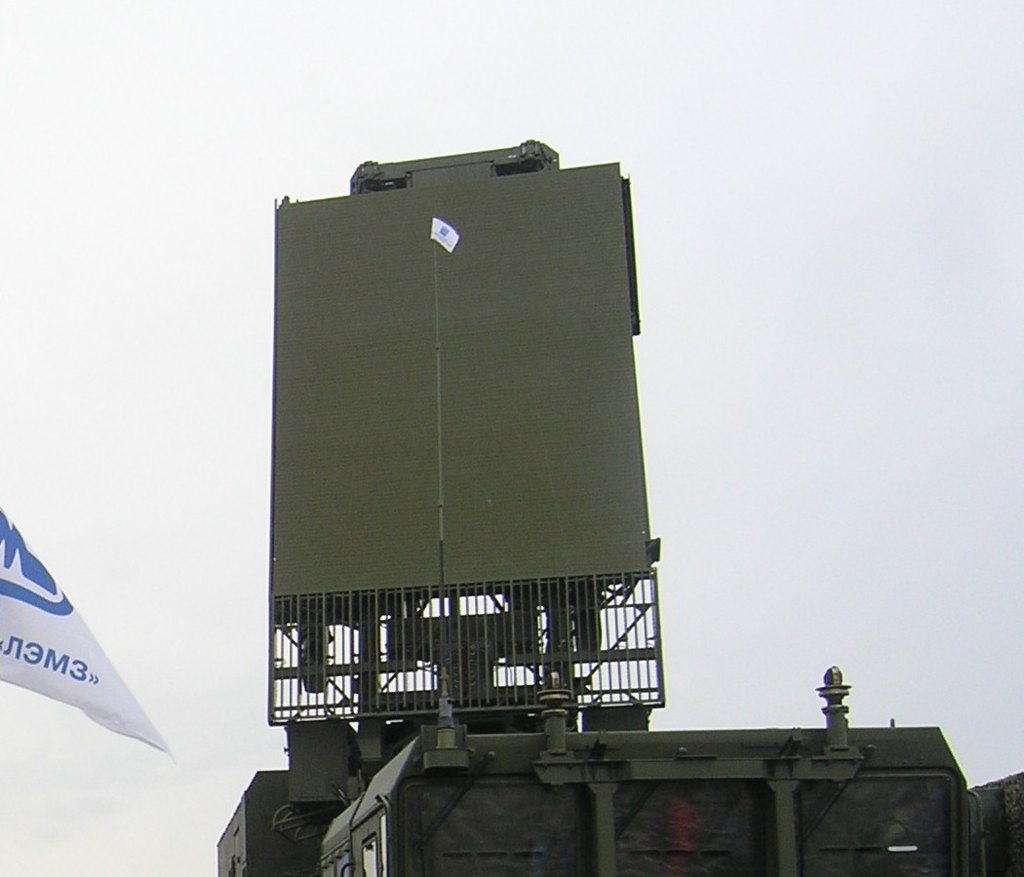

Active phased‑array radar antenna (CC BY 3.0). Source: Wikimedia Commons.

Radar (AESA/APS) — Waveguide isolators stabilize TR modules and protect GaN HPA stages from reflected energy, improving array reliability and calibration repeatability. In pulsed chains, isolators reduce ringing and standing waves between the power amplifier and the antenna feed network.

Satcom (Ground & Payload) — Ka‑band gateways and Q/V‑band experiments demand low‑loss isolation under thermal drift and rain‑fade dynamics. Isolators are commonly placed at feed networks, high‑power amplifier outputs, and test injection points to protect LNAs and ensure link stability.

Circulator‑based isolator schematic (CC BY‑SA 4.0). Author: VK Vivien via Wikimedia Commons.

• Performance metrics: Isolation (typically >20–30 dB, application‑dependent), insertion loss (as low as 0.2–0.5 dB in X/Ku; higher at W‑band), and return loss/VSWR over temperature and bias.
• Space & EMC: ECSS standards (e.g., ECSS‑E‑20‑01 multipaction design/test; ECSS‑E‑ST‑20‑07 electromagnetic compatibility) guide margining, screening, and acceptance for space programs.
• Failure mechanisms: ESA‑funded TRP studies highlight fatigue and stress mechanisms in low‑power ferrite devices used as circulators/isolators; derating and screening are essential for reliability.
• Technology notes: While ferrite isolators dominate, historical NASA studies explored semiconductor/plasma‑based waveguide isolators at W‑band; ferrite remains preferred for power handling and loss.

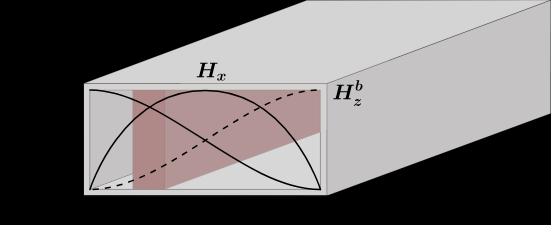

Resonance isolator in rectangular waveguide topology (CC BY‑SA 4.0). Source: Wikimedia Commons.

• Toward higher bands: W‑band isolators for 6G backhaul and high‑resolution radar are under active development.
• Integration & miniaturization: Tighter packaging for UAV/CubeSat payloads drives custom WR flanges and thermal solutions.
• Design for reliability: Greater emphasis on multipaction, EMC, and environmental screening per ECSS/ESCC; early supplier engagement shortens DVT cycles.

Q1: Why choose waveguide over coaxial isolators at high power?

Waveguide paths support higher peak/CW levels with lower loss and better thermal behavior at mmWave frequencies, which is critical in radar and Ka/Q/V‑band satcom.

Q2: What should procurement request from suppliers?

Full S‑parameter sets across temperature, isolation vs. bias curves, power derating, multipaction/EMC evidence, and environmental test reports aligned to your mission profile.

Q3: Are semiconductor/plasma isolators viable?

Research exists at W‑band, but ferrite devices generally remain favored for power handling and loss in deployed systems.

1. Allied Market Research. “RF Isolator Market Size and Forecast 2023–2032.” Report page.
2. ECSS‑E‑20‑01A Rev.1. Space engineering — Multipaction design and test. ESA‑ESTEC, 2013. PDF.
3. ECSS‑E‑ST‑20‑07C Rev.2. Space engineering — Electromagnetic compatibility. ESA‑ESTEC, 2022. PDF.
4. ESA/ESCC. “Failure mechanisms of low‑power ferrite devices (circulators/isolators).” Paper (ESCIES).
5. NASA NTRS. Hayes, R. E. (1969). Waveguide isolator employing a semiconductor annular plasma column. PDF.
6. NASA NTRS. Kanda, M. (1971/1974). Non‑reciprocal waveguide isolators at millimeter wavelengths. PDF; Record.
7. Schlömann, E. (2000). Advances in ferrite microwave materials and devices. ScienceDirect.
8. Tang, T. et al. (2024). “Design of an X‑band circulator–isolator for high‑peak‑power applications.” Open‑access article.
9. ESA. “ESA / SCC Specifications for Ferrite Microwave Components (superseded by ESCC).” ESCIES portal.
