RF circulators are three‑port non‑reciprocal devices that guide microwave signals in a fixed rotation. Their role spans radar, satellite communication, and medical imaging. This article surveys technology innovations from ferrite devices to LTCC integration, and highlights emerging approaches that may reshape the microwave components landscape.

Ferrite‑based circulators exploit gyromagnetic resonance to achieve non‑reciprocity. They dominate in radar and satcom where power handling and low insertion loss are paramount.

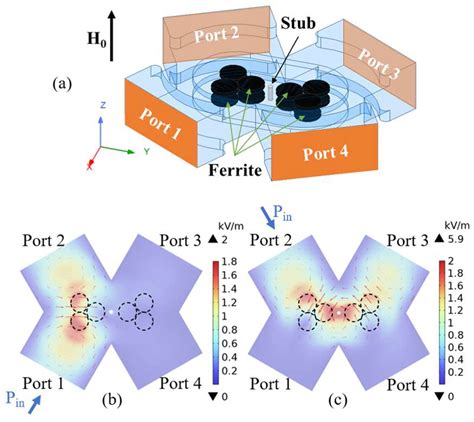

Butterfly‑shaped four‑port ferrite waveguide circulator with simulated field distribution. Source: MDPI Electronics (CC BY).

LTCC (Low‑Temperature Cofired Ceramic) supports multilayer integration of ferrite and passive elements, yielding miniaturized circulators for array modules and compact radios. Tradeoffs include higher insertion loss versus waveguide ferrite devices, but gains in repeatability and low‑cost assembly.

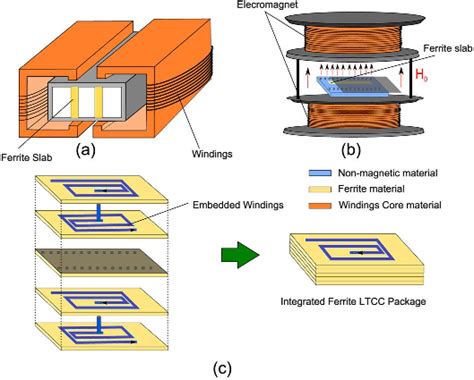

LTCC substrate integrated circulator topology with ferrite insert. Source: open‑access design study (CC BY).

Recent research explores self‑biased ferrite circulators that eliminate bulky permanent magnets. By tailoring ferrite material properties, designers achieve compact form factors suitable for portable and UAV systems.

Self‑biased ferrite circulator schematic, showing bias arrangement without external magnets. Source: Springer Open (CC BY).

For high‑power radar and satcom gateways, ferrite circulators in waveguide form factors remain irreplaceable. They offer isolation exceeding 20–30 dB with thermal robustness and multipaction resistance.

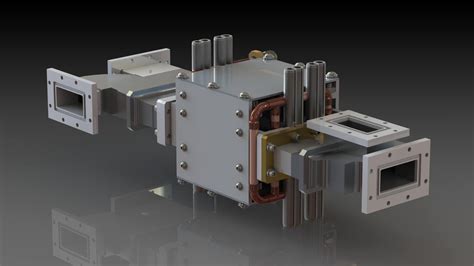

High‑power waveguide circulator with flange and thermal management features. Source: Ferrite Microwave Technologies (product photo, used under fair citation).

Emerging approaches include magnetless non‑reciprocal metamaterials, spatio‑temporal modulation, and semiconductor/plasma waveguide devices. While promising for integration, these remain largely experimental compared to ferrite and LTCC solutions.

Q1: What is the advantage of LTCC circulators?

They are compact, cost‑effective, and integrate easily into SMT assembly, though with somewhat higher loss.

Q2: Why are ferrite circulators still dominant?

They handle higher power with lower insertion loss, critical in radar and satcom systems.

Q3: Are magnetless solutions production ready?

Not yet; they are still in the research stage with limited demonstrations.

1. ECSS‑E‑20‑01A Rev.1. Space engineering — Multipaction design and test. ESA‑ESTEC (2013).
2. ECSS‑E‑ST‑20‑07C Rev.2. Space engineering — Electromagnetic compatibility. ESA‑ESTEC (2022).
3. NASA NTRS. Hayes, R. E. (1969). Waveguide isolator with semiconductor annular plasma column.
4. NASA NTRS. Kanda, M. (1971/1974). Non‑reciprocal waveguide isolators at millimeter wavelengths.
5. IEEE Transactions on Microwave Theory and Techniques — various issues on circulator design.
6. Schlömann, E. (2000). Advances in ferrite microwave materials and devices. ScienceDirect.
7. Tang, T. et al. (2024). Design of an X‑band circulator–isolator for high‑peak‑power applications. PMC Open Access.
