The arrival of 5G has transformed the way the world communicates, enabling ultra-fast connectivity, low latency, and the foundation for technologies such as autonomous driving, smart cities, and large-scale IoT. Behind this breakthrough lies a complex ecosystem of RF (radio frequency) components that ensure stable, reliable signal transmission. Among them, RF isolators are often overlooked, yet they play a crucial role in protecting sensitive circuits, reducing interference, and enabling the robust performance that 5G demands.

In this article, we outline 10 essential things engineers must know about RF isolators in 5G systems—covering their function, materials, design challenges, and future role in 6G and beyond. Use this guide as a practical checklist during design reviews and supplier selection.

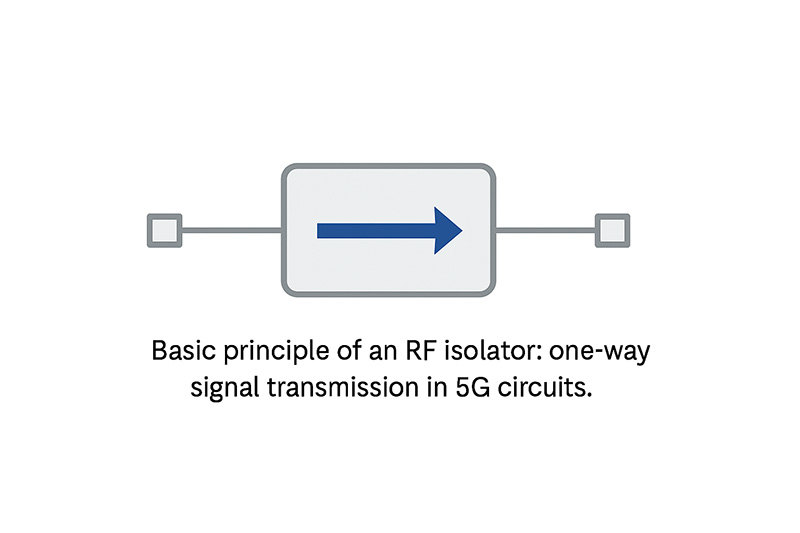

RF isolators are non-reciprocal two-port devices designed to transmit RF signals in one direction while blocking reverse signals. In 5G base stations, this ensures that reflected signals from antennas do not damage sensitive equipment like power amplifiers. By acting as a “one-way street” for signals, isolators safeguard system integrity and maintain consistent performance even under heavy load conditions.

Where They Sit in the Chain

Isolators are commonly placed at the output of power amplifiers, between filters and antennas, or near duplexers and T/R modules. Strategic placement reduces VSWR-related issues and stabilizes gain across temperature and load variations.

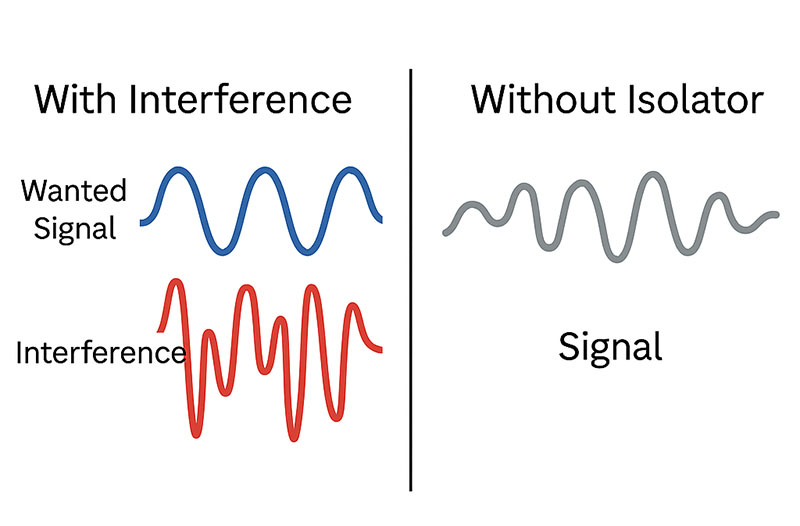

In dense urban environments, co-channel interference is one of the biggest challenges for 5G operators. Isolators suppress unwanted reflections and minimize standing waves, improving the signal-to-noise ratio (SNR). This function is especially critical in massive MIMO and beamforming systems, where interference can severely degrade communication quality.

Key Benefits for Network KPIs

• Improved EVM and ACLR performance
• Reduced intermodulation distortion from load mismatch
• Higher link reliability in multi-beam deployments

Reliability is not just a convenience—it is the backbone of telecom infrastructure. An unreliable isolator can cause equipment downtime, costly repairs, or degraded service. High-quality isolators are built to withstand harsh weather, wide temperature ranges, and high-power operation. For telecom providers, investing in reliable isolators translates to lower maintenance costs and improved customer satisfaction.

Environmental & Lifetime Factors

• Wide operating temperature (e.g., −40 °C to +85 °C or higher)
• Robust magnetic bias stability over time
• Sealed housings against moisture and particulates

Though often mentioned together, isolators and circulators serve distinct functions:

• Isolators: Two-port devices that enforce one-way transmission.
• Circulators: Three-port devices that direct signals sequentially from port to port.

In 5G design, circulators are typically used for duplexing (separating transmit and receive paths), while isolators primarily serve as protective elements. Engineers must choose appropriately depending on the architecture of the system.

5G spans both sub-6 GHz microwave bands and millimeter-wave (mmWave) frequencies above 24 GHz. Designing isolators for these bands is highly challenging:

• Sub-6 GHz isolators must offer wide bandwidth and low insertion loss.
• mmWave isolators need extreme precision in manufacturing and material quality to achieve low-loss, compact performance.

As 5G networks evolve, isolator design must keep pace with expanding frequency demands.

At the heart of most isolators lies ferrite material, which interacts with magnetic fields to create non-reciprocal behavior. The properties of ferrite—such as saturation magnetization and magnetic linewidth—directly affect isolation, insertion loss, and power handling. Research from institutions like the U.S. Naval Research Laboratory (NRL) and IEEE studies continues to push ferrite performance, ensuring isolators can meet 5G and future 6G requirements.

Material Parameters that Matter

• Saturation magnetization (4πMs)
• Linewidth (ΔH) and quality factor (Q)
• Thermal coefficients affecting bias and resonance

5G base stations often operate at high power, and isolators must handle significant thermal loads. Poor thermal management can lead to performance degradation or failure. Advanced designs incorporate heat sinks and thermal pads, high-power ferrite materials, and optimized housings for better heat dissipation. Effective thermal management ensures stable performance over long operating hours.

Design Checklist

• Verify insertion loss vs. temperature
• Assess continuous-wave vs. peak power limits
• Model heat paths and interface materials

The push for smaller, lighter devices has led to compact microstrip isolator designs. However, miniaturization comes with trade-offs: lower power capacity, reduced immunity to electromagnetic interference (EMI), and narrower bandwidth than larger designs. Balancing size with performance is a key challenge for engineers developing compact 5G devices.

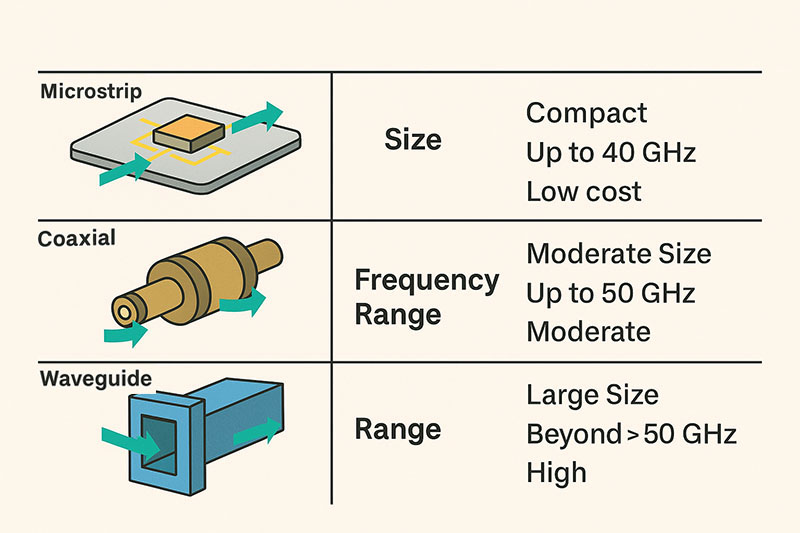

When to Choose Microstrip vs. Coaxial/Waveguide

• Microstrip: Best for compact, integrated layouts with moderate power.
• Coaxial: Good compromise between power and footprint.
• Waveguide: Superior power handling and loss at mmWave, larger size.
• Drop-In: Balanced trade‑off for modular subassemblies; robust grounding and straightforward screw‑mount integration.

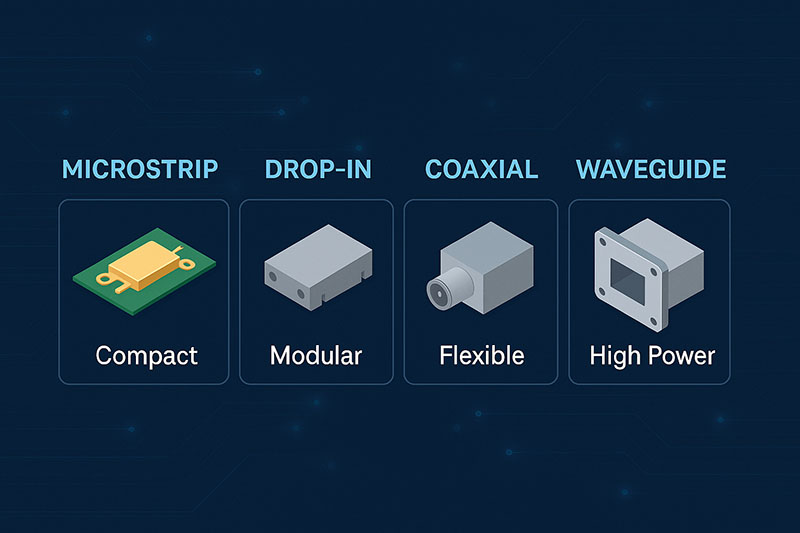

Form Factors: Microstrip, Drop-In, Coaxial, Waveguide

Selecting the proper form factor is a trade‑off among size, bandwidth, power handling, thermal paths, and assembly method. Below is a quick engineering comparison to guide 5G base‑station and module design decisions.

• Need smallest footprint? Choose microstrip; validate EMI susceptibility in system‑level tests.
• For modular builds and robust grounding, drop‑in is a balanced choice.
• If you need flexible cabling and serviceability, coaxial simplifies assembly and maintenance.
• For highest power and lowest loss at mmWave, waveguide is the go‑to—accept the size trade‑off.

Choosing the right supplier is as important as the component itself. Engineers should evaluate proven expertise in ferrite material development, precision machining and assembly capabilities, testing and verification at both microwave and mmWave frequencies, and global logistics and supply chain stability. Working with experienced suppliers ensures quality and long-term reliability in large-scale deployments.

As the world moves toward 6G, isolators will face even more demanding requirements. Frequencies are expected to extend into the terahertz range, and isolators must provide ultra-low loss, high reliability, and compact form factors. Studies from NASA Technical Reports and market research suggest that the global RF isolator market could grow substantially by 2033, driven by 6G, satellite communications, and defense applications.

While often hidden deep inside telecom infrastructure, RF isolators are vital for the success of 5G networks. From reducing interference to protecting high-value components, they form an invisible backbone that ensures reliability and performance. As 6G and other advanced technologies emerge, the importance of isolators will only grow, making them a cornerstone of next-generation connectivity.

Q1: What is the primary function of an RF isolator in 5G?

It prevents reflected signals from damaging sensitive components, ensuring one-way signal transmission and stable operation.

Q2: How are RF isolators different from circulators?

Isolators are two-port one-way devices; circulators are three-port routing devices commonly used for duplexing.

Q3: Why are ferrite materials important?

Ferrite properties determine key parameters including isolation, insertion loss, power handling, and temperature stability.

Q4: Are isolators relevant beyond telecom?

Yes—isolators are widely used in radar, satellite, aerospace, and medical imaging (e.g., MRI) to protect components and ensure clean signal flow.

1. IEEE Xplore — Research on ferrite-based non-reciprocal devices.
2. U.S. Naval Research Laboratory — Ferrite Devices for Microwave Systems.
3. NASA Technical Reports Server — Advances in microwave circulators and isolators.
4. MarketsandMarkets — RF Component Market Outlook 2025–2033.
