RF isolators—non‑reciprocal devices designed to pass energy in one direction while strongly attenuating the reverse—have become indispensable in modern RF & microwave systems. From base‑station radios and phased‑array radar to satellite transponders, isolators protect LNAs and PAs, tame standing waves, and improve link stability across L‑, S‑, C‑, X‑, Ku‑, and Ka‑bands.

China has emerged as a major manufacturing base for ferrite‑based isolators and circulators, combining cost‑effective production with increasingly sophisticated R&D. This report examines where China’s RF isolator manufacturers stand relative to international leaders, and how OEM/ODM collaboration models are shaping procurement decisions worldwide.

The global RF isolator market is propelled by multiple vectors: densification of 5G/6G networks, higher front‑end linearity in massive‑MIMO, the proliferation of SATCOM gateways and user terminals, and sustained defense investments in multifunction radar. These applications require isolators with a fine balance of insertion loss, isolation, VSWR, and power handling, all while maintaining stable performance across temperature, vibration, and duty cycles.

• Telecom (5G/6G): Compact microstrip and drop‑in isolators protect active stages within transceiver modules and RRUs.
• Radar & EW: Coaxial and waveguide types deliver higher power handling and broader operational margins for pulsed systems.
• Satellite: Ka‑band waveguide isolators in payloads and ground segments minimize inter‑module interference and preserve link budgets.

International incumbents have long supplied aerospace and defense programs with space‑qualified and high‑power components. Meanwhile, China‑based suppliers are closing the gap quickly, offering competitive RF & microwave components with compelling OEM/ODM options and faster lead times.

China’s rise is driven by three reinforcing vectors: robust materials supply, scale manufacturing, and a growing base of RF engineering talent. Ferrite ceramics and permanent magnets are sourced at competitive costs, while modern tuning and test setups—VNA‑based S‑parameter sweeps, temperature soaks, and automated QA—have been widely adopted. Together, these enable reliable series production with tighter distribution on IL/Isolation metrics.

1. Materials & Process: Mature ferrite recipes, low‑loss dielectrics, and surface finishing/assembly processes suited for mass production.
2. Design & Simulation: EM tools for miniaturization, broadbanding, and temperature compensation speed up DVT cycles.
3. Supply Chain & Cost: Clustered ecosystems reduce logistics overhead and improve availability of machined parts and magnets.

For many programs, China‑based suppliers deliver an attractive combination of performance‑per‑dollar and time‑to‑integration, especially when OEM/ODM engagement is on the table.

Manufacturing Flow

Typical flows encompass ferrite selection & magnetization, assembly, soldering/bonding, preliminary tuning, environmental seasoning, and final tuning. Acceptance testing uses calibrated VNAs and automated fixtures to verify S‑parameters, power handling, and VSWR across temperature.

Quality & Reliability

Suppliers aiming beyond commercial telecom incorporate burn‑in, random vibration, thermal cycling, and humidity exposure as needed. Quality systems (e.g., ISO 9001) and lot‑traceability reduce field risk and support long‑term spares.

Form Factors & Band Coverage

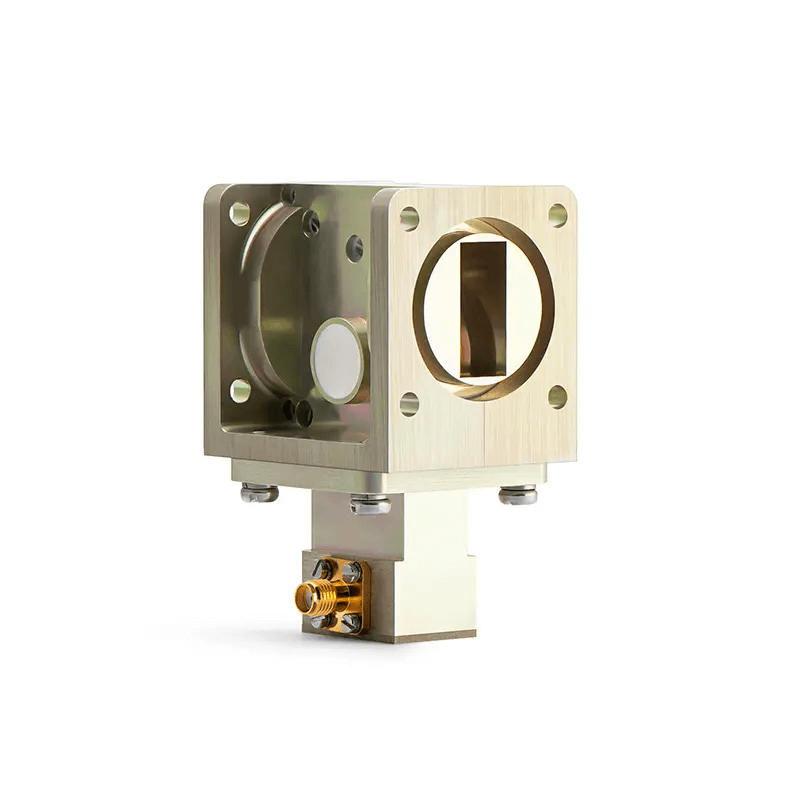

Microstrip (SMT) suits compact radio boards; see microstrip circulators & isolators. Drop‑in fits module‑level integration in shielded housings; see drop‑in family. Coaxial provides robust power handling and bandwidth, while waveguide targets Ku/Ka; see waveguide.

Across L/S/C/X/Ku/Ka, design goals balance IL, isolation, and return loss, with power handling and temperature stability set by materials and geometry. Tight repeatability reduces module‑level re‑tune during OEM assembly.

Among China RF Isolator Factory and Manufacturers, HzBeat positions itself as a global‑ready supplier delivering custom RF & microwave components from 20 MHz to 200 GHz. The company offers microstrip, drop‑in, coaxial, and waveguide formats and supports full OEM/ODM workflows—from requirement capture and EM co‑design to pilot runs and ramp‑to‑volume.

• Custom Design & OEM/ODM: Rapid DFM feedback, band‑specific optimization (L to Ka), and packaging tuned to integration constraints.
• Performance Targets: Low IL, high isolation, tight VSWR; options for higher power, temperature compensation, and sealed variants.
• Documentation: S‑parameter data, mechanical drawings, environmental test results on request; integration notes to shorten bring‑up.

As front‑end modules absorb more functionality, isolators must co‑evolve: smaller footprints, better thermal paths, and wider instantaneous bandwidth to accommodate carrier aggregation and agile waveforms. Three themes dominate roadmaps:

1. Higher Integration: Co‑packaging with PAs or LNAs to shorten interconnects and improve stability.
2. Miniaturization: Geometry and material tweaks reduce IL while maintaining isolation in SMT footprints.
3. Qualification: For space and airborne platforms, environmental and radiation data sets become decisive differentiators.

In this landscape, OEM/ODM partnerships reduce risk: suppliers iterate quickly on prototypes, validate jointly with customer fixtures, and freeze designs with shared quality gates—resulting in faster time‑to‑integration without sacrificing RF performance.

What makes a “China RF Isolator Factory” competitive globally?

A repeatable process window (materials, magnetization, tuning), robust QA, and the ability to translate requirements into manufacturable geometry within weeks. OEM/ODM flexibility and transparent test data build trust.

Is waveguide always better for Ka‑band?

Not always. Waveguide offers excellent power and low loss, but compact coaxial or hybrid approaches may fit better in terminals. Evaluate link budgets, thermal design, and mechanical constraints before committing.

How should buyers compare multiple manufacturers?

Use a scorecard: band coverage, IL/Iso/VSWR targets, power and temperature specs, lead time, QA certificates, test data availability, and NRE/MOQ terms. Shortlist two to three vendors for sample evaluation.

1. General design practices for ferrite isolators and circulators (non‑reciprocal devices) in standard RF textbooks and peer‑reviewed articles.
2. Public manufacturer datasheets and application notes for microstrip, drop‑in, coaxial, and waveguide isolators.
3. Open technical resources on SATCOM, radar, and 5G RF front‑end integration and link budgeting.
