The Ka‑Band, defined as 26.5–40 GHz, sits above Ku and below Q/V. Compared with Ku, Ka allows smaller antennas and higher throughput; compared with Q/V, Ka enjoys more mature technology and less severe rain fade. ITU and national regulators control allocations tightly, making Ka‑Band both an opportunity and a licensing challenge. Commercial operators require country‑specific approvals for gateways, which impacts deployment pace.

Isolators in this band are not optional; they are fundamental protection devices. A reflected signal at Ka can damage amplifiers, destabilize arrays, or desensitize receivers. As link budgets grow tighter, isolators ensure predictable performance. This article expands on drivers, applications, product trade‑offs, and sourcing factors shaping the Ka‑Band isolator market through 2033.

High‑Throughput Satellites

HTS/VHTS systems with hundreds of beams push IL specs to the limit. Even 0.2 dB extra loss per component can erode capacity. Viasat‑3 and SES mPOWER are examples where Ka‑Band dominates payload architecture.

Constellations

LEO/MEO projects like Starlink and OneWeb multiply isolator demand. Each sat may have dozens of TR modules, each with one or more isolators. On the ground, phased array terminals require embedded drop‑in units.

Defense

WGS and NATO modernization emphasize Ka for secure broadband. Defense demands extreme reliability, MIL‑STD qualification, and long‑term supply stability.

Mobility

Aviation IFC and maritime VSAT rely on Ka. Isolators must endure vibration, moisture, and temperature shifts. Suppliers are tailoring coaxial and microstrip parts for these harsh conditions.

Ground Infrastructure

Gateways are upgrading amplifiers and RF chains. Waveguide isolators, with IL below 0.3 dB and power handling above 100 W, dominate. Demand scales with global gateway rollouts.

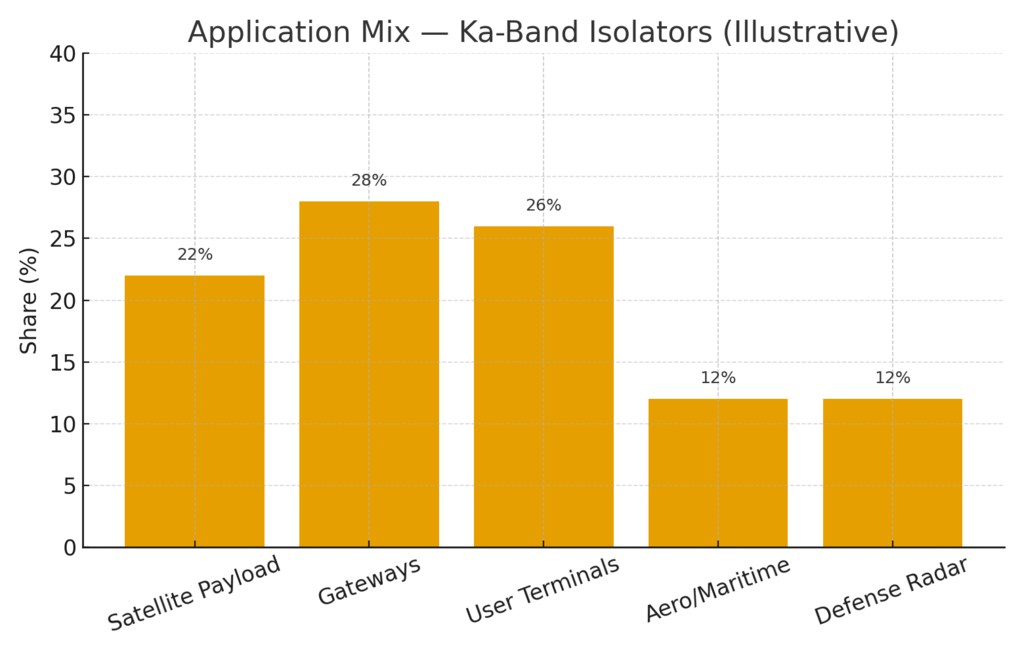

Figure 1. Application mix for Ka‑Band isolators (illustrative shares). Source: HZBEAT (2025).

Payloads: Focus on TT&C, beamforming, and HPAs. Radiation and thermal resistance required.

Gateways: High power waveguide parts, often custom. MTBF above 100k hours demanded.

User Terminals: Cost sensitive; microstrip isolators embedded on PCBs. IL must be <0.7 dB.

Aero & Maritime: Ruggedized designs tested to DO‑160, salt fog, vibration. Reliability critical.

Defense Radar: Ka radars for seekers and AESA. Isolation and survivability prioritized.

• Waveguide: IL <0.3 dB, power up to 200 W. Best for gateways/payloads. See HZBEAT waveguide isolators.
• Coaxial: IL 0.4–0.6 dB, power ~40 W. Fits labs, transportables. See HZBEAT coaxial isolators.
• Microstrip/Drop‑In: IL 0.6–0.8 dB, isolation 18–22 dB. PCB embedded. See HZBEAT microstrip isolators.

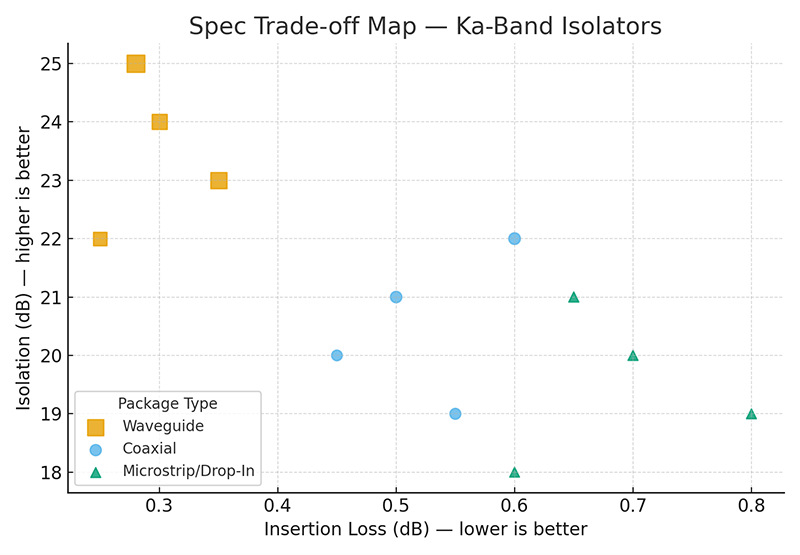

Figure 2. Spec trade‑off map (IL vs Isolation vs Power).

Source: HZBEAT (2025).

Trade‑offs: every 0.1 dB IL reduces throughput; higher isolation may cap power. Thermal performance ranges: microstrip –40 to +85 °C, waveguide up to +125 °C. Designers should demand qualification and derating data.

Figure 3. Lead time vs unit price (illustrative scatter).

Source: HZBEAT (2025).

• Materials: Ferrites and rare‑earth magnets tie to geopolitics. Rare‑earth‑free R&D may shift cost curves.
• Process: Sintering, magnetization, and tuning drive yield variability. Process control reduces delays.
• Qualification: TVAC, shock, vibration extend lead times. Defense/aero parts can take 20–30 weeks.
• Customization: NRE adds cost, but volume drops unit price. Standard parts faster but less optimized.
• Regional Supply: Asia leads volume; US/EU dominate space‑grade. Dual‑sourcing reduces risk.

Technology

LTCC, additive manufacturing, and rare‑earth‑free ferrites may cut size and cost. Integration with active circuits is emerging.

Regions

APAC drives volume, Europe excels at space‑grade, US leads defense. Africa/LatAm add gateway demand.

Competition

Mix of SMEs and primes. M&A likely for vertical integration of ferrite and machining.

Investment

6G NTN and hybrid optical‑satellite terminals may open new isolator demand. Investors seek lower IL, compact designs.

Q1: Why not Ku?

Ka offers more capacity and smaller antennas but suffers rain fade. Isolators maintain robustness.

Q2: Package choice?

Waveguide for power/low IL; microstrip for PCB; coaxial for labs/moderate power.

Q3: Lead time control?

Freeze requirements, keep safety stock, and dual source. Expect 20–30 weeks for custom waveguide.

Q4: Linearity?

Poor isolators can add IMD. Check vendor data when near PA saturation.

Q5: 6G NTN?

Yes, 6G visions highlight NTN at Ka+. Ka will remain central for coverage and economics.

1. ITU‑R regulations on Ka‑Band satellite allocations.
2. 3GPP TRs on NTN and satcom backhaul.
3. EuMW / IEEE MTT‑S proceedings on ferrite devices.
4. Pozar, Microwave Engineering.
5. NSR and Euroconsult market briefs.
