“Low insertion loss” only matters relative to everything around it: connectors, PCB launch parasitics, harness length, and temperature. In a radio unit or radar T/R chain, the total path using a circulator may beat an “isolator‑only” route if it removes switches/filters or shortens coax runs. Conversely, in PA‑protect stages, a compact isolator routinely wins because its two‑port simplicity reduces pad‑to‑pad parasitics and stray coupling.

• Corner‑case budgeting: Analyze IL at two temperatures (ambient & max enclosure) and two impedances (50 Ω ± jX). Flag branches where ∆IL > 0.4 dB or ISO < 20 dB near the PA output.
• Frequency ripples: For octave‑class chains, small fixture errors show as IL ripple; keep ripple ≤ 0.2 dB after de‑embedding.

Ferrite non‑reciprocal parts typically fail gradually: core heating, magnet bias drift, and termination soak creep. Distinguish average vs peak power, and model duty cycles. For isolators, the internal matched load must absorb reflected energy; for circulators, hot‑spot formation depends on pulse dynamics and mismatch statistics. Validate using IR thermography at worst‑case VSWR and ambient.

• Specify average power, peak power, and max reflected power separately—with curves vs duty and pulse width.
• Use thermal vias, copper under‑fills, and rated thermal pads for drop‑ins/SMT; for waveguide, evaluate flange‑to‑chassis conduction.
• Derate ≥10–20% if airflow is uncertain; mount terminations away from heat‑sensitive components.

“Wideband” ranges from 10% fractional bandwidth in L‑band radios to octave‑class instrumentation. Circulators excel when they reduce switch count or enable duplexing without active devices; isolators excel in protecting broadband PAs that see detuned antennas across climate/aging. At Ka/mmWave, microstrip/stripline geometries fight dielectric dispersion and conductor loss—waveguide or low‑loss coaxial forms often win for efficiency.

• Prefer waveguide or coax above Ku/Ka to keep line loss manageable; reserve SMT/drop‑in for compact sub‑6 GHz modules.
• For multi‑band RUs, position band‑segmented isolators right after each PA rather than one broadband part that compromises ISO.
• When circulator size/biasing is prohibitive at mmWave, adopt dual‑path T/R with solid‑state switching and tight filtering.

Field returns seldom match lab stability plots. Broadband PAs exposed to water‑logged radomes, ice, or corroded connectors experience phase‑lag feedback through the output network. A suitably‑sized isolator (≥25–30 dB ISO in‑band) clamps load‑pull excursions, shrinking the unstable region and reducing sub‑harmonic oscillation risk. If your yield is constrained by marginal stability at hot corners, the most economical fix is often a near‑PA isolator.

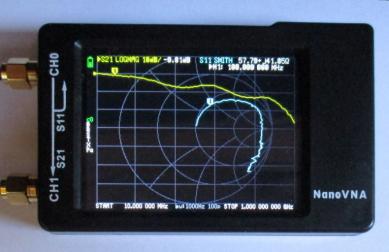

Great specs die in bad fixtures. De‑embed leads for SMT/drop‑ins; use torque wrenches for coax; warm bias/magnets to steady‑state before ISO sweeps; and sweep over temperature. For waveguide, align flanges and inspect gaskets. Cross‑check with a second port set and average sufficient IF bandwidth so ISO is not a noise‑floor mirage.

• Calibration: Follow accepted SOLT/TRL practices and kit definitions; poor reference planes show up as “mystery ripple.”
• Termination reality: For isolators, verify the internal or external load return loss—it caps achievable ISO on the bench and in the field.

Non‑reciprocal parts influence emissions and immunity indirectly. A circulator shrinks unintended back‑feed into receive paths, while an isolator lowers PA‑induced intermod leakage under mismatch. That can ease margins for FCC Part 15 and ETSI EN 301 489 families. In shared rooftops (GNSS + cellular + microwave backhaul), strategic isolation at critical nodes reduces coexistence headaches.

• SMT/Drop‑in: best for compact sub‑6 GHz modules; control pad parasitics, ground stitching, and heat‑spreading copper.

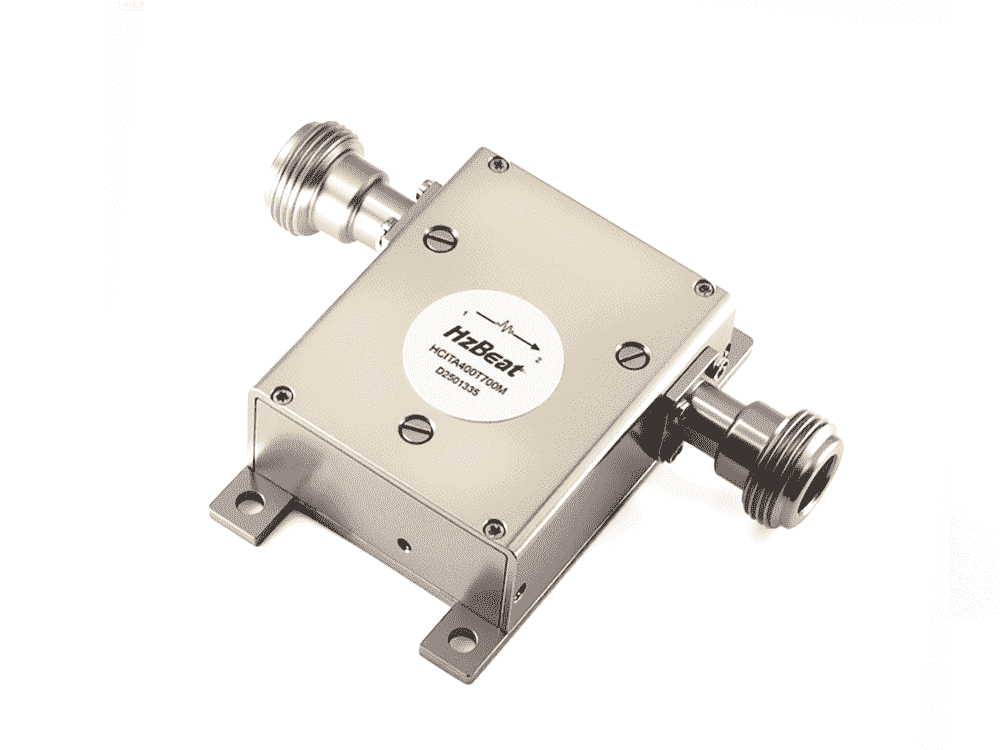

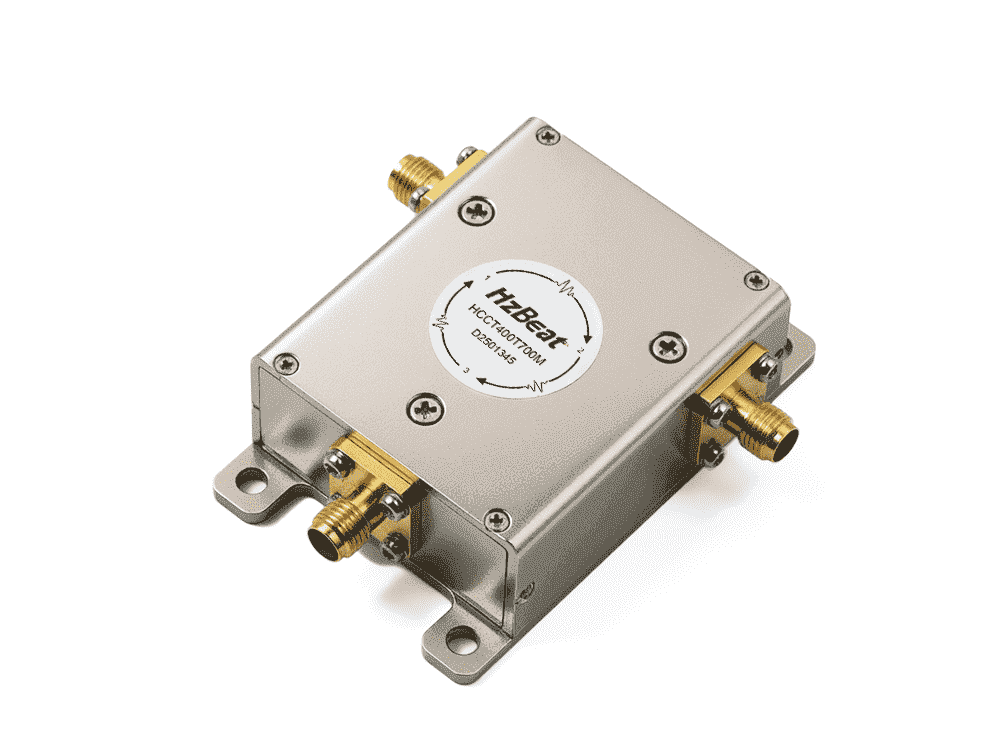

• Coaxial: fast to prototype, wide power range; connector care (torque, wear) is critical for repeatable ISO and IL.
• Waveguide: low line loss in Ku/Ka/mmWave; heavier and bigger but often mandatory for efficiency in terminals and RUs.

Bias magnets age; adhesives and terminations drift. Specify temperature‑rated magnets, validate ISO after thermal cycling, and monitor termination resistance change. From a sourcing view, lock second sources for ferrite, magnets, and loads; keep alternate flange/connector options to avoid redesign when a supplier EOLs a variant.

• Qualification: thermal shock, 1000‑hr HTOL at enclosure max, sine/random vibe, humidity, salt‑fog for maritime.
• Supply chain: dual‑source ferrite/magnet/load; keep mechanical drawings compatible with alternates.

• Target IL/ISO/VSWR vs temperature; specify min/typ/max tables.
• Average, peak, and reflected power ratings; termination soak test plan with IR monitoring.
• Form factor & interconnect (SMT/drop‑in/coax/waveguide); flange or pad patterns and torque specs.
• Measurement: de‑embedding, calibration kits, fixtures, torque, IF bandwidth, ripple limits, temperature sweeps.
• EMC/EMI: emissions/immunity impacts; coexistence risk with GNSS/Wi‑Fi/cellular on shared rooftops.
• Reliability: thermal cycling, HTOL, vibe; magnet aging/drift; load resistance drift criteria.
• Lifecycle: alternates, AVL, ferrite/magnet second sources, EOL plans; ensure drawing‑level compatibility.

Q1. How much isolation is ‘enough’ for PA protection?

Start at ≥25 dB within the PA’s main band under hot temperature; raise to ≥30 dB when antennas are known to detune or compliance margins are tight.

Q2. For mmWave, should I avoid ferrite devices entirely?

Not always. Waveguide circulators remain compelling. Where size/biasing is prohibitive, use dual‑path T/R with solid‑state switches and place isolators only where protection is mandatory.

Q3. Can a circulator replace an isolator to save loss?

Sometimes—if it reduces switch count or line length. Always model the entire chain; do not compare parts in isolation.

• Nagulu et al., “Non‑Magnetic Non‑Reciprocal Microwave Components—review and future directions,” 2021 (NSF PAR).
• Keysight, “Testing Amplifiers and Active Devices with the 8510C Network Analyzer,” app note.
• Rohde & Schwarz, “VNA calibration methods and standards,” knowledge page.
• 47 CFR Part 15 — Radio Frequency Devices, eCFR.
• ETSI EN 301 489 series (e.g., EN 301 489‑15, EN 301 489‑13), EMC requirements.
• RF Echo / Dolph / academic notes comparing waveguide vs coax at high frequency (loss & power capacity).
