Classical Lorentz reciprocity states that for linear, time-invariant, source-free media without bias, transmission from port i → j equals that from j → i. Introduce a static magnetic field and a gyromagnetic medium (ferrite), and the permeability becomes a tensor with off-diagonal terms; the symmetry collapses and Sij ≠ Sji. That is the seed of nonreciprocity used in practical RF hardware.

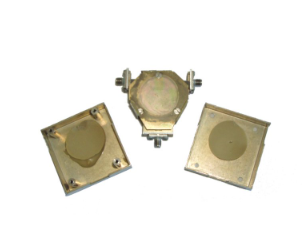

Fig.1 Ferrite circulator (disassembled). © Averse, Wikimedia, CC BY-SA 3.0/2.0 de.

Circulators: traffic circles for RF power

A three-port ferrite circulator routes power in a single rotation (e.g., 1→2→3→1). Insert a matched load on one port and you obtain an isolator. In front of a power amplifier, this protects against VSWR-induced stress, improves ACPR/EVM, and keeps the PA’s bias point stable under mismatch.

• Coaxial Circulators: rugged, connectorized, field-tolerant.
• Waveguide Circulators: low loss at high power and mmWave bands.
• Microstrip / SMT: compact, module-friendly for phased arrays.

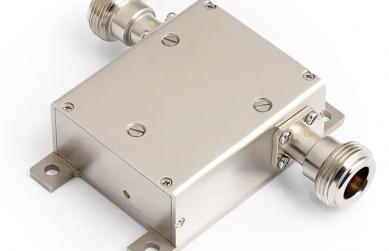

Isolators: the quiet bodyguards

Isolators pass forward power while strongly attenuating reverse energy. Faraday-rotation and resonant-absorption topologies trade bandwidth vs. power handling; selection hinges on PA wattage, thermal headroom, and band plan.

Phased-array radar & EW. Large-aperture systems push kilowatts of peak power through dense T/R modules. Nonreciprocal elements prevent leakage and duplex collapse when elements scan off-boresight or when targets and jammers spike the return. Sea-based X-band systems highlight why reverse isolation and low-loss circulation are mission-critical.

Satellite & backhaul. In Ku/Ka satellite links and E-band backhaul, tight link budgets magnify any reverse ripple. Isolators stabilize ODU PAs and protect LNAs at the feed after the OMT. Waveguide isolators and circulators are standard fixtures in these chains.

5G-Advanced → 6G front ends. As arrays densify and radios push toward FR3 and sub-THz, research explores magnet-free nonreciprocal techniques (time-variance, spatiotemporal modulation, nonlinearity) to shrink form factors that classic ferrites struggle with in silicon flows. The goal: chip-scale isolation/circulation co-packaged with PAs/phase shifters.

Ferrite components remain the workhorses for robustness and power, yet industry momentum points to hybrid futures: ferrites in high-power nodes and magnet-free nonreciprocal elements inside beamforming ICs for dense arrays. Research spans spatiotemporal modulation, MEMS, and gyromagnetic metasurfaces that lower bias needs—each trading linearity, noise, and insertion loss against integration gains.

Q1: Is nonreciprocity the same as duplexing?

No. Duplexers/multiplexers are reciprocal filters/matching networks that separate bands or ports. Nonreciprocal parts (isolators/circulators) enforce direction even at the same frequency.

Q2: How do I pick between Faraday and resonant isolators?

Use Faraday-rotation types for moderate power and broader fractional bandwidth; pick resonant-absorption for higher power density and when PA protection trumps bandwidth.

Q3: Where should the circulator sit in a T/R module?

Classically between PA and antenna switch/duplexer, with the dump port well matched and thermally managed. In waveguide feeds, place isolator(s) near the OMT or LNA input to tame reverse power under rain-fade or pointing errors.

1. University of Toronto, “Lorentz Reciprocity Theorem,” course notes (PDF)
2. LibreTexts (Steer), “Ferrite Components—Circulators and Isolators.”
3. UCSB lecture note, “Microwave Ferrites—Isolator types (Faraday & Resonant)” (PDF).
4. Asadchy et al., “Tutorial on Electromagnetic Nonreciprocity and Its Origins” (arXiv).
5. Applied Physics Letters 124, 231701 (2024), “Broadband nonreciprocal gyromagnetic metasurface.”
6. Wikimedia Commons (U.S. Navy), “Sea-Based X-band Radar (SBX-1)” image

• Fig.1 “Ferrite circulator (disassembled)” © Averse — Wikimedia, CC BY-SA 3.0/2.0 de. Image URL: https://upload.wikimedia.org/wikipedia/commons/c/c5/Ferritzirkulator2.jpg

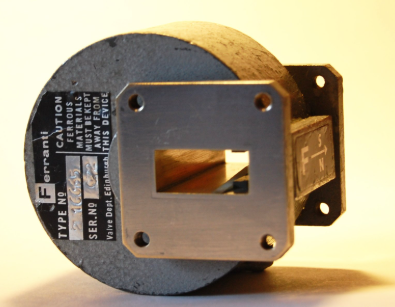

• Fig.2 “Resonant waveguide isolator WG16” © Catslash — Wikimedia, Public Domain. Image URL: https://upload.wikimedia.org/wikipedia/commons/7/7a/Isolator-%28resonance-absorption-type%29-in-WG16.jpg
• Fig.3 “SBX-1 Sea-Based X-band Radar” — U.S. Navy (Public Domain). Source
• Fig.4 “RISC-V prototype chip close-up” © Derrick Coetzee — Wikimedia, CC0 (Public Domain). Image URL: https://upload.wikimedia.org/wikipedia/commons/2/27/RISC_V_prototype_chip_-_closeup.jpg
