How RF Circulators Strengthen the Reliability of Satellite Communication Systems

Executive Summary

RF circulators route forward power and shunt reflections to Port 3 to protect power amplifiers, stabilize VSWR, and enable redundancy. Waveguide types minimize insertion loss for hubs; coaxial/microstrip suit compact terminals and phased arrays.

Shield PAs from reflection stress
Reduce AM/PM and IMD via stable loading
Support duplex/switching & built‑in self‑test
Enable N+1 redundancy without downtime

≤0.5 dB — Insertion Loss (Waveguide)
≥25 dB — Isolation Target
N+1 — HPA Redundancy

Circulator Fundamentals for SATCOM

An RF circulator is a passive, non‑reciprocal three‑port (1→2, 2→3, 3→1). Positioned between the PA and antenna, it diverts reflections to Port 3 and preserves device health. Type selection is scenario‑driven:

Waveguide: lowest loss; best power/thermal headroom for gateways
Coaxial: moderate power; compact mechanics
Microstrip (SMD/drop‑in): tight footprint for terminals and AESA tiles

Tips: Pair reverse‑power rating to worst‑case mismatch (100% reflection) and waveform crest factor.

Five Ways Circulators Improve Link Reliability

PA Protection

Transients (weather/pointing) degrade return loss; circulators preserve MTBF.

Lower IMD

Stable load reduces spectral regrowth for DVB‑S2X and multi‑carrier gateways.

Duplex & Switching

Directionality simplifies TR, calibration injection, and BIST.

Redundancy

N+1 HPA chains isolate faults and allow hot‑swap spares.

Thermal Margin

Ferrites plus heatsinking dissipate reflected energy safely.

Selecting the Right Circulator

Match technology to scenario: waveguide for hubs; coaxial/microstrip for compact terminals/AESA. Balance insertion loss, isolation, VSWR, and reverse power.

SATCOM Scenario	Recommended Type	Why It Fits	Target Specs
GEO Gateway (Ku/Ka)	Waveguide circulator	Lowest loss; high power/thermal headroom	IL ≤0.3–0.5 dB; Isolation ≥23–28 dB; VSWR ≤1.25
LEO/MEO User Terminal	Coaxial or microstrip	Compact and lightweight	IL ≤0.5–0.8 dB; Isolation ≥20–25 dB; VSWR ≤1.30
AESA TR Modules	Microstrip (SMD/drop‑in)	Tile integration; mass production	Small footprint; array‑level isolation
High‑Power Test Loops	Waveguide or rugged coaxial	Survives mismatch during sweeps	High reverse power; serviceable Port‑3 load

Integration Best Practices

Thermal design: low‑impedance heat path; follow baseplate torque and interface materials. Port‑3 load: matched, power‑rated with adequate average/peak dissipation. Impedance control: tight PCB tolerances and clean transitions. EMI/EMC & bias: keep magnetic materials away; ensure consistent biasing. Environment: validate temperature, vibration, humidity; consider coating/gaskets.

Tips: Schedule periodic torque and termination checks to maintain uptime.

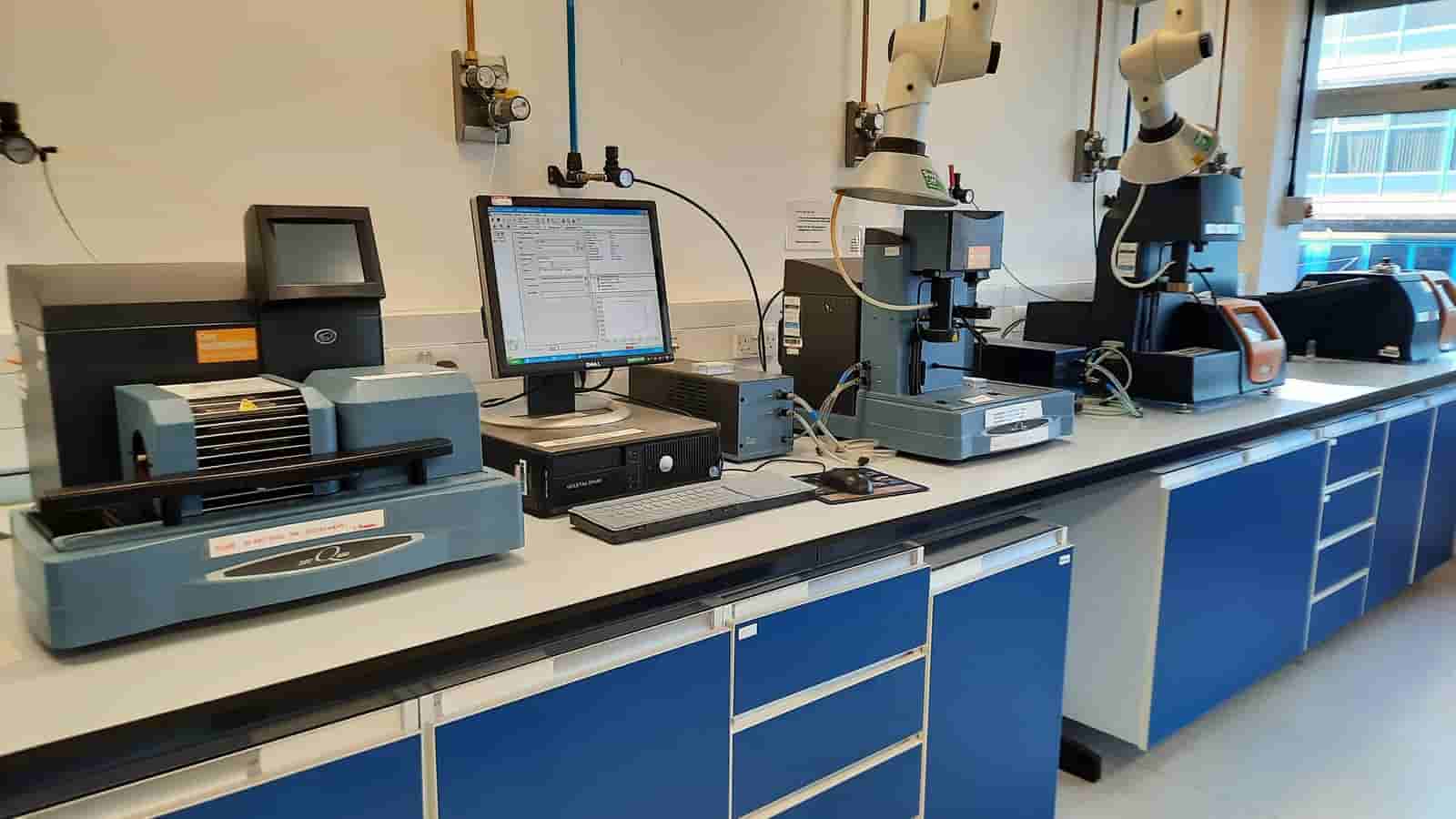

Laboratory thermal testing setup with measurement equipment — Thermal & reliability testing complements mismatch stress verification. Photo: Unsplash.

FAQ

Do I need a circulator if my antenna match is good?

Yes — real conditions degrade match (weather, pointing, icing). A circulator stabilizes the PA load under transients.

Waveguide vs. coaxial for Ku/Ka gateways?

Waveguide offers lower loss and higher power headroom; coaxial suits moderate‑power retrofits.

Can a circulator replace a duplexer?

No. Duplexers separate frequencies; circulators route by direction.

What isolation target is practical?

≥23–28 dB for many SATCOM chains; dense arrays may require additional mitigation.

How to size the Port‑3 load?

Rate for worst‑case reverse average and peak power, duty cycle, and thermal environment.

References

IEEE Microwave Theory and Techniques on non‑reciprocal ferrite devices.
ITU‑R recommendations for satellite services.
ETSI EN 302 307 (DVB‑S2/S2X) spectral and linearity considerations.
NASA RF design/testing handbooks.
