In modern medical devices, RF circulators/isolators act as silent guardians: routing high-power transmit signals towards antennas and shielding sensitive receivers from reflected power. The 2–8 GHz window, spanning S and C bands, is often adopted in experimental systems for its balance between penetration depth and resolution. In practice, rather than forcing one device to cover the entire band, engineers typically combine segmented coverage and different implementations such as waveguide, coaxial, microstrip, or drop-in.

Characteristics: Strong penetration, lower resolution.

Applications: Stroke detection, brain monitoring, deep-tissue sensing, and vital sign monitoring with portable devices.

Circulator notes: Coaxial or microstrip structures preferred for wide relative bandwidth; insertion loss more critical than isolation. Protection circuits safeguard LNAs against reflections.

Characteristics: Good trade-off between penetration and resolution, robust for imaging algorithms.

Applications: Breast imaging, dielectric property mapping, and MIMO imaging arrays.

Circulator notes: Focus on isolation and phase consistency. Implementation can use coaxial/microstrip for compact integration or segmented waveguides for low insertion loss. Frequency hopping and calibration improve stability.

Characteristics: Enhanced resolution, reduced penetration.

Applications: Shallow lesion imaging, surface tumor detection, and algorithm validation with high-frequency reinforcement.

Circulator notes: Control insertion loss and phase ripple. Segmented or ridged waveguides may be used, though microstrip and drop-in solutions remain practical for compact systems.

A single "2–8 GHz ultra-broadband waveguide circulator" is highly challenging for mass production. A more realistic approach combines segmented coverage with practical implementations—waveguide, coaxial, microstrip, or drop-in—alongside protection and calibration circuits.

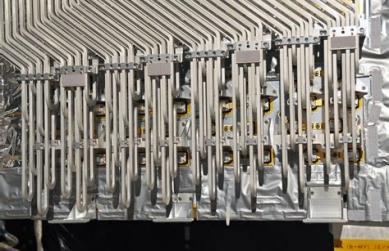

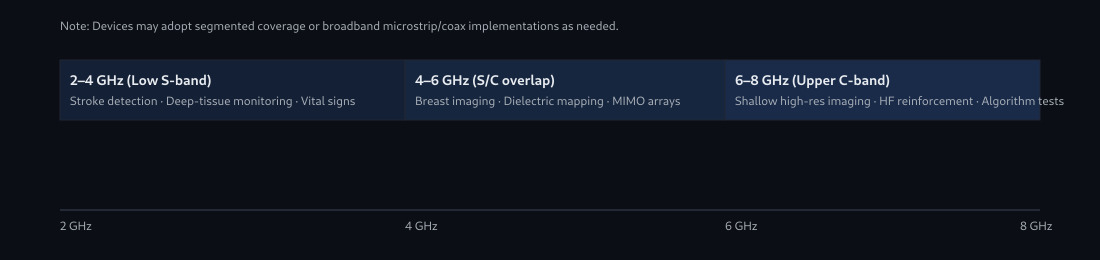

The 2–8 GHz spectrum is not a strict requirement but a useful engineering window. 2–4 GHz ensures deeper penetration, 4–6 GHz balances penetration with resolution, and 6–8 GHz enhances shallow imaging. Circulators and isolators ensure stable routing and protection across these bands, enabling doctors to obtain clearer and more reliable diagnostic results. Instead of insisting on a single ultra-broadband device, segmented design plus diverse implementations is a more realistic medical-grade solution.

Q1: Do medical devices always need ultra-broadband circulators?

No. Ultra-broadband is useful for high-resolution imaging, but mid-band plus algorithms can suffice for portable or focused devices.

Q2: Can a waveguide cover 2–8 GHz?

Very difficult in practice. Segmented waveguides or alternative implementations (coaxial/microstrip/drop-in) are used instead.

Q3: How to choose between circulator and isolator?

Use a circulator for three-port routing/duplexing; isolators offer lower loss and cost when only one-way protection is needed.

Q4: How to avoid leakage desensitizing the receiver?

Place circulators/isolators between PA and antenna switch matrix, add limiters and programmable attenuators, and calibrate across frequencies.

Q5: Is this frequency range relevant to MRI?

No. MRI operates in the MHz range and uses high-power coaxial circulators/isolators. The 2–8 GHz range is for microwave medical devices.

1. Gabriel, S. et al., "The dielectric properties of biological tissues I–III," Phys. Med. Biol., 1996.
2. Fear, E. C.; Li, X., "Microwave breast imaging" and related works, IEEE Trans. MTT / IEEE Trans. Biomed. Eng.
3. Paulsen, K. D.; Meaney, P. M., "Near-field microwave imaging," IEEE Antennas Magazine.
4. IEC 60601-1/-1-2, Medical electrical equipment safety and EMC standards.
5. EMBC/EuCAP conference papers and patents on multi-frequency and MIMO imaging.
