From legacy broadcast services in the kilohertz range to terahertz imaging and ultra-high-capacity backhaul, the electromagnetic spectrum underpins how information moves and how the world is sensed. Within this continuum, RF isolators and circulators are quiet enablers: non-reciprocal devices that enforce one-way power flow, protect sensitive receivers from reflected energy, and stabilize duplex operation. Their mission is deceptively simple—keep energy flowing in the intended direction—yet the engineering realities differ dramatically across spectrum regions, power levels, and packaging formats.

This article surveys isolator usage across the full spectrum, with emphasis on the RF to microwave and millimeter-wave regions where practical radios, radars, and imaging systems operate. We outline the frequency designations, map applications from HF/VHF/UHF to L–Ka and into mmWave/THz, explain how non-reciprocal components are tailored for each region, and summarize the material and packaging innovations likely to define the next decade.

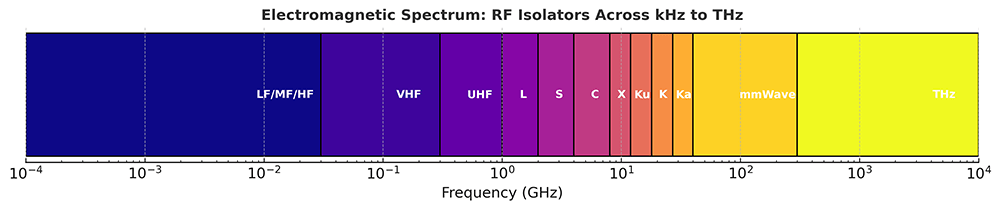

The electromagnetic spectrum spans from sub-audio fields through radio, microwaves, infrared, visible light, ultraviolet, X-rays and gamma. RF engineering typically focuses on radio and microwave (kHz–GHz), with increasing interest in mmWave and THz for high-resolution sensing and extreme data-rate communications.

An isolator is a two-port passive component enabling one-way transmission with specified isolation in the reverse direction; a circulator is a three-port device that routes power directionally (e.g., Port 1→2→3→1). By terminating one port of a circulator, it can be used as an isolator. Across bands, designers trade off insertion loss, isolation, power handling, VSWR, and size while selecting the appropriate package—microstrip/SMT for compact radios, drop-in for module assembly, coaxial for test and modular subsystems, and waveguide for high-power terminals.

Materials and biasing play a central role. Ferrite composition, magnetic bias uniformity, and plate geometry set non-reciprocal behavior; thin-film and LTCC approaches enhance miniaturization and repeatability. As frequencies rise into mmWave/THz, tolerances tighten and conductor/surface losses increase, pushing designers toward carefully machined waveguide or hybrid structures with aggressive thermal management.

At lower frequencies, component physical size tends to increase for equivalent electrical size, so discrete ferrite or coaxial packages are common. Isolators here protect high-linearity power amplifiers in broadcast chains, tactical radios, or backhaul repeaters from antenna mismatch and environmental detuning. In UHF ISM bands, compact SMT/board-level parts are often integrated adjacent to PA stages to stabilize load-pull conditions and mitigate oscillations under field deployment.

Key requirements include low insertion loss (to preserve efficiency in power-constrained systems), adequate reverse isolation (to protect LNAs and mixers), and ruggedization for outdoor duty cycles. For integration-friendly formats at VHF/UHF, vendors typically offer coaxial circulators and inline isolators with standardized connectors alongside board-mount options.

The heart of practical RF today lies in the GHz domain—radars, satcom terminals, and 5G radios rely on robust non-reciprocal elements. In L/S/C, microstrip and drop-in isolators suit compact radios and phased-array tiles; in X/Ku/Ka, higher power density and shorter wavelengths push many systems to waveguide or precision drop-in formats with tight mechanical tolerances. Typical isolation targets are >20–30 dB, while insertion loss is aggressively minimized to protect noise figure and link budget.

Phased-array AESA architectures incorporate isolators within T/R modules to decouple Tx and Rx paths and to improve stability under beam steering. Broadband variants covering adjacent bands (e.g., S+C or Ku+Ka) reduce part counts and simplify logistics. For application-aligned options, see: Microstrip Circulators, Drop-in Circulators, Coaxial Circulators, Waveguide Isolators.

Above 30 GHz, conductor and dielectric losses climb; tolerances, finish quality, and thermal paths become decisive. Isolators in FR2 bands (e.g., 26/28/39 GHz) support 5G access and small-cell backhaul; at 60–90 GHz, short-range links and high-resolution radar emerge. Research platforms push beyond 100 GHz, where quasi-optical and advanced magnetic structures are explored to maintain non-reciprocity with acceptable loss and bandwidth.

Packaging leans toward waveguide or hybrid waveguide-substrate structures. For device designers, the trade space includes ferrite selection, magnet topology, thermal interfaces, and manufacturability at volume. For integrators, co-design with antennas, filters, and PAs is essential to maintain EVM and out-of-band emissions at mmWave data rates.

Defense radar roadmaps prioritize AESA, multi-mission agility, and resilience. Satellite networks—GEO, MEO, and proliferated LEO—demand higher throughput and flexible beamforming across Ku/Ka and beyond. Meanwhile, 6G visions point toward sub-THz bands for extreme capacity, sensing-communication fusion, and joint localization. Across these domains, isolators and circulators remain essential for protecting front-ends, enabling duplexing, and stabilizing high-order modulation under challenging channel and thermal conditions.

• Insertion loss vs. isolation: Achieving <0.5–1.0 dB loss while guaranteeing >20–30 dB isolation across bandwidth and temperature.
• Broadbanding: Covering adjacent bands to simplify lineups—careful geometry and material dispersion control are required.
• Power handling & thermal: Dissipating heat in compact footprints; managing ferrite bias stability and temperature coefficients.
• Miniaturization: Thin-film ferrites, LTCC stacks, and integration within T/R modules to reduce volume and improve repeatability.
• Manufacturability: Tight machining tolerances for waveguide parts, robust assembly for drop-ins, and SMT-ready microstrip designs.

For application-specific guidance or custom designs, contact us via Hzbeat Contact.

Growth drivers span public and private investment in 5G/6G, satellite constellations, radar modernization, and smart mobility. Asia-Pacific leads manufacturing scale; North America and Europe retain leadership in space-qualified and defense-grade products. Vendors differentiate through ferrite/material science, broadband design expertise, and proven reliability credentials (shock, vibration, temperature cycling, humidity).

Buyers increasingly prefer suppliers offering portfolio breadth across packages—from microstrip and drop-in to coaxial and waveguide—plus application engineering support for radar terminals, satcom gateways, and fielded telecom equipment.

Spanning kHz to THz, the spectrum is vast, but the job of an isolator stays constant: keep power flowing the right way. In practice that means tailoring materials, geometry, and packaging to each region’s physics and deployment realities—from rugged coaxial parts in VHF/UHF to precision waveguide in Ka and beyond, and increasingly miniaturized microstrip/LTCC solutions for dense 5G/6G arrays. The next decade will reward suppliers who combine broadband performance, thermal integrity, and manufacturability with credible qualification data.

Q1: What’s the difference between an RF isolator and a circulator?

An isolator is a 2-port, one-way device; a circulator is typically 3-port with directional routing. Terminating one port of a circulator yields an isolator behavior.

Q2: Which packages fit which bands?

Microstrip/SMT for compact radios (L/S/C); drop-in for module assembly; coaxial for modular/test; waveguide for high-power X/Ku/Ka and mmWave terminals.

Q3: Can one device cover multiple bands?

Broadband designs can span adjacent bands (e.g., S+C or Ku+Ka) with geometry/material optimization, but trade-offs in loss, size, and isolation apply.
