Magnetic Resonance Imaging (MRI) stands as one of the crown jewels of modern diagnostic medicine. From early detection of neurological disorders to advanced cardiovascular imaging, MRI systems provide clinicians with crystal-clear views inside the human body—without invasive procedures or ionizing radiation. But what ensures that every pixel of an image is accurate, reliable, and reproducible?

The answer lies in a group of RF components often overlooked by both patients and even non‑specialist healthcare professionals: RF circulators and RF isolators. These compact, passive devices quietly safeguard signal integrity, protect sensitive electronics, and ultimately determine the clarity of each diagnostic scan. As MRI systems evolve toward higher magnetic field strengths and more complex coil arrays, the importance of these RF devices continues to grow.

MRI relies on precisely managed radio-frequency (RF) energy to excite nuclei and measure faint return signals. Transmit pulses can reach kilowatt peaks, while received echoes sit near the noise floor. This orders‑of‑magnitude gap makes RF in MRI uniquely sensitive to leakage, reflections, and nonlinearities. Without proper isolation, back‑power into the low‑noise receive chain can compress preamps, degrade SNR, or create artifacts—directly impacting diagnostic confidence.

Modern imaging suites depend on disciplined RF power management.

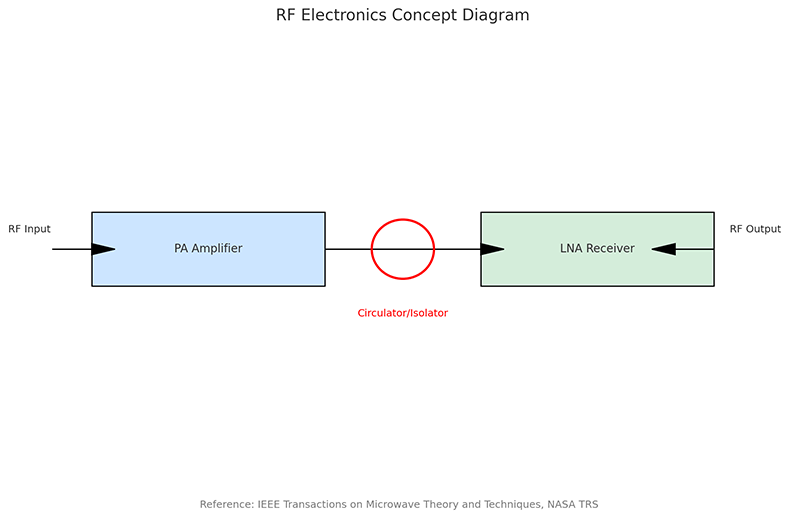

RF electronics must protect sensitive receiver paths from reflected power.

Circulator: Directional Routing

An RF circulator is a three‑port non‑reciprocal device that routes energy directionally (1→2, 2→3, 3→1). In MRI transmit/receive modules, it ensures forward power goes to the coil while reflections are diverted away from sensitive stages.

Isolator: One‑Way Protection

An RF isolator is built from a circulator plus a matched load at the third port, absorbing reflections so they cannot return. In diagnostic equipment, this protects power amplifiers and healthcare electronics front ends from mismatch events (coil detuning, patient‑dependent loading, cable faults).

1. Insertion Loss (IL): Lower IL preserves transmit efficiency and receive SNR; MRI‑band devices often target ≤0.3–0.5 dB in‑band.
2. Isolation: High isolation (≥20–30 dB) curbs leakage into receivers and neighboring channels, especially in dense arrays.
3. Return Loss / VSWR: Good matching (e.g., VSWR ≤1.20–1.25) reduces reflections that elevate coil heating and stress PAs.
4. Linearity & Power Handling: Transmit peaks demand robust ferrite design and thermal paths; on RX, linearity prevents intermod that can mimic anatomy.
5. Stability Across Temperature & Load: Clinical rooms, long exam lists, and patient variability require devices that hold specs across temperature swings and load changes.

Medical environments impose tough, non‑negotiable requirements on healthcare electronics:

• Reliability & MTBF: Uptime affects patient scheduling and scanner ROI; component failures cascade into costly downtime.
• EMC & Safety: Conformance with medical electrical standards (e.g., IEC 60601 family) and rigorous RF‑room practices reduces risk and artifacts.
• Non‑magnetic Construction: Where proximity to magnetic fields exists, materials must minimize field distortion.
• Serviceability: Clear labeling, documented test procedures, and replace‑in‑field designs shorten maintenance windows.

Global demand for medical imaging equipment is rising, with MRI systems projected to grow steadily toward 2033. Key drivers include a rising chronic disease burden, expansion in emerging markets, adoption of high‑field scanners, and AI‑assisted reconstruction. As these trends accelerate, the role of RF circulators and RF isolators in sustaining reliable operations will deepen.

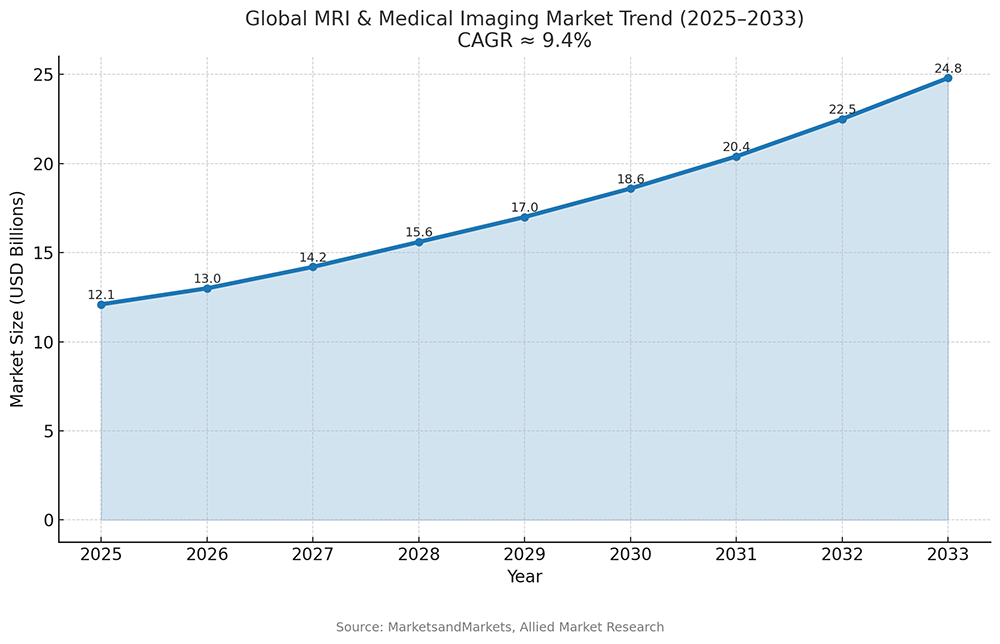

Illustrative growth trend for medical imaging investments (visual placeholder).

• Band & Center Frequency: Match Larmor bands (e.g., ~64 MHz at 1.5T, ~128 MHz at 3T).
• IL / Isolation / VSWR: Specify numeric targets and test methods; request full S‑parameter sweeps.
• Power Handling: Peak & average with realistic duty cycles for target sequences.
• Thermal & Environmental: Operating range, drift, and stability under cabinet temperatures.
• Linearity: Intermodulation and compression data at relevant powers.
• Mechanical & Materials: Non‑magnetic BOM where required; connector types; footprint constraints.
• Compliance & QA: Documentation for medical environments; traceability; factory test reports.
• Lead Time & Continuity: Safety stock, EOL policy, and second‑source options.

RF circulators and RF isolators may never feature prominently in marketing brochures, yet they form the backbone of safe and reliable MRI and medical imaging systems. By ensuring signal clarity, reducing interference, and protecting valuable electronics, they deliver consistent performance that translates into better patient care and optimized operational costs. As healthcare integrates AI and scales globally, choosing the right RF components is the fastest route to cleaner images and smoother clinical operations.

Q1:What is the difference between an RF circulator and an RF isolator?

A circulator routes RF signals directionally among three ports; an isolator is a circulator with a matched load that absorbs reflections to enforce one‑way flow.

Q2:Why are these components critical in MRI systems?

They protect sensitive receivers from high‑power transmit pulses, minimize interference, and maintain diagnostic image quality and consistency.

Q3:Which performance specs matter most?

Insertion loss, isolation, VSWR/return loss, linearity, power handling, and stability across temperature and load conditions.

Q4:How do robust RF components reduce total cost of ownership (TCO)?

By minimizing failures, preventing artifacts, and sustaining uptime, they reduce maintenance costs and improve scanner utilization.
