Phased-Array Radar Keeps Upgrading—Broadband + Miniaturized RF Circulators Get “Named” in the Stack

Introduction

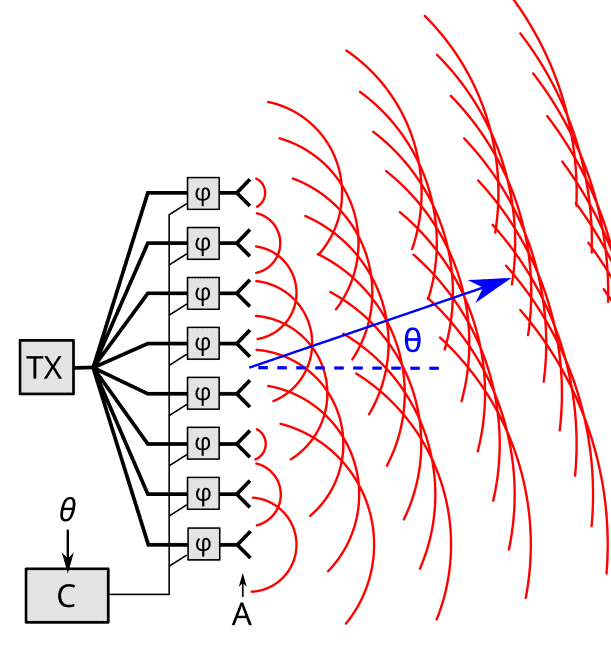

Phased-array radar is no longer “just” about steering a beam without moving metal. Today’s upgrades are about more modes, faster scheduling, higher effective radiated power, and more agile bandwidth—often while shrinking size, weight, and power (SWaP) in the platform. In many upgrade roadmaps, that translates into denser T/R modules, broader RF chains, and higher-stress operating corners. That is exactly where the RF circulator and its two-port cousin, the RF isolator, stop being “background parts” and start becoming risk-reduction hardware.

Think of an RF circulator as a traffic director for RF energy: forward power goes where you want, and reflected power gets routed away from sensitive devices. In phased arrays, that routing—at scale—helps protect PAs, reduce reflection-induced gain/phase ripple, and improve repeatability across thousands of channels.

1) Why phased-array radar upgrades “call out” RF circulators

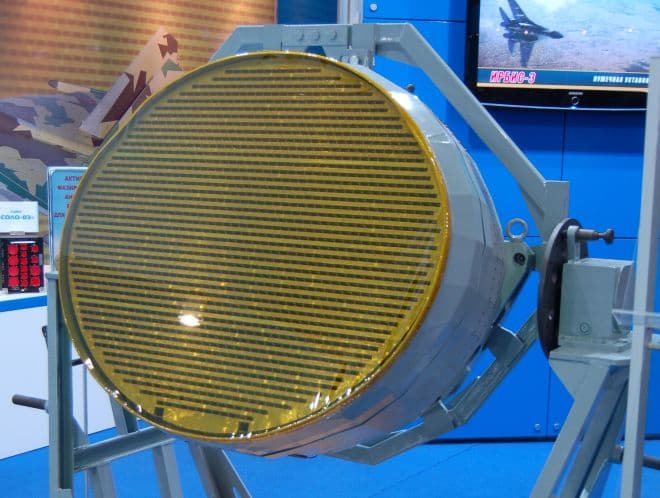

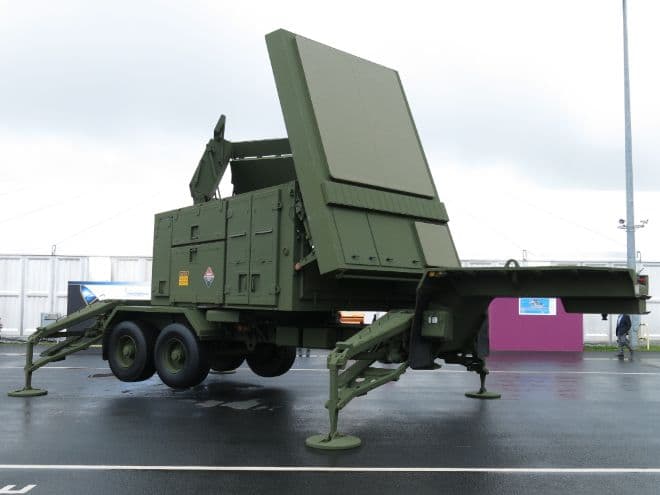

A phased-array radar upgrade usually pushes at least one of these levers: more instantaneous bandwidth, higher transmit power, more beams or faster beam switching, better ECCM, or higher reliability. Those goals raise the stress on the RF front end. Many industry overviews point out the growing demand for AESA upgrades and retrofits, driven by performance and mission flexibility.

2) Where a phased-array radar circulator sits in a T/R module

In the simplest story, a T/R module has a transmit path (PA, switches/duplexing), a receive path (LNA, protection), and a shared antenna interface. The RF circulator is often placed so that:

• Forward power: PA → antenna port (low insertion loss keeps EIRP high).
• Reflected power: antenna reflections → dumped into a load port, instead of returning into the PA.
• Isolation: non-reciprocal behavior helps decouple subcircuits, improving stability.

Practical application notes and radar-focused primers describe ferrite isolators/circulators as protection devices against reflections, with reverse energy routed into a load.

In upgrades, engineers often discover a “calibration tax”: without good isolation, the array spends more time compensating for reflection-driven errors. A robust RF circulator can lower that tax.

3) Why broadband circulator is increasingly non-negotiable

Broadband in phased-array radar isn’t just a marketing adjective—it’s tied to real capability: higher range resolution, multi-mode operation, frequency agility, and resilience under interference. But as you widen bandwidth, antenna match varies more across frequency and scan angle. That increases the probability of reflected power events and gain/phase ripple. A broadband circulator reduces sensitivity to those reflections by managing reverse power over more of the band.

Broadband is hard because non-reciprocal matching is hard

A ferrite RF circulator typically relies on controlled non-reciprocal phase behavior and matching networks. Research on ultra-broadband / miniaturized ferrite circulators highlights how matching structures are used to extend bandwidth while keeping performance usable.

Broadband helps upgrades in three concrete ways

• Lower risk across modes: multi-mode radar can swing impedance conditions quickly—broadband isolation helps keep PA stress bounded.
• Better “across-the-band” repeatability: less frequency-dependent reflection sensitivity simplifies calibration.
• Fewer design surprises: wider operating cushion helps when integrating new radomes, new antennas, or revised thermal stacks.

4) Why miniaturized circulator is the silent enabler

If broadband is the capability unlock, miniaturization is the integration unlock. Upgrades frequently increase channel density—more elements, more T/R modules, more thermal constraints. That makes a miniaturized circulator valuable even when it looks “minor” on paper.

Miniaturization matters because arrays scale brutally

A single RF circulator might be a small line item. A thousand of them becomes a mechanical, thermal, and yield reality. Smaller footprints ease routing, reduce parasitics in crowded layouts, and open room for shielding and heat spreading. Research on miniaturized ultra-broadband circulators underscores that compact form factors are achievable but require careful matching and structure choices.

The “small parts” that drive big system outcomes

• Mechanical: smaller modules allow tighter element spacing and better aperture efficiency.
• Thermal: compact devices must still handle heat—package + mounting strategy matters.
• RF layout: parasitics can dominate at higher bands; miniaturization must not sabotage isolation or insertion loss.

5) RF isolator vs RF circulator in radar front ends

Engineers often use both terms in the same breath, but the roles differ:

• RF isolator a two-port non-reciprocal device—forward passes with low loss; reverse is highly attenuated and absorbed by an internal load. It’s commonly described as protection against reflections.
• RF circulator: a three-port (or more) non-reciprocal device—routes energy directionally between ports. A circulator can be used with a termination to behave like an isolator, but it can also enable duplexing and routing options.

In phased arrays, a phased-array radar circulator is often chosen when you want controlled routing between antenna, PA, and load (or between Tx/Rx paths). An RF isolator is often chosen when you want the simplest “one-way valve” behavior with strong reverse absorption.

6) Specs that actually matter (and why)

Datasheets can be noisy. For upgrades, focus on the parameters that map to system pain:

• Insertion Loss (IL): directly reduces delivered power and hurts noise figure budgets—especially painful when you multiply across paths.
• Isolation: how well reverse power is prevented from re-entering sensitive blocks; it’s a stability and survivability metric.
• VSWR / Return Loss: how “quietly” the device integrates; poor match can create ripple and calibration headaches.
• Power handling (CW + peak): must align with duty cycle and pulse behavior; reflected power can be the real hidden load.
• Bandwidth: for broadband circulator, look at performance across the full band, not just a center-frequency headline.
• Thermal path: not a single number—package, mounting, and heat sinking determine real reliability.

A reality check on “broadband + small”

The “wish list” combination—broadband circulator + miniaturized circulator + low IL + high isolation—usually forces tradeoffs. That’s why research papers and application notes emphasize matching strategies and structure choices to push bandwidth without losing core non-reciprocal performance.

7) Engineering tradeoffs: bandwidth, size, power, and thermal reality

Tradeoff A: Broadband vs isolation flatness

Extending bandwidth often means more aggressive matching networks or multi-section strategies. The risk is uneven isolation across the band—where “good enough” becomes “surprise failure” at a corner frequency. Broadband goals should be verified by curves, not just a min/max number.

Tradeoff B: Miniaturization vs heat

Smaller packages can bottleneck heat flow. If the upgrade increases duty cycle or average power, thermal engineering becomes part of the RF circulator selection, not an afterthought.

Tradeoff C: Integration parasitics vs millimeter-wave behavior

At higher bands, small discontinuities behave like big components. A miniaturized circulator that looks excellent in isolation can degrade when placed next to dense switching and bias networks. Layout, grounding, and transitions (microstrip, stripline, coaxial, waveguide) should be evaluated as a combined system.

8) A practical selection checklist for upgraded arrays

Use this as a fast, engineer-friendly screen for your next phased-array radar upgrade:

• Define the reflection environment: worst-case antenna VSWR across scan angle and temperature.
• Quantify reflected power risk: peak and average reverse power events—don’t assume “load is always fine.”
• Pick architecture first: Do you need a 3-port RF circulator routing function or a simpler RF isolator protection function?
• Validate bandwidth honestly: for broadband circulator, require plots of IL/isolation/VSWR across band and operating temperature.
• Check size vs thermal path: for miniaturized circulator, verify mounting method, baseplate contact, and derating.
• Plan calibration impact: quantify how improved isolation reduces channel-to-channel ripple and re-cal intervals.
• Test like the real radar: pulse conditions, duty cycle, and “bad load” events—not just benign lab sweeps.

If you’re building a procurement spec, write it in system language: “This RF circulator must maintain isolation ≥ X dB across the full band at temperature, under specified forward and reflected power conditions.” That stops “center frequency hero numbers” from sneaking into broadband upgrades.

Conclusion

The headline trend is simple: phased-array radar upgrades are pushing wider bandwidth, denser integration, and higher stress into the front end. In that environment, the RF circulator isn’t a supporting actor—it’s a reliability and calibration tool. The phased-array radar circulator helps route reflections away from PAs and stabilizes behavior across many channels. Meanwhile, the broadband circulator supports multi-mode and agile operation across a broader spectrum, and the miniaturized circulator makes high-density modules physically and thermally feasible. When a program “names” these parts, it’s usually because someone paid the price for not having enough isolation—or enough margin.

FAQ

In a phased-array radar upgrade, when should I choose an RF isolator instead of an RF circulator?
Choose an RF isolator when the main requirement is simple protection against reflections with minimal routing complexity. Choose an RF circulator when you need explicit multi-port routing (e.g., antenna / PA / dump load) or duplexing-like behavior. Many application notes describe how circulators can be configured with loads to behave like isolators, but they remain different tools.

Why do broadband circulators become more important as AESA radars add modes?
Because more modes usually mean broader frequency use, more dynamic impedance conditions, and more “corner cases.” Broadband performance reduces sensitivity to mismatch and keeps isolation and insertion loss more consistent across the band—key for repeatable beams and stable PAs. Industry discussions of phased-array module usage for circulators/isolators align with this need for robust operation under varying conditions.

Does miniaturized circulator always hurt power handling?
Not always, but it often tightens the thermal margin. Smaller packages can limit heat spreading and make mounting quality more critical. For radar duty cycles and pulse power, treat thermal design and derating as first-class requirements, not footnotes.

What’s the fastest way to prevent “pretty datasheets, ugly integration” outcomes?
Demand plots (IL/isolation/VSWR vs frequency vs temperature), test under pulse conditions, and include “bad load” scenarios. Also evaluate the device in the real layout context—especially at higher frequencies where parasitics dominate.
