Looking for a low-loss RF circulator manufacturer you can trust? Discover how HzBeat engineers reliability from material to measurement — delivering precision from 20 MHz to 200 GHz.

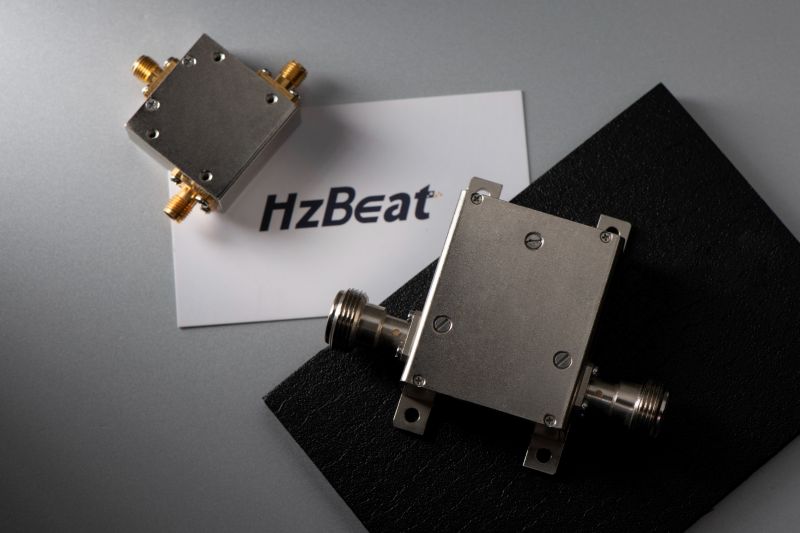

Top RF circulator manufacturer — HzBeat ferrite circulator and isolator lineup
HzBeat ferrite RF circulators and isolators under studio lighting.

Introduction

When engineers search for a top RF circulator manufacturer, they are really looking for proof: repeatable low insertion loss, stable isolation, and dependable production at scale. HzBeat approaches these metrics as system outcomes rather than isolated numbers — aligning ferrite science, magnetic bias design, and quality controls with the realities of deployment in towers, radars, and satellites.

Why HzBeat Fits the “Top Manufacturer” Standard

“Top” is earned by consistency. HzBeat covers microstrip (SMT), drop-in, coaxial, and waveguide circulators/isolators from VHF/UHF to Ka-band+, and tunes for system-level results: insertion loss targets met with margin, isolation flatness across operating temperatures, and field reliability proven through returns data and qualification logs.

  • 20 MHz–200 GHz: Portfolio coverage from VHF to mmWave.
  • Low-Loss Focus: <0.35 dB typical in L/S-band drop-ins (design dependent).
  • Reliability Flows: Environmental sweeps & controlled torque assembly.
  • Global Programs: 5G/6G, radar, satcom, aerospace partners.

Performance Proof Points

Data beats adjectives. Below are representative targets and practices used to achieve them. Actual results vary by band, bandwidth, and power class — and we publish full plots to avoid single-number ambiguity.

Class Typical Bands Insertion Loss Isolation Notes
Microstrip (SMT) L/S 0.35–0.6 dB >20 dB Compact, integrable
Drop-in L→Ku 0.25–0.45 dB >22–25 dB PA chains, T/R modules
Coaxial VHF→C 0.3–0.6 dB >20 dB High power, serviceable
Waveguide X/Ku/Ka 0.25–0.5 dB >23–28 dB Lowest loss at mmWave
Tip: Evaluate S21/S31 curves across temperature with identical torque and mounting conditions as your chassis. That’s where “lab wins” become “field wins.”

Manufacturing Excellence & Quality System

HzBeat’s production model prioritizes bias uniformity and mechanical parallelism — two levers tightly correlated with insertion loss and isolation ripple. Statistical process control guides ferrite lot acceptance and magnet stack selection. Environmental cycling (–40 °C→+85 °C), power burn-in, and shock/vibration testing are applied by program requirements.

  • In-house ferrite process controls and geometry verification
  • Automated torque application for consistent bias gaps
  • Lot traceability with Cp/Cpk reporting on risk features
  • EM co-simulation for transitions (microstrip/waveguide)

Application Portfolio & Case Snapshots

Circulators and isolators act as quiet guardians at the core of transmit/receive paths. HzBeat supplies devices for:

  • 5G/6G infrastructure: Small cells and macro base stations targeting compact, thermally-aware microstrip designs.
  • Phased-array radar: Drop-in and waveguide options optimized for isolation flatness in electronically steered arrays.
  • Satellite & ground terminals: Ka-band waveguide components where tenth-dB losses matter to link margin.
  • MRI & industrial sensing: High power handling with strict VSWR control to protect PAs and minimize artifacts.

How We Compare: Design & Support Philosophy

Top manufacturers share technology; the difference is discipline. HzBeat centers decisions on system success, not catalog numbers. We publish curves, not single points; we discuss torque, thermal paths, and mounting interfaces early; and we keep engineering channels open through qualification. That culture lowers risk and shortens time-to-field.

Explore more products: Microstrip Circulators · Drop-in Circulators · Waveguide Isolators · About HzBeat

FAQ

Q1: What should be my top priority when selecting an RF circulator manufacturer?
A: Focus on insertion loss, isolation stability, and manufacturing repeatability — not just quoted numbers. Ask for test plots and reliability data.

Q2: Does in-house ferrite processing really matter?
A: Yes. Ferrite property drift between lots can cause performance variation. In-house control ensures tighter specifications and repeatability.

Q3: What is a realistic lead time?
A: Standard models: 4–6 weeks. Custom designs: 8–12 weeks, depending on band and mechanical integration.

Q4: Can the same supplier provide isolators and circulators?
A: Many RF circulator manufacturers also supply isolators using similar ferrite cores — ideal for matched systems and simplified procurement.

References

  • IEEE Transactions on Magnetics – Ferrite Devices and Bias Optimization
  • MDPI Electronics – Advances in Microwave Ferrite Components
  • NASA Technical Reports – Qualification of Passive RF Devices for Space
  • Microwave Journal – Supplier Comparison Guide for Non-reciprocal Devices

© HzBeat — Brand Feature · Updated 2025-12-12
