6G raises the bar across the board: target peak rates around 1 Tbps, end-to-end latency near 100 μs, spectrum pushing into ~100 GHz–1 THz, and integrated “space-air-ground-sea” coverage. Achieving these goals demands wideband links, tighter RF integration, higher power density, and much stronger robustness across harsh environments.

At the physical layer, two humble but decisive components make those links stable: the RF circulator and RF isolator. They provide one-way energy flow, decouple TX/RX paths, suppress reflections (VSWR), and protect sensitive receivers from back-power—functions that become non-negotiable at mmWave and sub-THz.

A circulator is a three-port non-reciprocal device with 1→2→3→1 transmission; an isolator is formed by terminating one port with a matched load, yielding a two-port one-way path. Together they secure shared-aperture full-duplex operation, choke reflected power, and maintain receiver linearity across high-PAPR, wideband waveforms.

• Shared-aperture front-ends: Common antenna ports require physical isolation to prevent self-interference.
• Heat & power density: Higher TX power + compact arrays demand low insertion loss and robust thermal paths.
• Array coherence: Beamforming hinges on stable phase/group delay—excess variation degrades EVM/ACLR and sidelobe control.
• Reliability: Space and defense deployments impose radiation tolerance, vacuum outgassing, and thermal cycling criteria.

In active antenna systems for 6G, circulators/isolators:

• Physically separate TX/RX paths to contain self-interference;
• Clamp reflections (VSWR) to protect LNAs and mixers;
• Preserve EVM/ACLR under high-PAPR, wideband modulation.

Design nuances: low insertion loss at upper-mmWave bands; consistent group delay across channels; compact packaging to fit dense antenna elements; and robust thermal design for continuous high throughput.

Fig.1 Starlink satellite train (Wikimedia; jabberwock; CC BY-SA 2.0).

Star-scale constellations push RF chains into Ka/Q/V bands where every dB of loss matters. Non-reciprocal devices must keep insertion loss minimal while maintaining high isolation across wide bandwidths. Space-grade screening covers radiation hardness, vacuum outgassing, thermal cycling, and long-term drift. For CubeSats and small satellites, mass/volume constraints and BOM efficiency dominate.

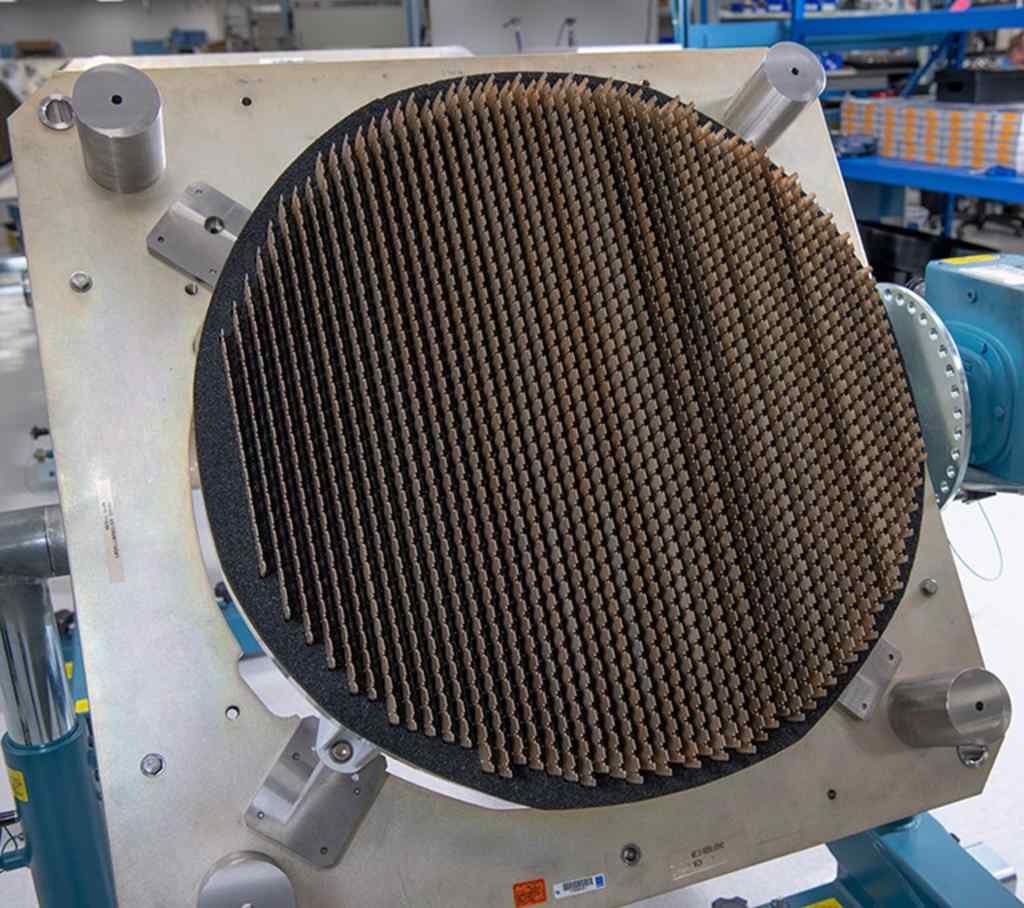

Fig.2 AN/APG-81 AESA radar (Wikimedia, CC0/public domain via Northrop Grumman).

Each T/R channel typically integrates a PA, circulator, limiter, and LNA. Non-reciprocal devices must withstand peak transmit power, maintain receive chain linearity, and remain stable across temperature and vibration. In EW scenarios, wideband isolation and low loss are crucial to prevent jammer energy from desensitizing the receiver.

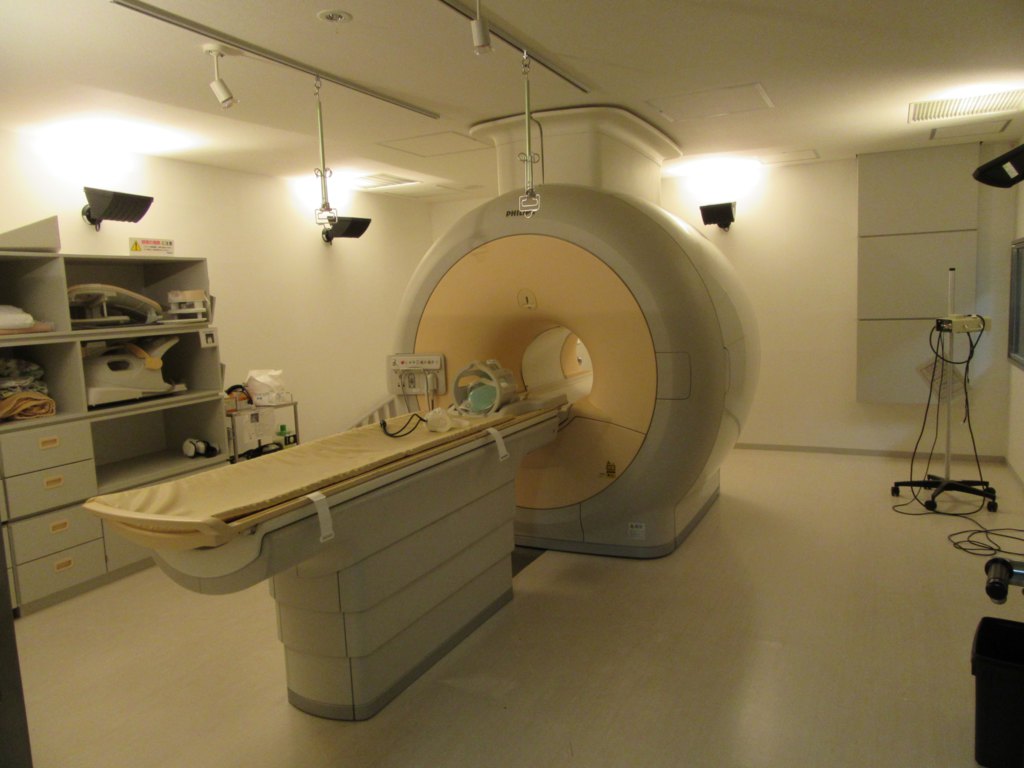

Fig.3 MRI scanner (Wikimedia; Robert M. Harvey; CC BY-SA 4.0).

High-field (3T/7T) MRI demands multi-channel Tx/Rx with excellent decoupling and safety. Circulators route power and help balance coils; isolators block back-power that can otherwise deteriorate SNR or risk patient/device safety. Lower loss and higher isolation translate directly into cleaner images and shorter scan times.

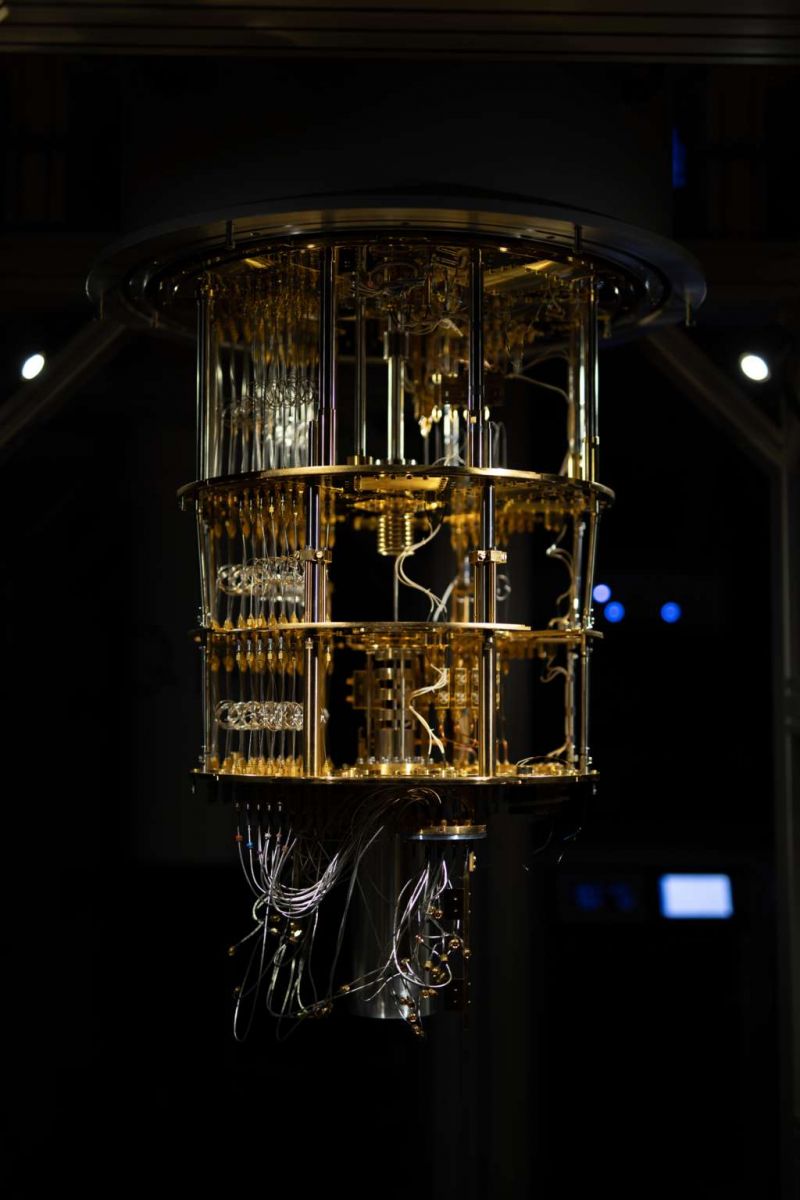

Fig.4 Superconducting quantum computer at IQM (Wikimedia; Ragsxl; CC BY-SA 4.0).

In millikelvin environments, any reverse-propagating noise can collapse fragile qubit states. Cryogenic circulators/isolators act as one-way valves in the readout chain, improving measurement fidelity. Future directions include chip-level non-reciprocal components and low-loss materials tailored to cryo operation.

Public market estimates converge on a multi-billion-dollar opportunity by 2030–2033 for combined circulators & isolators. Growth drivers: 6G infrastructure roll-out, LEO constellation scale-out, modernization of AESA radar/defense systems, and high-field MRI upgrades. APAC leads in infrastructure scale; US/EU hold strengths in aerospace/defense and medical imaging.

Technology vectors to watch: higher-anisotropy ferrites and advanced ceramics for lower loss; conformal/miniaturized packages with better thermal conduction; co-packaging with PAs/LNAs to tame parasitics; and early explorations toward sub-THz non-reciprocal concepts.

Q1: When will 6G deploy?

Limited pilots are expected around 2029–2030 depending on spectrum policy and ecosystem readiness.

Q2: Are there alternatives to passive non-reciprocal devices?

Active cancellation helps, but for robustness and power handling, passive circulators/isolators remain unmatched.

Q3: Which bands matter most?

In addition to microwave and mmWave, early sub-THz pilots (~100 GHz+) will probe ultra-wideband links and device materials.

1. ITU‑R M.2160‑0 (2023). IMT‑2030 Framework and overall objectives of the future development of IMT for 2030 and beyond.
2. 3GPP. Release‑21 public materials and 6G timeline briefings (2024–2025), TSG SA/TS plenaries.
3. IEEE Communications Society (2023–2024). Roadmap Toward 6G white papers and technology trends.
4. Microwave Journal. Low‑loss circulators for L/S/C/X‑band AESAs; device placement and loss considerations.
5. Smiths Interconnect. High‑power L/S/X‑band isolators and circulators for military communications and radar applications.
6. Times Microwave Systems. RF cable assemblies for smallsats; thermal stability and attenuation considerations.
7. EnSilica. Space‑grade RF ASIC design notes on radiation, vacuum outgassing, and thermal cycling.
