For aerospace missions, performance numbers mean little without repeatability across full temperature, lifetime, and combined stresses. Choosing a trusted RF circulator supplier and RF isolator vendor ensures that the non‑reciprocal building blocks protecting LNAs, enabling low‑loss duplexing, and stabilizing AESA arrays remain compliant under radiation, vacuum outgassing, vibration and pyroshock.

NASA/JPL NISAR antenna reflector (PIA25090). Loaded via images.weserv.nl for better accessibility; original host: photojournal.jpl.nasa.gov.

LEO constellations drive Ka/Q/V‑band capacity; deep‑space links push for ultra‑low loss and phase stability; and defense modernization in X/Ku/K bands demands robustness and repeatability at scale. Across these domains, the rf circulator supplier and rf isolator partner is pivotal to sustainable performance and maintainability.

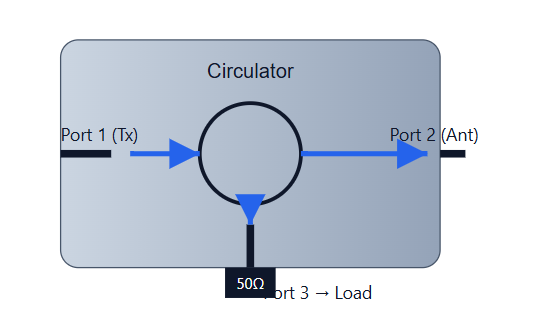

An RF circulator is a three‑port non‑reciprocal device that routes power in a fixed sequence (1→2→3→1). Terminating one port turns it into an RF isolator, which ensures one‑way flow and safely dissipates reflections. This compact mechanism underpins space‑qualified SATCOM, TT&C, and AESA radar chains.

NASA/JPL NISAR antenna reflector (PIA25090). Loaded via images.weserv.nl for better accessibility; original host: photojournal.jpl.nasa.gov.

• Insertion Loss (IL): X‑band ≤ 0.5–0.7 dB; Ka‑band ≤ 0.7–1.0 dB. Lower IL is preferred for constellation link budgets.
• Isolation (Iso): Baseline ≥ 20 dB; for high‑power or high‑DR chains, aim for ≥ 25–30 dB.
• Return Loss / VSWR: Target RL ≤ −18 dB at antenna ports to mitigate VSWR degradation under temperature.
• Power & Thermal: Specify avg/peak power and duty; model thermal paths under vacuum for worst‑case delta‑T.
• Phase & Group Delay: Track across temperature for beamforming integrity.
• Package: Microstrip (compact PCB integration), Drop‑in (modular assembly), Coaxial (ease of routing), Waveguide (high‑power/low‑loss).
• Materials & Outgassing: Low‑outgassing adhesives and traceable ferrite formulations with reports.

Ka‑band SATCOM

In satellite communications, the rf isolator protects LNAs from reflected power while the rf circulator enables low‑loss antenna sharing. IL and temperature‑stable phase are key for space‑qualified beamforming payloads.

TT&C (S/X band)

Ground stations often use circulator‑based duplexing. Under abnormal VSWR, the rf isolator dissipates reflections to protect sensitive receivers.

AESA radar

Massive TR‑module counts require strict lot‑to‑lot consistency from the rf circulator supplier; full‑temperature phase/group‑delay control is critical for calibration stability.

• Covers: 20 MHz–200 GHz portfolio across microstrip, drop‑in, coaxial, and waveguide forms.
• Custom Design: Co‑design of cavity/EM/thermal paths for target payload envelopes and screening levels.
• Validation & Screening: Full‑temp S‑parameters, thermal cycling, vibration/shock/pyroshock.
• Quality & Traceability: ISO 9001‑aligned processes with serialized test reports and lot consistency control.

• Full‑temp S‑parameters (S21, S31, S11/S22) and phase curves; segregate typical vs. minimum.
• TID/SEE reports and methodology; risk mitigation via derating/shielding.
• Thermal cycling, vibration/shock/pyroshock, and vacuum‑outgassing records.
• BOM & low‑outgassing declarations; alternatives for critical materials.
• Serialized test data, calibration traceability, and NCR disposition.
• Package: Microstrip (compact PCB integration), Drop‑in (modular assembly), Coaxial (ease of routing), Waveguide (high‑power/low‑loss).
• Long‑term supply plan and safety‑stock strategy for ferrites, substrates, and magnetics.

Q1: Why insist on a space‑qualified RF circulator supplier?

Because radiation, temperature, vibration, and vacuum stresses accumulate over mission life; only space‑qualified rf isolator and rf circulator parts with systematic screening reliably stay in‑spec.

Q2: How do I quickly assess a candidate part?

Set redlines for IL/Iso/RL, request full‑temperature S‑parameters, and replicate tests (thermal chamber + VNA) to determine feasibility.

Q3: How do I choose among microstrip / drop‑in / coaxial / waveguide?

Microstrip for compact integration, drop‑in for modular builds, coaxial for routing flexibility, and waveguide for high‑power ultra‑low‑loss links.

hzbeat.com and product/customization pages.

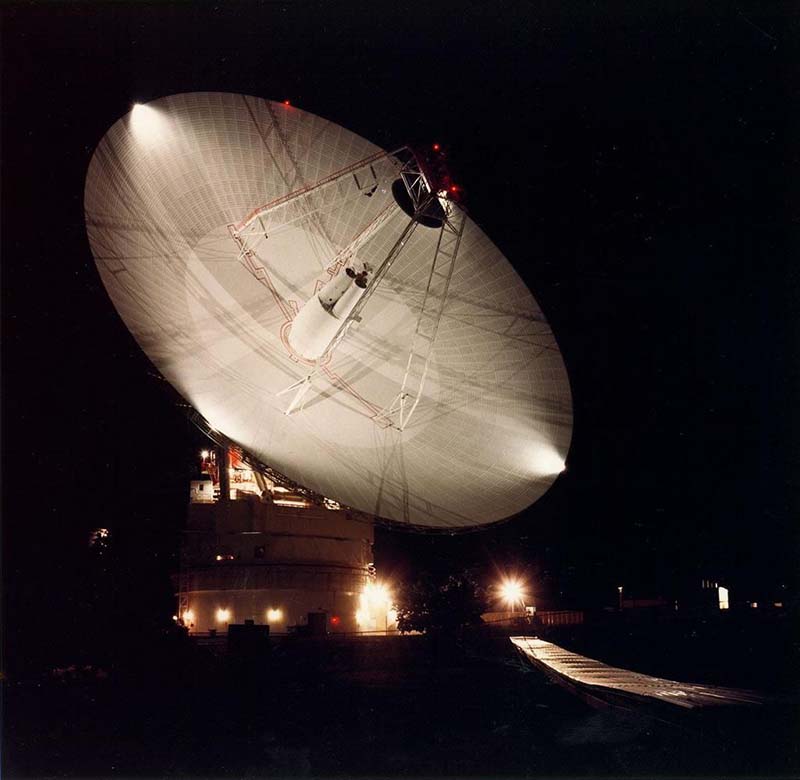

1.NASA/JPL Photojournal: PIA10953 (Goldstone night), PIA25090 (NISAR reflector). Loaded via images.weserv.nl for accessibility; replace with your CDN/local assets at deployment.

2.This document mirrors the Chinese extended edition while keeping the Principle of Operation section brief, with an inline schematic for clarity.
