Which Type of RF Circulator Fits Your Design?

Updated on: Dec 05, 2025

Keywords: RF circulator, circulator selection guide, microstrip circulator vs drop-in vs waveguide, SMT SMD circulator, low insertion loss, high isolation, broadband circulator, high-power RF, phased array, S-band, C-band, X-band, Ku-band, Ka-band, VSWR, ferrite circulator, OEM ODM

Choosing the right RF circulator means aligning band, bandwidth, isolation, insertion loss, power handling, VSWR, temperature, size, and cost. This guide compares microstrip, drop-in, waveguide, and SMT/SMD circulators and shows how to pick the best fit for S-/C-/X-/Ku-/Ka-band applications, phased arrays, 5G small cells, SATCOM, and radar front-ends.

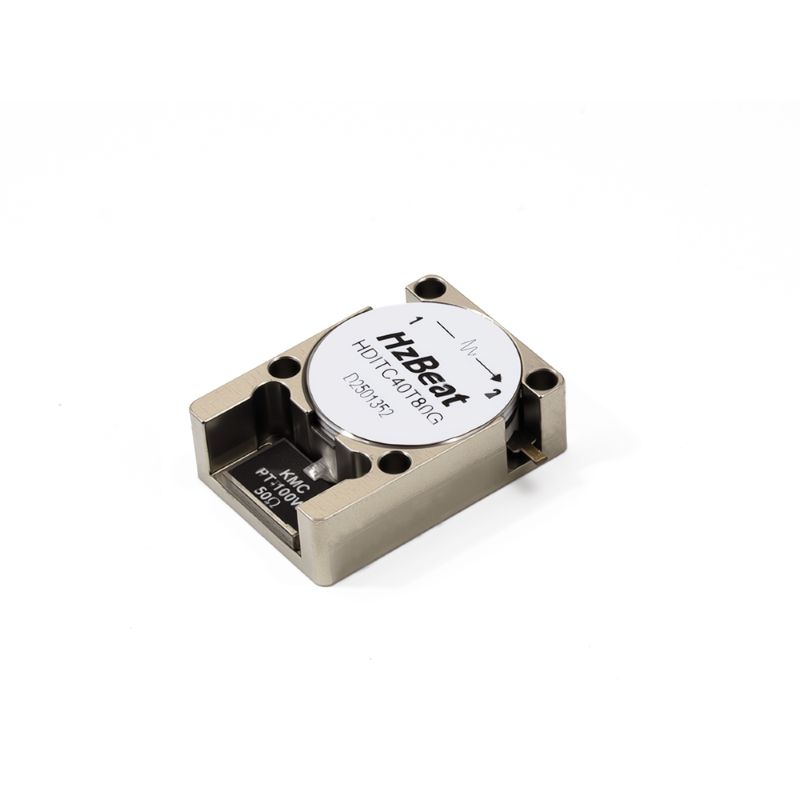

HzBeat HDTC series drop-in RF circulator — Fig. 1 HzBeat HDTC-series drop-in circulator — machined cavity, enhanced thermal path. Typical targets: IL ≤ 0.5–0.7 dB, ISO ≥ 23–28 dB, VSWR ≤ 1.35; options for S/C/X/Ku bands.

1. Circulator Types at a Glance

Microstrip/SMT — Planar, lightweight, excellent for broadband designs and compact arrays.
Drop-in — Machined cavity; strong thermal path and power handling.
Waveguide — Ultra-low IL and very high power, ideal for Ku/Ka SATCOM and radar.
Coaxial — Convenient RF connectors for benchtop and rack integrations; easy swap/testing.

2. The Five Specs That Decide Your Choice

2.1 Insertion Loss (IL)

Lower IL preserves link margin; waveguide best at high frequency, drop-in/microstrip competitive in S-/C-/X-band; SMT trades tiny size for slightly higher IL.

2.2 Isolation (ISO)

Target ≥ 20–23 dB baseline; ≥ 25–28 dB for radar/T/R modules. Validate over temperature and bandwidth.

2.3 VSWR

VSWR ≤ 1.25:1 is excellent; ≤ 1.5:1 is common for wideband designs.

2.4 Bandwidth

Microstrip enables octave-class bandwidth; waveguide/drop-in excel for high-Q windows with superior IL/ISO.

2.5 Power & Thermal

Define average/peak/duty/pulse. Drop-in and waveguide offer better thermal paths for high power.

3. Selection Matrix: Microstrip vs Drop-In vs Waveguide vs SMT

Type	Best For	IL	ISO	Power	Bandwidth	Form
Microstrip/SMT	Broadband arrays; small cells	Med–Low	Med	Low–Med	Wide	PCB/SMT
Drop-In	Rugged radios; HP links	Low	High	High	Med	Machined cavity
Waveguide	Ku/Ka SATCOM; radar	Very low	High	Very high	Narrow–Med	WG ports
Coaxial	Test/rack systems	Low	High	Med	Med	SMA/K-type

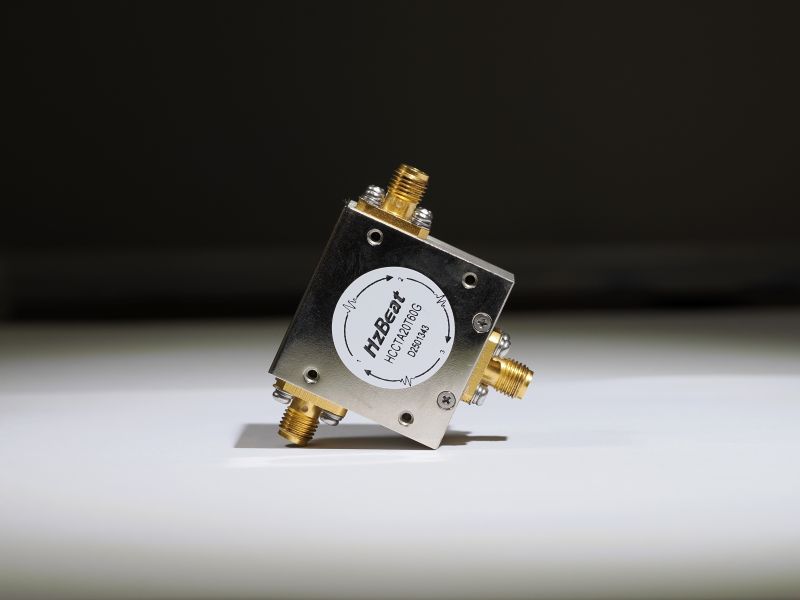

HzBeat coaxial RF circulator with SMA connectors — Fig. 2 HzBeat coaxial circulator—SMA interface for quick evaluation and modular rack integration.

4. Band-by-Band Guidance

S-band (2–4 GHz): microstrip or drop-in; C-band (4–8): drop-in/waveguide for power; X-band (8–12): waveguide for low IL; Ku/Ka (12–40): waveguide dominates power and loss, microstrip possible with careful stack-up.

5. Use-Case Playbook

Phased array TRMs: microstrip/SMT for density; validate ISO vs temperature.
5G small cells: SMT for BOM/assembly; ensure reflow survivability.
High-power links/pulsed radar: drop-in or waveguide; request derating curves.
SATCOM earth stations: minimize IL; waveguide in Ku/Ka.

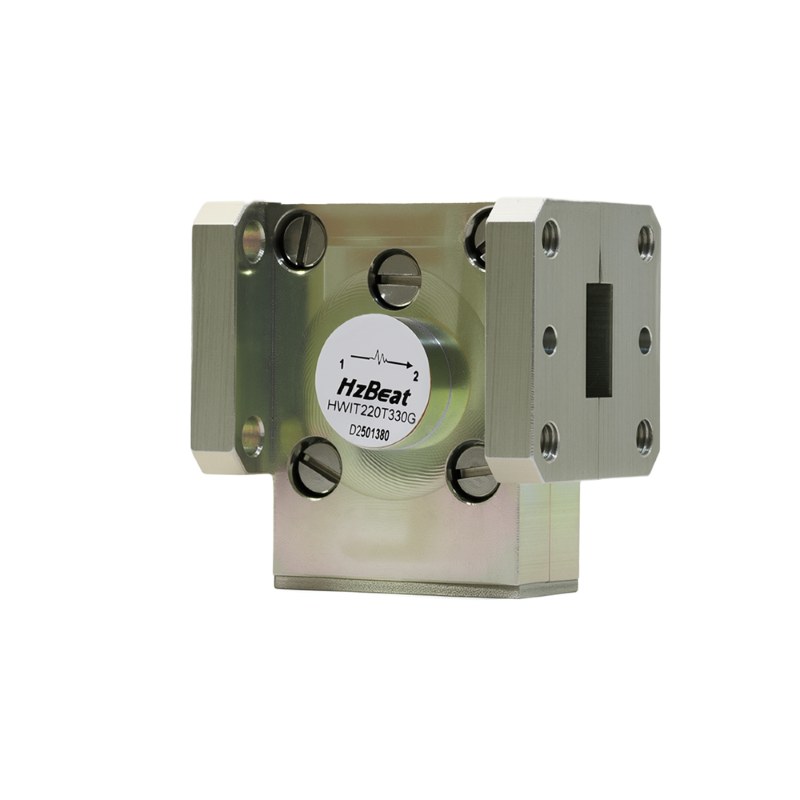

Fig. 3 HzBeat waveguide circulator—ultra-low IL and very high power capability for Ku/Ka-band links.

6. Integration & Test Tips

Bias magnet & ferrite: request temperature coefficients when ISO is critical across -40…+85 °C.
Thermal path: heatsink tie for drop-in/waveguide; thermal vias under microstrip/SMT.
Launches: simulate transitions; treat launches as part of the match.
Bench: verify forward loss, reverse ISO, return loss on all three ports.
Reliability: shock/vibe, moisture sensitivity (SMT), outgassing (space).

HzBeat SMT microstrip circulator — Fig. 4 HzBeat SMT/microstrip circulator—miniature footprint for small cells and UAV datalinks.

7. FAQ

Q1. What’s the fastest way to narrow the choice?: Start with band + bandwidth + power, then refine by IL/ISO/VSWR and mechanics.
Q2. How much isolation is “enough”?: ≥ 20–23 dB for many radios; ≥ 25–28 dB for radar or delicate HPAs.
Q3. Can an SMT circulator replace a drop-in?: For low/medium power—verify thermal rise, IL, ISO in-situ. For pulsed high-power, use drop-in or waveguide.
Q4. Useful long-tail terms: low insertion loss microstrip circulator, Ka-band waveguide circulator, high-isolation drop-in circulator VSWR 1.3:1, SMT circulator reflow compatible.
