6G is not commercially deployed—but RF engineering never waits for marketing calendars. As standards move from high-level vision to measurable requirements, RF circulators and RF isolators are being validated early in 6G base station RF front ends to control reflections, protect power amplifiers, and stabilize wideband high-frequency chains.

communications tower

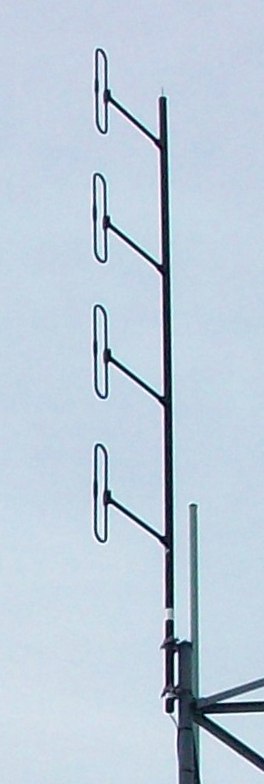

Base-station antenna infrastructure example (CC BY-SA 3.0). This is the physical endpoint that drives real-world mismatch, reflections, and environment-dependent load changes—exactly why RF isolators and RF circulators remain critical. Source: Wikimedia Commons (Milonica / Chetvorno).

1. Introduction: why circulators/isolators become “more important” as we move toward 6G

The easiest way to misunderstand 6G is to treat it like a single product launch. In reality, 6G is an ecosystem transition: requirements emerge, candidate architectures compete, prototypes validate assumptions, and only then do supply chains lock into stable designs. During that transition, RF front ends face the most unforgiving constraints in the entire stack: loss, mismatch, leakage, power stress, and thermal drift.

This is where RF circulators and RF isolators matter. They do not depend on a specific waveform or protocol. They solve the physics problem of “where does RF energy go”—and whether reverse power is allowed to reach the wrong device. As frequency rises and bandwidth widens, the margin for error shrinks. A few tenths of a dB of insertion loss can change a link budget; a few dB of lost isolation can change a receiver’s usable dynamic range.

Terminology guardrail (important for credibility): This article uses “6G-ready” to describe parts and validation workflows suitable for 6G research platforms and pre-standard prototypes. It does not claim that commercial 6G base stations have universally adopted a finalized RF circulator / RF isolator architecture.

2. Standards timeline and why validation is happening now

Two public anchors keep this discussion grounded: ITU-R’s IMT-2030 work (often associated with the 6G framework) and 3GPP’s release planning for 6G studies and normative work. ITU describes the path “towards 2030 and beyond” under the IMT-2030 umbrella, establishing the higher-level direction for future mobile systems.

On the 3GPP side, the Release 20 page explicitly states that technical studies on the 6G radio interface and 6G core network architecture are planned to start around June 2025, and that Release 21 marks the start of normative 6G work.

For RF hardware teams, this timeline creates a predictable “decision window”: requirements begin to harden while architectures are still flexible. In that window, engineers validate physical building blocks early to avoid late-stage failures. RF circulators and RF isolators are prime candidates because they directly influence protection strategy, leakage control, and thermal behavior—variables that determine whether a prototype is stable enough to be meaningful.

Key Insight: Industry reality: You do not wait until the final spec to discover that your PA cannot survive real mismatch, or that your receiver is desensed by leakage. RF isolators and RF circulators are evaluated early because they reduce those risks with well-understood physical mechanisms.

3. What RF circulators and RF isolators do in a base-station RF chain

3.1 Reflection is not “noise”—it is stress, drift, and sometimes damage

In a base-station RF chain, the antenna/environment is not a perfect 50 Ω load. Reflections can vary with installation, weather, nearby structures, beam steering states, and array coupling. Reflected power can reduce efficiency, degrade linearity, and increase voltage/current stress in the power amplifier. An RF isolator is a direct mitigation: it routes reverse power into a matched termination to protect upstream stages.

3.2 Practical relationship: “RF isolator as a circulator use-case”

In many common implementations, an RF isolator is realized by terminating one port of a three-port RF circulator with a matched load, resulting in a two-port device that passes power forward while strongly attenuating reverse power. Ferrite circulator/isolator operating principles and application examples are documented in RFCI’s knowledge-base notes (KB-001 / KB-002).

3.3 6G RF front ends increase the penalty of small imperfections

Operator requirements also push toward solutions that are deployable and sustainable. The NGMN Alliance (operator-led) emphasizes avoiding fragmentation and addressing deployment realities such as affordability, sustainability, and evolution.

Translated into RF engineering language: if a solution cannot maintain performance under temperature variation, power cycling, and manufacturing spread, it will struggle in wide deployment. Therefore, the 6G conversation naturally elevates RF isolators and RF circulators that deliver stable isolation and low insertion loss under realistic base-station conditions.

4. Real-world case snapshots: how the industry uses these parts today

“Real cases” do not always look like a single headline deployment announcement. In RF hardware, the most credible proof is: (1) documented application notes, (2) product families explicitly aimed at infrastructure/base-station bands, and (3) established circuit topologies used in radios. The snapshots below are grounded in public technical references.

Case Snapshot A: Base-station band isolators used for wireless infrastructure protection

RFCI publishes “Base Station Bands Standard” isolator product group pages explicitly listing wireless infrastructure / cellular / PCS base station applications. This is not a 6G claim; it is the industry’s current infrastructure reality: RF isolators are routinely selected to protect transmit chains where mismatch and reflections are expected. Why it matters for 6G: as frequencies climb and integration tightens, the same protection problem persists—but becomes more sensitive to loss and drift. That is why 6G research platforms re-validate isolator behavior under new frequency/bandwidth/thermal conditions rather than assuming “old rules” automatically scale.

Case Snapshot B: Circulators used as duplexing elements in documented application notes

RFCI’s KB-002 application note explicitly describes two primary functions of a three-port circulator: (i) providing a good match at the output of moderate-power sources despite mismatches, and (ii) acting as a duplexer for transmit and receive signals. Why it matters for 6G: While modern base stations often use filters/duplexers/switching networks depending on duplexing mode, circulator-based duplexing concepts remain part of the engineering option space—especially in research architectures where leakage trade-offs are experimentally explored.

Case Snapshot C: Patented TDD transceiver circuitry using a three-port circulator

A concrete example of circulator-based TDD coupling appears in the patent literature, where a TDD radio uses a three-port circulator on the RF side to couple the transceiver to an antenna, eliminating certain switching needs in that architecture. Why it matters for 6G: This is not a claim that “6G will use this exact topology.” It is evidence that circulator-based T/R coupling is a practical, documented engineering approach. In 6G validation, engineers revisit such approaches under new constraints (higher frequency, wider bandwidth, tighter integration) and determine whether the trade-offs remain favorable.

Note: What makes these “real” cases? They are grounded in public application documentation and product/application targeting from established manufacturers, not in speculative “6G deployment” headlines. This is the kind of proof RF engineers typically trust.

5. Defining “6G-ready” with measurable criteria

“6G-ready” should be defined by measurable engineering behavior, not a label. A credible 6G-ready RF circulator or 6G-ready RF isolator typically meets these requirements:

  • Frequency coverage & bandwidth headroom: Supports candidate 6G exploration bands with margin for architecture changes.
  • Low insertion loss (IL): Preserves link budget and efficiency; at high frequency every fraction of a dB matters.
  • Isolation stability (ISO): Stable across band, temperature, and relevant power levels—engineers value “stable” more than “peak.”
  • Return loss / VSWR behavior: Maintains acceptable matching; reduces sensitivity to load variation.
  • Power handling & thermal robustness: Survives expected average/peak power with a verifiable heat path.
  • Repeatability & testability: Manufacturable with consistent results and feasible screening in volume.
Key Insight: Rule of thumb: A part is not “6G-ready” because it reaches a frequency on paper. It is “6G-ready” if its RF curves, drift behavior, and thermal reliability remain predictable under realistic fixtures and stress.

6. Metrics that matter (beyond peak datasheet numbers)

portable vector network analyzer

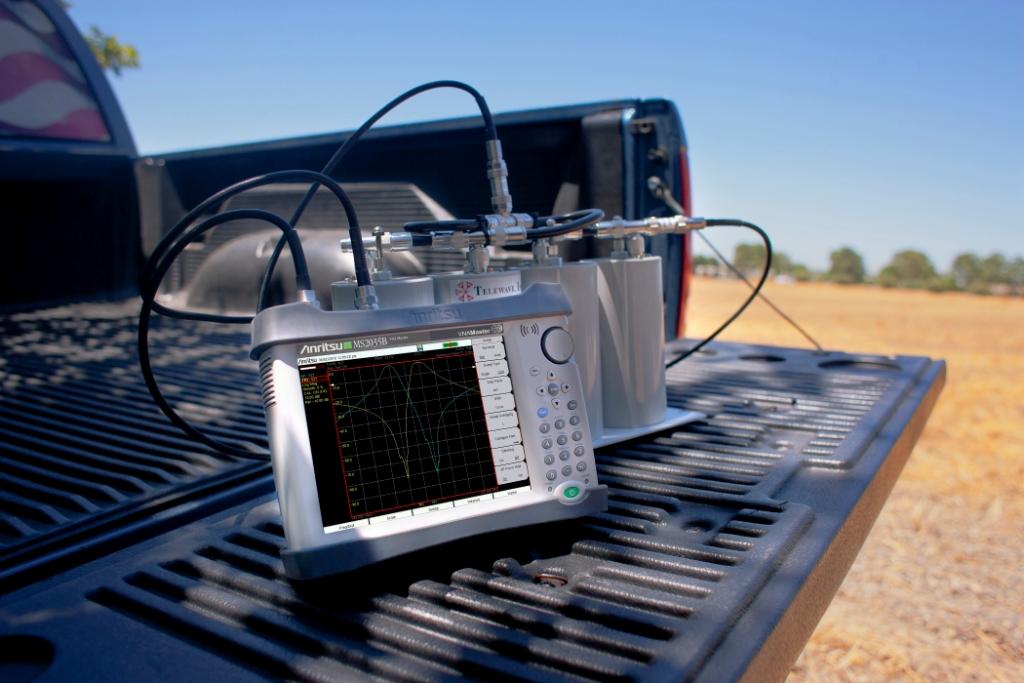

Vector network analyzers (VNAs) are central to validating insertion loss, return loss/VSWR, and isolation across frequency—especially when qualifying RF circulators and RF isolators for wideband high-frequency platforms (CC BY-SA 3.0 / GFDL). Source: Wikimedia Commons.

6.1 Component-level curves (the “truth in graphs” layer)

Engineers should demand full curves—not a single best-case number. Application notes like RFCI KB-001/KB-002 provide context for how circulators and isolators are expected to behave and how they are applied.

  • Insertion loss vs. frequency: Is the low-loss region broad and flat, or narrow and “peaky”?
  • Isolation vs. frequency: Does isolation remain usable at band edges, or collapse where your system still needs margin?
  • Return loss / VSWR: How sensitive is matching to temperature and fixture transitions?
  • Power/thermal drift: Do IL and isolation change under sustained average power or after cycling?

6.2 Module-level interaction: the “system cost” of imperfect isolation

A base station never uses an RF circulator in isolation. It lives with PAs, LNAs, filters, switching networks, and antenna feed transitions. The right module-level questions are:

  • Protection effectiveness: Does the RF isolator materially reduce reverse-power stress seen by the PA under realistic mismatch?
  • Receiver desense risk: Does leakage raise the receiver noise floor or compress the front-end dynamic range?
  • Thermal interaction: Does added loss increase heat density in a way that shifts performance over time?

6.3 Deployment layer: consistency and testability

Operator-oriented requirements highlight deployability: sustainability, affordability, and avoiding fragmentation. In RF terms, that means: a “great” part that cannot be produced consistently or screened effectively is not a winning solution.

7. Technology routes: ferrite vs. magnetless (integration vs. deployment reality)

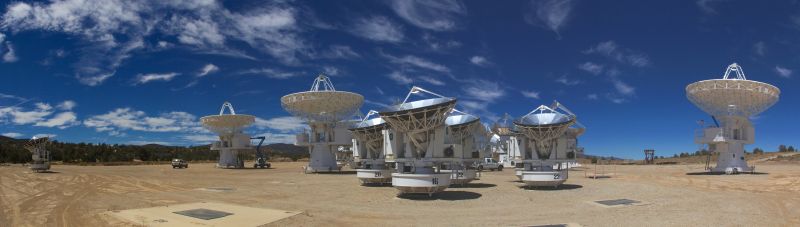

millimeter-wave radio telescope array illustrating high-frequency
High-frequency systems force engineers to confront loss, alignment, thermal behavior, and measurement uncertainty—constraints that also shape 6G RF front-end validation (CC BY-SA 4.0; photo by Mike Peel). Source: Wikimedia Commons.

7.1 Ferrite RF circulators / RF isolators: proven physics, harder constraints at higher integration

Ferrite-based RF circulators and RF isolators remain the most established non-reciprocal components in many RF systems. Their operating principles and typical applications are summarized in industry knowledge-base notes (e.g., RFCI KB-001/KB-002).

As frequency rises and packaging becomes denser, the challenges intensify:

  • Manufacturing tolerance sensitivity: small mechanical/material variation can create larger RF shifts at higher frequency.
  • Bandwidth vs. loss trade-offs: wider band may increase loss unless carefully optimized.
  • Magnetic biasing and integration: biasing structures and magnets interact with tight mechanical constraints.
  • Thermal behavior: thermal gradients and cycling can shift performance and long-term drift.

7.2 Magnetless approaches: integration promise, still proving “deployment-grade” attributes

Magnetless non-reciprocity (often based on time-variance or other circuit techniques) targets easier integration and reduced magnet/assembly complexity. Research is active, but for base-station realism the decisive questions remain: power handling, temperature stability, long-term drift, and scalable test cost. This framing aligns with operator-led emphasis on deployability and sustainability.

Key Insight: Balanced engineering view: Ferrite RF circulators and RF isolators are the most proven path for near-term 6G validation platforms. Magnetless approaches may become strategically important for future integration—but the winners will be those that survive deployment constraints, not only lab demonstrations.

8. Qualification & procurement checklist for 6G research platforms

Because “6G-ready” is fundamentally an engineering validation stage, qualification tends to happen in research platforms, prototype radios, and pre-standard testbeds. A pragmatic evaluation process for RF circulators and RF isolators includes:

  • Band plan clarity: Define candidate bands and bandwidth assumptions, then map them to RF front-end architecture options.
  • Full RF curves: Require IL/ISO/RL across frequency, temperature, and relevant power levels.
  • Realistic fixtures: Include transitions/connectors; measure the full assembly, not only a “best-case” coupon.
  • Stress and drift tests: Thermal cycling and power cycling expose real stability limits.
  • Batch variability review: If moving toward pilot builds, insist on distribution data and screening strategy.

This workflow matches the broader ecosystem reality implied by standards timelines: studies begin, requirements tighten, and early validation reduces late redesign risk.

9. HzBeat perspective: commitment to 6G RF circulator research

At HzBeat, we treat 6G as an engineering roadmap defined by measurable RF performance and long-term reliability—not as a slogan. As the industry progresses through the IMT-2030 framework and 3GPP’s 6G study-to-normative transition, HzBeat will continue investing in RF circulator and RF isolator research for 6G base-station validation platforms, with emphasis on wideband performance, low insertion loss, stable isolation, robust thermal behavior, and manufacturable consistency.

Label: Publication wording (recommended): Use “6G-ready validation,” “prototype platforms,” and “pre-standard engineering,” anchored to ITU/3GPP timelines. This reads more credible to RF engineers than claiming “commercial 6G base station deployment.”

10. Conclusion

The responsible engineering answer to “Are there RF circulators for 6G base stations today?” is: yes—in the validation sense. RF circulators and RF isolators are already being evaluated and used in 6G-related research platforms and prototype RF front ends because they address universal RF realities: reflections, leakage, protection, and stability.

At the same time, it is premature to claim a single finalized “commercial 6G base station RF circulator” architecture. The ecosystem is still in the transition from study to normative specifications, guided by ITU’s IMT-2030 framework and 3GPP’s Release 20/21 planning.

In short: the race is real—but it is a race of measurement, repeatability, and deployment realism. The RF circulator and RF isolator solutions that win in the 6G era will be those that deliver low insertion loss and stable isolation across the usable band, remain robust under thermal/power stress, and can be manufactured and screened consistently at scale.

FAQ

Q1: Is a “6G RF circulator” fundamentally different from a 5G RF circulator?

The underlying non-reciprocal function may be similar, but 6G-related exploration typically pushes stricter requirements: wider bandwidth, higher frequency, tighter size constraints, more demanding insertion loss budgets, and stronger emphasis on isolation stability and thermal drift.

Q2: Why emphasize RF isolators in addition to RF circulators?

Because RF isolators provide direct PA protection by absorbing reverse power into a termination. In many practical implementations, isolator behavior is derived from circulator behavior with a matched termination, as described in ferrite application notes.

Q3: Are circulators really used in duplexing concepts?

Yes—circulator-based duplexing and mismatch protection appear in practical application notes and historical circuit literature. RFCI KB-002 explicitly discusses duplexing use cases, and patent literature includes examples of TDD circuitry using a three-port circulator to couple a transceiver to an antenna.

Q4: What is the “core triad” for selecting 6G-ready RF circulators / RF isolators?

Most engineers converge on: low insertion loss (loss budget), stable isolation (protection and coexistence), and thermal robustness (reliability and drift), then expand to bandwidth headroom and manufacturability.

Q5: What is the safest public phrasing for this topic?

Prefer “6G-ready validation,” “prototype platforms,” and “pre-standard engineering,” anchored to ITU/3GPP timelines, rather than claiming mass commercial 6G base-station deployment.

References

  1. ITU-R WP5D: IMT towards 2030 and beyond (IMT-2030) overview page.
  2. 3GPP Release 20 page: statement on 6G studies starting around June 2025 and Release 21 as start of normative 6G work.
  3. NGMN Alliance (2023): “6G Requirements and Design Considerations” (PDF).
  4. RF Circulator Isolator, Inc. (RFCI) KB-001: “Operating Principles of Ferrite Circulators and Isolators” (PDF).
  5. RFCI KB-002: “Applications of Ferrite Circulators and Isolators” (PDF).
  6. US Patent US6591086B1: Example of TDD transceiver circuitry using a circulator for antenna coupling.
  7. HzBeat Engineering Blog: “Can an RF Circulator Replace a Duplexer?”
