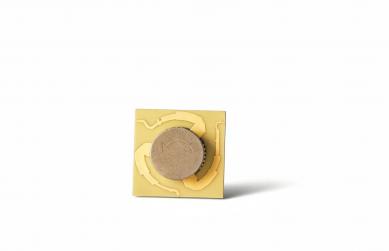

A mini RF circulator is a compact three-port ferrite device that routes RF power directionally between its ports (1 → 2, 2 → 3, 3 → 1). Compared with traditional, larger circulators, miniaturized versions are designed specifically for high-density RF front-end systems where every millimeter of PCB space matters.

Typical characteristics of a mini RF circulator include:

• Small footprint, often in the range of 4–12 mm
• Low insertion loss (for example 0.2–0.6 dB across the operating band)
• High isolation, typically 18–25 dB or higher
• Broadband or ultra-broadband operation at L/S/C/X/Ku/Ka bands
• Package options in SMT, microstrip, mini drop-in, or mini coaxial form
• Compatibility with reflow soldering or automated assembly for SMT devices

Miniaturization solves multiple system-level challenges: tighter RF layouts, lower weight, shorter signal paths, and easier integration in modular front ends or phased-array tiles.

Global buyers often search for mini RF circulator price, low cost RF circulator, or buy RF circulator online before they contact a supplier. While actual prices depend on design details and volume, 2025 market prices roughly fall into the ranges below.

At first glance, mini RF circulators may seem more expensive than larger standard devices. But at the system level, they often reduce total cost by shrinking PCB area, simplifying mechanics, improving efficiency, and allowing higher integration density.

When buyers compare RF circulator suppliers and quote different models, most of the decision is driven by six key parameters.

3.1 Insertion Loss (IL)

Insertion loss directly impacts system noise figure and efficiency. For mini RF circulators:

• 0.2–0.4 dB – excellent, suitable for demanding radar and SATCOM
• 0.5–0.7 dB – industry standard for many broadband designs

Buyers often search for low insertion loss RF circulator, 0.3 dB mini circulator, or high performance RF circulator when IL is critical.

3.2 Isolation

High isolation protects receivers from transmitter power leakage and improves VSWR in transmit paths.

• 18–23 dB – common for compact designs
• > 25 dB – high-performance category

Look for isolation values across the whole band, not just at the center frequency.

3.3 Bandwidth

Mini does not mean narrowband. Many high-end mini RF circulators are designed for:

• 20–40% fractional bandwidth
• Multi-octave bands such as 2–18 GHz or 6–18 GHz

For wideband designs, keywords like wideband RF circulator or broadband drop-in circulator show strong purchase intent.

3.4 Frequency Band and Topology

Frequency strongly affects size, loss, and price. Buyers usually decide per application:

• L / S-band: air traffic, early radar, some SATCOM
• C / X-band: marine and weather radar, tracking radar
• Ku / Ka-band: VSAT, HTS satellites, backhaul
• mmWave: automotive radar, short-range sensing

Different topology and product families are used. For example: microstrip circulator, drop-in circulator, coaxial circulator, and waveguide circulator cover different power and integration requirements.

3.5 Package & Mounting (SMT vs Drop-in)

Mini RF circulators often come as:

• SMT circulator： ideal for reflow, high volume, small form factor
• Mini microstrip / drop-in： good for higher power and easy rework
• Mini coaxial module： convenient for lab use or flexible cables

SMT circulators are often selected when the keyword is SMT RF circulator or in-stock SMT circulator, while mini drop-in circulator is preferred for rugged radar or high-power platforms.

3.6 Power Handling

Even in miniaturized form, circulators may be required to handle significant RF power:

• 3–10 W for many SMT mini RF circulators
• 20–200 W for mini drop-in circulators in radar or jammer chains

When specifying power, consider duty cycle, pulse width, and thermal environment, not just CW rating.

Before sending RFQs, international buyers tend to search using combinations of technical and procurement-focused phrases. The following keyword groups frequently lead to real orders.

4.1 Strong Intent Keywords

• mini RF circulator price
• RF circulator supplier / RF circulator manufacturer China
• buy RF circulator online / RF circulator in stock
• wideband mini circulator / broadband RF circulator
• SMT RF circulator / compact RF circulator
• high power mini RF circulator
• low cost RF circulator
• custom RF circulator / OEM ODM RF circulator
• mini circulator datasheet / RF circulator S-parameters

4.2 Landing Page Optimization Tips

A mini RF circulator product or category page is more likely to rank and convert if it:

• Includes an H1 similar to this article title with the phrase mini RF circulator
• Uses subheadings mentioning price, supplier, and specs
• Provides downloadable datasheets and clear S-parameter ranges
• Links to detailed product families such as broadband microstrip circulators or specific broadband drop-in circulators
• Mentions lead time, MOQ, and stock options without over-promising

Although the piece price of a mini RF circulator can be higher than that of a standard, larger device, the total system cost often decreases when miniaturization is applied intelligently.

• Reduced PCB area： smaller footprint means smaller boards and lower material cost
• Simplified mechanics： more space for heat spreaders, connectors, and shielding
• Lower insertion loss： better overall efficiency and potentially smaller amplifiers
• Automated assembly： SMT mini circulators reduce manual assembly cost
• Higher integration density： more channels per tile in phased arrays or MIMO systems

This is why queries like cost-effective mini RF circulator or low cost RF circulator do not always mean “cheapest unit price”, but rather “best balance of performance, size, and total system cost”.

Choosing a reliable RF circulator supplier is often more important than shaving a few cents off the unit price. When screening vendors, consider the following checklist:

• Ferrite & magnetic expertise： in-house capability to design ferrite, magnets, and magnetic circuits
• Full manufacturing chain： grinding, assembly, tuning, and 100% test under one quality system
• Frequency coverage： proven products from MHz bands up to tens of GHz
• Broadband + miniaturization： track record for wideband, high-power, and small-form-factor designs
• OEM / ODM： the ability to customize bandwidth, power, and footprint for your platform
• S-parameter testing： full test reports, not just a single typical value in a table
• Supply chain strength： realistic lead time, safety stock, and support for long-term programs

For many programs, partnering with a supplier that offers both standard mini RF circulators and customized designs is the most efficient way to balance performance, risk, and cost.
