Broadband Drop-in Circulator
2-6GHz, 6-18GHz, Full Band.
- The Broadband Drop-In Circulator represents the evolution of circulator technology toward high performance, high density, and high reliability.
- Its innovative “drop-in” design meets the stringent requirements for miniaturization, weight reduction, and high power in modern electronic systems.
- This makes it a preferred component for advanced RF engineers developing compact, high-performance solutions for radar, 5G, and defense applications.
Key Features & Advantages
- Wide Bandwidth Operation:A single device covers wide frequency ranges (e.g., 0.5–2 GHz, 2–8 GHz), reducing component count and simplifying system design.
- High Isolation:Provides high reverse isolation within the operating band (typically >20 dB, up to >25 dB), effectively minimizing signal leakage and protecting preceding circuits such as power amplifiers.
- Low Insertion Loss:Forward path attenuation is very low (typically <0.5 dB, with high-quality products <0.3 dB), ensuring high signal transmission efficiency.
- High Power Handling Capacity:Supports high average and peak power levels, making it suitable for transmit paths in radar and communication systems.
- Compact Structure, Easy Integration:The stripline structure is small and lightweight, making it ideal for compact microwave modules and PCB- level integration.
- High Reliability and Stability:Housed in a fully sealed metal package, providing strong mechanical strength, effective heat dissipation, and resistance to temperature, humidity, and vibration.
Typical Applications
- Radar Systems:Routes high- power signals to the antenna during transmission and weak echo signals to the receiver during reception, protecting the transmitter from reflected power.
- Communication Base Stations (TDD Systems):Enables a single antenna for both transmission and reception in TDD systems, simplifying antenna design and RF front- end architecture.
- Test, Measurement & EW Applications:Provides signal routing and isolation in test equipment and electronic warfare systems, and serves as an output isolator for multiband / broadband amplifiers to improve stability, matching, and reflected power absorption.
- Electronic Warfare (EW): Used for signal switching, routing, and isolation across wide frequency bands.
- Multiband/Broadband Amplifiers: Serves as an output isolator, stabilizing amplifier operation, improving its output match, and absorbing reflected power from the antenna side.
Electrical Performance Table and Product Appearance

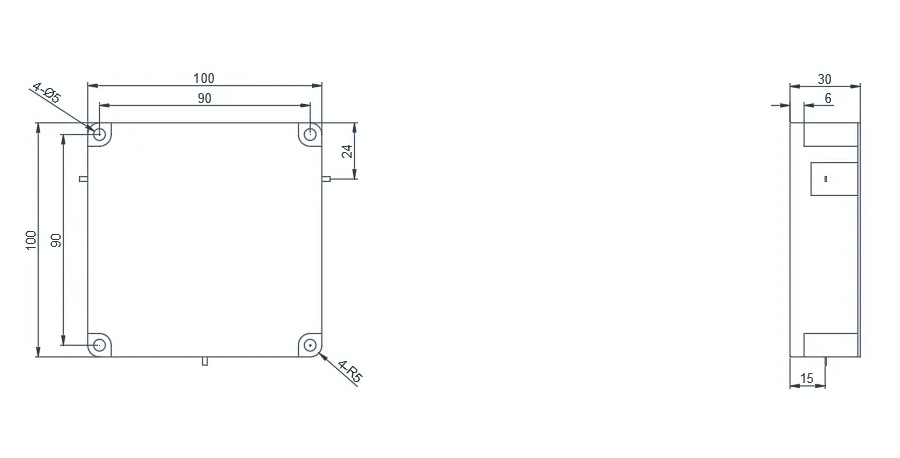

0.1~0.4GHz Broadband Drop-in Circulator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDCTD01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

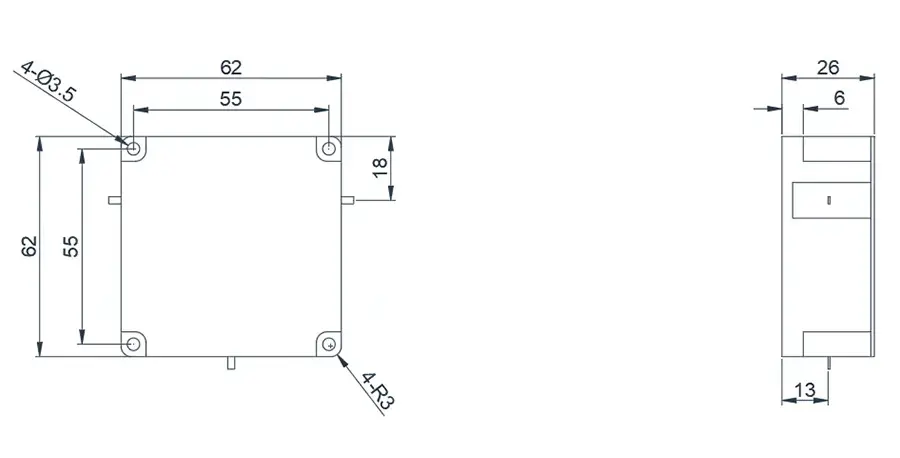

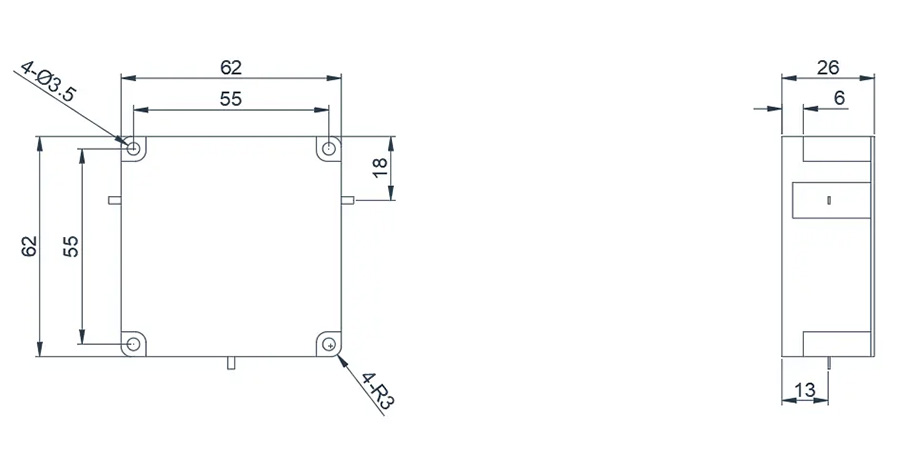

0.3~0.6GHz Broadband Drop-in Circulator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDCTD03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

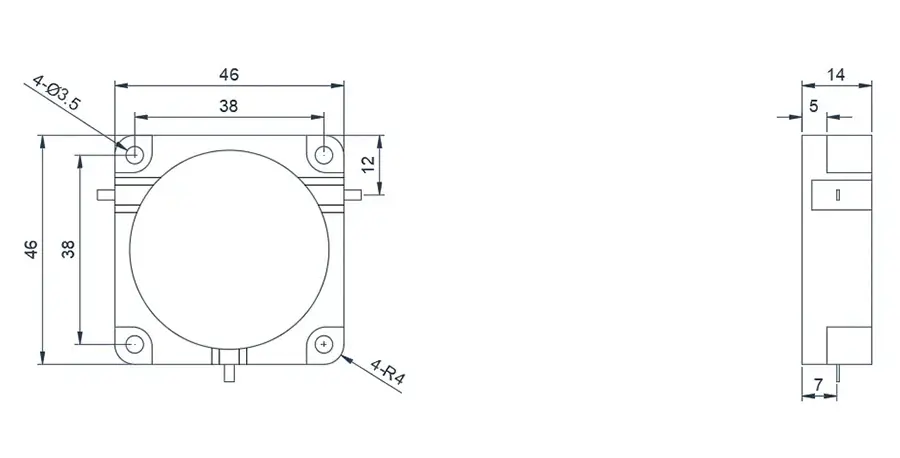

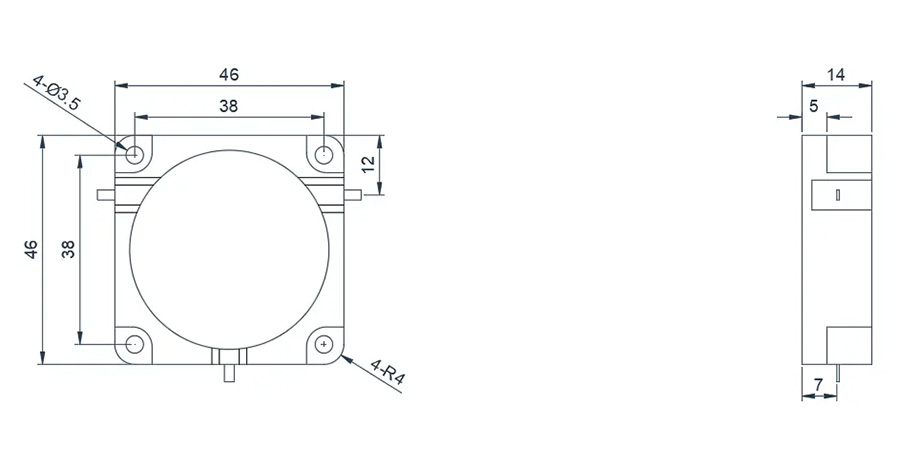

0.5~1.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDCTD05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

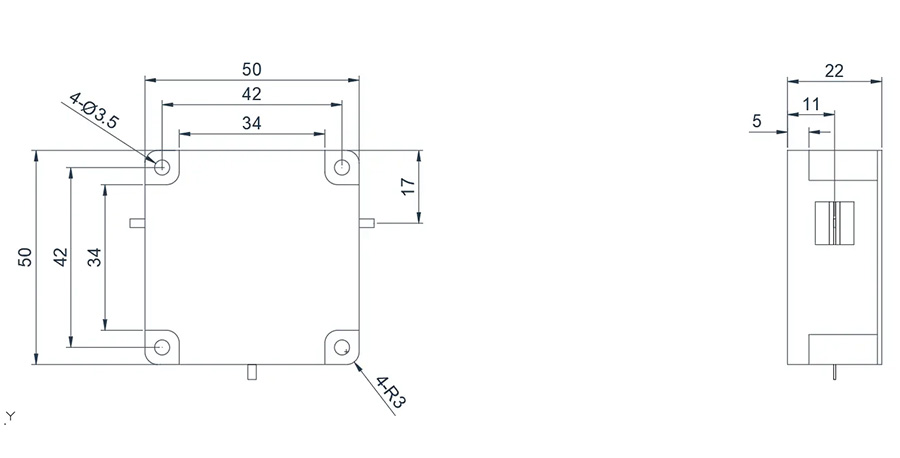

1.0~2.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
-55~+85℃
/100
Clockwise
HDCTD10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
-55~+85℃
/100
Counter Clockwise

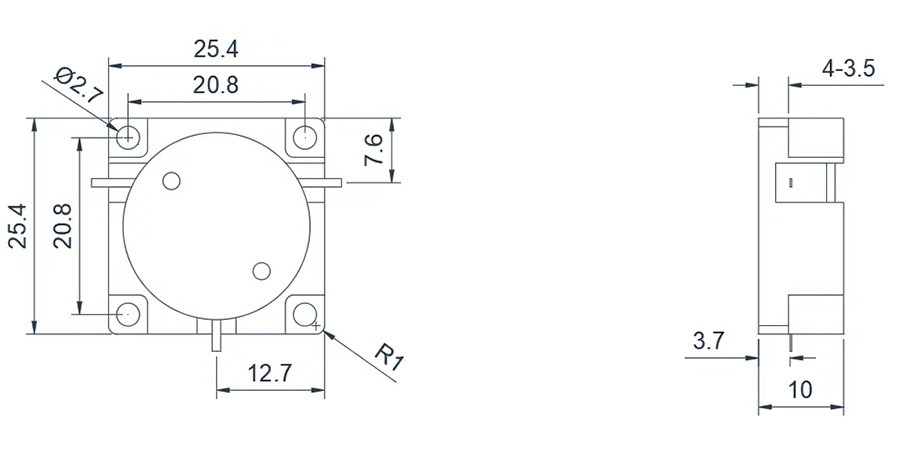

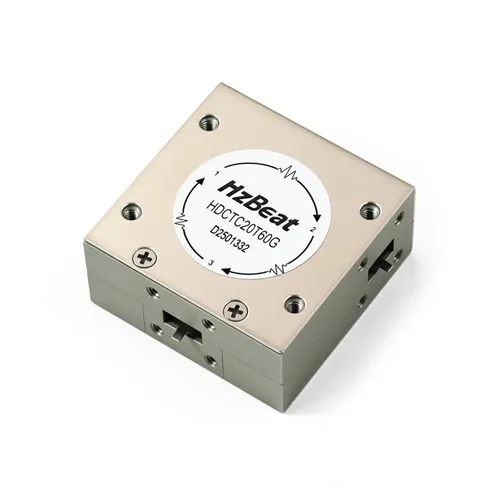

2.0~6.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
-55~+85℃
/80
Clockwise
HDCTD20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
-55~+85℃
/80
Counter Clockwise
HDCTC20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11
1.65(1.75)
-55~+85℃
/80
Clockwise
HDCTD20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11
1.65(1.75)
-55~+85℃
/80
Counter Clockwise
2.0~6.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11(10)
1.7(1.8)
-55~+85℃
/50
Clockwise
HDCTD20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11(10)
1.7(1.8)
-55~+85℃
/50
Counter Clockwise

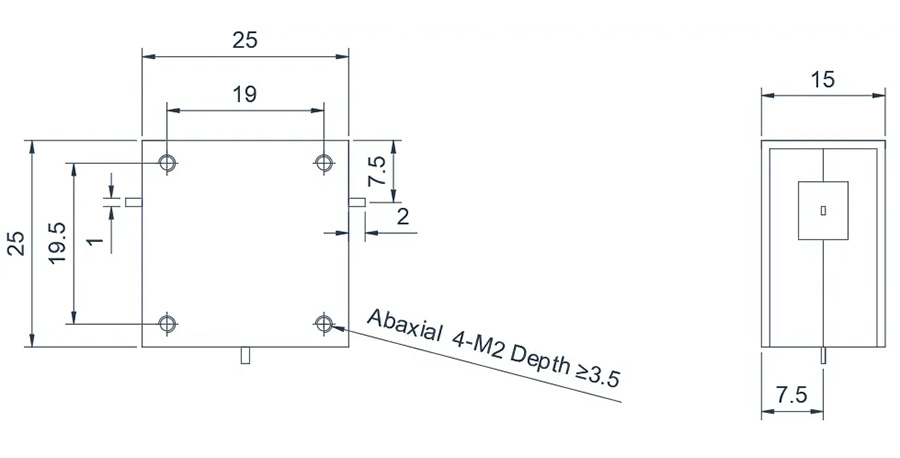

3.0~6.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC30T60G-B⬇
3.0~6.0
FULL
0.6(0.65)
16.0
1.35
-55~+85℃
/60
Clockwise
HDCTD30T60G-B⬇
3.0~6.0
FULL
0.6(0.65)
16.0
1.35
-55~+85℃
/60
Counter Clockwise

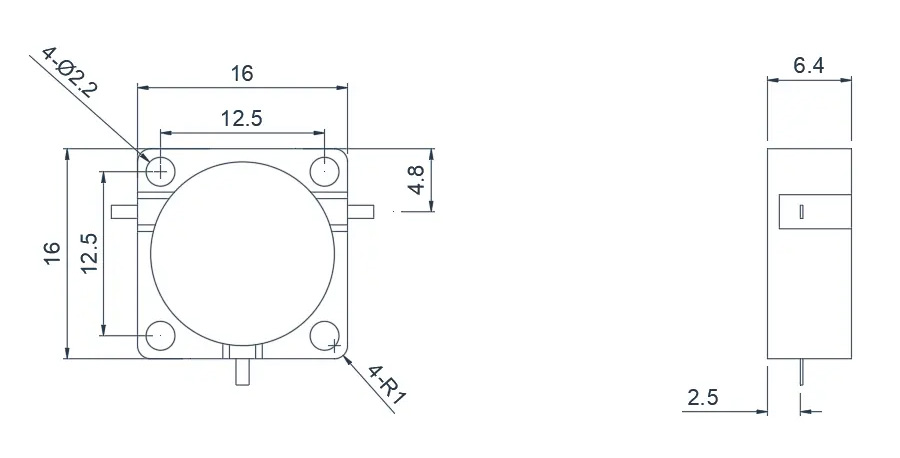

4.0~8.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC40T80G-B⬇
4.0~8.0
FULL
0.6(0.7)
17(16)
1.4(1.5)
-55~+85℃
/60
Clockwise
HDCTD40T80G-B⬇
4.0~8.0
FULL
0.6(0.7)
17(16)
1.4(1.5)
-55~+85℃
/60
Counter Clockwise

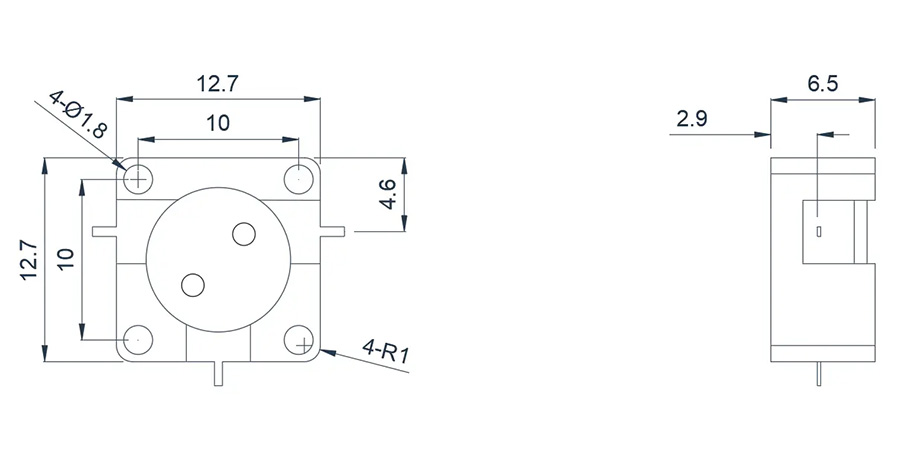

6.0~18.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC60T180G-B⬇
6.0~18.0
FULL
1.2(1.5)
11(10)
1.7(1.8)
-55~+85℃
/30
Clockwise
HDCTD60T180G-B⬇
6.0~18.0
FULL
1.2(1.5)
11(10)
1.7(1.8)
-55~+85℃
/30
Counter Clockwise

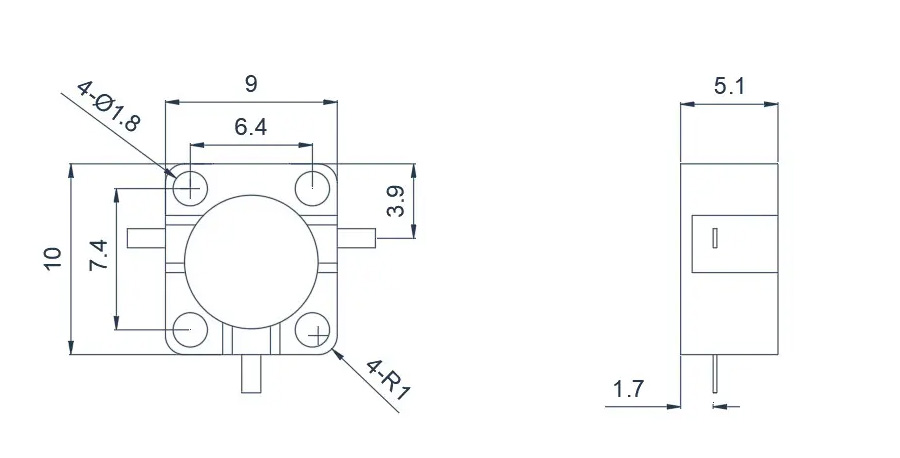

8.0~18.0GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC80T120G-B⬇
8.0~12.0
FULL
0.5(0.6)
18(16)
1.35(1.5)
-55~+85℃
50/20
Clockwise
HDCTD80T120G-B⬇
8.0~12.0
FULL
0.5(0.6)
18(16)
1.35(1.5)
-55~+85℃
50/20
Counter Clockwise
HDCTC120T180G-B⬇
12.0~18.0
FULL
0.6(0.7)
16
1.35(1.4)
-55~+85℃
50/20
Clockwise
HDCTD120T180G-B⬇
12.0~18.0
FULL
0.6(0.7)
16
1.35(1.4)
-55~+85℃
50/20
Counter Clockwise

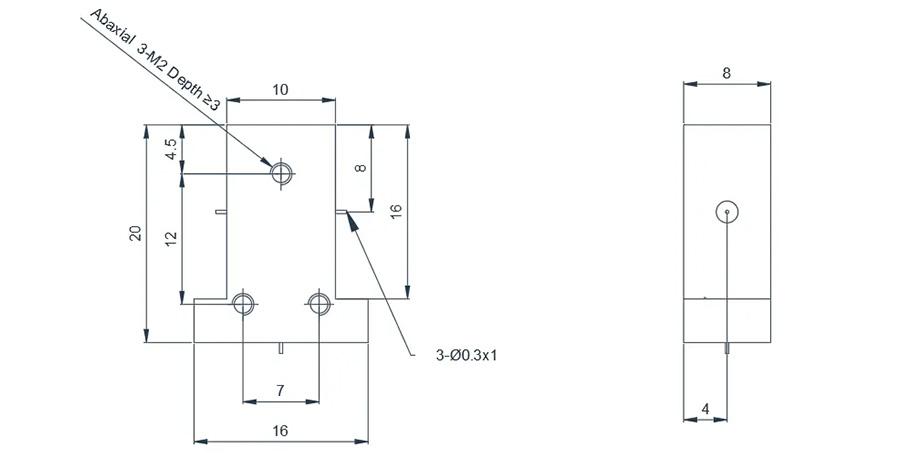

18.0~26.5GHz Broadband Drop-in Circulator
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
-55~+85℃
20/5
Clockwise
HDCTD180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDCTC01T04G-B⬇ | 0.1~0.4 | 40% | 0.6 | 15 | 1.5 | -55~+85℃ | 1000/100 | Clockwise |
