In modern radios, front‑end protection and duplexing are achieved by non‑reciprocal devices. A typical RF isolator protects the PA from reflected energy and stabilizes load‑pull behavior, while an RF circulator routes TX, ANT, and RX ports in a directional loop, enabling simultaneous transmit/receive in T/R modules. Such functionality is indispensable in phased‑array radar, satellite payloads, and dense 5G/6G base stations where VSWR, power handling, and linearity are closely scrutinized. Because these figures of merit are rooted in magnetic materials and precision assembly, upstream ferrite materials and the broader supply web determine whether businesses can deliver at scale.

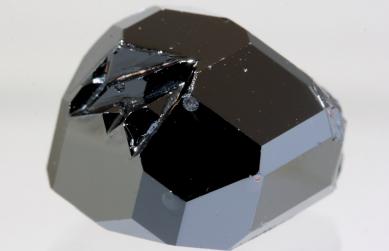

High‑performance ferrites (e.g., YIG or substituted garnets) often leverage rare‑earth dopants to tune saturation magnetization, linewidth, and permeability. For decades, mining, separation, and magnet manufacturing have been geographically concentrated, leaving downstream component makers exposed to volatility. Policy responses on both sides of the Atlantic now explicitly target diversification. For example, the EU's critical raw materials framework sets benchmarks for domestic extraction, processing, and recycling by 2030, while U.S. supply‑chain reports document concentration risks in NdFeB magnet value chains. Beyond geopolitics, environmental constraints around tailings and water management drive scrutiny over primary extraction — putting a premium on recycling and secondary sources.

Engineering moves faster when risk is split across several credible options rather than a single moonshot. Today's plausible paths span incremental ferrite optimization to disruptive magnetless non‑reciprocity.

(a) Low‑ or no‑rare‑earth ferrites / composites

This pragmatic route aims to reduce rare‑earth content while preserving low loss and adequate isolation. Composite ferrites — blending magnetic and non‑magnetic phases — can lower cost and improve thermal stability. The catch is that removing beneficial dopants may increase damping or shift the bias point, so device designers must re‑optimize junction geometry, ground vias, and bias fields to claw back insertion loss and isolation.

(b) Magneto‑photonic crystals (MPCs)

By engineering photonic band structures, MPCs enhance non‑reciprocal propagation and can lower magnetic volume at mmWave/THz. For payloads where mass and volume penalties are harsh, this can be attractive, although manufacturability and repeatability must meet space‑grade standards. MPC‑like concepts also dovetail with topological photonics, where protected edge modes promise robustness to fabrication tolerances — a tantalizing proposition for next‑gen front‑ends.

(c) Magnetless / time‑modulated non‑reciprocity

Temporal or spatio‑temporal modulation of reactive elements can break time‑reversal symmetry without permanent magnets. Switched delay‑line architectures demonstrate wideband circulation on PCB/CMOS, suggesting a path toward chip‑scale non‑reciprocal devices. Remaining hurdles include switch loss, clock feed‑through, nonlinearity under high RF drive, and calibration drift over temperature. Nonetheless, magnetless routes are compelling for RF circulator and RF isolator functions in highly integrated modules where volume and BOM are constrained.

(d) Recycling & upstream re‑shoring

Technical innovation must be matched by structural moves: magnet/ferrite recycling, secondary raw‑material markets, and regional processing capacity. Recycled NdFeB streams can partially offset primary mining, while localized ferrite sintering shortens lead times. Long‑term contracts and off‑take agreements with refiners reduce price shocks and give R&D teams clearer guardrails for costed BOMs.

For catalog and custom devices alike, material shifts ripple directly into specifications:

• Insertion loss & isolation: Lower RE content may increase magnetic loss; designers respond with optimized junctions, multilayer grounds, and refined bias control.
• Bandwidth: Composite or magnetless approaches can be wideband, but sideband management and matching networks become more intricate.
• Power handling: Waveguide and coaxial parts still dominate for high‑power radar/satcom. Magnetless PCB‑scale devices are promising for low‑to‑mid power in compact modules.

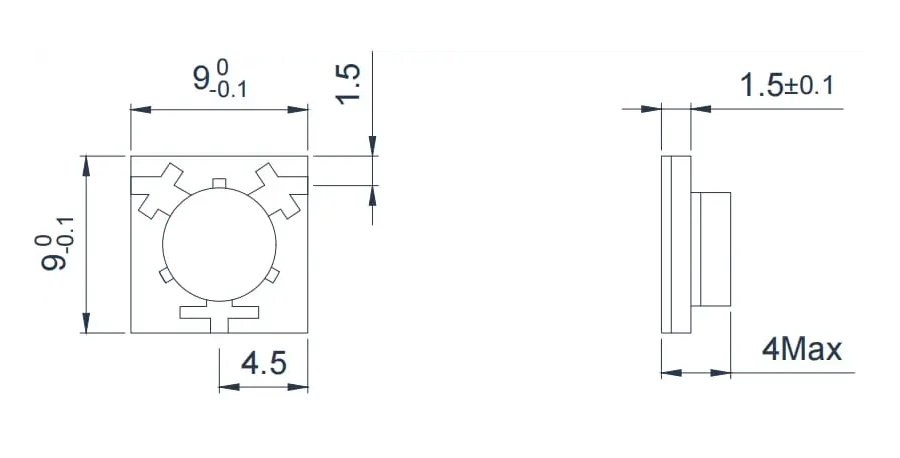

• Footprint & integration: Microstrip wins SWaP in T/R modules; magnetless paths may further compress volume by removing magnets and cores.
• Qualification: Defense/space customers require environmental, shock/vibe, and radiation data; new materials and architectures must climb that ladder step‑by‑step.

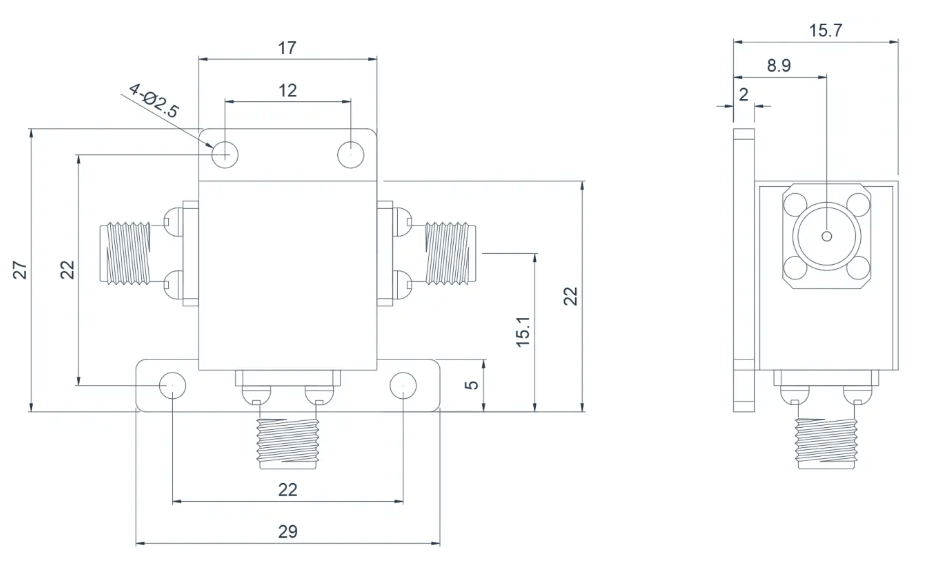

Figure 2. Typical coaxial circulator mechanical outline (example). Source: hzbeat.com.

Policy levers. Regional targets for extraction, processing, and recycling are aligning public funds with private off‑take. For buyers of RF isolator and RF circulator assemblies, this translates to new vendor lists and qualification tasks. A balanced strategy spreads awards across at least two geographies and mixes primary with secondary (recycled) sources.

Recycling flywheel. Establishing steady scrap and magnet returns creates predictable feedstock for refiners, stabilizing pricing and reducing carbon footprint. For OEMs, participation ranges from simple take‑back programs to deeper partnerships with recyclers — often rewarded by preferential allocation during tight markets.

Commercial tooling. Long‑term agreements (LTAs), price‑band corridors tied to indexed inputs, and co‑investment in furnaces or sintering capacity transform adversarial sourcing into collaborative planning. Engineering then locks materials sooner and avoids late‑stage redesigns triggered by shortages.

Defense/Radar/EW. High power handling, isolation >20–25 dB, and ultra‑low failure rates keep waveguide/coaxial devices central. Material diversity is introduced first on non‑critical branches or lower‑power TRMs, then scaled after HALT/HASS evidence accumulates.

5G/6G infrastructure. Compact radios crave integration and cost control; microstrip circulators and board‑level isolators deliver. Magnetless devices could become attractive where BOM, height, or thermal budgets are tight — initially for small cells or backhaul.

Satellite & space / Quantum readout. Mass/volume pressure and radiation/cold performance drive both ferrite optimization and exotic couplings (e.g., cavity‑magnonics). Any alternative must survive TVAC, radiation, and shock/vibe qualification before flight heritage can form.

• Switched delay‑line and clocked architectures demonstrating magnet‑free circulation with encouraging bandwidth — with ongoing work on linearity and spur suppression.
• Time‑varying and spatio‑temporal modulation on PCB/CMOS platforms that hint at chip‑scale non‑reciprocity for future integrated front‑ends.
• Magneto‑photonic crystals and topological photonics for mmWave/THz offering reduced magnet volumes and potential robustness to fabrication spread.

Demand for non‑reciprocal devices grows with 5G/6G densification, satcom constellations, and radar modernization. Leaders will be those who can prove performance at the datasheet level while de‑risking materials. Risks span performance gaps versus mature ferrites, lifetime under temperature cycling, the cost of new tooling, and certification lead-times. The winning posture is a dual‑track portfolio: resilient ferrites for near‑term revenue and carefully gated magnetless/modulated pilots aimed at high‑volume integrated modules.

1. Short‑term: Multi‑source ferrites; inventory buffers; initiate magnet take‑back with recyclers; sharpen costed BOMs for microstrip/coaxial staples.
2. Mid‑term: Pilot magnetless or time‑modulated designs in low‑risk chains; expand composite ferrites; qualify regional processors.
3. Long‑term: Upstream partnerships and LTAs; invest in chip‑scale non‑reciprocity and MPC/topological routes; build IP that marries materials and packaging.

Q1: Why are rare‑earths used in ferrites?

They tune magnetization and linewidth to achieve low insertion loss and strong isolation in RF circulator and RF isolator designs.

Q2: Can magnetless designs replace ferrites everywhere?

Not yet. A hybrid path is the most practical: ferrites for high‑power/qualified paths; magnetless/modulated where size and integration dominate.

Q3: What improves supply chain resilience now?

Diversified sources across regions, recycling programs, and LTAs/co‑investment with upstream suppliers — supported by clear engineering change control.

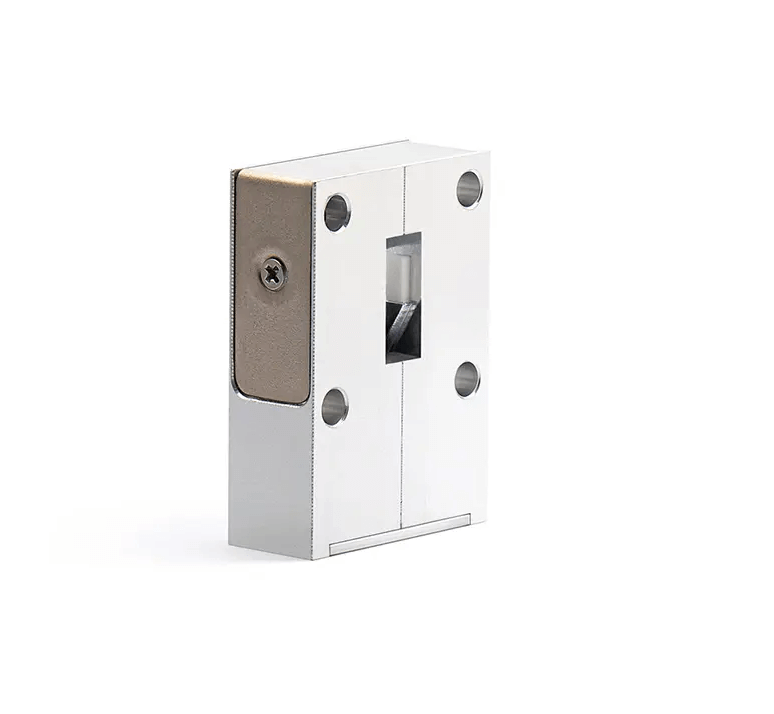

Figure 3. High‑Power Waveguide Isolator (example). Source: hzbeat.com.

1. U.S. Department of Energy — Rare Earth Permanent Magnets: Supply Chain Deep Dive (overview of upstream concentration and policy responses).
2. European Commission — Critical Raw Materials policy framework and factsheets (targets for extraction, processing, recycling; strategic project framework).
3. MDPI Electronics — Magnetic‑Free Non‑Reciprocal Multifunction Device Based on Switched Delay Lines.
4. MDPI Applied Sciences — Non‑magnetic On‑Chip Passive Circulator in CMOS / and Time‑Varying Phase Modulator approaches.
5. MDPI Photonics — A Terahertz Circulator Based on a Magneto‑Photonic Crystal Slab.
6. HzBeat product pages — Microstrip/Coaxial/Waveguide series (specifications & mechanical drawings).
