Broadband Coaxial Circulator
2-6GHz, 6-18GHz, Full Band
- Broadband Coaxial Circulator is a critical component in RF and microwave systems.
- designed to provide high isolation and efficient signal routing across a wide frequency range within a coaxial transmission line.
Key Features & Advantages
- Ultra-wideband coverage across multiple models with broad frequency ranges (e.g. 0.5–2GHz 1–4GHz 2–8GHz 6–18GHz), meeting diverse applications while reducing component variety and simplifying system design.
- Very low insertion loss (typ. < 0.4 dB), maximizing signal transmission efficiency while enhancing system signal-to-noise ratio (SNR) and dynamic range.
- Excellent isolation (typ. > 20 dB), effectively preventing transmit signal leakage into the receiver to protect sensitive components and significantly improve overall system performance.
- High power handling capacity with options for high average power (hundreds of watts) and peak power (kilowatts), ensuring stable and reliable operation in harsh high-power environments.
- Superior VSWR (typ. < 1.25), ensuring good impedance matching, reduced signal reflection, and reliable signal integrity.
- Robust coaxial structure with standard interfaces (e.g., SMA, N-type, TNC) and a hermetically sealed housing, providing strong shielding and mechanical strength for harsh environments.
- Outstanding temperature stability across a wide range (e.g., -55°C to +85°C), ensuring reliable performance under diverse climatic conditions.
Typical Applications
- Radar Systems: Used as Transmit/Receive (T/R) switches, protecting the receiver from high-power transmit pulses.
- Wireless Communication Systems: Separates transmit and receive signals between the Power Amplifier (PA) and antenna, improving system capacity and sensitivity.
- Test & Measurement Equipment: Used with signal sources, spectrum analyzers, and network analyzers to protect expensive instruments from reflected signals.
- Electronic Countermeasures (ECM) Systems: Enables signal routing and isolation in jamming and surveillance systems.
- Satellite Communications: Used for signal combining and splitting, ensuring isolation between uplink and downlink paths.

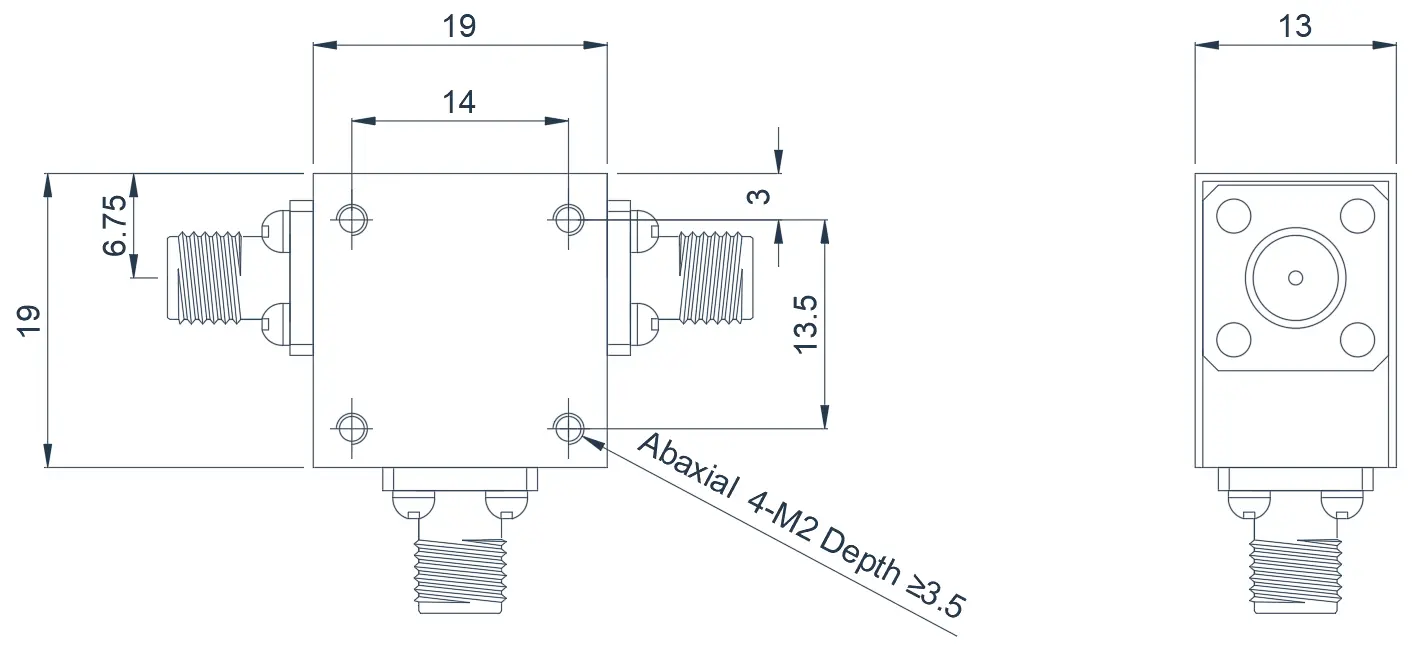

Electrical Performance Table and Product Appearance

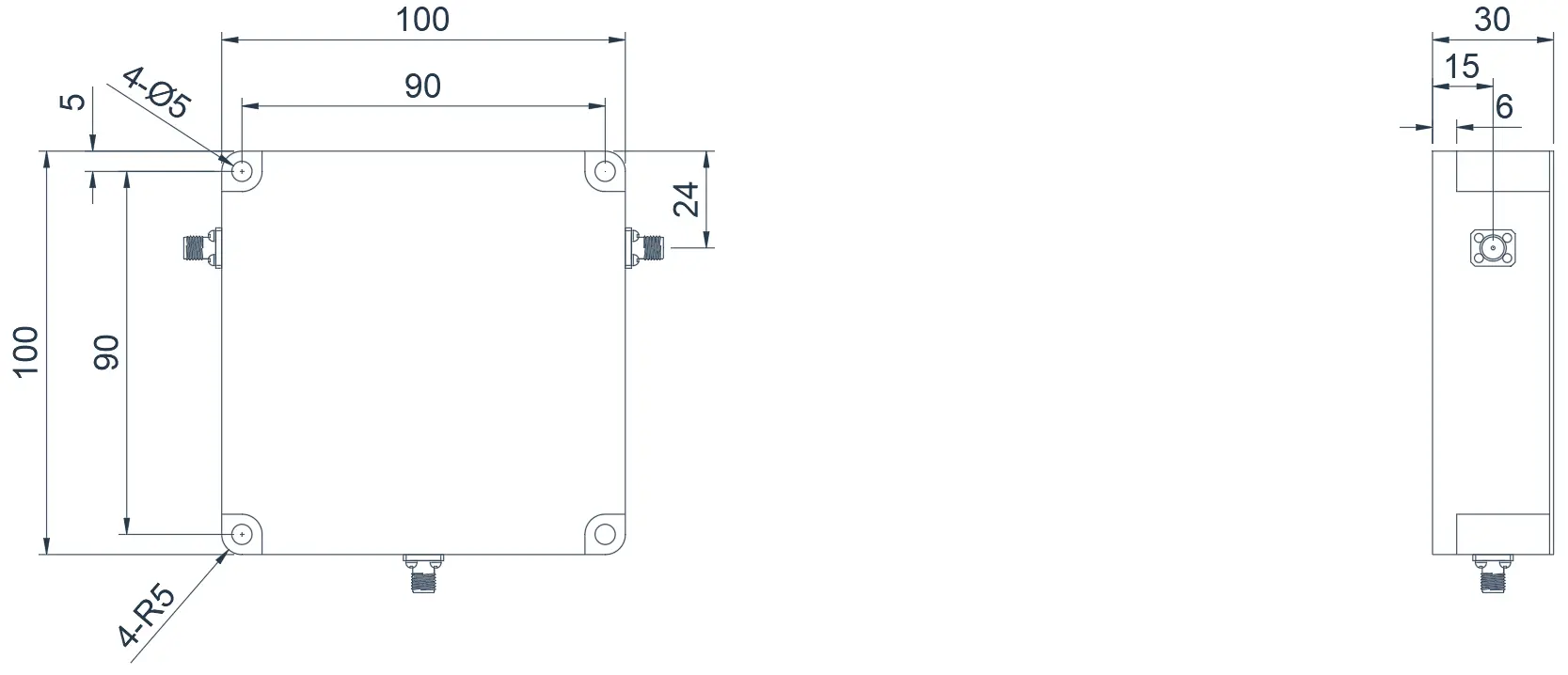

0.1~0.4GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from VHF to UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Clockwise
HCCTB01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Counter Clockwise

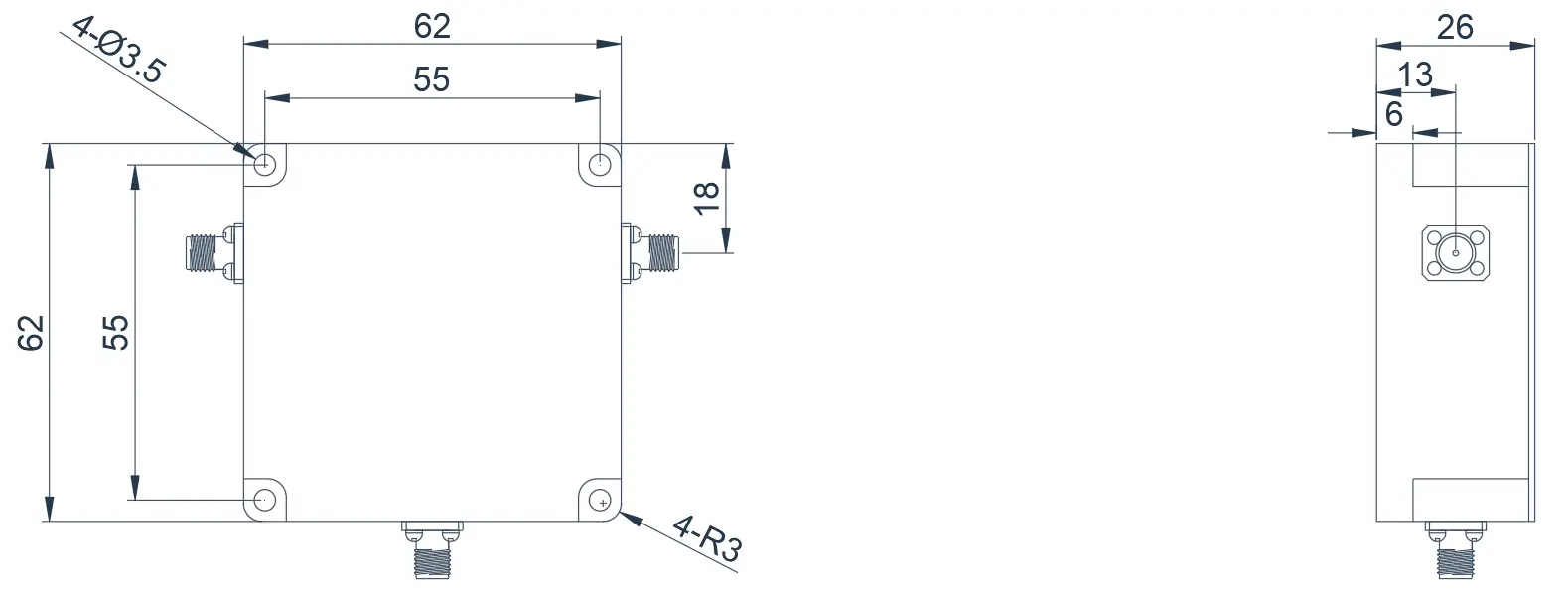

0.3~0.6GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Clockwise
HCCTB03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Counter Clockwise

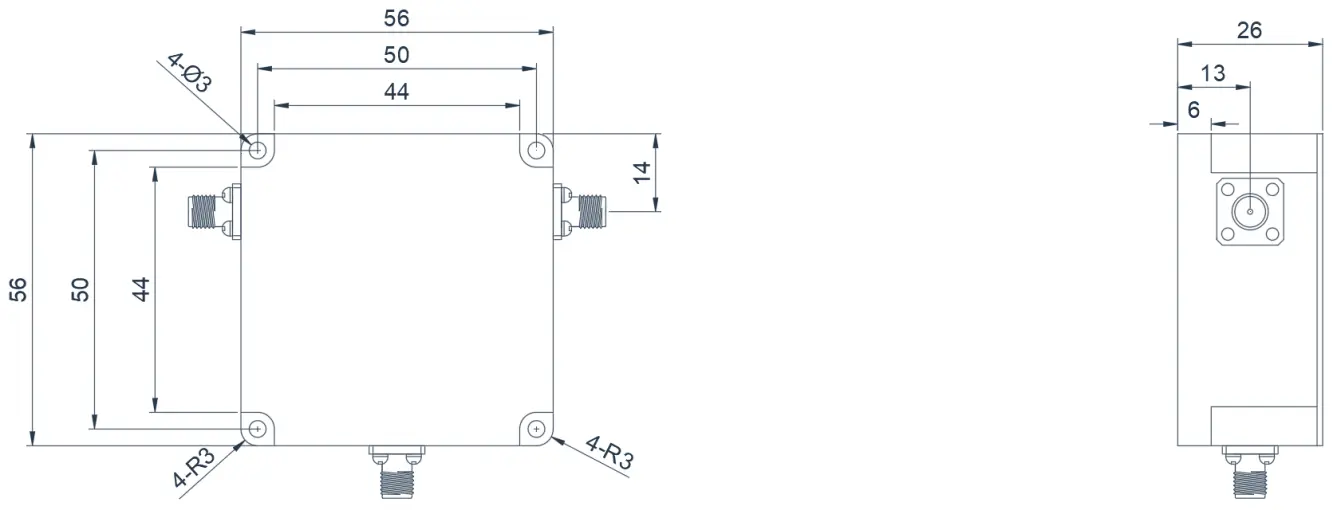

0.5~1.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Clockwise
HCCTB05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100
Counter Clockwise

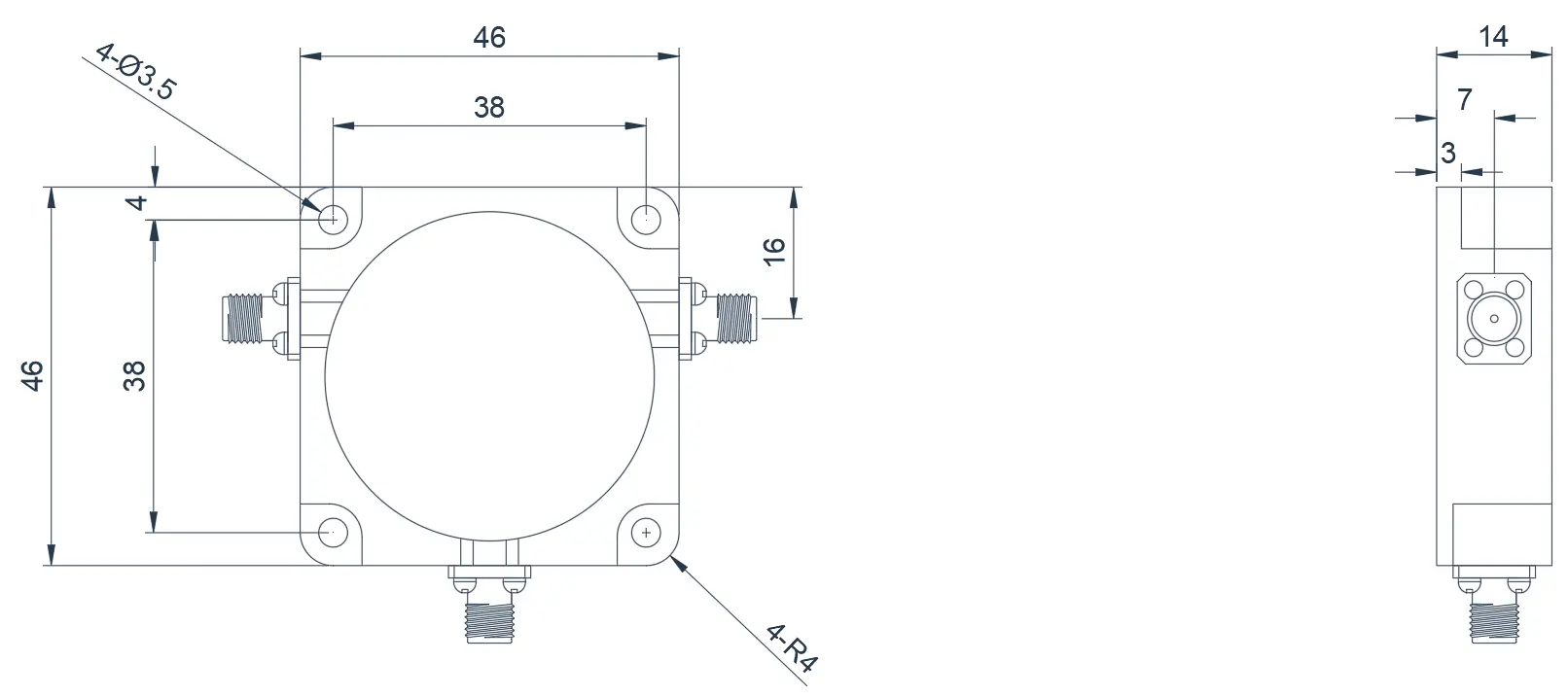

1.0~2.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator covering the entire L-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
SMA
-20~+60℃
-/100
Clockwise
HCCTB10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
SMA
-20~+60℃
-/100
Counter Clockwise

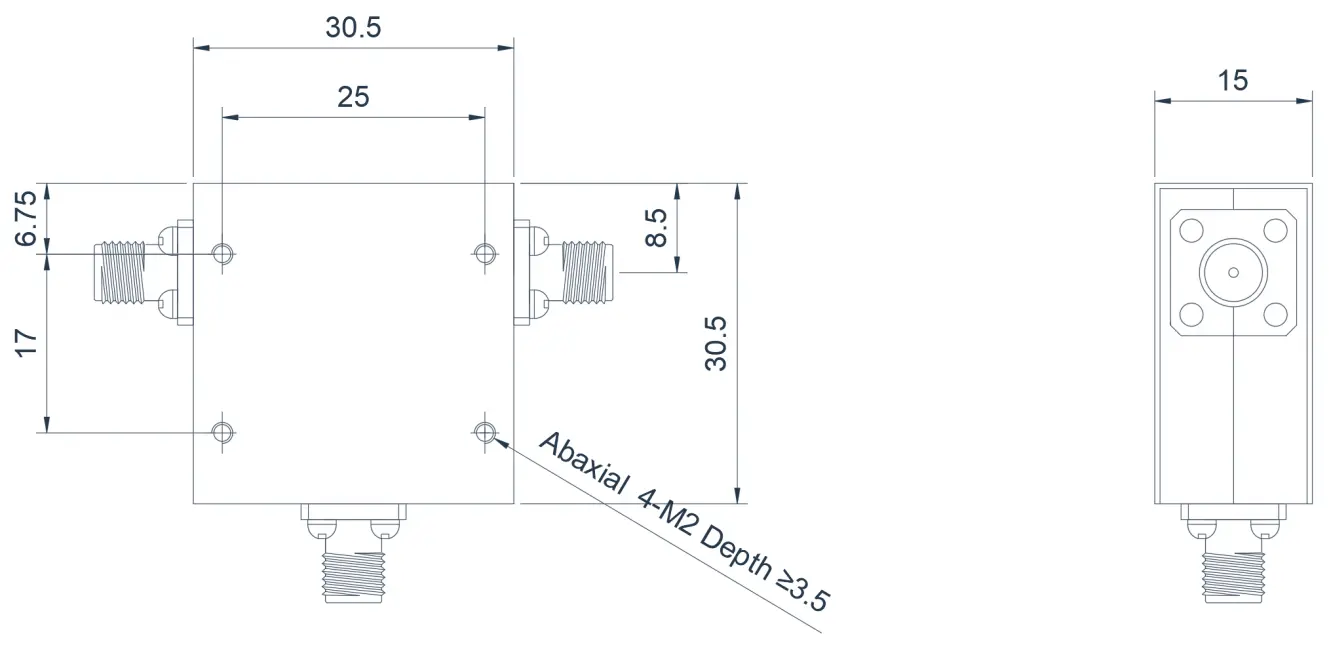

2.0~6.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from S to C bands, with a maximum relative bandwidth of up to 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
SMA
-55~+85℃
-/80
Clockwise
HCCTB20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
SMA
-55~+85℃
-/80
Counter Clockwise
HCCTA20T60G-B⬇
2.0~6.0
FULL
1(1.2)
11(10)
1.7
SMA
-55~+85℃
-/80
Clockwise
HCCTB20T60G-B⬇
2.0~6.0
FULL
1(1.2)
11(10)
1.7
SMA
-55~+85℃
-/80
Counter Clockwise
3.0~6.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from S to C bands, with a maximum relative bandwidth of up to 66.66%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA30T60G-B⬇
3.0~6.0
FULL
0.6
16.0
1.35
SMA
-40~+70℃
100/100
Clockwise
HCCTB30T60G-B⬇
3.0~6.0
FULL
0.6
16.0
1.35
SMA
-40~+70℃
100/100
Counter Clockwise

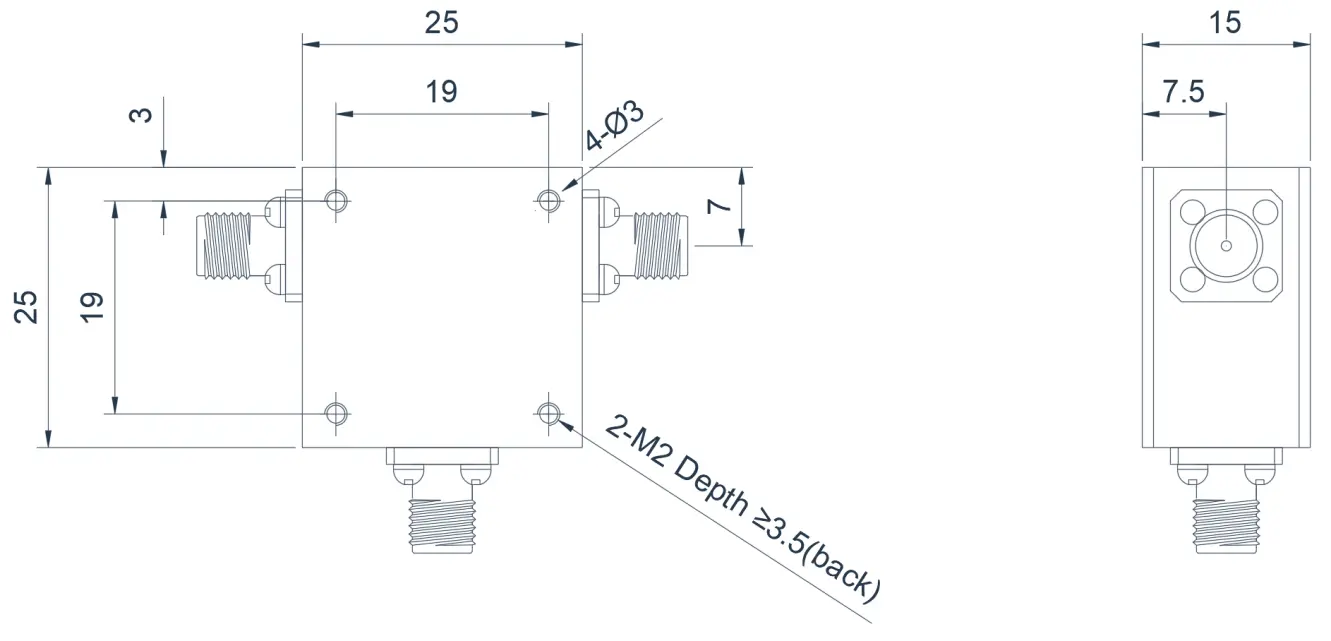

4.0~8.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator covering the entire C-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA40T80G-B⬇
4.0~8.0
FULL
0.5
17
1.35
SMA
-55~+85℃
-/80
Clockwise
HCCTB40T80G-B⬇
4.0~8.0
FULL
0.5
17
1.35
SMA
-55~+85℃
-/80
Counter Clockwise

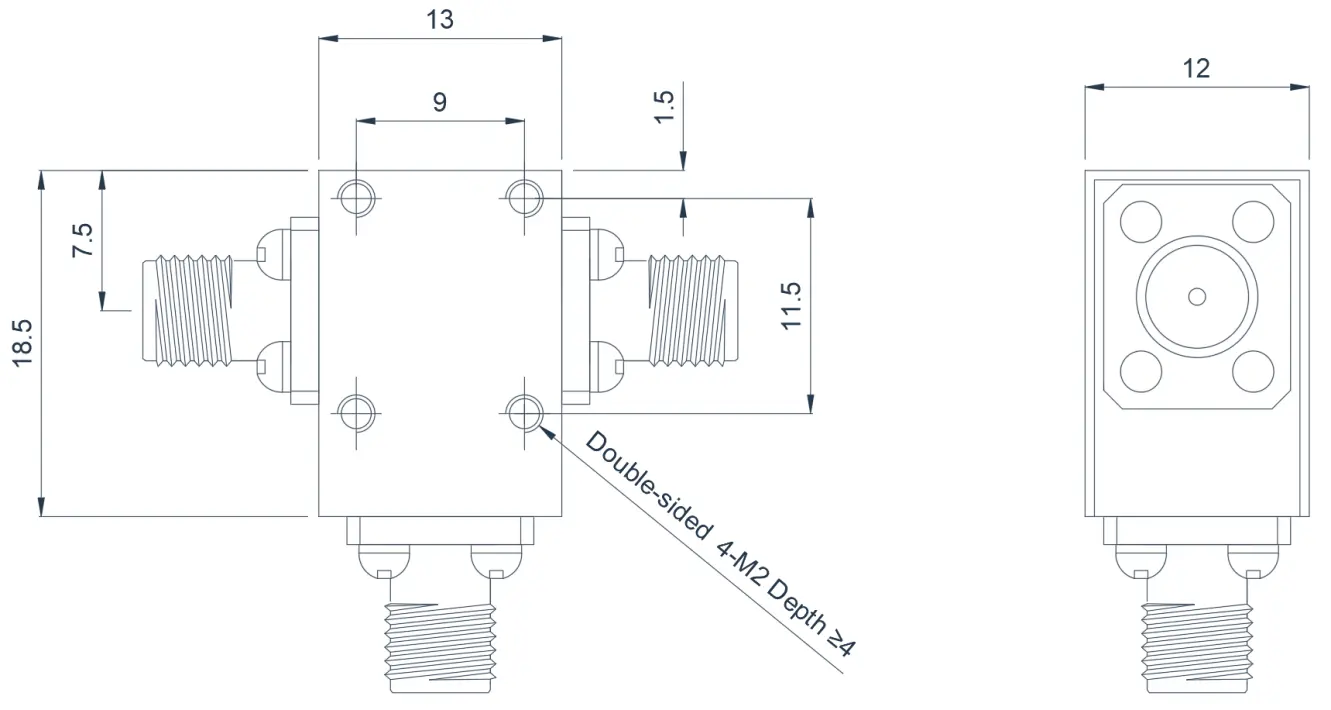

6.0~18.0GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator, covering the frequency range from C to Ku bands, with a maximum relative bandwidth of up to 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA60T180G-B⬇
6.0~18.0
FULL
1.2
11
1.7
SMA
-55~+85℃
50/20
Clockwise
HCCTB60T180G-B⬇
6.0~18.0
FULL
1.2
11
1.7
SMA
-55~+85℃
50/20
Counter Clockwise

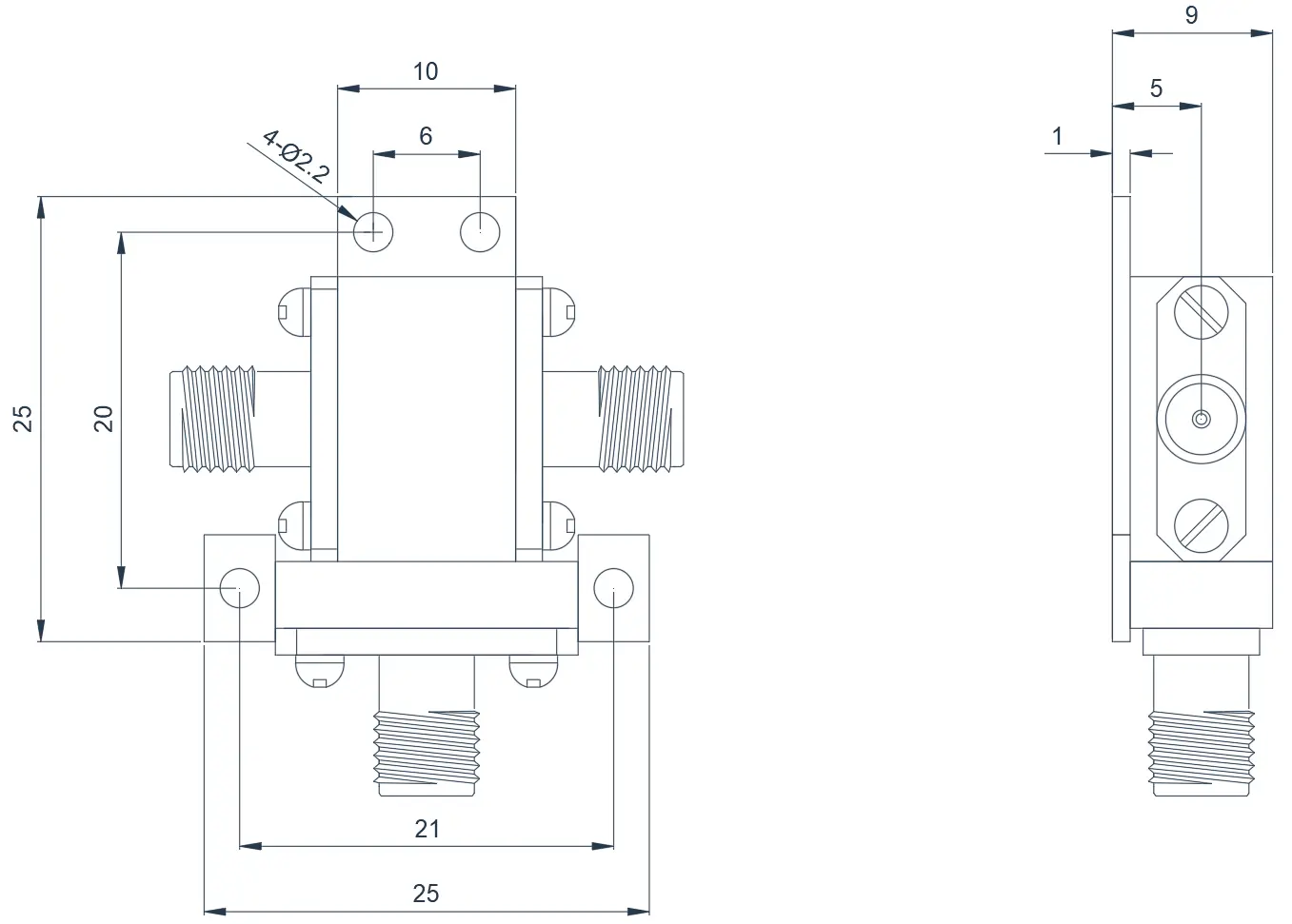

18.0~26.5GHz Broadband Coaxial Circulator
Product Overview
The following products are Broadband Coaxial Circulator covering the entire K-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCCTA180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
2.92-K
-55~+85℃
20/5
Clockwise
HCCTB180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
2.92-K
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
