High Power Waveguide Isolator

Custom design

High Power Waveguide Isolator is a crucial component in RF and microwave systems, specifically designed to handle high power levels while providing efficient signal isolation and protection within a waveguide transmission line.

Product Details

Characteristics and Applications

High Power Waveguide Isolator is a critical component designed to effectively isolate high-power RF signals and protect RF devices from unwanted reflections and interferences in waveguide-based RF systems. This isolator is engineered to handle high power levels while maintaining signal integrity and minimizing signal loss, making it well-suited for demanding RF applications where power handling capability is critical.

Its robust construction and use of high-quality materials ensure reliable performance and durability in high-power RF environments. The isolator’s efficient design allows for seamless integration into various waveguide-based RF systems, providing reliable isolation and enhancing overall system performance, particularly in applications requiring high power handling.

Furthermore, the High Power Waveguide Isolator is designed to meet stringent industry standards, ensuring compliance with regulatory requirements and delivering consistent, reliable performance in critical high-power RF applications. Its versatile design and exceptional power handling characteristics make it an invaluable asset in modern RF systems, offering enhanced signal quality and system reliability in high-power waveguide applications.

Key Features & Advantages

• High Power Handling: Designed for kilowatt to megawatt-level applications, capable of withstanding and reliably managing extreme microwave power levels.
• Superior Unidirectional Protection: Functions like a "diode" for RF signals, ensuring low-loss forward transmission while effectively blocking reflected waves to protect critical components.
• Exceptional System Reliability: Built with a robust, sealed structure and efficient cooling for long-term, stable operation even in demanding environments.
• Optimized System Efficiency: Features minimal forward transmission loss, maximizing the utilization of valuable signal power and enhancing overall system energy efficiency.
• Robust Thermal Management: Incorporates a high-power rated load with optional air or water cooling, effectively dissipating large amounts of reflected energy to maintain a cool operating temperature.

Typical Applications

The High-Power Waveguide Isolator is a critical protective component in the following systems:

• Military/Civilian Radar Systems: Protects high-power klystrons and traveling wave tube amplifiers from reflected power caused by antenna mismatch.
• Satellite Communication Earth Stations: Protects high-power amplifiers in large uplink systems.
• Particle Accelerators & Research Facilities: Protects RF sources in devices like cyclotrons and nuclear fusion experimental setups.
• Industrial Microwave Heating Systems: Used in equipment for plastic welding, food processing, rubber vulcanization, etc., to protect magnetrons.
• Medical Equipment: Protects RF sources in medical linear accelerators used for cancer treatment.

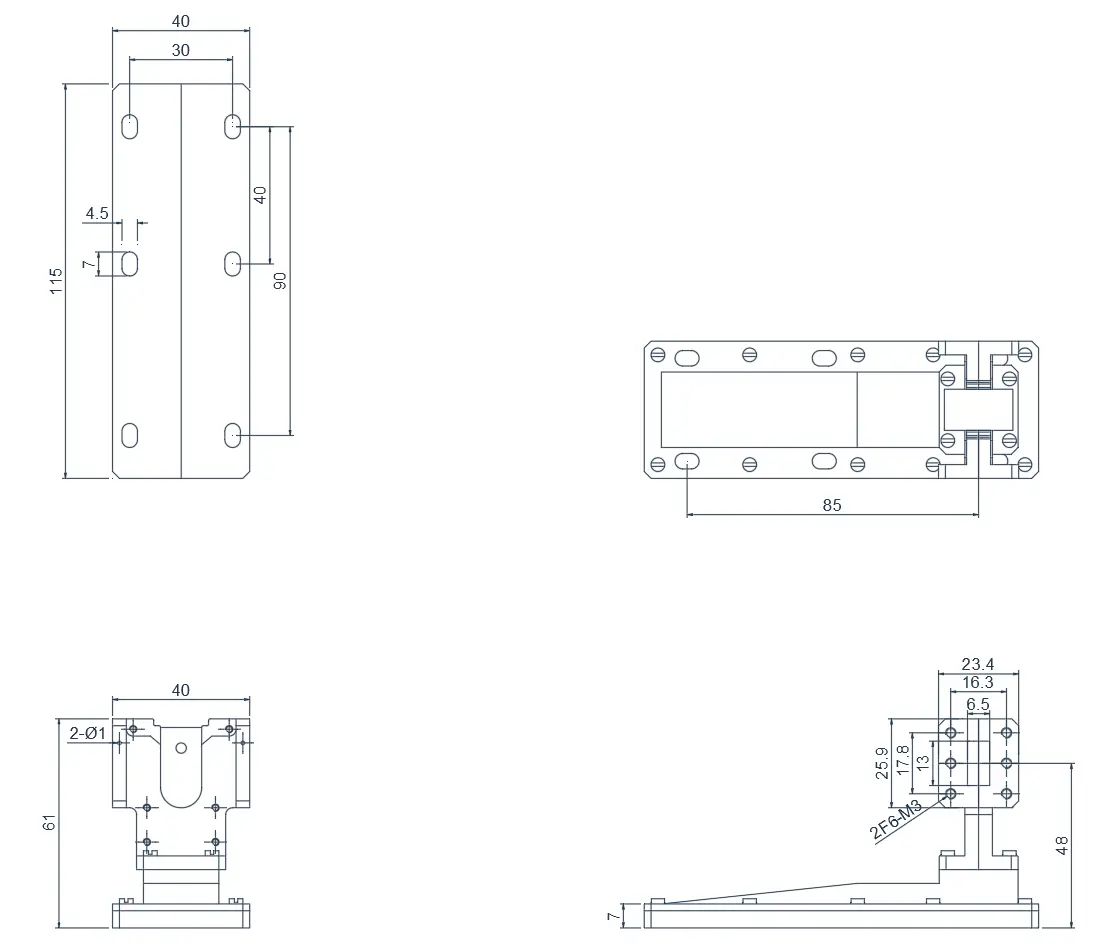

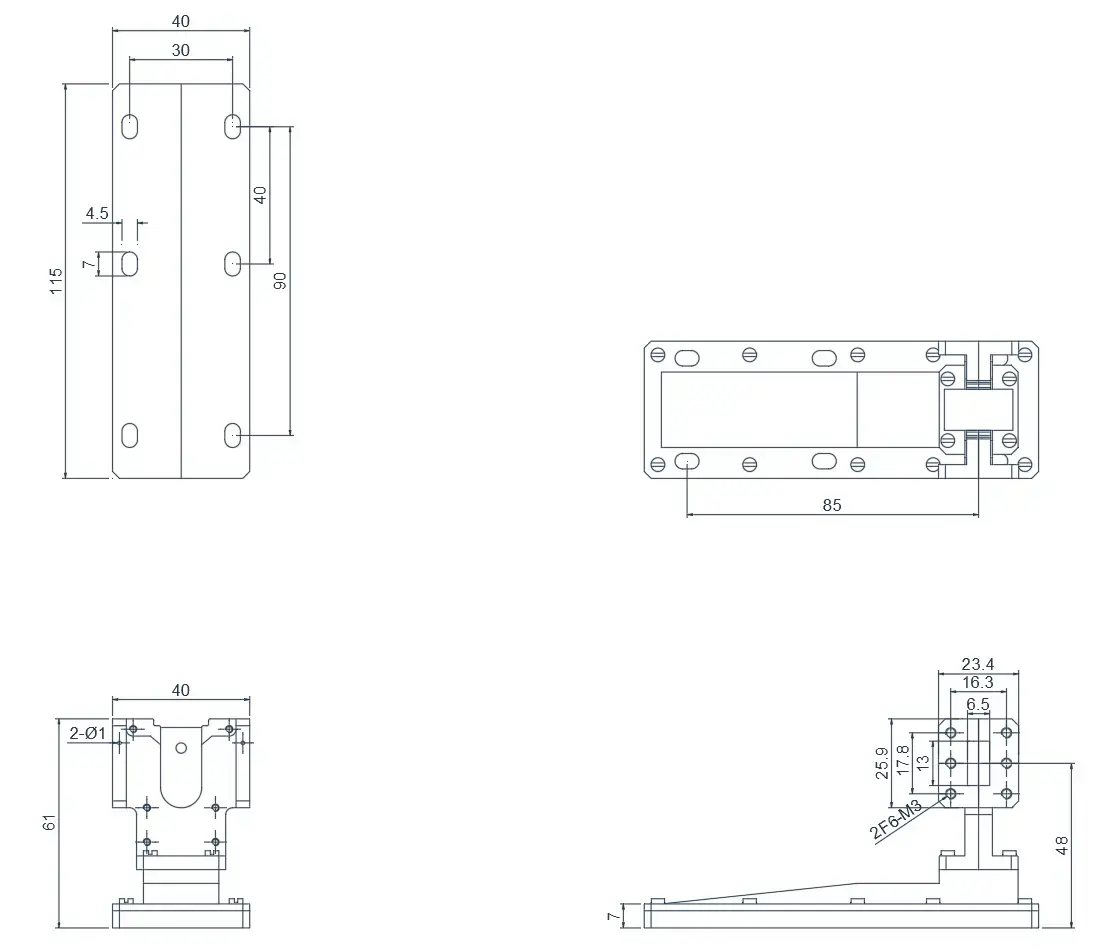

Electrical Performance Table and Product Appearance

Customization & Selection Guide

1. Operating Band: Ensure it covers all frequencies required by your system.
2. Power Handling Capacity: Select based on your system's transmit power (average and peak), allowing a certain margin.
3. Performance Requirements: Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
4. Interface & Size: Choose a connector type and form factor compatible with your system board layout.
5. Environmental Conditions: Consider operating temperature range, vibration, humidity, etc.
6. Cost & Delivery: Balance cost and project timeline while meeting performance requirements.

Why Choose Our Product

• Profound Technical Expertise: We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
• Fully Automated Production Lines: Ensure consistent excellence and reliability in every unit.
• Professional Application Support: Our engineering team provides timely technical selection, customization, and failure analysis services.
• Competitive Pricing & Lead Times: Economies of scale from mass production enable us to respond quickly to your orders.

About HzBeat

HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.

For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
