Typical Coaxial Circulator
L Band ,S Band, C Band, X Band, Ku Band, K Band, Ka Band
- Our typical coaxial circulators employ advanced ferrite materials and precision engineering, offering low insertion loss, high isolation, high power capacity, and exceptional temperature stability.
- It is commonly used in various communication systems, radar systems, and test equipment.
- They are designed to provide a reliable and efficient signal path management solution for your system.
Key Features & Advantages
- Low insertion loss with exceptionally low forward-path signal loss (typ. < 0.3 dB), maximizing signal strength and improving system signal-to-noise ratio and efficiency.
- High isolation with strong reverse-path suppression (typ. > 20 dB), effectively preventing transmit signal leakage into the receive channel to protect sensitive receivers and reduce system self-interference.
- High power handling capacity, supporting both high average and peak power, making it well suited for demanding applications such as radar and high-power communication base stations.
- Excellent VSWR with very low values at all ports (typ. < 1.20), ensuring good impedance matching, minimizing signal reflections, and enhancing overall system performance.
- High reliability and stability through a hermetically sealed, laser-welded structure that resists moisture and salt spray, with wide operating temperature tolerance and minimal performance variation for long-term operation in harsh environments and extended service life.
- Compact, rugged construction with standard coaxial interfaces (e.g., N-type, SMA, TNC) and a durable metal housing, enabling easy system integration while providing high mechanical strength and resistance to vibration and shock.
Typical Applications
- Radar Systems: Serves as a duplexer, allowing a single antenna to alternately transmit and receive, simplifying system architecture.
- Wireless Communication Base Stations: Isolates transmit and receive signals between the PA (Power Amplifier) and LNA (Low Noise Amplifier), protecting the receiver from being damaged by the powerful transmitted signal.
- Test & Measurement Instruments: Provides isolation between a signal source and a load, preventing reflected signals from damaging expensive equipment (e.g., Vector Network Analyzers).
- Amplifier Protection: Diverts reflected power from the amplifier output to a matched load where it is dissipated, preventing damage to the power amplifier transistor.
- Other Fields: Microwave relays, satellite communications, electronic warfare (EW), and any scenario requiring control over RF signal direction.
Electrical Performance Table and Product Appearance

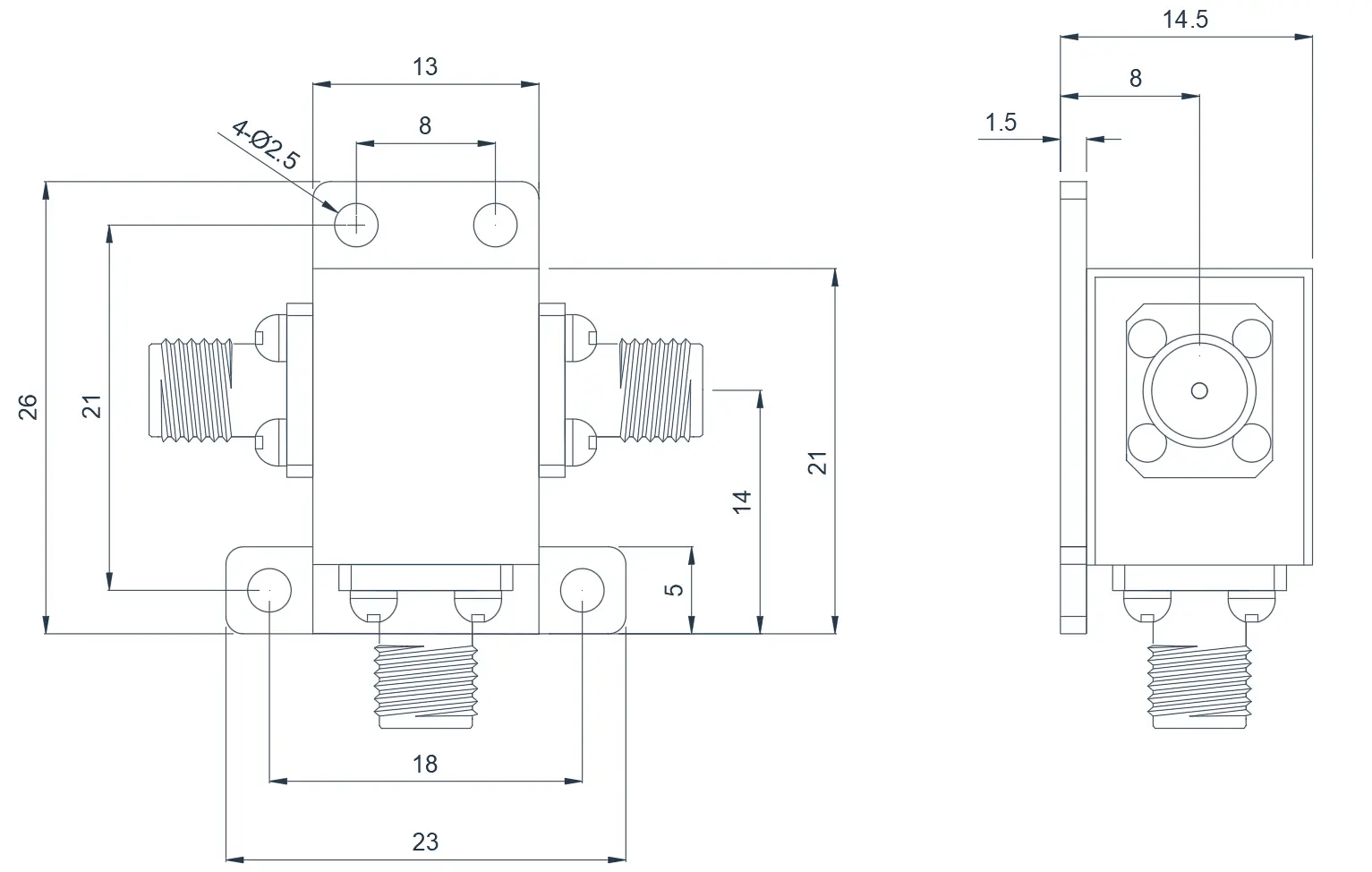

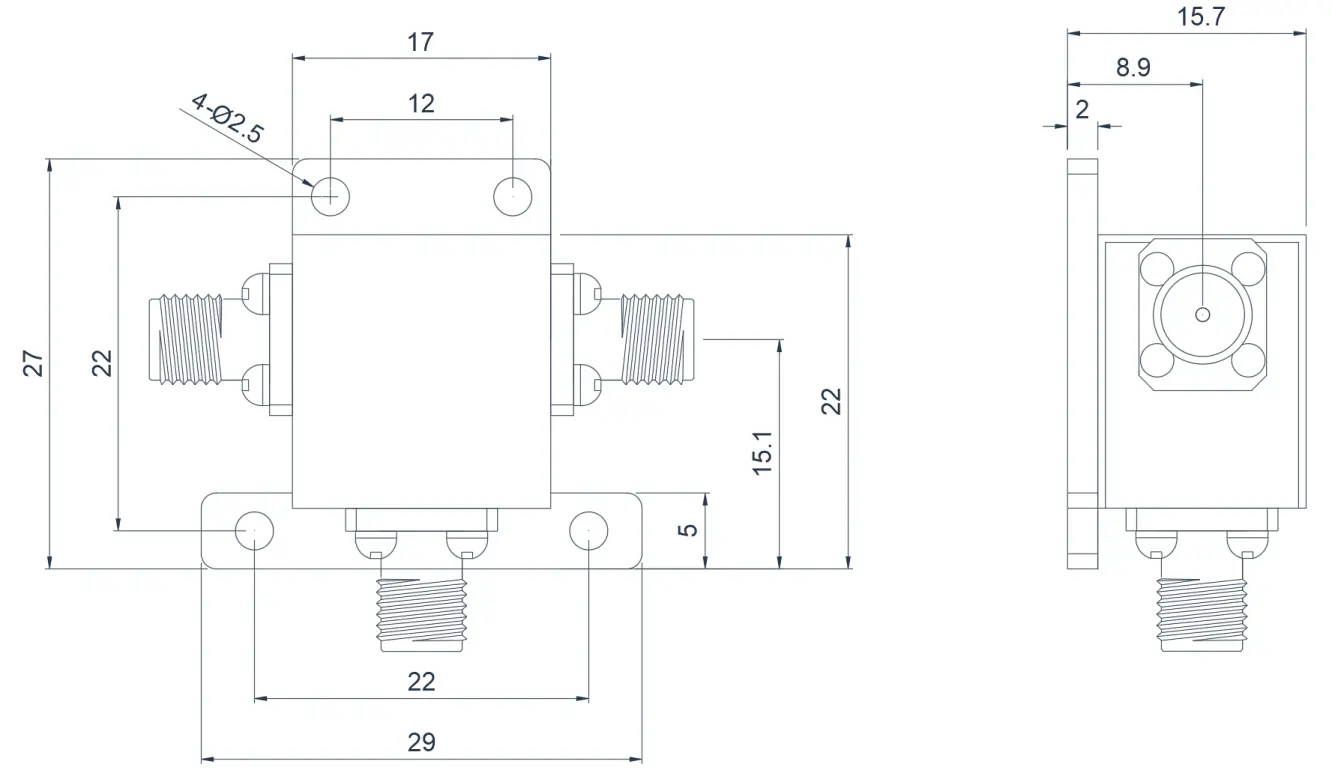

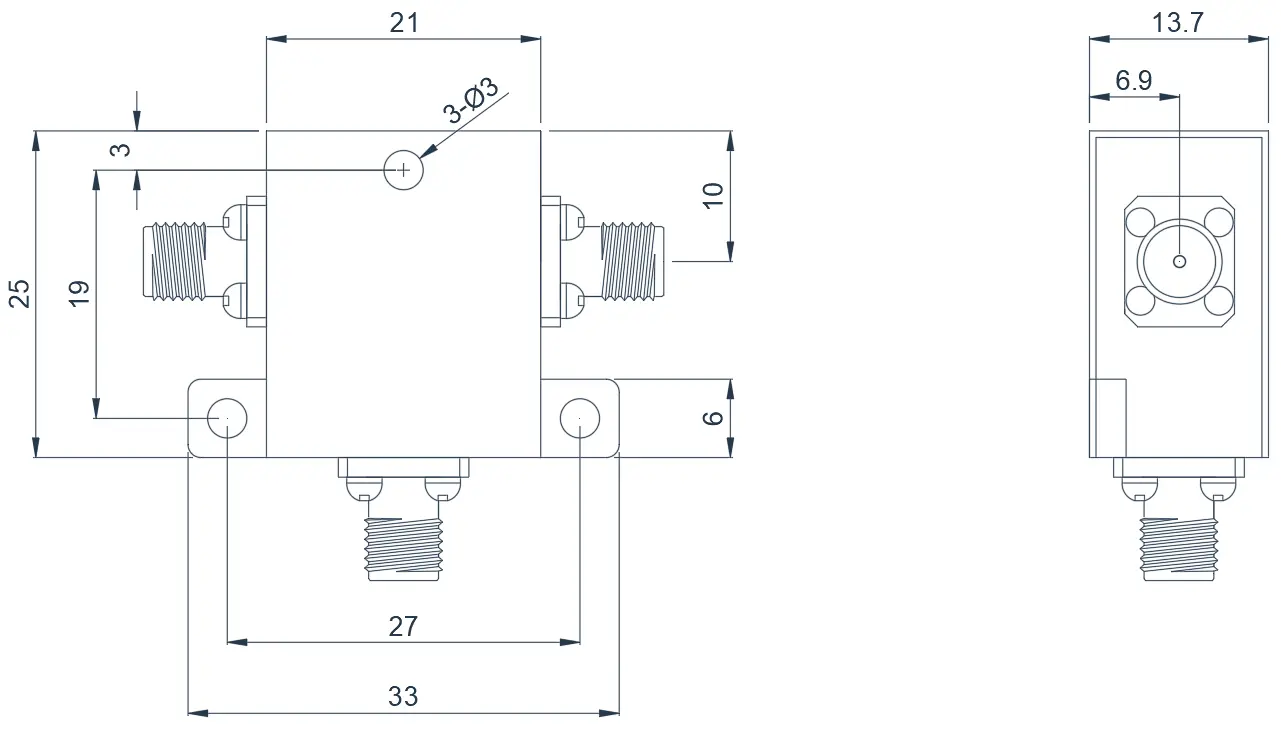

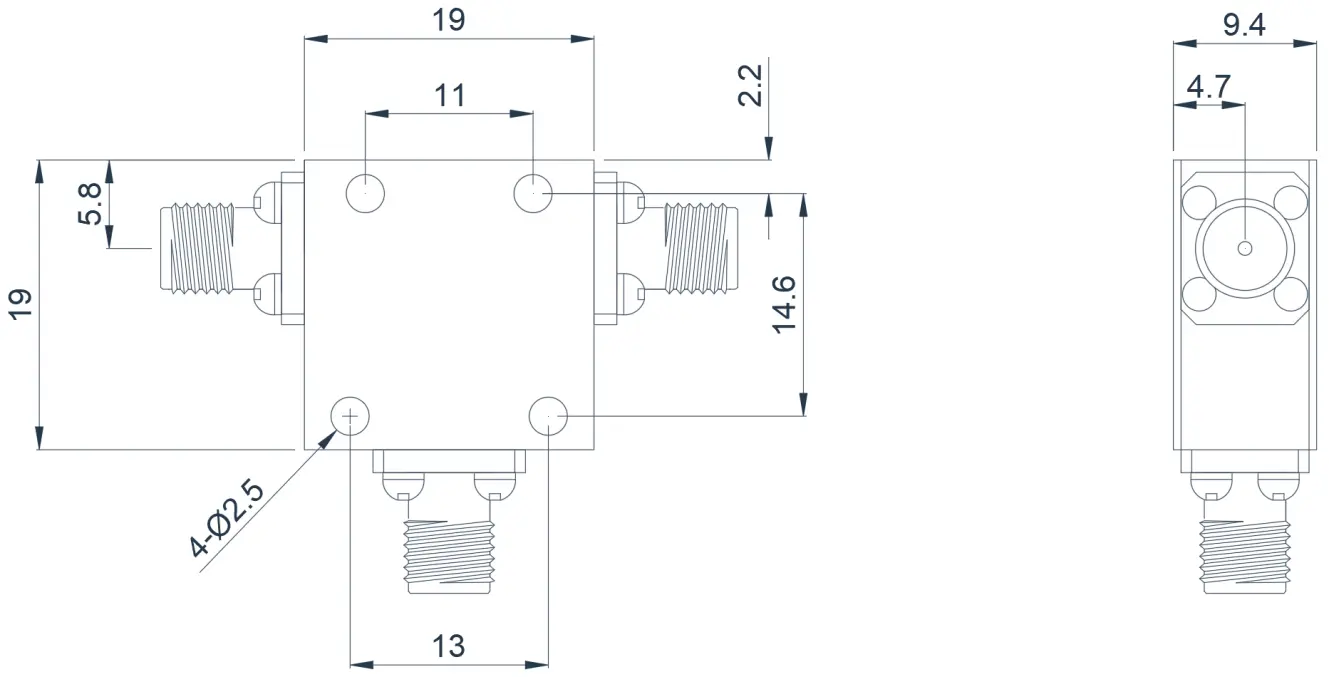

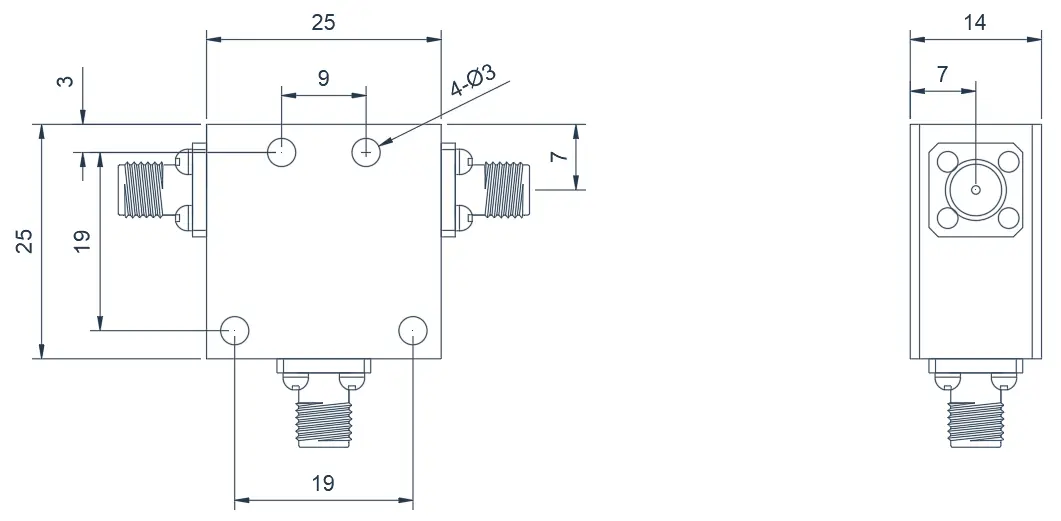

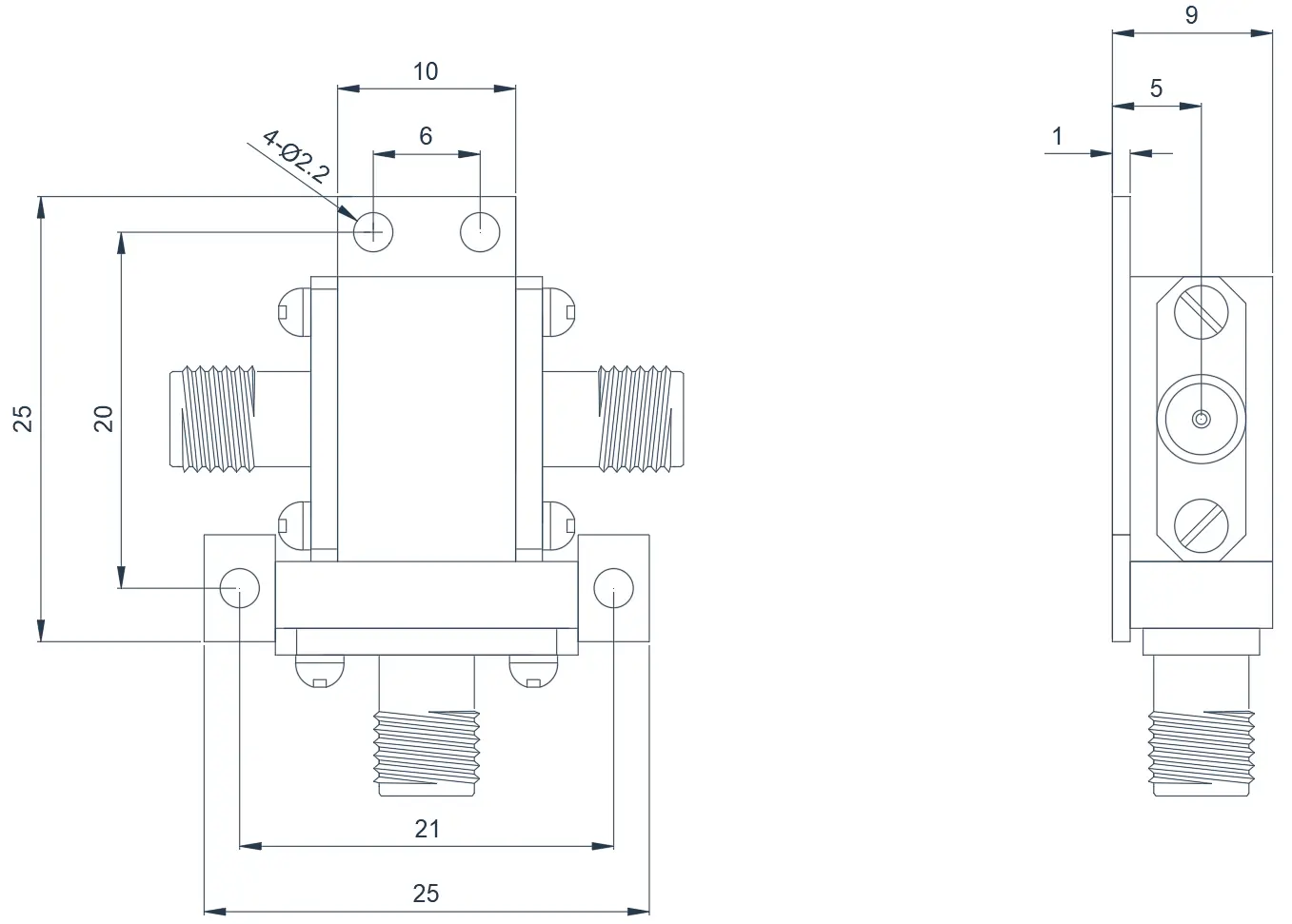

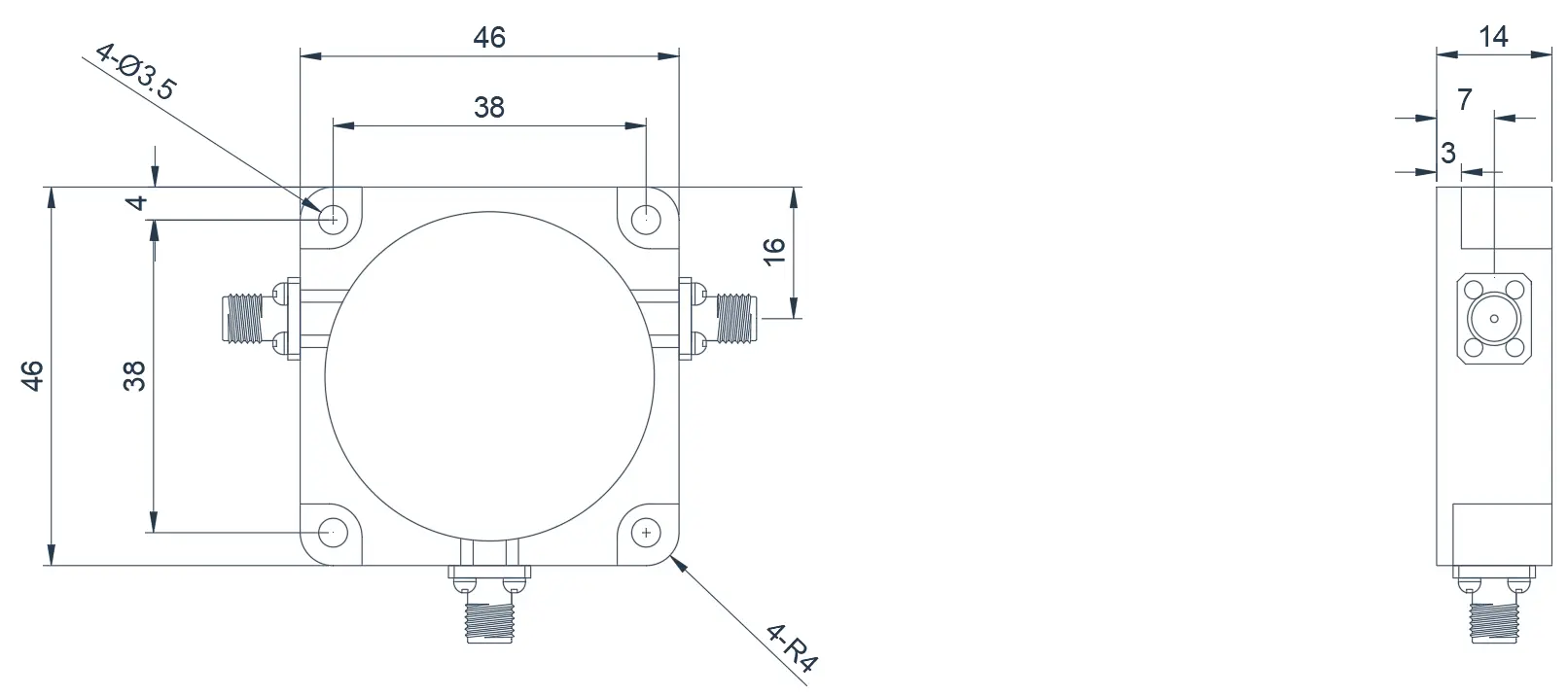

0.1~0.4GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the VHF to UHF band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA01T04G⬇ | 0.1~0.4 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Clockwise |
| HCDTB01T04G⬇ | 0.1~0.4 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Counter Clockwise |

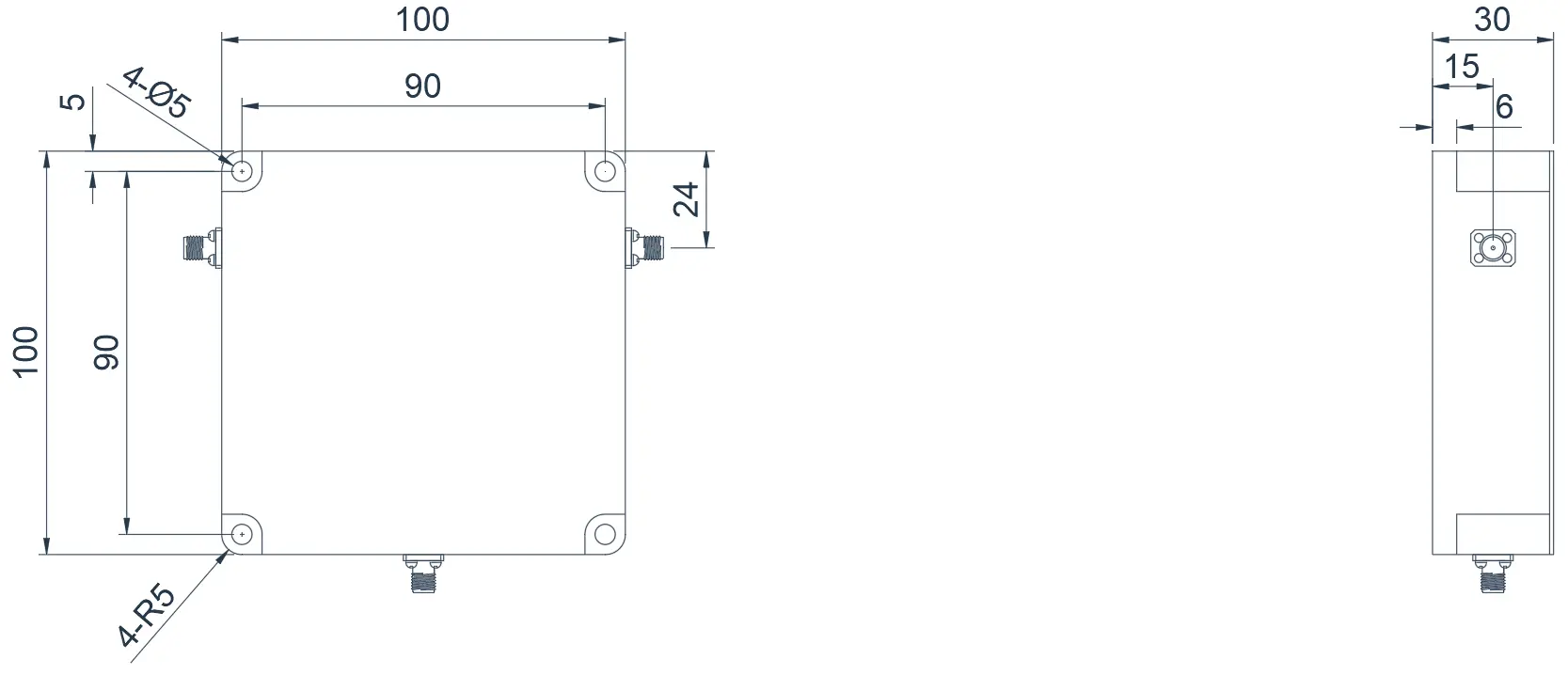

0.2~0.6GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the VHF to UHF band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA02T06G⬇ | 0.2~0.6 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Clockwise |
| HCCTB04T10G⬇ | 0.2~0.6 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Counter Clockwise |

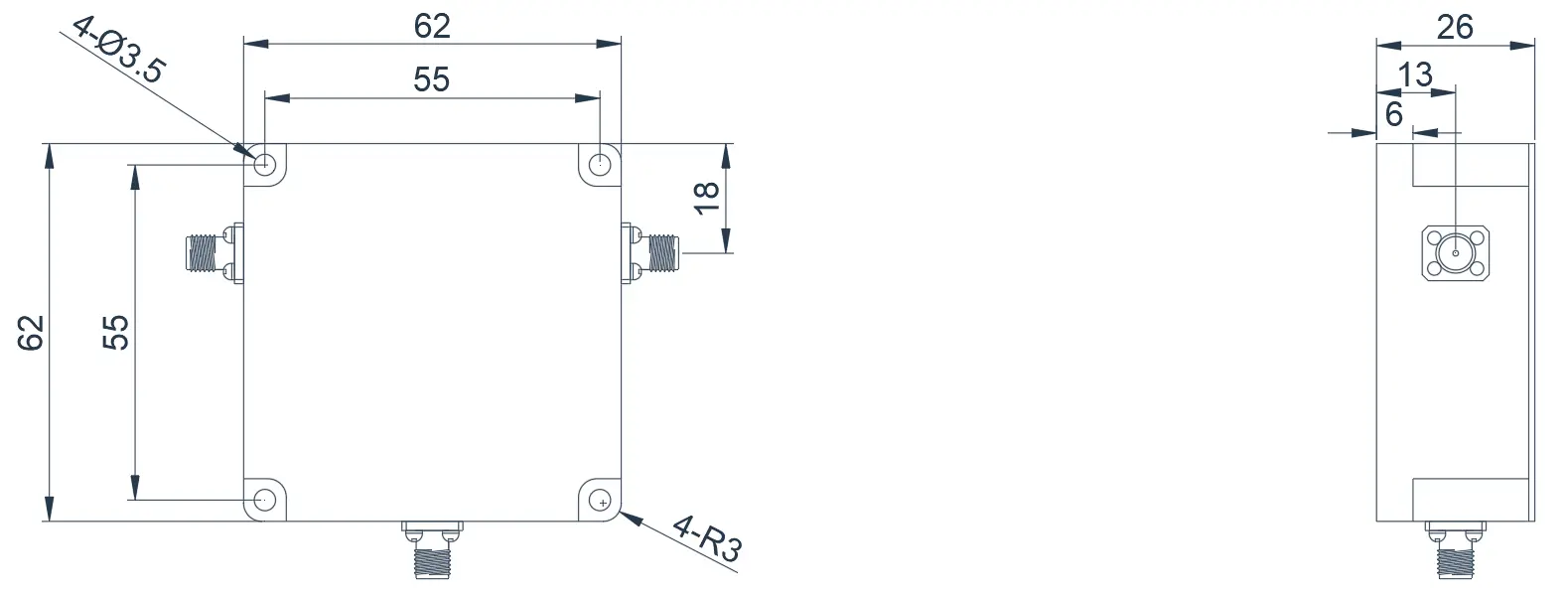

0.4~1.0GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the VHF to UHF band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA04T10G⬇ | 0.4~1.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Clockwise |
| HCCTB04T10G⬇ | 0.4~1.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Counter Clockwise |
0.8~2.5GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the UHF band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA08T25G⬇ | 0.8~2.5 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Clockwise |
| HCCTB08T25G⬇ | 0.8~2.5 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Counter Clockwise |
1.5~3.5GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of CoaxialCirculator. This product covers the L~S band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA15T35G⬇ | 1.5~3.5 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Clockwise |
| HCCTB15T35G⬇ | 1.5~3.5 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 500/50 | Counter Clockwise |
3.0~5.0GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the S~C band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA30T50G⬇ | 3.0~5.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 200/40 | Clockwise |
| HCCTB30T50G⬇ | 3.0~5.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 200/40 | Counter Clockwise |
4.0~8.0GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the C- band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA40T80G⬇ | 4.0~8.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 200/40 | Clockwise |
| HCCTB40T80G⬇ | 4.0~8.0 | 10% | 0.4 | 20 | 1.2 | SMA | -55~+85℃ | 200/40 | Counter Clockwise |
8.0~19.0GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the X Ku K- band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA80T190G⬇ | 8.0~19.0 | 10% | 0.4 | 20 | 1.25 | SMA | -55~+85℃ | 200/40 | Clockwise |
| HCCTB80T190G⬇ | 8.0~19.0 | 10% | 0.4 | 20 | 1.25 | SMA | -55~+85℃ | 200/40 | Counter Clockwise |
18.0~40.0GHz Typical Coaxial Circulator
Product Overview
Here are commonly used products of Coaxial Circulator. This product covers the Ku K- band range with a relative bandwidth of up to 10%. Dimensions, ports, and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCCTA180T400G⬇ | 18.0~40.0 | 10% | 0.6 | 18 | 1.35 | 2.92-K | -55~+85℃ | 20/5 | Clockwise |
| HCCTB180T400G⬇ | 18.0~40.0 | 10% | 0.6 | 18 | 1.35 | 2.92-K | -55~+85℃ | 20/5 | Counter Clockwise |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
