Top Coaxial Circulator Global Suppliers 2025 — HzBeat Product & Market Insights

Updated on: Oct 09, 2025

Keywords: coaxial circulator, RF isolator, high-power circulator, broadband coaxial circulator, RF components supplier, HzBeat

By integrating wide frequency coverage, proven electrical performance, and robust customization capabilities, HzBeat is recognized among the Top Global Coaxial Circulator Suppliers in 2025.

Introduction
Global Market Trends
Product Lines Overview
Typical Coaxial Circulators
High-Power Coaxial Circulators
Broadband Coaxial Circulators
Competitive Advantages
Outlook and Future Roadmap
References

1. Introduction

As the demand for advanced communication and radar systems continues to rise, RF and microwave components such as coaxial circulators have become indispensable. These non-reciprocal devices are designed to control the direction of RF signal flow, enabling duplex operation, protecting sensitive receiver stages, and ensuring stable system performance under various operating conditions.

In 2025, global competition in the coaxial circulator market has intensified. Customers across 5G/6G infrastructure, satellite communications, electronic warfare, and aerospace sectors are seeking suppliers that combine reliability, technical excellence, and global delivery capabilities. This article highlights why HzBeat is ranked among the Top Global Coaxial Circulator Suppliers in 2025, based on real product data and transparent technical performance published on the official website.

2. Global Market Trends

The global RF component market is evolving rapidly. According to IEEE and industry market reports, demand for circulators and isolators is projected to grow at a CAGR above 6% from 2023–2030, driven by:

5G and 6G networks — requiring high-frequency, low-loss duplexing solutions.
Satellite communications — Ka- and Ku-band systems increasingly rely on compact coaxial circulators for transceiver modules.
Defense and radar — phased array systems depend on high-isolation components to protect T/R modules.
Medical imaging — MRI systems use precision circulators to stabilize high-field coils.

Within this competitive landscape, HzBeat stands out by offering a 0.1–40 GHz coaxial circulator portfolio, combining typical, high-power, and broadband series that meet the diverse needs of global customers.

3. Product Lines Overview

Typical Coaxial Circulators — optimized for balanced performance in insertion loss, isolation, and VSWR across common bands.
High-Power Coaxial Circulators — engineered for kilowatt-level peak power handling, suitable for transmit and amplifier protection chains.
Broadband Coaxial Circulators — designed for wide fractional bandwidth applications, covering multi-standard and frequency-agile systems.

The following sections provide detailed parameter tables and embedded images directly sourced from HzBeat’s official website.

4. Typical Coaxial Circulators

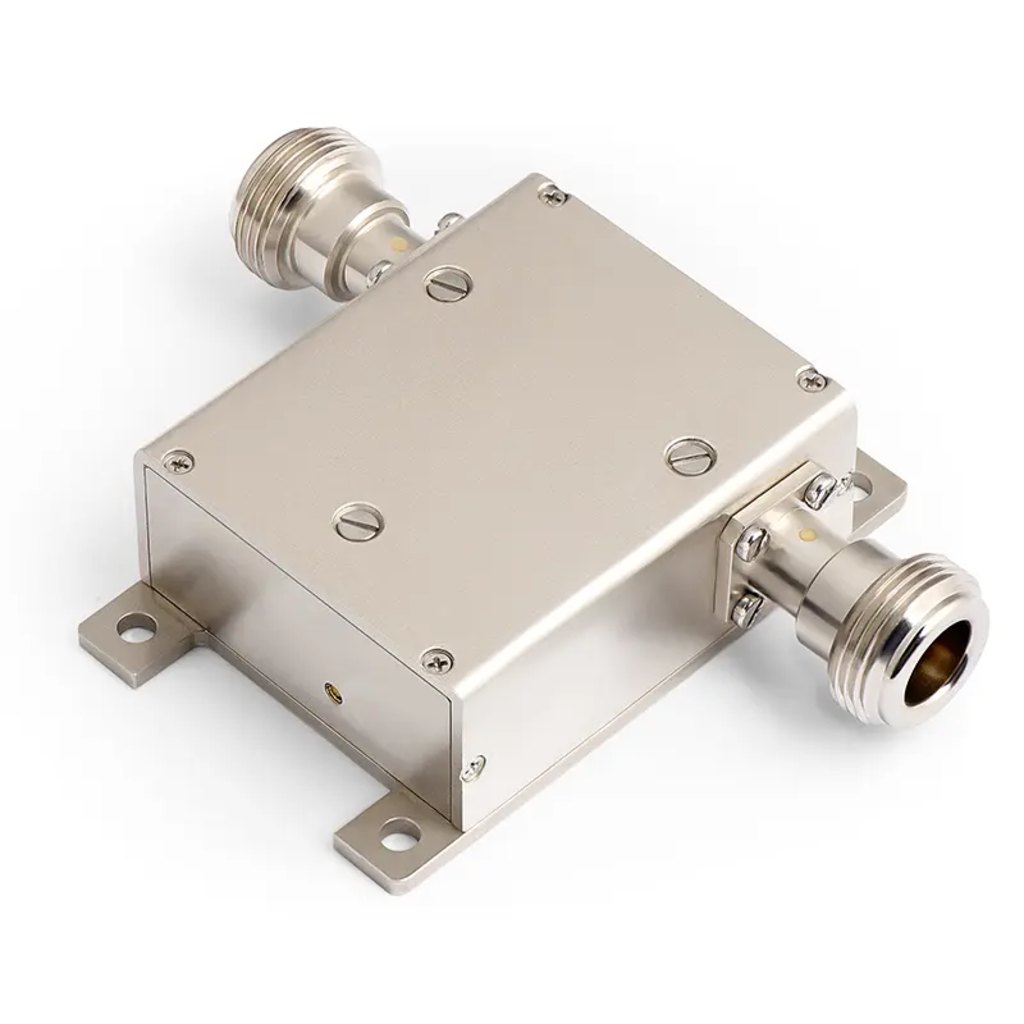

typical coaxial circulator hzbeat

The Typical Coaxial Circulator Series covers multiple frequency bands ranging from 0.1 GHz up to 40 GHz. These units feature low insertion loss, moderate to high isolation, and good VSWR, making them ideal for communication and test environments.

Model	Frequency Range	BW Max	Insertion Loss	Isolation	VSWR	Interface	Power (Peak/Avg)
HCCTA01T04G / HCCTB01T04G	0.1–0.4 GHz	10%	≤ 0.4 dB	≥ 20 dB	≤ 1.2	SMA / CW or CCW	500 W / 50 W
HCCTA40T80G / HCCTB40T80G	4.0–8.0 GHz	10%	≤ 0.4 dB	≥ 20 dB	≤ 1.2	SMA / CW or CCW	200 W / 40 W
HCCTA180T400G / HCCTB180T400G	18–40 GHz	10%	≤ 0.6 dB	≥ 18 dB	≤ 1.35	2.92-K / CW or CCW	20 W / 5 W

5. High-Power Coaxial Circulators

high power coaxial circulator hzbeat

The High-Power Coaxial Circulator Series is designed for kilowatt-class peak power and high average power handling. These units are commonly deployed in radar transmitters, power amplifier chains, and mission-critical communication infrastructure.

Model	Frequency Range	BW Max	Insertion Loss	Isolation	VSWR	Interface	Power (Peak/Avg)
HCCTA01T04G / HCCTB01T04G	0.1–0.4 GHz	10%	0.4 dB	20 dB	1.2	N-K / –55~+85 °C	5000 W / 500 W
HCCTA20T40G / HCCTB20T40G	2.0–4.0 GHz	10%	0.8 dB	15 dB	1.5	N-K / –40~+70 °C	— / 500 W Avg

6. Broadband Coaxial Circulators

The Broadband Coaxial Circulator Series emphasizes wide fractional bandwidth, suitable for frequency-agile, multi-standard, and software-defined systems. Covering ranges from 0.1 GHz to 26.5 GHz, these devices combine compact design with stable electrical performance.

Model	Frequency Range	BW Max	Insertion Loss	Isolation	VSWR	Interface	Power (Peak/Avg)
HCCTA01T04G-B / HCCTB01T04G-B	0.1–0.4 GHz / BW 40%	10%	0.6 dB	15 dB	1.5	SMA	1000 W / 100 W
HCCTA20T40G-B / HCCTB20T40G-B	2.0–4.0 GHz	10%	0.5–0.8 dB	15–17 dB	1.35–1.4	SMA	— / 80 W Avg
HCCTA40T80G-B / HCCTB40T80G-B	4.0–8.0 GHz	10%	0.5 dB	17 dB	1.35	SMA	— / 80 W
HCCTA60T180G-B / HCCTB60T180G-B	6.0–18.0 GHz	10%	11 dB	17 dB	1.7	SMA	— / 50–20 W
HCCTA180T265G-B / HCCTB180T265G-B	18.0–26.5 GHz	10%	14 dB	17 dB	1.5	2.92-K	20 W / 5 W

7. Competitive Advantages

Wide coverage: 0.1–40 GHz across three series.
Verified performance: insertion loss as low as 0.4 dB, isolation up to 20 dB, VSWR ≤ 1.2.
High power handling: peak levels up to 5 kW in selected models.
Broadband capability: up to 40% fractional bandwidth in wideband series.
Customization: interfaces, direction (CW/CCW), and thermal ranges tailored per customer requirements.

These differentiators, combined with global delivery capacity, solidify HzBeat’s position among the Top Coaxial Circulator Global Suppliers 2025.

8. Outlook and Future Roadmap

Looking forward, coaxial circulator technology is expected to expand further into higher millimeter-wave bands (Ka, V, W), adaptive bandwidth architectures, and enhanced environmental reliability. HzBeat is aligning with these trends by investing in miniaturization, ultra-wideband design, and integration with microstrip and waveguide product lines. Customers can expect continued advancements in power handling, compact form factors, and application-specific customization.

9. References

About the Author

HzBeat Editorial Content Team

Marketing Director, Chengdu Hertz Electronic Technology Co., Ltd. (Hzbeat)
Keith has over 18 years in the RF components industry, focusing on the intersection of technology, healthcare applications, and global market trends.
