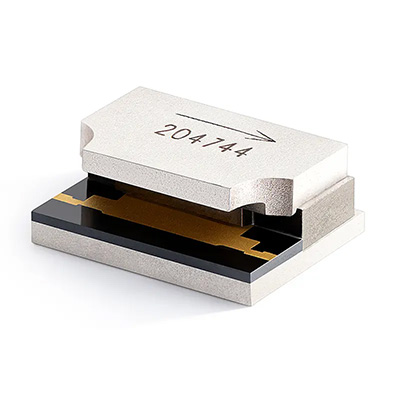

Surface Mount Technology Microstrip Isolator
X Band, Ku Band(8GHz-18GHz)
- The Surface Mount Technology (SMT) Microstrip Isolator series is designed for easy integration into surface mount assemblies, offering convenience and flexibility for a wide range of electronic applications.
- These isolators feature a compact form factor, high performance, and SMT compatibility, making them ideal for space-constrained RF and communication applications.
- The SMT Microstrip Circulator series provides reliable signal routing and isolation, enabling seamless integration into surface mount technology-based circuitry while supporting assembly.
Characteristics and Applications
Broadband drop-in isolators are essential RF components that isolate RF signals and protect equipment from reflections and interference across a wide frequency range. They are designed to maintain signal integrity with high isolation and minimal signal loss, making them ideal for demanding RF applications requiring broad frequency coverage.
Key Features & Advantages
- Miniaturization & Lightweight: LTCC and SMT technology enable ultra-compact designs for high-density communication devices.
- High Reliability: All-solid-state structure, no moving parts, strong shock resistance, and long lifespan.
- Suitable for Automated Production: Surface-mount package supports automated pick-and-place PCB assembly, enabling high-efficiency mass production and lower costs.
- Excellent High-Frequency Performance: Wide frequency coverage from hundreds of MHz to tens of GHz for microwave applications.
- Good Thermal Stability: Maintains stable performance over a temperature range through optimized materials and manufacturing processes.
Typical Applications
- Wireless Communication Infrastructure
- Microwave RF Sources
- Test & Measurement Equipment
- Aerospace & Defense Electronics
- IoT & Consumer Electronics
Electrical Performance Table and Product Appearance

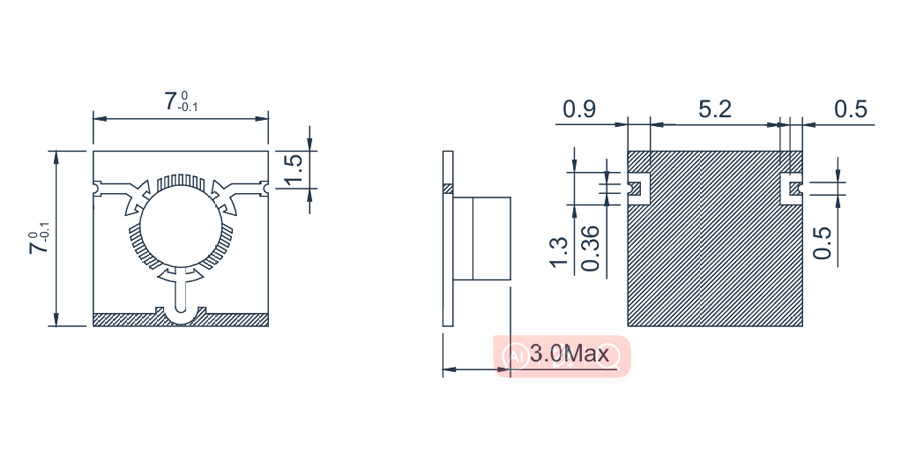

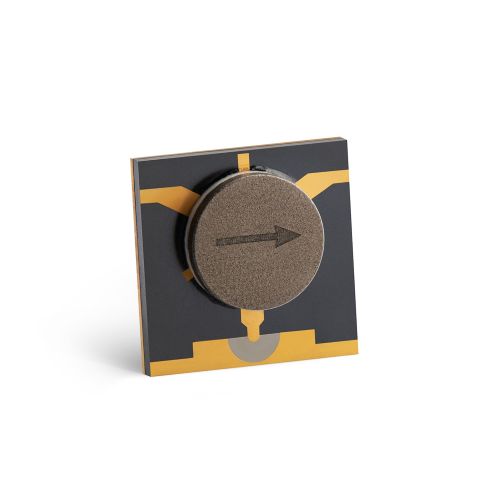

8.0~12.0GHz Typical Microstrip 'T' junction Isolator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMITE80T120G⬇ | 8.0~12.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 20/10/2 | Clockwise |
| HMITF80T120G⬇ | 8.0~12.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 20/10/2 | Counter Clockwise |

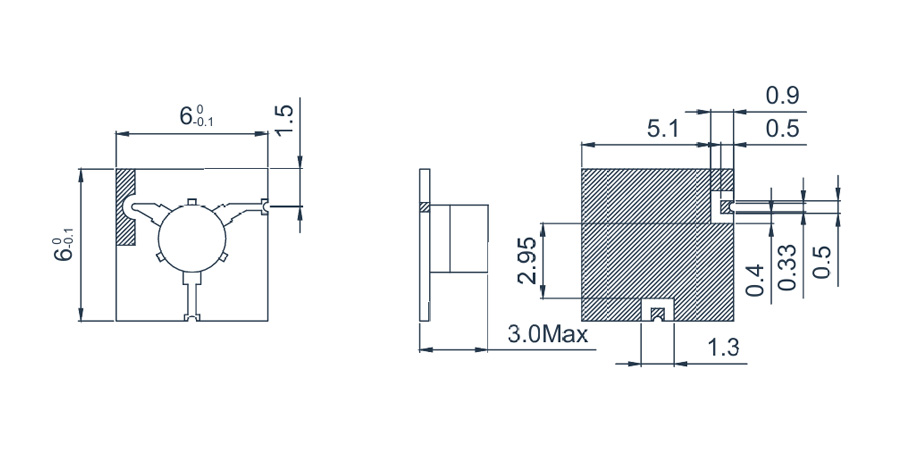

14.0~18.0GHz Typical Microstrip 'T' junction Isolator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMITE140T180G⬇ | 14.0~18.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 20/10/2 | Clockwise |
| HMITF140T180G⬇ | 14.0~18.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 20/10/2 | Counter Clockwise |
Performance Indicator Curve Graphs for Some Models
The curve graphs serve the purpose of visually presenting the performance indicators of the product. They offer a comprehensive illustration of various parameters such as frequency response, insertion loss, isolation, and power handling. These graphs are instrumental in enabling customers to assess and compare the product's technical specifications, aiding in informed decision-making for their specific requirements.
HMITE80T120G 8.0GHz-12.0GHzHMITE80T120G 8.0GHz-12.0GHz
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
