Conventional Waveguide Circulator
- The Differential Phase-Shift High Power Waveguide is a high-power component used in microwave and millimeter-wave applications.
- It is commonly employed in wireless communication systems, radar systems, and other RF applications.
Key Features & Advantages
- High power handling capability: This waveguide component is designed to withstand high-power microwave and millimeter-wave signals, making it suitable for applications requiring high-power transmission.
- Differential phase shift: The ability to introduce a specific phase shift, typically used for modulating and controlling the phase of microwave signals.
- Waveguide structure: Waveguides are structures used to transmit microwave and millimeter-wave signals, offering low transmission loss and high power handling capability.
Typical Applications
- Radar Systems (High-power transmission with precise phase control)
- Communication Base Stations (Phase control and high-power RF signal management)
- Satellite Communication Systems (High-power waveguide transmission and phase shifting)
- High-Power RF Systems (Thermal and electromagnetic compatibility critical applications)

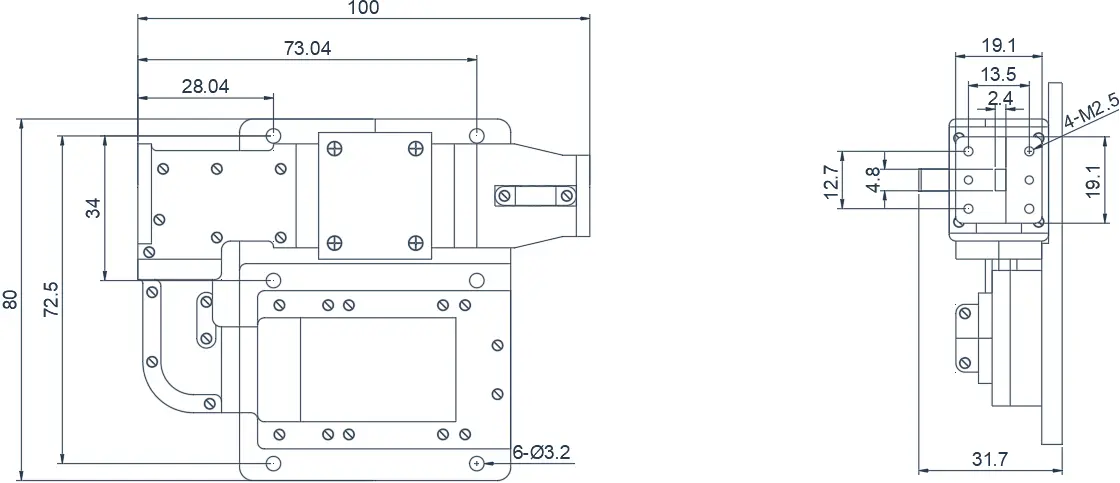

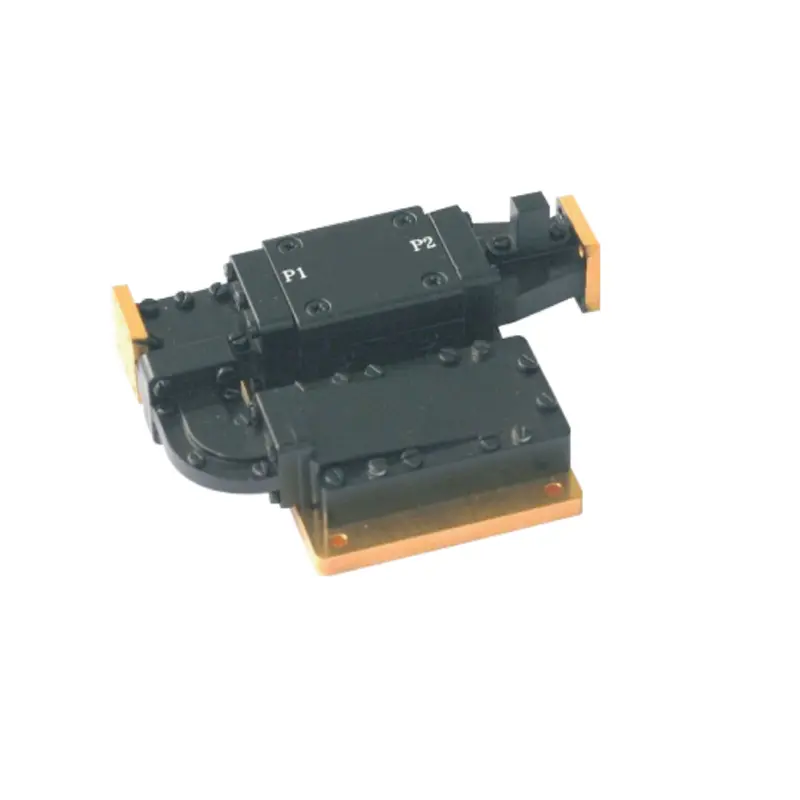

Electrical Performance Table and Product Appearance
| Frequency Range | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | CW(Watt) |
|---|---|---|---|---|---|
| S | 20% | 0.4 | 20 | 1.2 | 40K |
| C | 20% | 0.4 | 20 | 1.2 | 10K |
| X | 20% | 0.4 | 20 | 1.2 | 3K |
| Ku | 20% | 0.4 | 20 | 1.2 | 2K |
| K | 20% | 0.45 | 20 | 1.2 | 1K |
| Ka | 15% | 0.45 | 20 | 1.2 | 500 |
| V | 10% | 0.45 | 20 | 1.2 | 200 |
WR-90 Junction Waveguide Circulator
Product Overview
The following are case products of the Differential Phase-Shift High Power Waveguide Isolator. The Differential Phase-Shift High Power Waveguide Isolator is capable of withstanding high-power microwave signals and offers a power handling capacity improvement of one to two orders of magnitude compared to regular junction circulators.These products can be customized according to your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) |
|---|---|---|---|---|---|---|---|
| HWCT460T520G - HDPS⬇ | 46.0~52.0 | FULL | 0.8 | 20 | 1.4 | - 30~+70 | 60 |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
