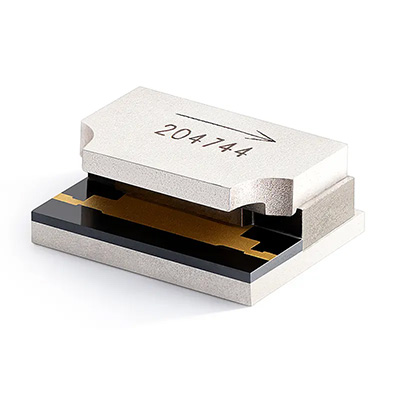

Broadband Drop-in Isolator
2-6GHz, 5-13GHz,6-18GHz, Full Band.
- Broadband Drop-in Isolator is a critical component in RF and microwave systems, designed to provide high isolation and efficient signal protection across a wide frequency range.
Key Features & Advantages
- Broadband Operation: Supports coverage over multiple octaves.
- High Reverse Isolation: Effectively absorbs reflected power across a broad frequency band, providing comprehensive circuit protection.
- Low and Flat Insertion Loss: Ensures efficient signal transmission and minimizes impact on system dynamic range.
- Excellent VSWR: Maintains good impedance matching with the system across the entire bandwidth.
- High Power Handling Capacity: Meets the requirements of high-power application scenarios like radar and 5G base stations.
Typical Applications
- Electronic Warfare (EW) & Radar Systems
- 5G Communication Infrastructure
- Satellite Communication & Navigation
- Test & Measurement Equipment
- Broadband Multi-Function Chips & Modules
Electrical Performance Table and Product Appearance

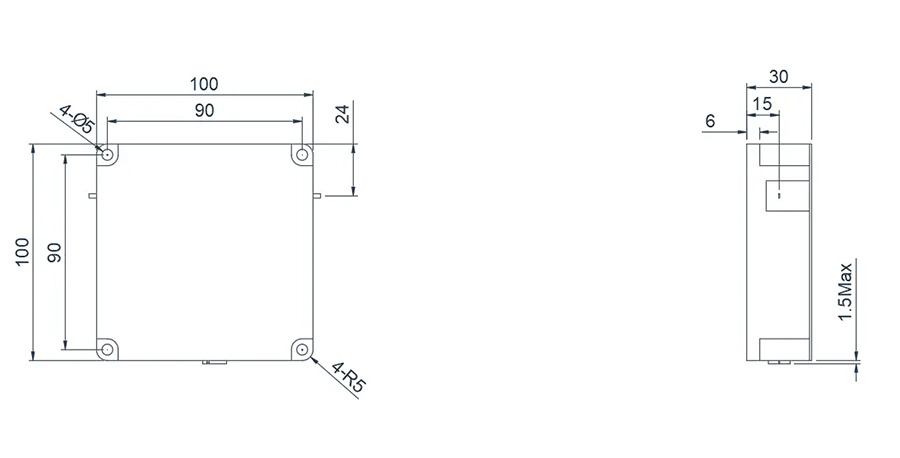

0.1~0.4GHz Broadband Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC100T400M-B⬇
0.1~0.4
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDITD100T400M-B⬇
0.1~0.4
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

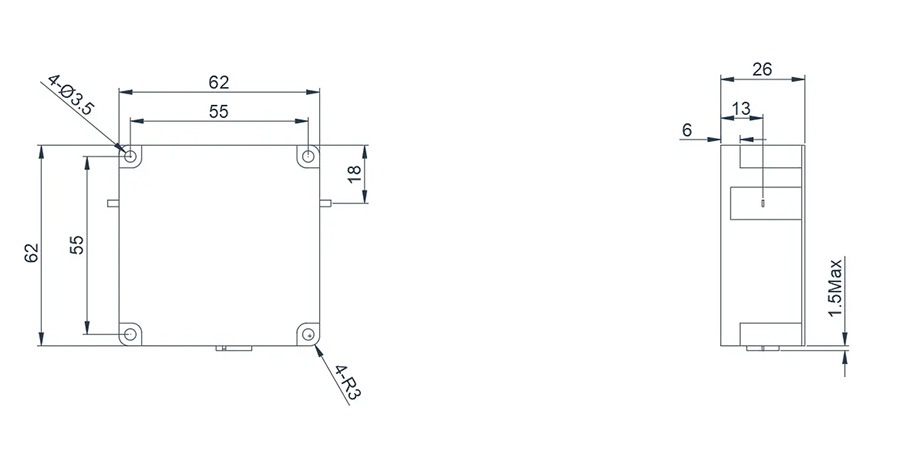

0.3~0.6GHz Broadband Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC300T600M-B⬇
0.3~0.6
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDITD300T600M-B⬇
0.3~0.6
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

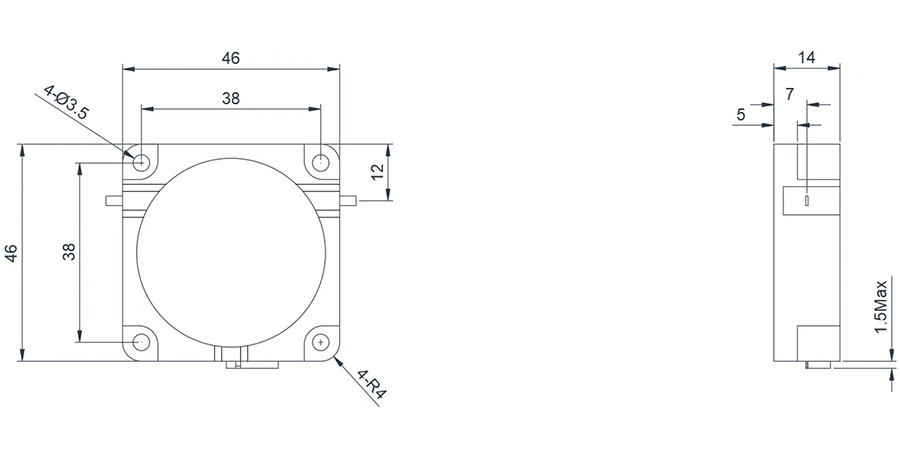

0.5~1.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator, covering the frequency range from UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
-55~+85℃
1000/100
Clockwise
HDITD05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
-55~+85℃
1000/100
Counter Clockwise

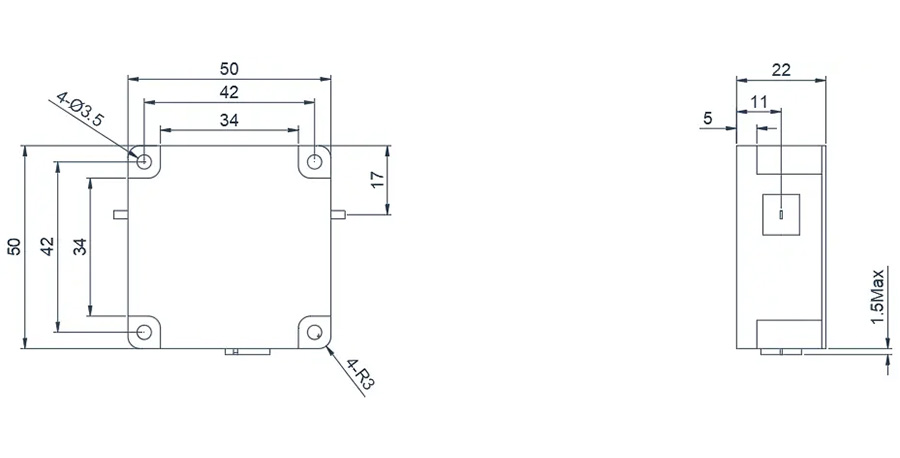

1.0~2.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator covering the entire L-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
0~+60℃
-/100
Clockwise
HDITD10T20G-B⬇
1.0~2.0
FULL
0.7(1.0)
16(14)
1.5(1.6)
0~+60℃
-/100
Counter Clockwise

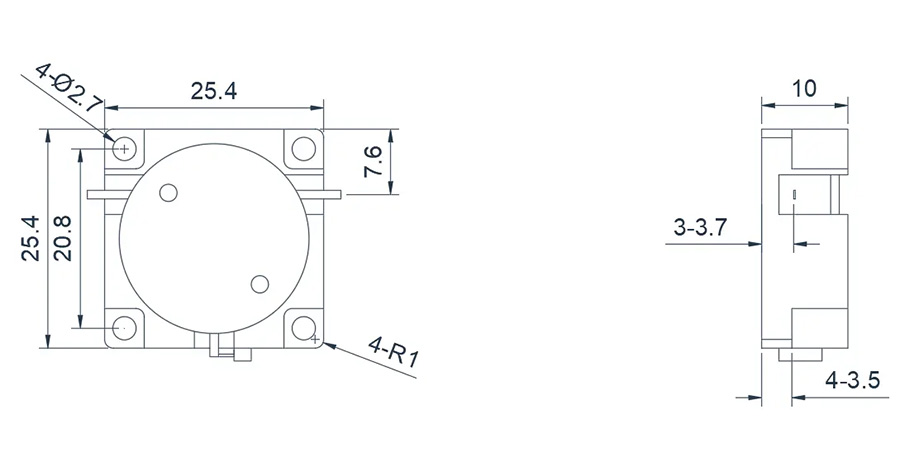

2.0~6.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator, covering the frequency range from S to C bands, with a maximum relative bandwidth of up to 66.6% ro 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
-55~+85℃
/80
Clockwise
HDITD20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
-55~+85℃
/80
Counter Clockwise
HDITC20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11
1.65(1.75)
-55~+85℃
/80
Clockwise
HDITD20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11
1.65(1.75)
-55~+85℃
/80
Counter Clockwise

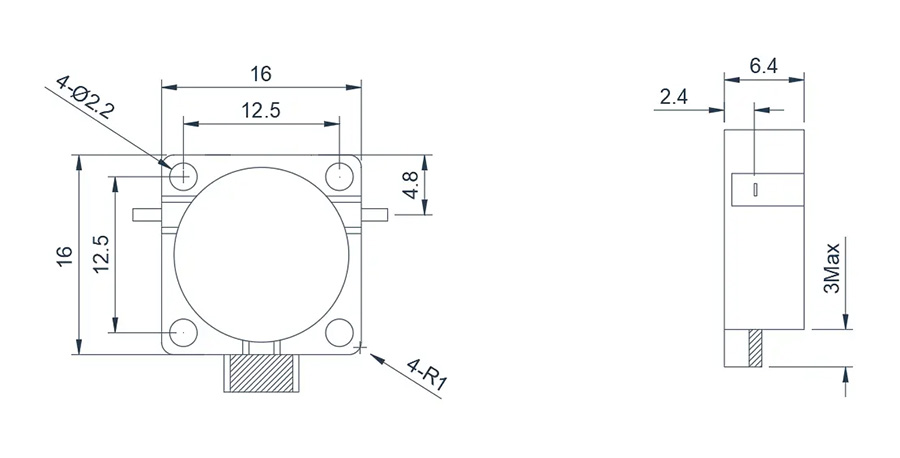

4.0~8.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator covering the entire C-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDCTC40T80G-B⬇
4.0~8.0
FULL
0.3
17
1.35
-55~+85℃
/60
Clockwise
HDCTD40T80G-B⬇
4.0~8.0
FULL
0.5
17
1.35
-55~+85℃
/60
Counter Clockwise

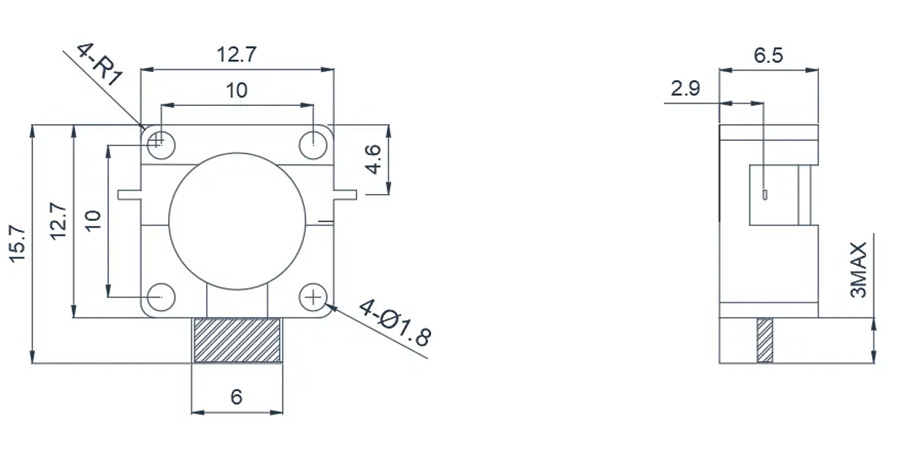

6.0~18.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator, covering the frequency range from C to Ku bands, with a maximum relative bandwidth of up to 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G-B⬇
6.0~18.0
FULL
1.2
11
1.7
-55~+85℃
/30
Clockwise
HDITD60T180G-B⬇
6.0~18.0
FULL
1.2
11
1.7
-55~+85℃
/30
Counter Clockwise

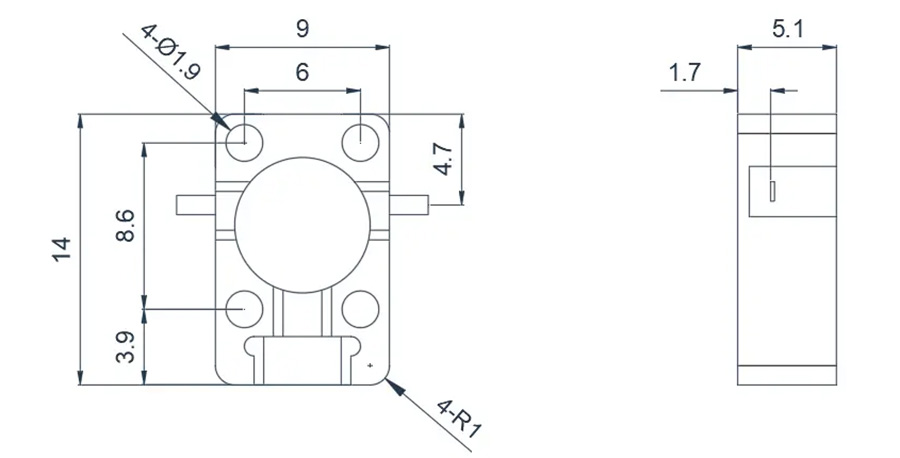

8.0~18.0GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolator covering the entire X-band or Ku-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC80T120G-B⬇
8.0~12.0
FULL
0.5(0.6)
18(16)
1.3(1.35)
-55~+85℃
50/20
Clockwise
HDITD80T120G-B⬇
8.0~12.0
FULL
0.5(0.6)
18(16)
1.3(1.35)
-55~+85℃
50/20
Counter Clockwise
HDITC120T180G-B⬇
12.0~18.0
FULL
0.6(0.7)
16
1.35(1.4)
-55~+85℃
50/20
Clockwise
HDITD120T180G-B⬇
12.0~18.0
FULL
0.6(0.7)
16
1.35(1.4)
-55~+85℃
50/20
Counter Clockwise
18.0~26.5GHz Broadband Drop-in Isolator
Product Overview
The following products are Broadband Drop-in Isolators covering the entire K-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
-55~+85℃
20/5
Clockwise
HDITD180T265G-B⬇
18.0~26.5
FULL
0.5
14
1.5
-55~+85℃
20/5
Counter Clockwise
