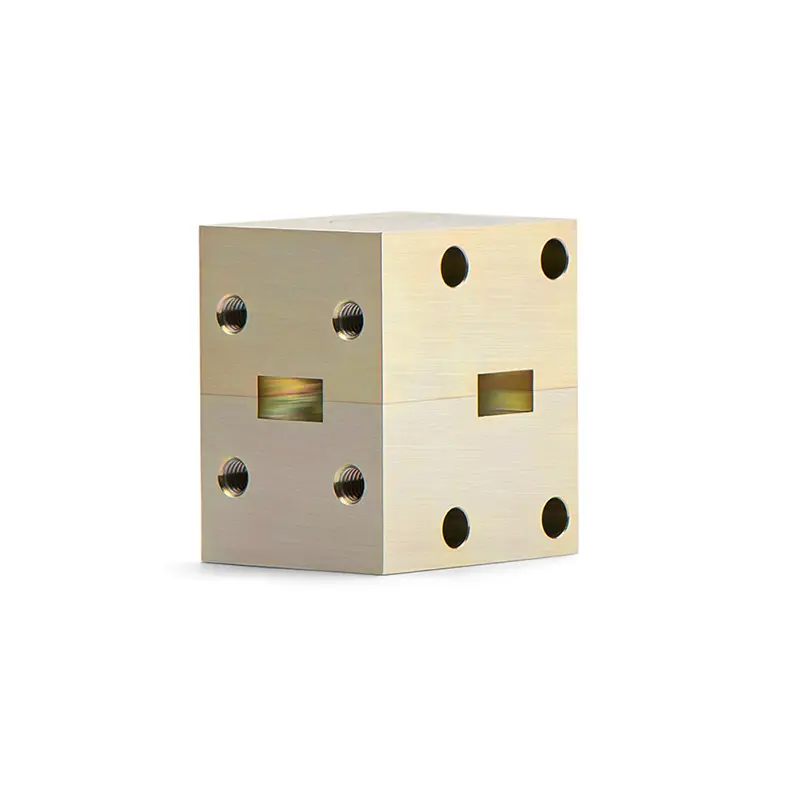

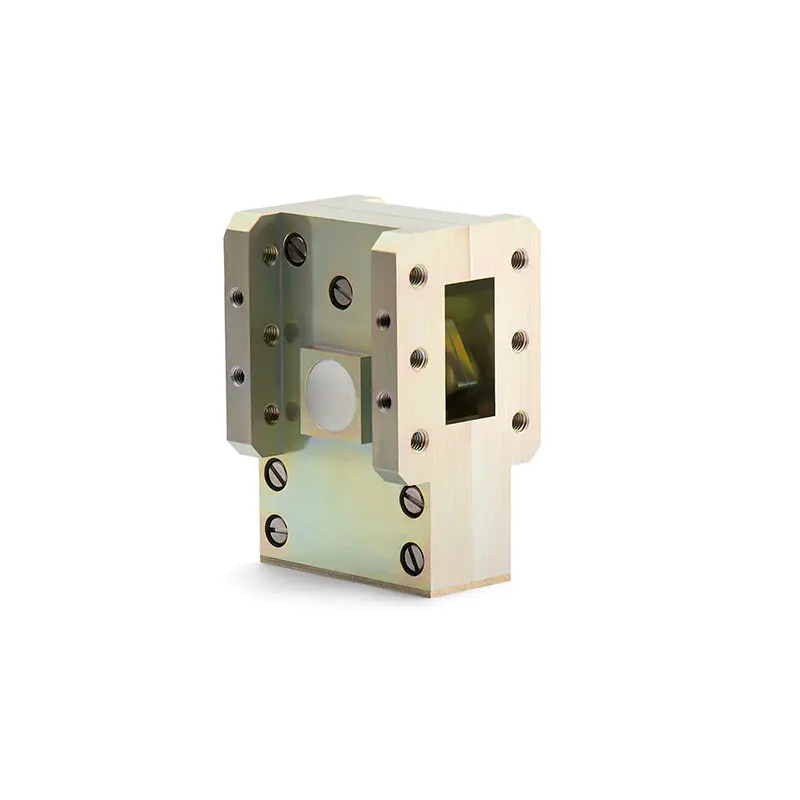

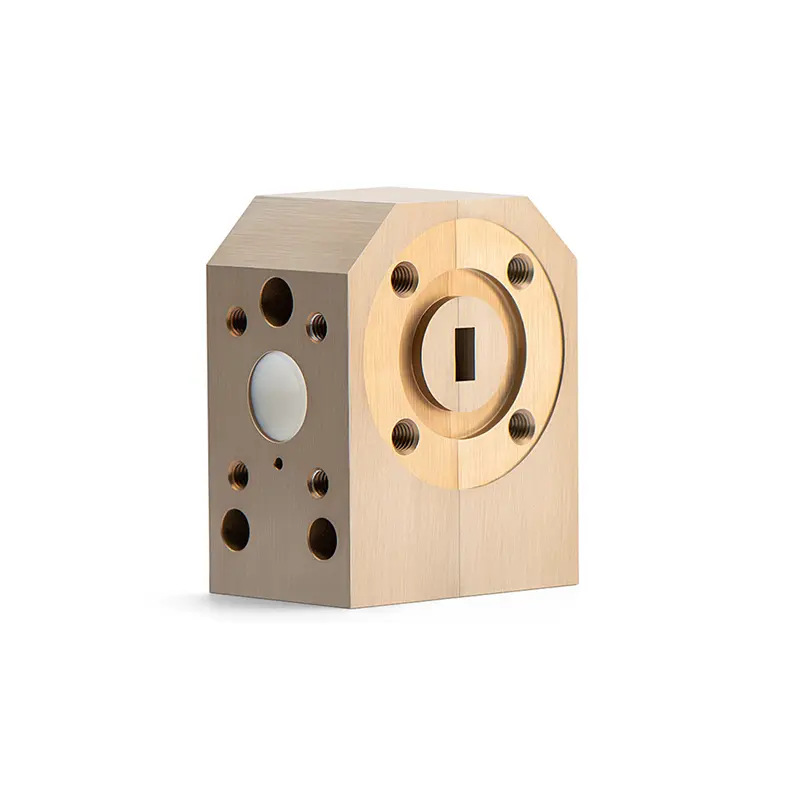

Dual-Ridge Waveguide Circulator
L Band ,S Band, C Band, X Band, Ku Band, K Band, Ka Band
- The Dual-Ridge Waveguide Circulator is a critical component in RF and microwave systems.
- It is designed to enable efficient signal routing and reliable isolation within a dual-ridge waveguide transmission line.
Characteristics and Applications
It is widely used in radar systems, communication systems, and other applications requiring the unique characteristics of dual-ridge waveguide technology. With robust construction and reliable performance, the circulator ensures efficient signal transmission while protecting sensitive components. Leveraging key advantages such as low loss, high power handling capability, and support for multiple propagation modes, the Dual-Ridge Waveguide Circulator delivers exceptional performance and reliability in demanding RF and microwave applications.
Key Features & Advantages
- Ultra-Wide Operating Bandwidth.
- High Power Handling Capacity.
- Low Insertion Loss.
- High Isolation.
- Excellent VSWR.
- Rugged and Reliable Construction.
Typical Applications
- Military Electronic Systems.
- Test & Measurement.
- Communication Systems
- Research & Industry
Electrical Performance Table and Product Appearance

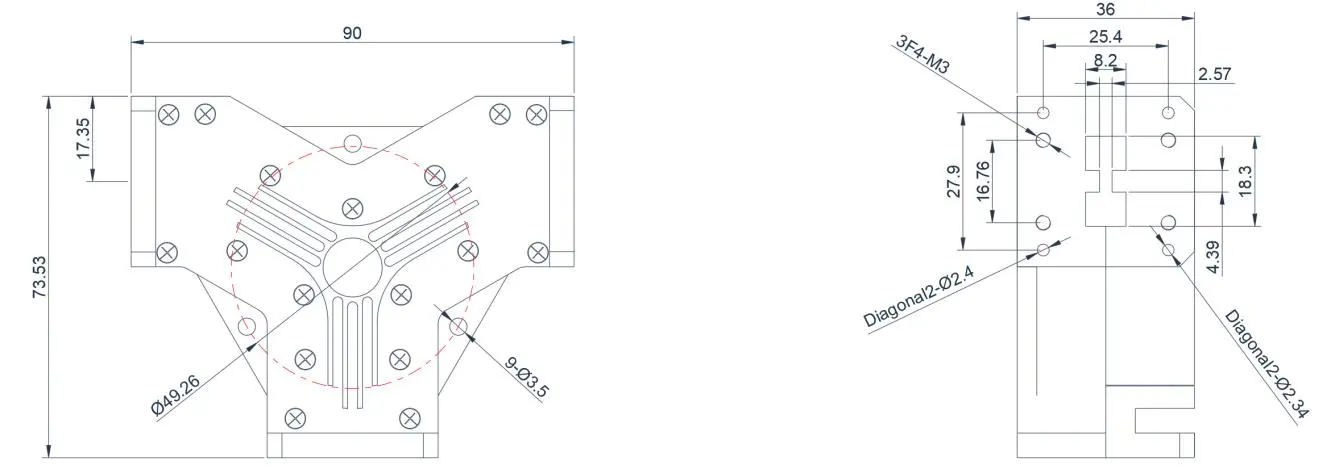

WRD650D28 Dual-Ridge Waveguide Circulator
Product Overview
The following products are designed using the dual-ridge waveguide WRD650D28 interface for broadband waveguide devices. Customization of dual-ridge waveguide circulators and isolators with other dual-ridge waveguide interfaces is also available. For detailed information about dual-ridge waveguide interfaces, please refer to the "Common Dual-Ridge Waveguide Data Table" in the appendix.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) |
|---|---|---|---|---|---|---|---|
| HWCT80T180G-D⬇ | 8.0~18.0 | FULL | 0.8 | 12 | 1.7 | -55~+85 | 200 |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
