Junction Waveguide Circulator
Ka Band, V Band, W Band, D Band
- Junction Waveguide Circulator is a vital component in RF and microwave systems, designed to facilitate efficient signal routing and isolation within a waveguide transmission line.
Key Features & Advantages
- High Isolation: Effectively isolates transmit and receive channels, preventing signal interference.
- Low Insertion Loss: Ensures high signal transmission efficiency.
- High Power Handling Capacity: Meets the requirements of high-power applications like radar and base stations.
- High Reliability: Solid-state design, no moving parts, long lifespan.
- Compact Size, Easy Integration: Coaxial structure facilitates easy installation and connection.
Typical Applications
- Radar Systems (The most classic application)
- Communication Systems (Especially for Duplexer Function)
- Amplifier Protection and Load
- Test and Measurement Instruments
Electrical Performance Table and Product Appearance

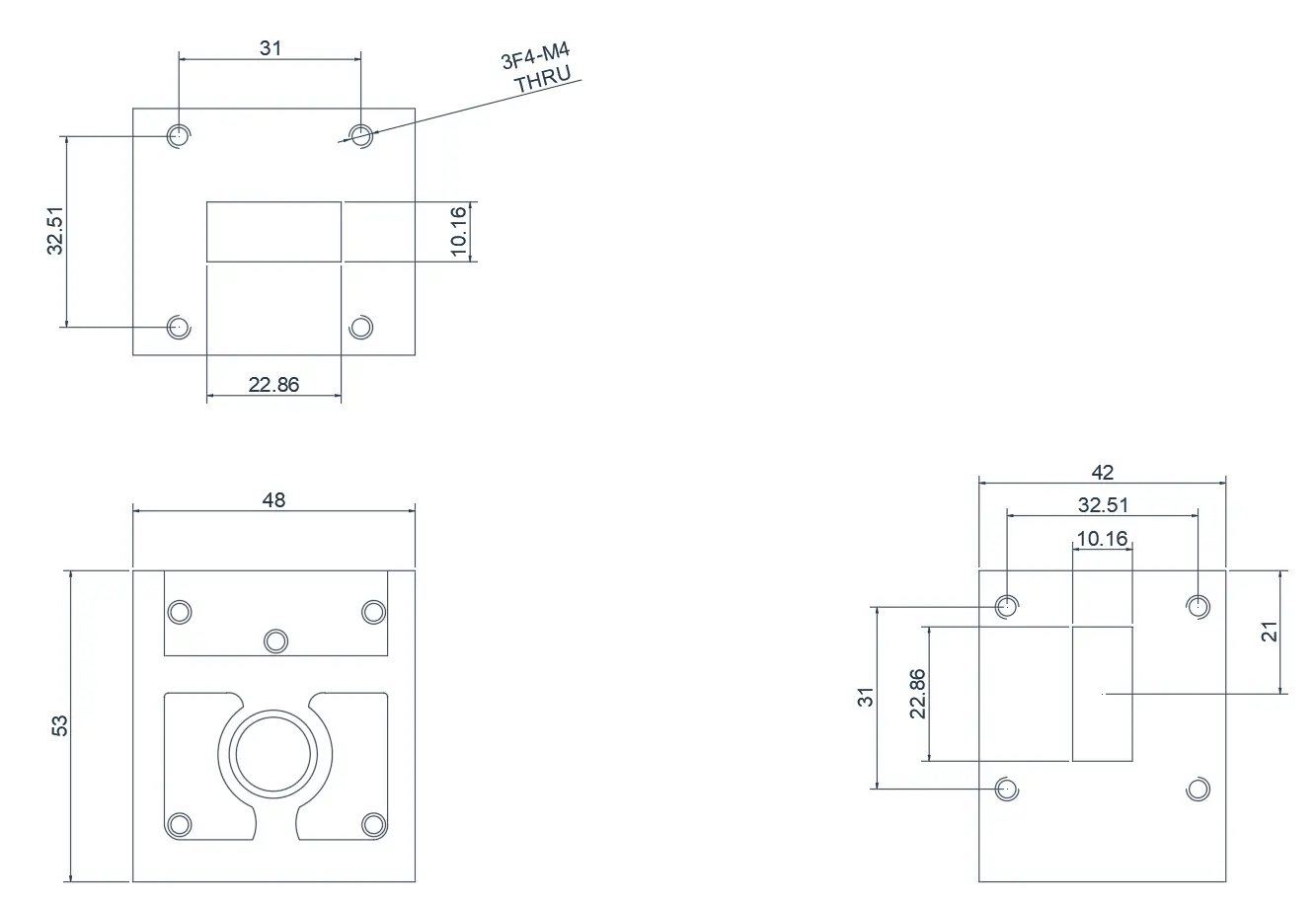

WR-90 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-90 (WG-16) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT82T125G⬇
8.2~12.5
FULL
0.3
20
1.25
-55~+85
-/500
-
WR-62 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-62 (WG-18) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT120T180G⬇
12.0~18.0
FULL
0.3
20
1.25
-55~+85
-/300
-
WR-51 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-51 (WG-19) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT160T180G⬇
16.0~18.0
FULL
0.25
20
1.2
-55~+85
-/250
-
WR-42 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-62 (WG-18) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT180T265G⬇
18.0~26.5
FULL
0.3
20
1.2
-55~+85
-/200
-
WR-34 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-34 (WG-21) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT220T330G⬇
22.0~33.0
FULL
0.3
20
1.25
-55~+85
-/200
-
WR-28 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-28 (WG-22) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT265T400G⬇
26.5~40.0
FULL
0.4
18
1.35
-55~+85
-/150
-
WR-22 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-22 (WG-23) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT420T460G⬇
42.0~46.0
FULL
0.3
20
1.25
-55~+85
-/30
-
WR-22 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-22 (WG-23) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT420T460G⬇
42.0~46.0
FULL
0.3
20
1.25
-55~+85
-/30
-
WR-8 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-8 (WG-28) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT920T960G⬇
92.0~96.0
FULL
0.8
18
1.30
-55~+85
-/2
-
WR-7 Junction Waveguide Circulator
Product Overview
The following products are waveguide circulators designed with the WR-7 (WG-29) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWCT1580T1600G⬇
158.0~160.0
FULL
0.8
18
1.35
-55~+85
-/2
-
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
The following products are waveguide circulators designed with the WR-90 (WG-16) standard waveguide interface. Below are some product examples and typical specifications. Customization of port locations and product dimensions is available based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HWCT82T125G⬇ | 8.2~12.5 | FULL | 0.3 | 20 | 1.25 | -55~+85 | -/500 | - |
