Miniaturized Waveguide Isolator
Custom design.
- Miniaturized Waveguide Isolator is a critical component in RF and microwave systems, designed to provide efficient signal isolation and protection within a compact waveguide transmission line.
Key Features & Advantages
- Miniaturized Design: About half the size and weight of standard isolators for easy integration.
- High Performance: Low Loss: Minimal signal loss in the forward direction.High Isolation: Effectively blocks reflected signals to protect sensitive components.
- High Power Handling: Naturally suited for medium to high-power applications thanks to its waveguide design.
- Robust & Reliable: Fully sealed, no moving parts, ensuring long-term stability and durability.
Typical Applications
- 5G/6G Communication Base Stations: Protects transmitter power amplifiers from signals reflected due to antenna mismatch.
- Satellite Communication (Satcom): Ensures stability and reliability in the transmit/receive chains of VSAT terminals and satellite payloads.
- Radar Systems(especially Phased Array Radar): Integrated into T/R modules to protect the transmit channel within a compact space.
- Test & Measurement Equipment: Serves as a protective device for precision instruments like spectrum analyzers and signal sources.
- Electronic Countermeasures (ECM): Provides reliable isolation in high-power microwave systems.
Electrical Performance Table and Product Appearance

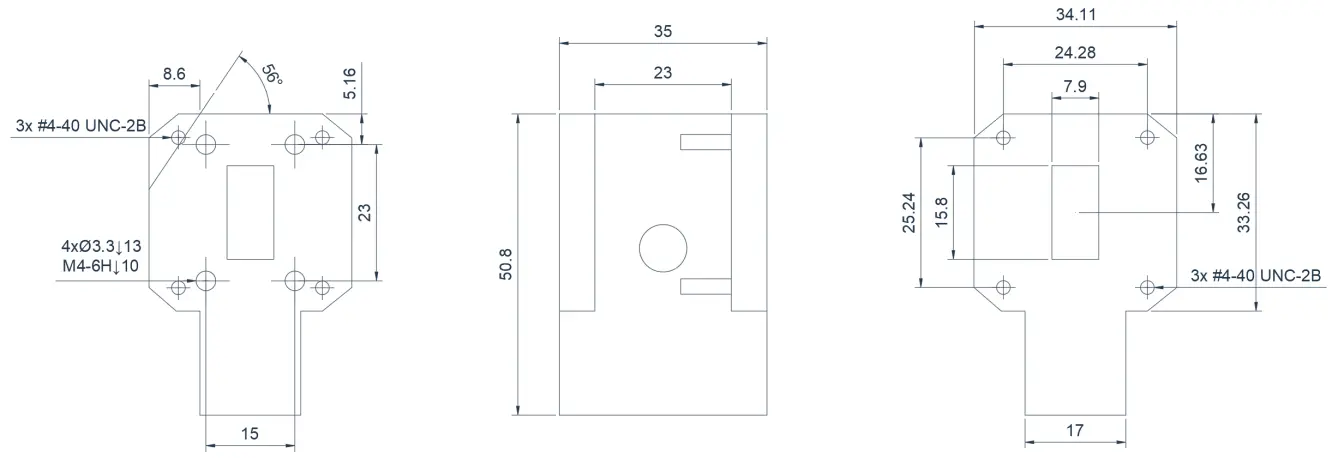

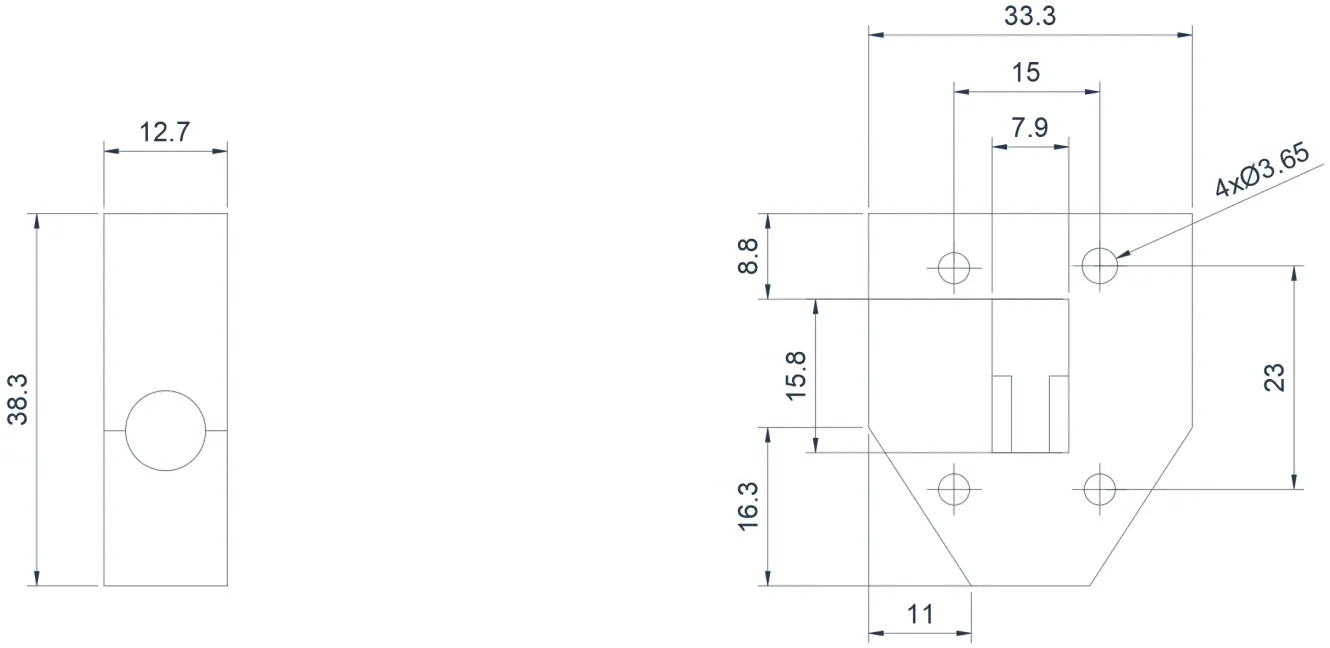

WR-62(12.7~13.3GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR62 (WG-18)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWIT127T133G-M⬇
12.7~13.3
FULL
0.3
23
1.2
-40~+80
5/0.5
-

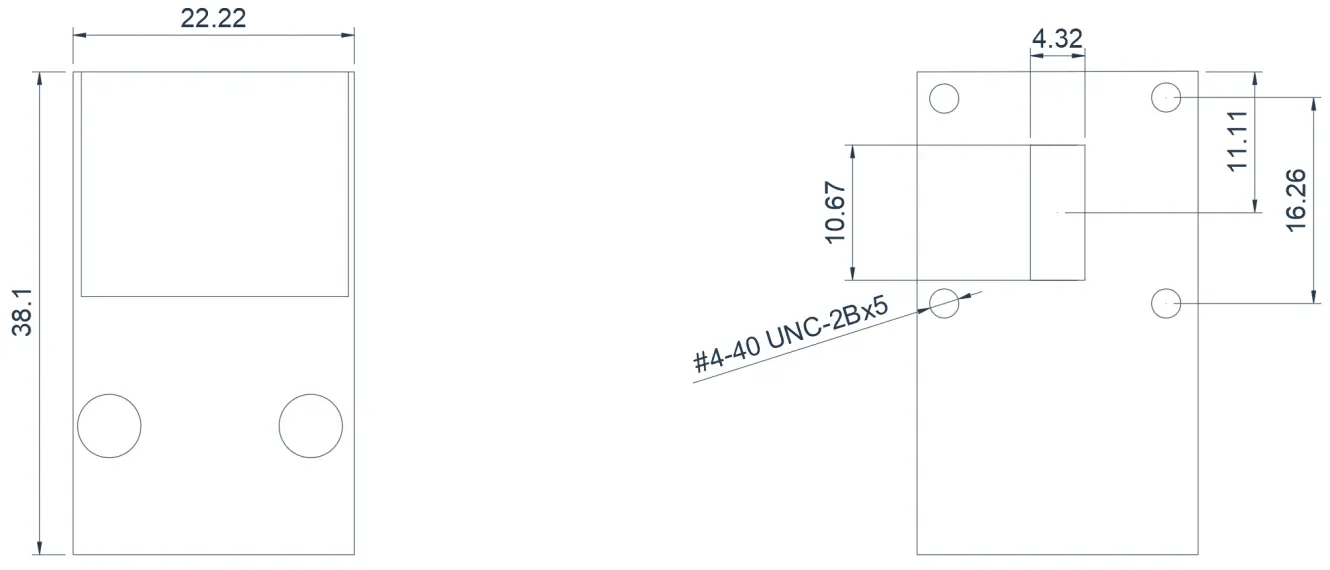

WR-62(13.0~15.0GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR62 (WG-18)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWIT130T150G-M⬇
13.0~15.0
FULL
0.3
20
1.22
-30~+65
2/1
-

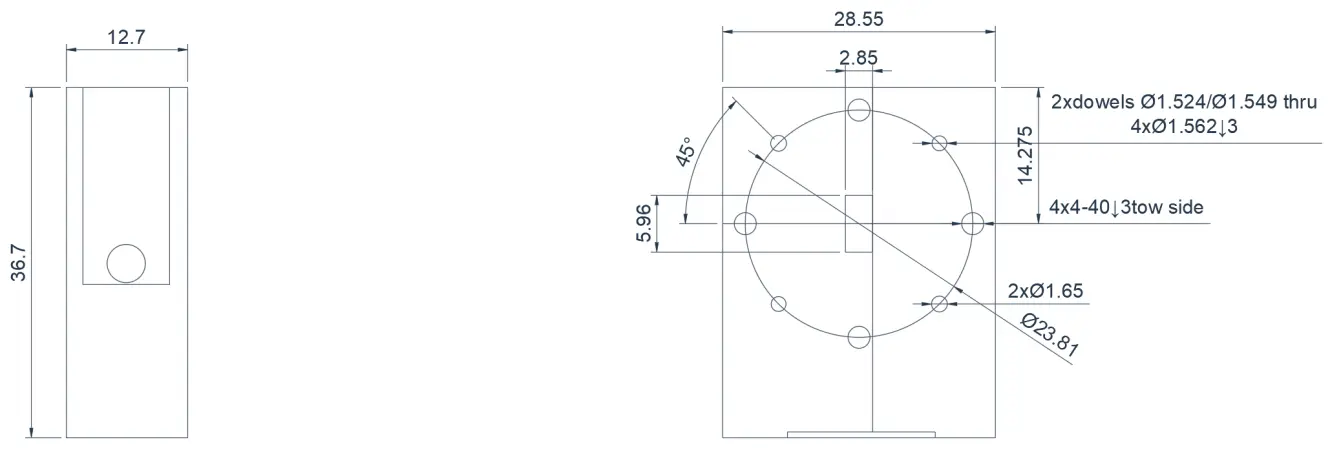

WR42(18.0~26.5GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR42 (WG-20)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWIT180T265G-M⬇
18.0~26.5
FULL
0.5
16
1.3
-40~+70
10/10
-
WR42(17.7~26.5GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR42 (WG-20)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWIT177T197G-M⬇
17.7~19.7
FULL
0.4
18
1.35
-40~+85
1/0.5
-
HWIT212T236G-M⬇
21.2~23.6
FULL
0.4
19
1.3
-40~+85
2/1
-
HWIT240T265G-M⬇
24.0~26.5
FULL
0.35
18
1.3
-35~+85
2/1
-
WR-28(26.5~40.0GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR28 (WG-22)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWIT270T295G-M⬇
27.0-29.5
FULL
0.3
18
1.3
-35~+70
10/10
-
HWIT310T334G-M⬇
31.0-33.4
FULL
0.3
18
1.3
-35~+70
10/10
-
HWIT370T400G-M⬇
37.0~40.0
FULL
0.4
18
1.3
-30~+70
10/10
-
HWIT265T400-M⬇
26.5~40.0
FULL
0.45
15
1.35
-40~+70
10/10
-
WR-22(40.5~43.5GHz) Miniaturized Waveguide Isolator
Product Overview
The following products are miniaturized waveguide isolator case products designed with the WR22 (WG-23)
waveguide interface. These designs have shortened the transmission distance but come with a sacrifice in
power capacity. Customization of compact, low-power waveguide products is available based on waveguide
interface requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HWITA405T435G-M⬇
40.5~43.5
FULL
0.4
18
1.29
-40~+80
1/1
-
