Miniaturized Microstrip Circulator
C Band, X Band, K Band, Ka Band (5GHz-37GHz)
- The Miniaturized Microstrip Circulator series is designed to achieve significantly smaller dimensions, making it well suited for applications with strict assembly size requirements.
- Despite the compact size, these circulators maintain high performance, relying on advanced production techniques and precise manufacturing processes to ensure reliable functionality.
- This series is ideal for space-constrained projects, delivering stable and dependable performance within a compact form factor.
Characteristics and Applications
The Miniaturized Microstrip Circulator series finds applications in various fields where space constraints and specific assembly size requirements are crucial. These compact circulators are well-suited for integration into miniaturized communication systems, phased array antennas, portable radar systems, and compact RF/microwave modules. Additionally, they are utilized in emerging technologies such as wearable devices, IoT (Internet of Things) sensors, and miniaturized satellite communication systems, where their small form factor and high performance are essential for seamless integration and efficient operation.
Key Features & Advantages
- Ultra-Compact Size & Lightweight:Compared to traditional waveguide or stripline circulators, volume and weight are reduced by 50%–80%, with sizes as small as a few millimeters square, making them ideal for highly integrated modules such as T/ R modules and RFIC packages.
- High Isolation & Low Insertion Loss:High isolation(typically > 20 dB) prevents transmit signal leakage and protects sensitive receivers, while low insertion loss(<0.5 dB) ensures efficient transmission and a low system noise figure.
- Wide Operating Bandwidth:Supports customizable bandwidths from narrowband(3–5%) to broadband(up to an octave), meeting diverse system requirements.
- High Power Handling Capacity:Despite compact size, optimized thermal design and materials enable handling several to tens of watts average power, with peak power reaching kilowatt levels.
- Excellent Temperature Stability & Reliability:Temperature- compensated magnetic circuits or wide - temperature ferrites ensure stable performance from −40 °C to + 85 °C, while a robust structure provides strong resistance to vibration and shock for military and harsh environments.
- Surface-Mount Technology (SMT) Compatibility:Designed for surface mounting and automated pick- and - place, improving assembly efficiency and consistency while reducing production costs.
Typical Applications
- Radar Systems: Especially in T/R modules for phased array radars, used to share and isolate transmit and receive channels.
- 5G/6G Communication Infrastructure: RF units in Massive MIMO base stations for transmit/receive duplexing.
- Satellite Communication & Navigation: Airborne, shipborne, vehicle-mounted mobile terminals with stringent size and weight requirements.
- Test & Measurement Instruments: Spectrum analyzers, vector network analyzers, etc., as core switching or isolation components.
- IoT Devices & Terminals: Drones, wearable devices, and other scenarios requiring compact RF front-ends.
- Military & Aerospace Electronics: Missile seekers, electronic warfare equipment, etc.
Electrical Performance Table and Product Appearance

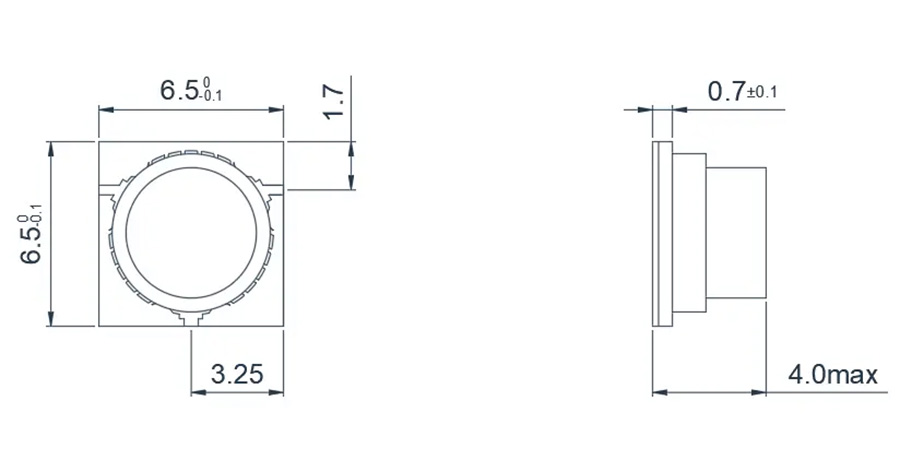

5.0~6.0GHz Miniaturized Microstrip 'T' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCTA50T60G-M⬇ | 5.0~6.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 10/2.5 | Clockwise |
| HMCTB50T60G-M⬇ | 5.0~6.0 | FULL | 0.6 | 18 | 1.3 | -55~+85℃ | 10/2.5 | Counter Clockwise |

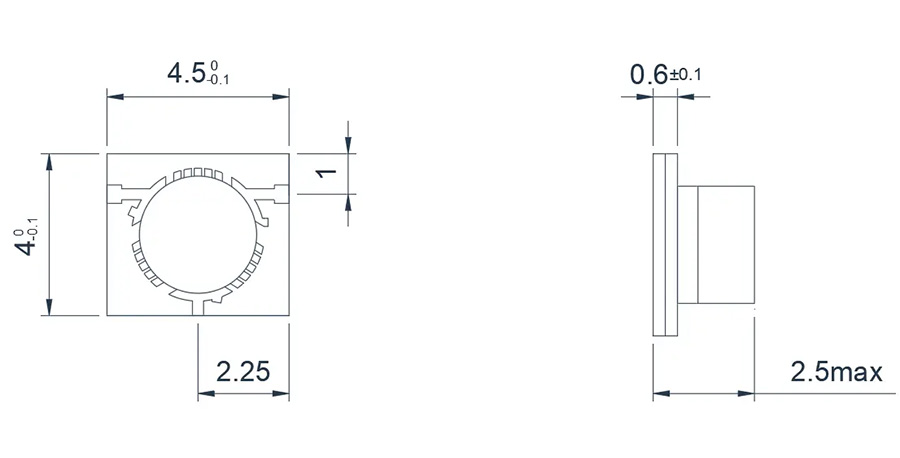

8.0~12.0GHz Miniaturized Microstrip 'T' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCTA80T120G-M⬇ | 8.0~12.0 | FULL | 0.9 | 15 | 1.4 | -55~+85℃ | 20/5 | Clockwise |
| HMCTB80T120G-M⬇ | 8.0~12.0 | FULL | 0.9 | 15 | 1.4 | -55~+85℃ | 20/5 | Counter Clockwise |

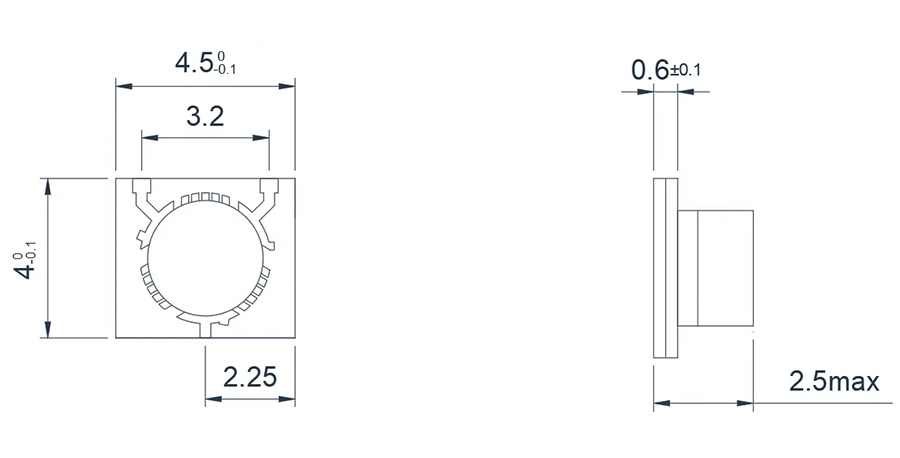

8.0~12.0GHz Miniaturized Microstrip 'Y' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCYA80T120G-M⬇ | 8.0~12.0 | FULL | 0.9 | 15 | 1.4 | -55~+85℃ | 20/5 | Clockwise |
| HMCYB80T120G-M⬇ | 8.0~12.0 | FULL | 0.9 | 15 | 1.4 | -55~+85℃ | 20/5 | Counter Clockwise |

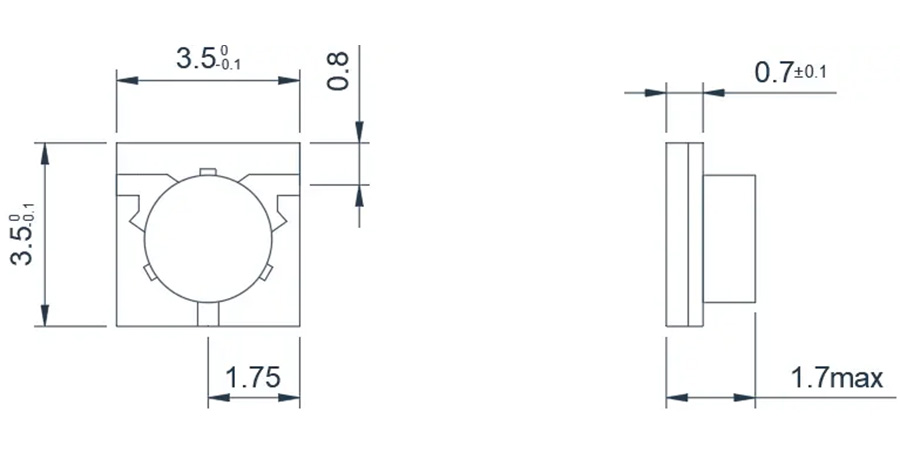

15.0~17.0GHz Miniaturized Microstrip 'T' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCTA150T170G-M⬇ | 15.0~17.0 | FULL | 0.5 | 20 | 1.2 | -55~+85℃ | 20/5 | Clockwise |
| HMCTB150T170G-M⬇ | 15.0~17.0 | FULL | 0.5 | 20 | 1.2 | -55~+85℃ | 20/5 | Counter Clockwise |

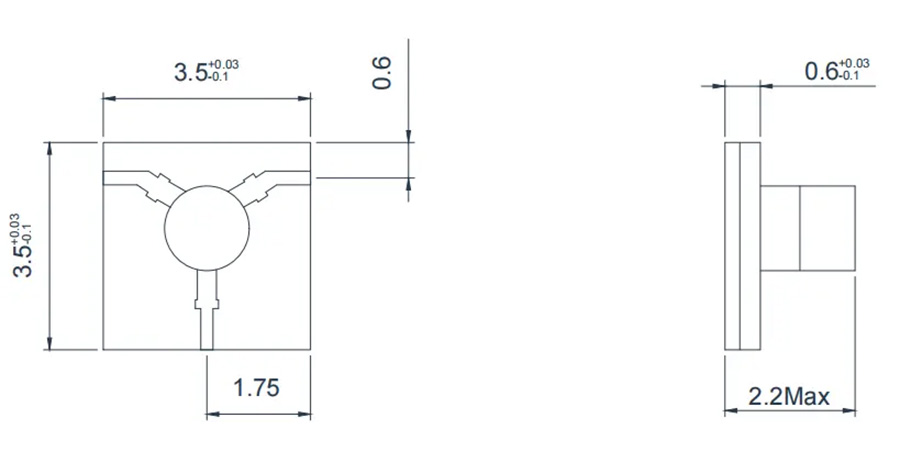

33.0~37.0GHz Miniaturized Microstrip 'T' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCTA330T370G-M⬇ | 33.0~37.0 | FULL | 0.8 | 18 | 1.35 | -55~+85℃ | 5/2 | Clockwise |
| HMCTB330T370G-M⬇ | 33.0~37.0 | FULL | 0.8 | 18 | 1.35 | -55~+85℃ | 5/2 | Counter Clockwise |

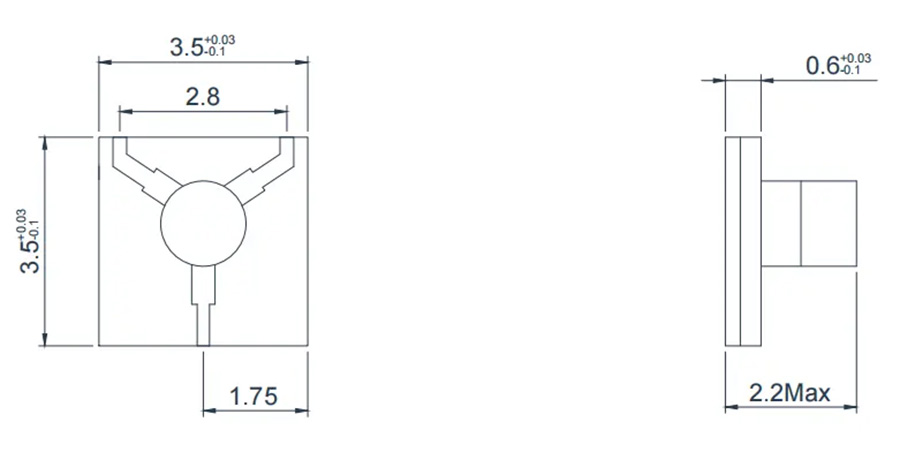

33.0~37.0GHz Miniaturized Microstrip 'Y' junction Circulator
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMCYA330T370G-M⬇ | 33.0~37.0 | FULL | 0.8 | 18 | 1.35 | -55~+85℃ | 5/2 | Clockwise |
| HMCYB330T370G-M⬇ | 33.0~37.0 | FULL | 0.8 | 18 | 1.35 | -55~+85℃ | 5/2 | Counter Clockwise |
Performance Indicator Curve Graphs for Some Models
The curve graphs serve the purpose of visually presenting the performance indicators of the product. They offer a comprehensive illustration of various parameters such as frequency response, insertion loss, isolation, and power handling. These graphs are instrumental in enabling customers to assess and compare the product's technical specifications, aiding in informed decision-making for their specific requirements.

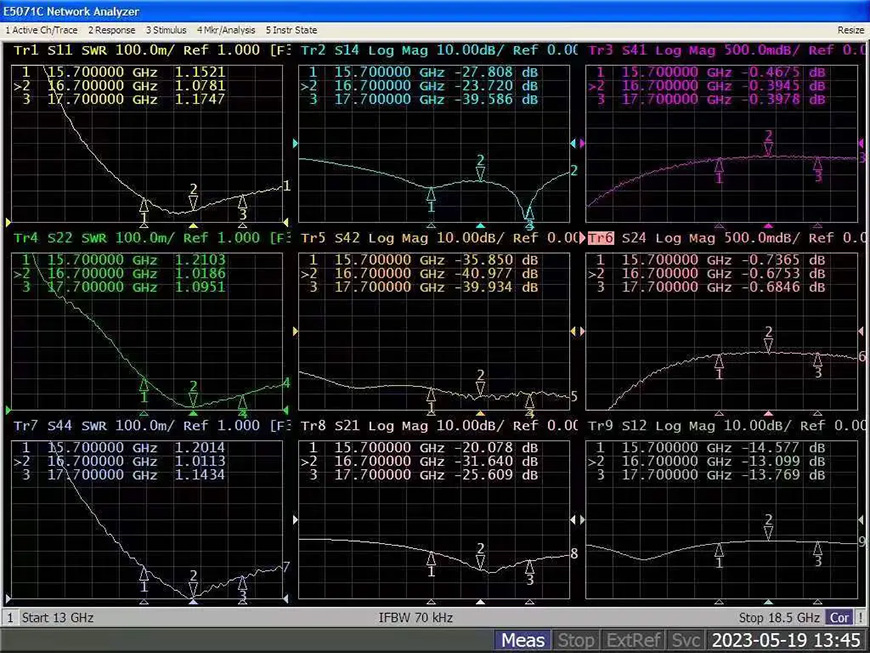

HMCTA150T170G-M 15.7GHz-17.7GHzHMCTA150T170G-M 15.7GHz-17.7GHz
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
