SMT Microwave Dual-Junction Circulator

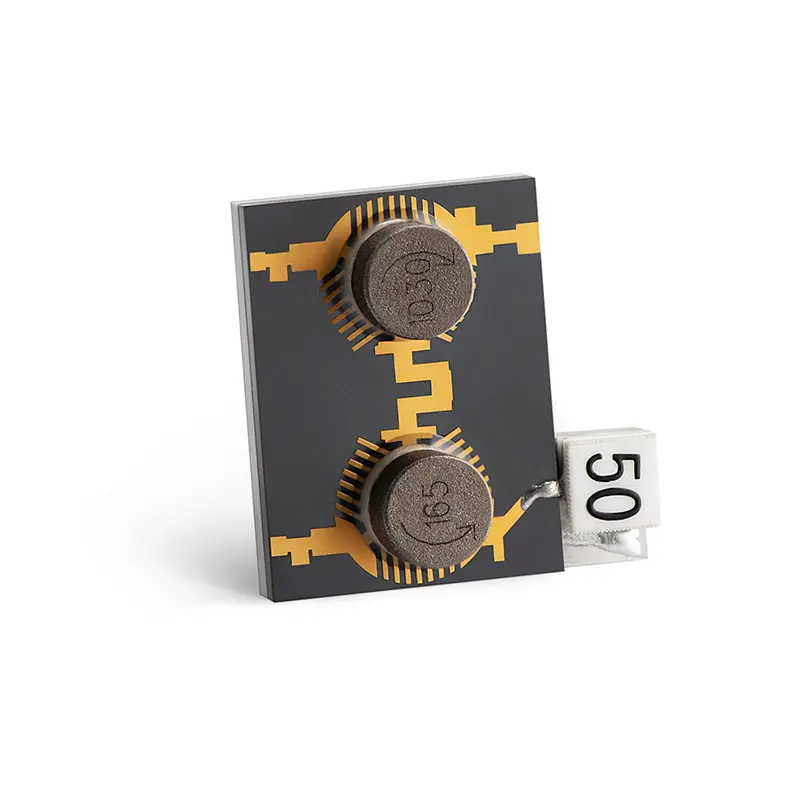

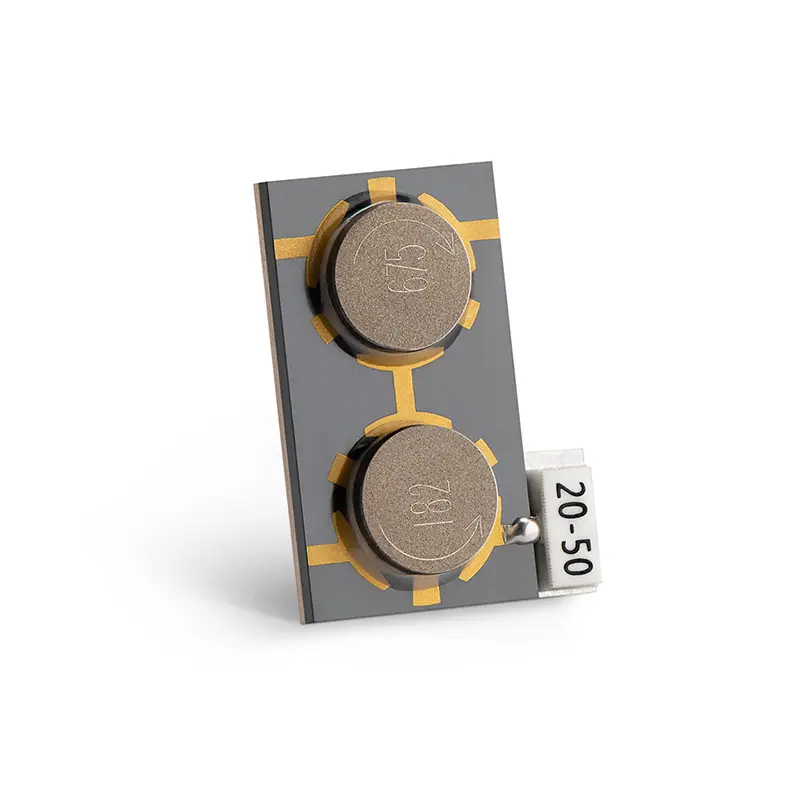

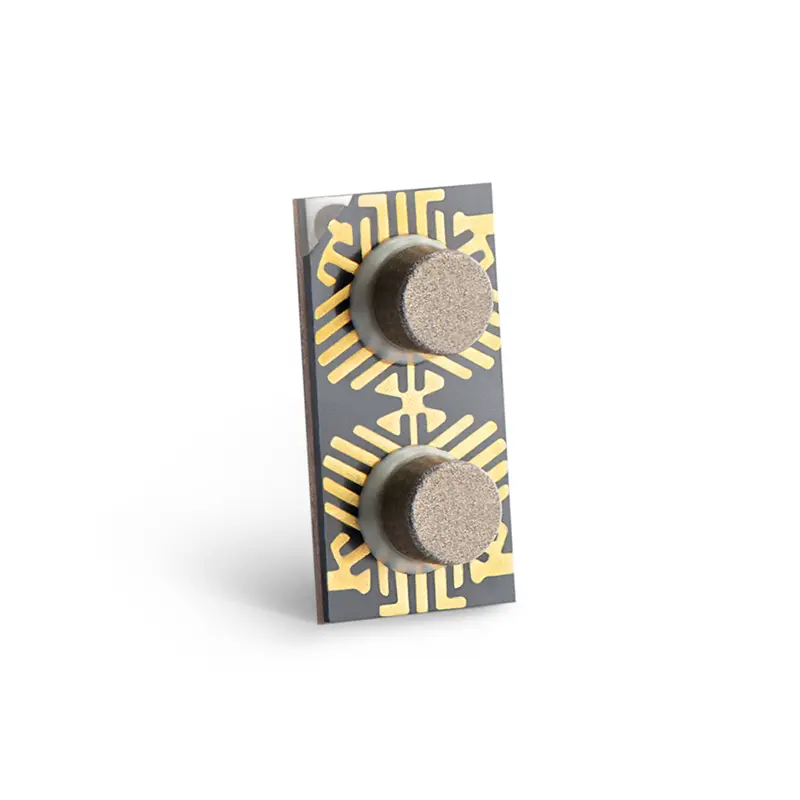

- SMT Microwave Dual-Junction Circulator is a versatile and compact component designed for seamless integration into surface mount assemblies.
Characteristics and Applications
This circulator offers high isolation performance and efficient signal routing in modern communication systems, radar systems, and RF front-end modules. Its compatibility with SMT assembly processes makes it an ideal choice for applications where space-saving and efficient assembly are essential. The SMT Microwave Dual-Junction Circulator provides reliable signal routing and isolation while enabling easy integration into surface mount technology-based circuitry.
Electrical Performance Table and Product Appearance

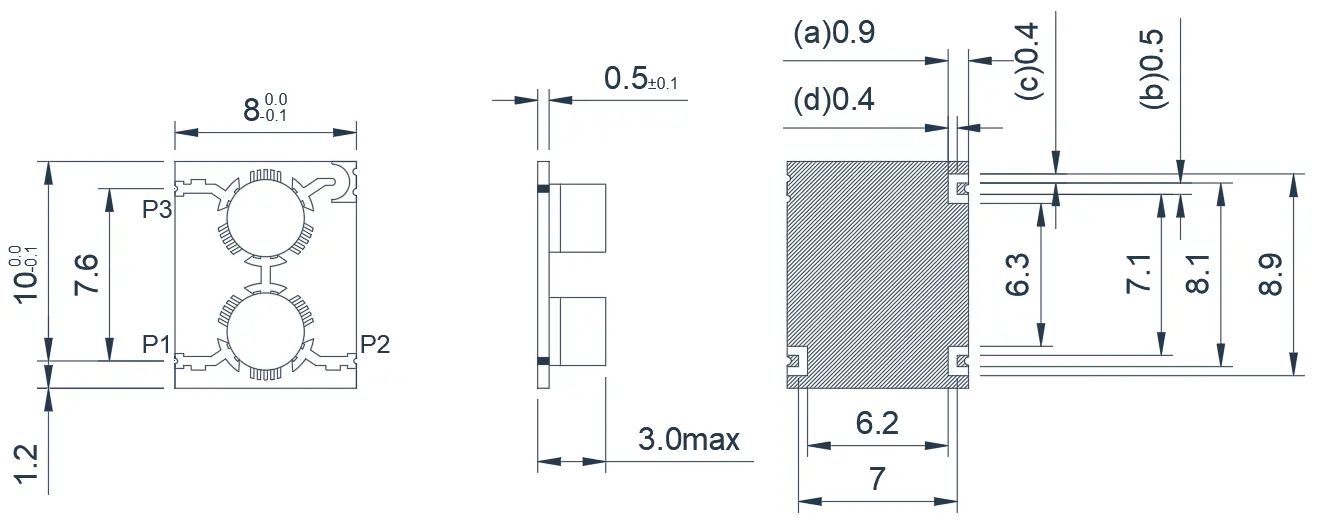

5.0~6.0GHz SMT Microwave Dual-Junction Circulator
Product Overview
Here is an C-band Surface Mount Technology Microstrip Dual-Junction Circulator designed for easy installation using surface mount technology. The product can be customized based on your requirements for frequency band, bandwidth, dimensions, and port locations.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMDHA50T60G-R⬇ | 5.0~6.0 |
FULL | 0.5(P1-P2) 0.9(P2-P3) |
18.0(P2-P1) 30.0(P3-P2) |
1.35 | -55~+85 | 30/15/10 | Clockwise |
| HMDHB50T60G-R⬇ | 5.0~6.0 |
FULL | 0.5(P1-P2) 0.9(P2-P3) |
18.0(P2-P1) 30.0(P3-P2) |
1.35 | -55~+85 | 30/15/10 | Counter Clockwise |

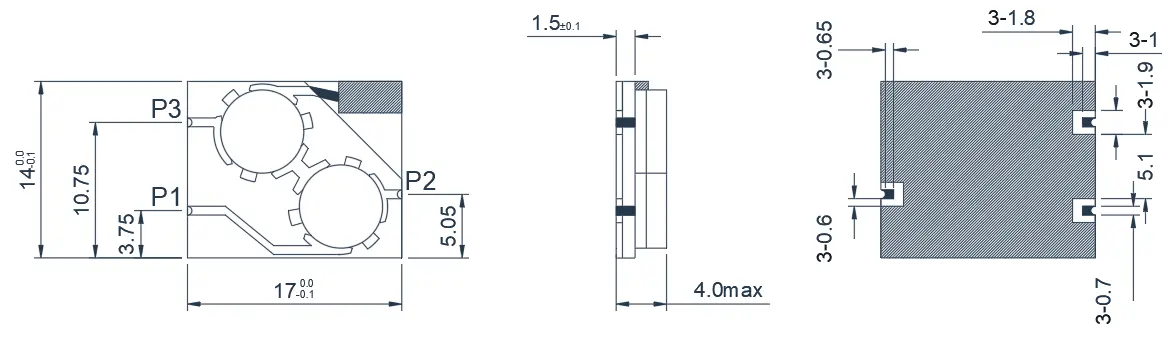

8.5~10.5GHz SMT Microwave Dual-Junction Circulator
Product Overview
Here is an X-band Surface Mount Technology Microstrip Dual-Junction Circulator designed for easy installation using surface mount technology. The product can be customized based on your requirements for frequency band, bandwidth, dimensions, and port locations.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HMDHE85T105G⬇ | 8.5~10.5 |
FULL | 0.45(P1-P2) 0.9(P2-P3) |
18.0(P2-P1) 30.0(P3-P2) |
1.3 | -55~+85 | 20/10/2 | Clockwise |
| HMDHF85T105G⬇ | 8.5~10.5 |
FULL | 0.45(P1-P2) 0.9(P2-P3) |
18.0(P2-P1) 30.0(P3-P2) |
1.35 | -55~+85 | 20/10/2 | Counter Clockwise |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
