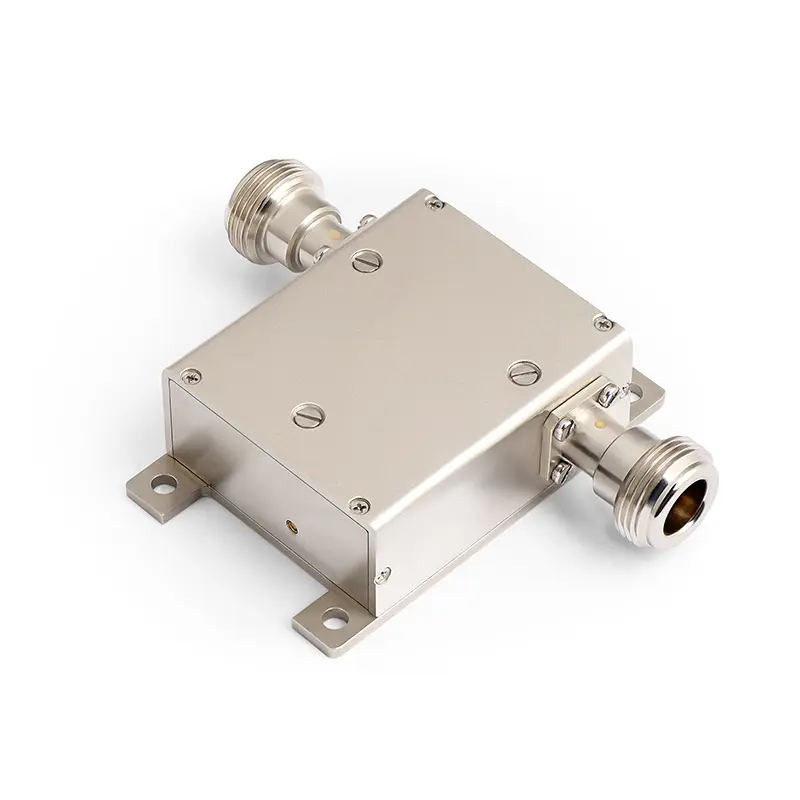

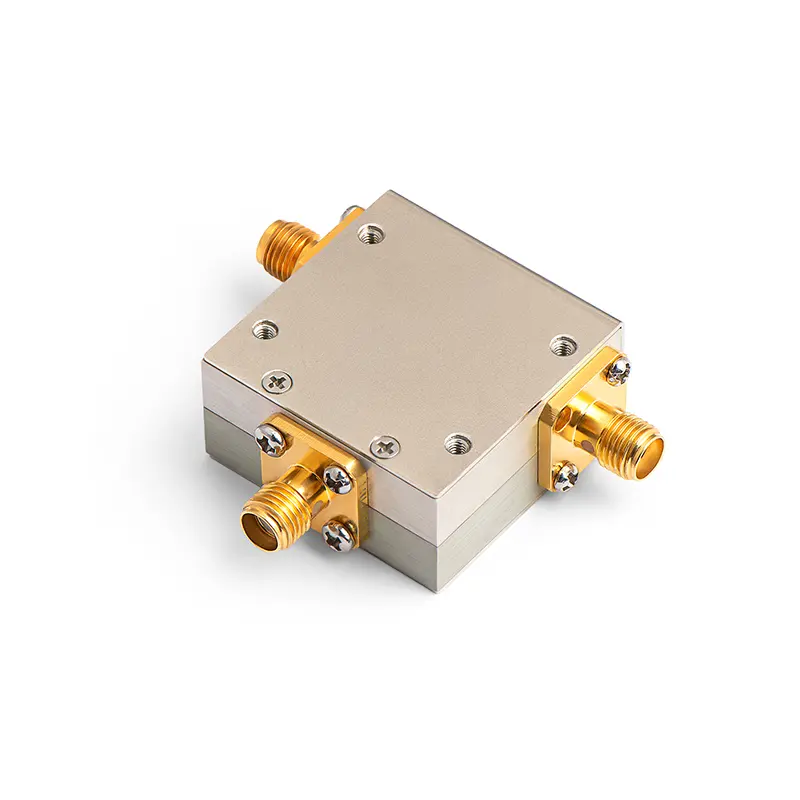

Broadband Coaxial Isolator
Custom design
- Broadband Coaxial Isolator is a critical component in RF and microwave systems, designed to provide high isolation and efficient signal protection across a wide frequency range within a coaxial transmission line.
Key Features & Advantages
- Broadband High Performance: A single device can cover multiple frequency bands, simplifying system design and reducing cost.
- High Reliability: Fully sealed structure, passive operation, long lifespan, and stable performance.
- Low Insertion Loss, High Isolation: Provides excellent unidirectional transmission characteristics.
- Excellent VSWR: Good matching with the system minimizes signal reflection.
- Wide Range of Power Handling Capacities: Models available for different application needs and power levels.
- Robust Structure, Easy Integration: Coaxial structure facilitates easy installation and connection.
Typical Applications
- Mobile Communication Base Stations: Protects the final stage power amplifier of transceivers; a key component in base station radio units.
- Microwave/Millimeter-wave Relay Systems: Ensures stability in long-distance communication links.
- Test & Measurement Equipment: Protects output ports in signal sources and spectrum analyzers, improving measurement accuracy.
- Radar Systems: Protects the high-power transmission chain within Transmit/Receive (T/R) modules.
- Satellite Communication Equipment: Ensures stable transmission in the uplink chain.
- Wireless Broadband Access Systems.
Electrical Performance Table and Product Appearance

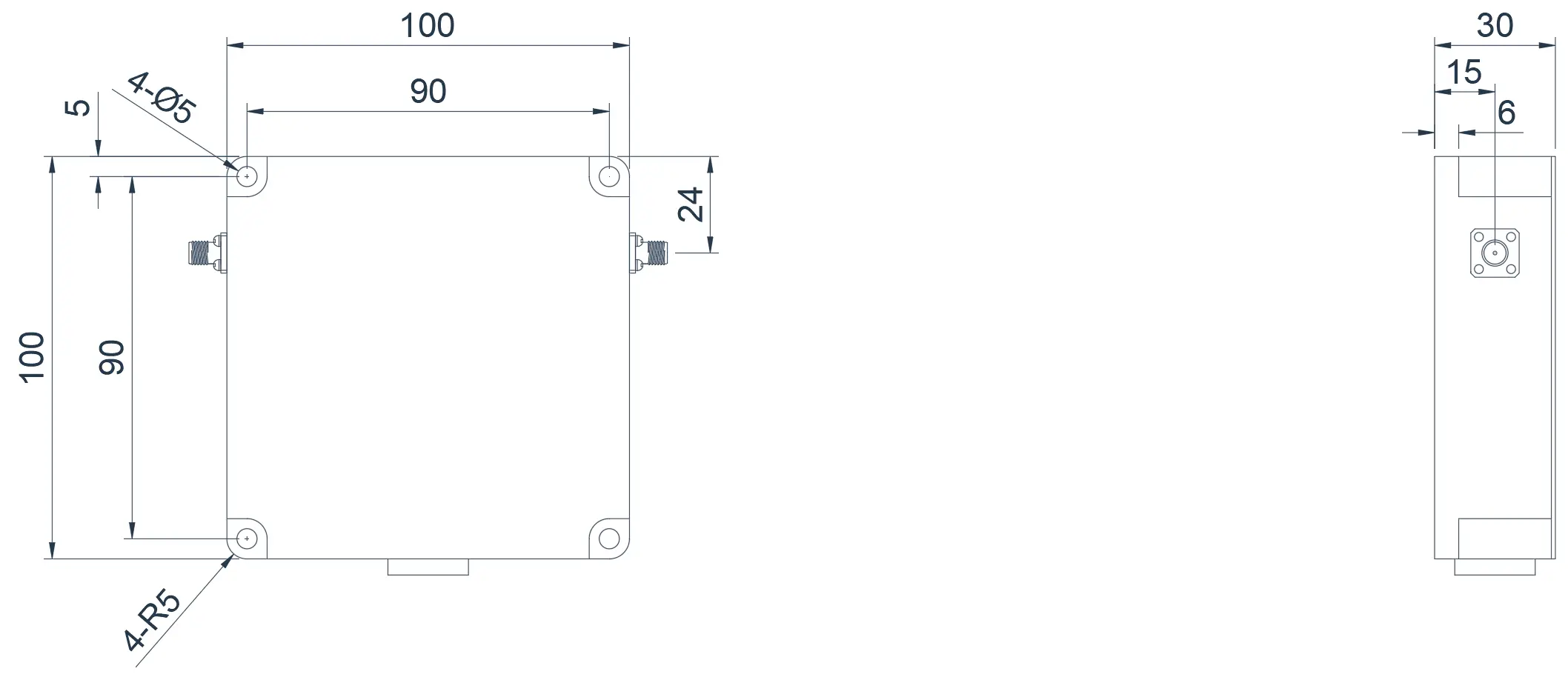

0.1~0.4GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from VHF to UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Clockwise
HCITB01T04G-B⬇
0.1~0.4
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Counter Clockwise

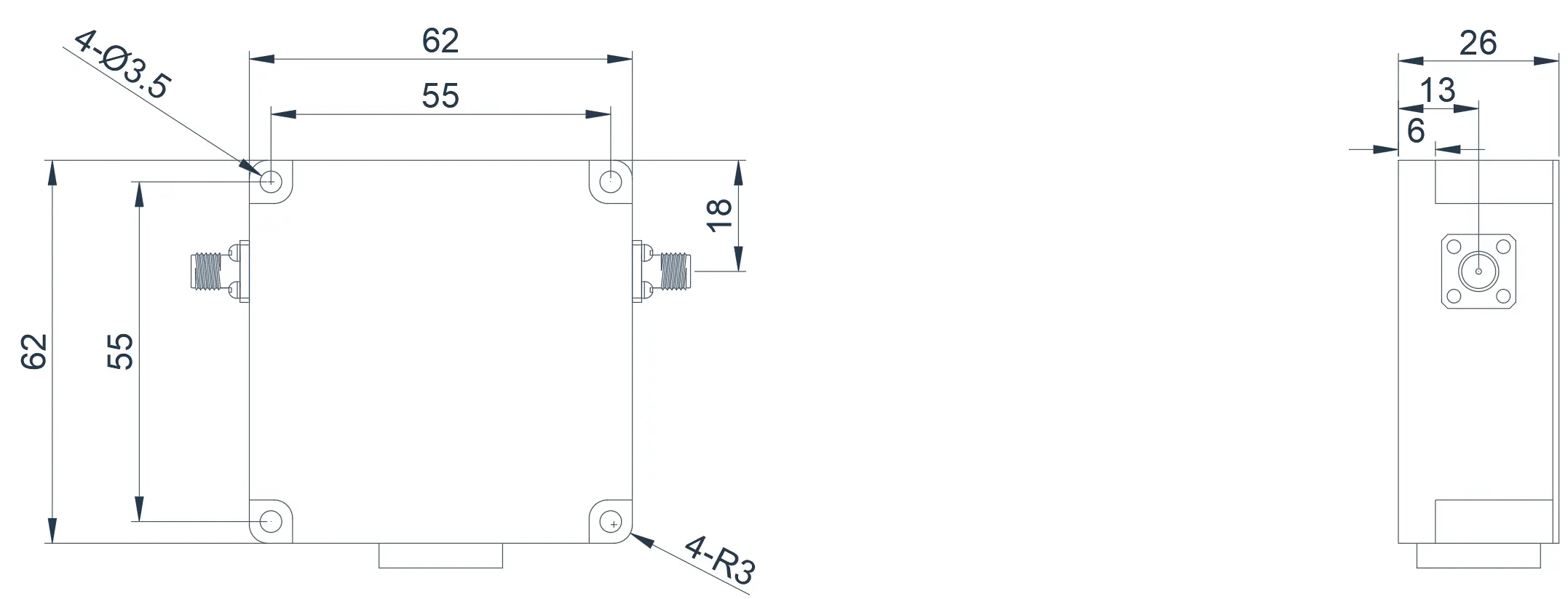

0.3~0.6GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Clockwise
HCITB03T06G-B⬇
0.3~0.6
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Counter Clockwise

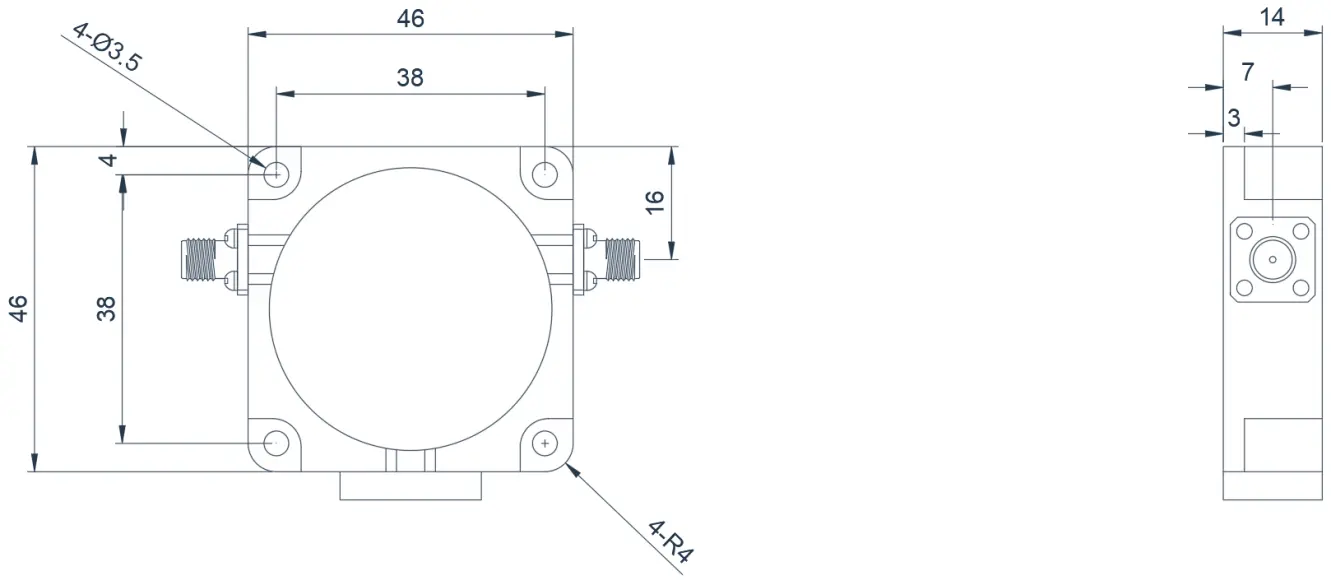

0.5~1.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Clockwise
HCITB05T10G-B⬇
0.5~1.0
40%
0.6
15
1.5
SMA
-55~+85℃
1000/100/15
Counter Clockwise

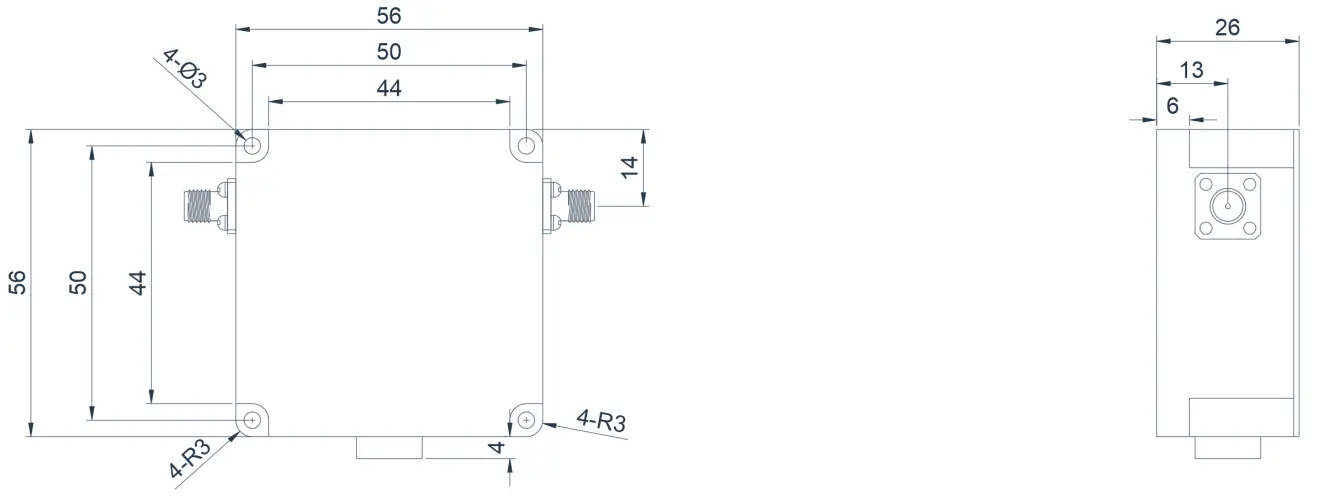

1.0~2.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators covering the entire L-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA10T20G-B⬇
1.0~2.0
FULL
0.7(1)
16(14)
1.5(1.6)
SMA
-20~+60℃
-/100/15
Clockwise
HCITB10T20G-B⬇
1.0~2.0
FULL
0.7(1)
16(14)
1.5(1.6)
SMA
-20~+60℃
-/100/15
Counter Clockwise

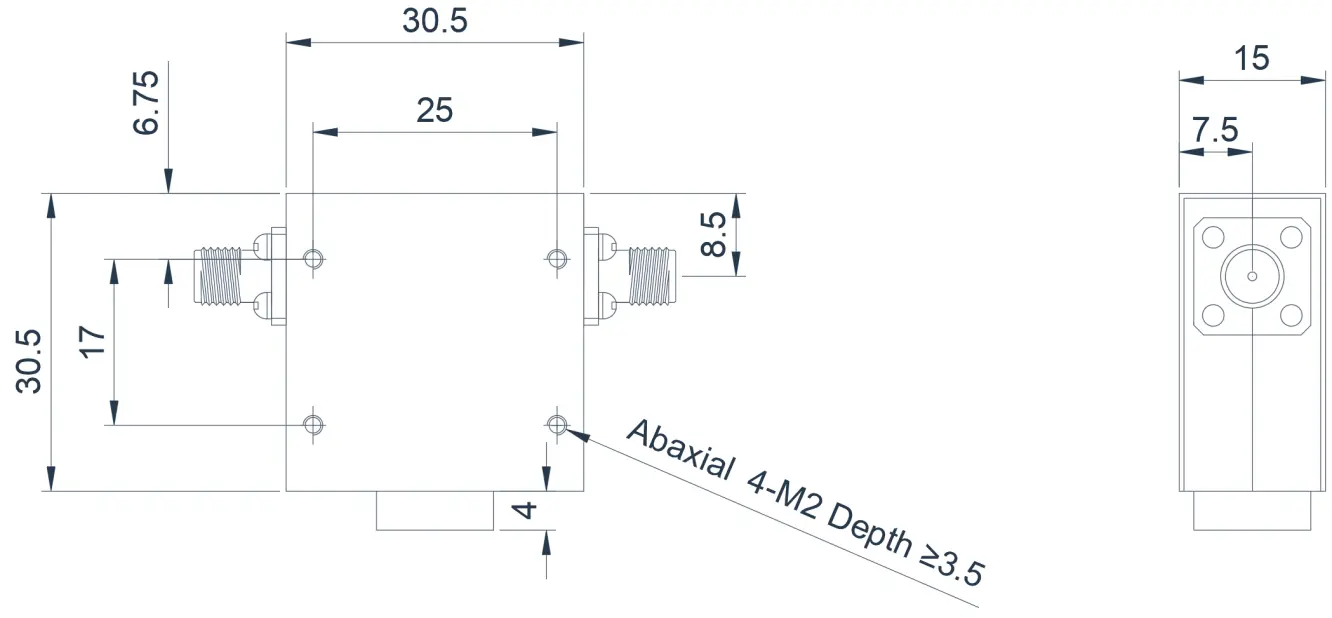

2.0~6.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from S to C bands, with a maximum relative bandwidth of up to 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
SMA
-55~+85℃
-/80/15
Clockwise
HCITB20T40G-B⬇
2.0~4.0
FULL
0.5(0.8)
17(15)
1.35(1.4)
SMA
-55~+85℃
-/80/15
Counter Clockwise
HCITA20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11(10)
1.7
SMA
-55~+85℃
-/80/15
Clockwise
HCITB20T60G-B⬇
2.0~6.0
FULL
1.0(1.2)
11(10)
1.7
SMA
-55~+85℃
-/80/15
Counter Clockwise

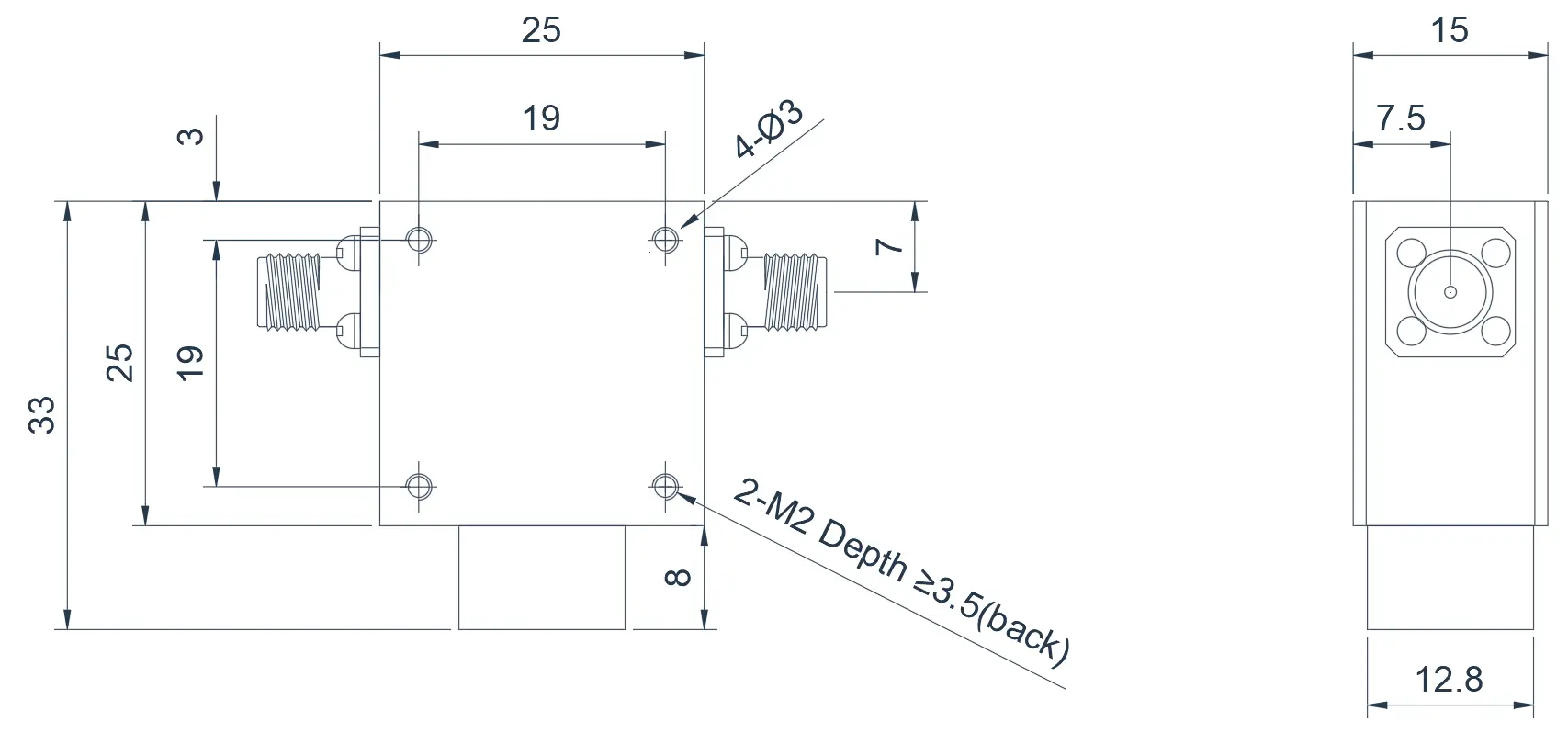

3.0~6.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from S to C bands, with a maximum relative bandwidth of up to 66.66%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA30T60G-B⬇
3.0~6.0
FULL
0.6
16.0
1.35
SMA
-40~+70℃
-/60/60
Clockwise
HCITB30T60G-B⬇
3.0~6.0
FULL
0.6
16.0
1.35
SMA
-40~+70℃
-/60/60
Counter Clockwise
4.0~8.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators covering the entire C-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA40T80G-B⬇
4.0~8.0
FULL
0.4(0.5)
18(17)
1.35
SMA
-40~+70℃
-/60/20
Clockwise
HCITB40T80G-B⬇
4.0~8.0
FULL
0.4(0.5)
18(17)
1.35
SMA
-40~+70℃
-/60/20
Counter Clockwise

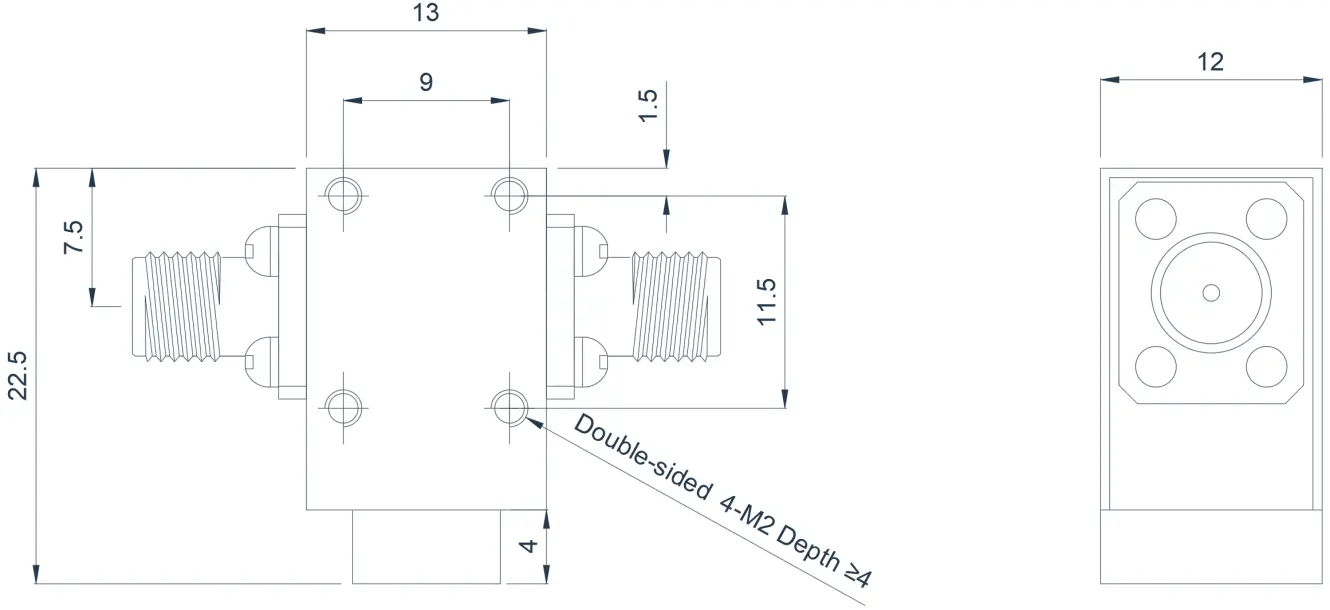

6.0~18.0GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from C to Ku bands, with a maximum relative bandwidth of up to 100%.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA60T180G-B⬇
6.0~18.0
FULL
1.2(1.5)
11
1.7
SMA
-55~+85℃
50/20/15
Clockwise
HCITB60T180G-B⬇
6.0~18.0
FULL
1.2(1.5)
11
1.7
SMA
-55~+85℃
50/20/15
Counter Clockwise
18.0~26.5GHz Broadband Coaxial Isolator
Product Overview
The following products are Broadband Coaxial Isolators covering the entire K-band frequency range.Customizable according to frequency band requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
Connector
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HCITA180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
2.92-K
-55~+85℃
10/2/1
Clockwise
HCITB180T265G-B⬇
18.0~26.5
FULL
1.0
14
1.5
2.92-K
-55~+85℃
10/2/1
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
The following products are Broadband Coaxial Isolators, covering the frequency range from VHF to UHF bands, with a maximum relative bandwidth of up to 40%.Customizable according to frequency band requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA01T04G-B⬇ | 0.1~0.4 | 40% | 0.6 | 15 | 1.5 | SMA | -55~+85℃ | 1000/100/15 | Clockwise |
| HCITB01T04G-B⬇ | 0.1~0.4 | 40% | 0.6 | 15 | 1.5 | SMA | -55~+85℃ | 1000/100/15 | Counter Clockwise |
