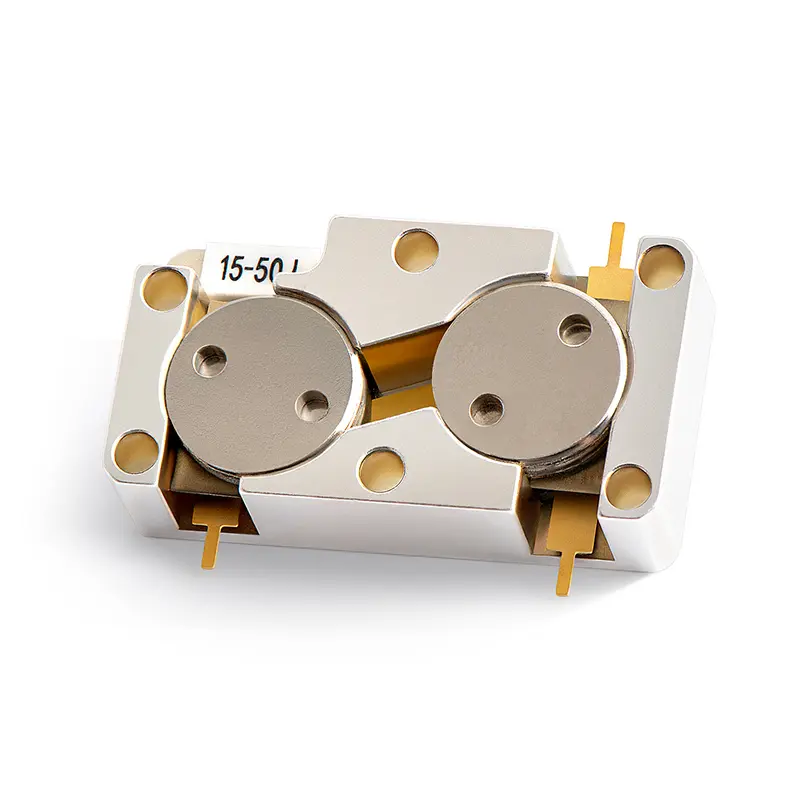

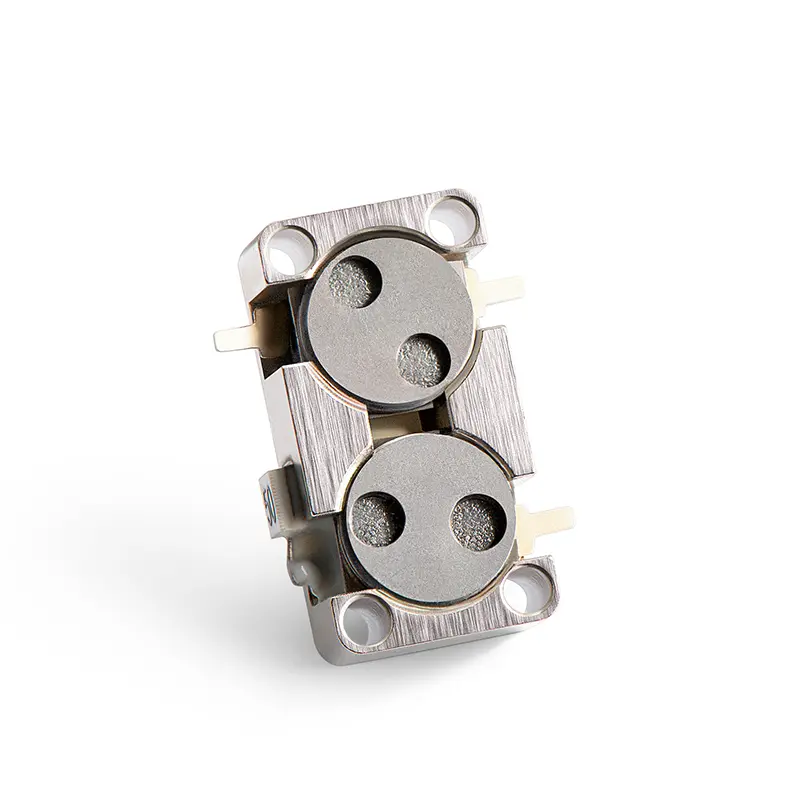

Typical Drop-in Dual-Junction Circulator

  • Typical Drop-in Dual-Junction Circulator is a fundamental component in RF and microwave systems, designed to provide essential signal routing and isolation.
Contact us
Typical Drop-in Dual-Junction Circulator
Typical Drop-in Dual-Junction Circulator

Electrical Performance Table and Product Appearance

1.2~1.4GHz Typical Drop-in Dual-Junction Circulator

Product Overview

Here is an L-band Drop-in Dual-Junction Circulator. It can be customized for small size, high power, port positions, and transmission directions based on your requirements.

Model Frequency(GHz) BW Max Insertion loss(dB) Max Isolation(dB)Min VSWR Max operating temperature(℃) PK/CW/RP(Watt) Direction
HDDHA12T14G⬇
1.2~1.4

FULL 0.4(P1-P2)
0.8(P2-P3) 		18.0(P2-P1)
35.0(P3-P2) 		1.35 -40~+70 200/50/20 Clockwise
HDDHB12T14G⬇
1.2~1.4

FULL 0.4(P1-P2)
0.8(P2-P3) 		18.0(P2-P1)
35.0(P3-P2) 		1.35 -40~+70 200/50/20 Counter Clockwise

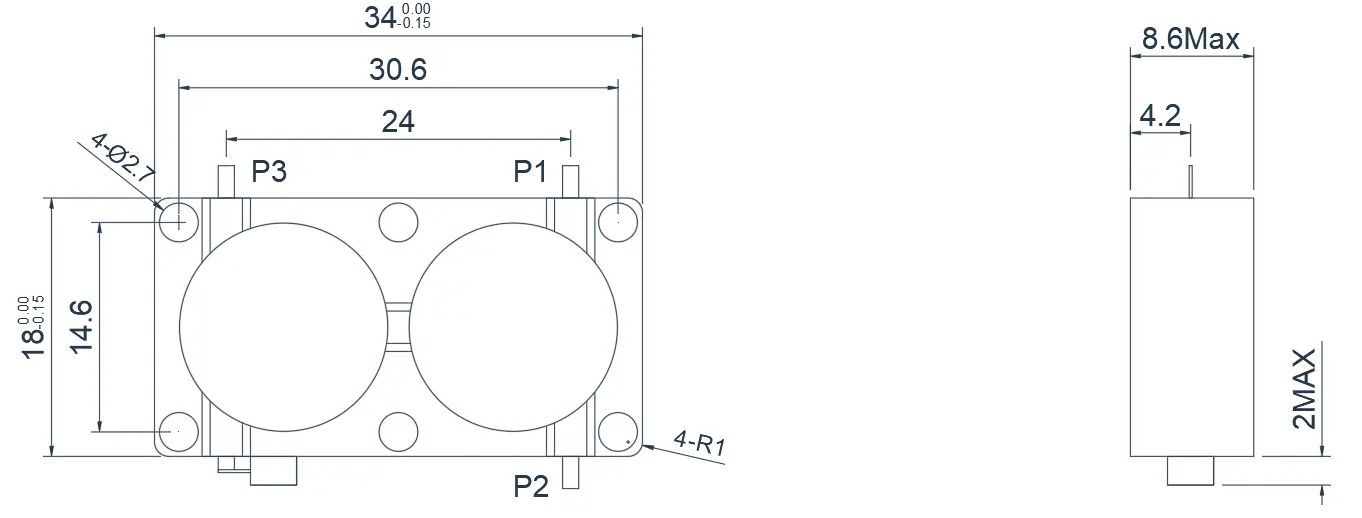

1.2~1.4GHz Typical Drop-in Dual-Junction Circulator Appearance
5.3~5.9GHz Typical Drop-in Dual-Junction Circulator

Product Overview

Here is an C-band Drop-in Dual-Junction Circulator. It can be customized for small size, high power, port positions, and transmission directions based on your requirements.

Model Frequency(GHz) BW Max Insertion loss(dB) Max Isolation(dB)Min VSWR Max operating temperature(℃) PK/CW/RP(Watt) Direction
HDDHA53T59G⬇
5.3~5.9

FULL 0.45(P1-P2)
0.8(P2-P3) 		19.0(P2-P1/P3-P1)
38.0(P3-P2) 		1.25 -40~+70 100/20/20 Clockwise
HDDHB53T59G⬇
5.3~5.9

FULL 0.45(P1-P2)
0.8(P2-P3) 		19.0(P2-P1/P3-P1)
38.0(P3-P2) 		1.25 -40~+70 100/20/20 Counter Clockwise

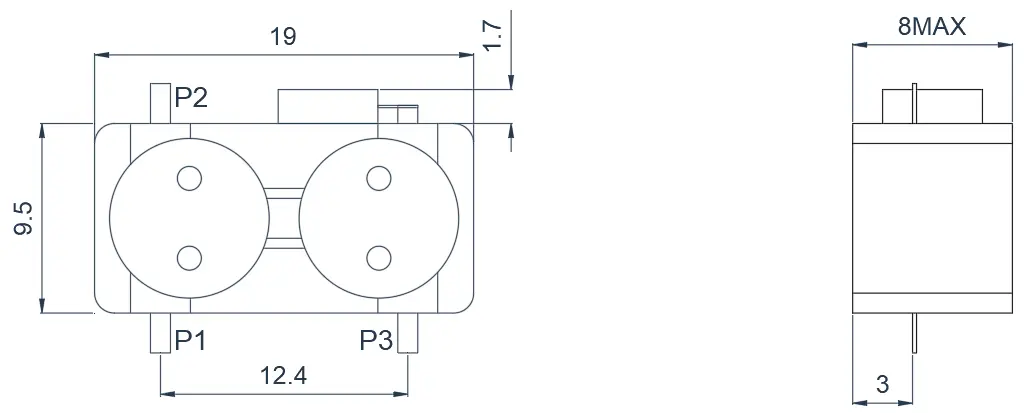

5.3~5.9GHz Typical Drop-in Dual-Junction Circulator Appearance

About HzBeat

HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.

For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.

Customization & Selection Guide

  • Operating Band:Ensure it covers all frequencies required by your system.
  • Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
  • Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
  • Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
  • Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
