High Power Coaxial Dual-Junction Circulator
- High Power Coaxial Dual-Junction Circulator is a critical component in RF and microwave systems, specifically designed to handle high power levels while providing efficient signal routing and isolation within a coaxial transmission line.
Characteristics and Applications
Its robust construction and reliable performance ensure efficient signal transmission and safeguard sensitive components from potential damage caused by high power levels. The High Power Coaxial Dual-Junction Circulator is commonly used in high-power communication systems, radar systems, and other applications where high power handling capability is essential. With a focus on high-quality materials and precision engineering, this circulator delivers exceptional performance and reliability in demanding high-power RF and microwave applications.

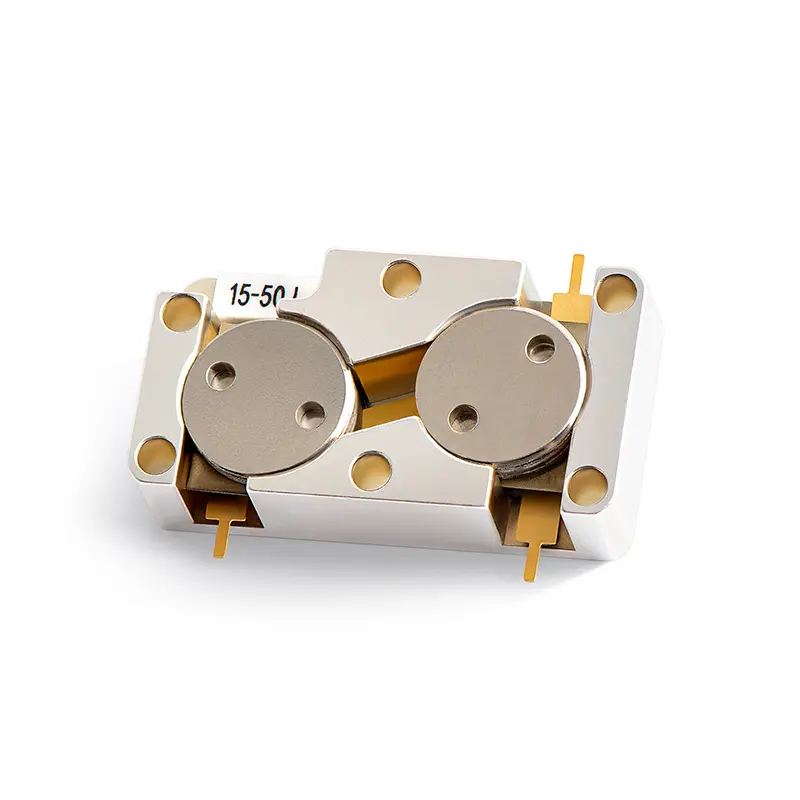

Electrical Performance Table and Product Appearance

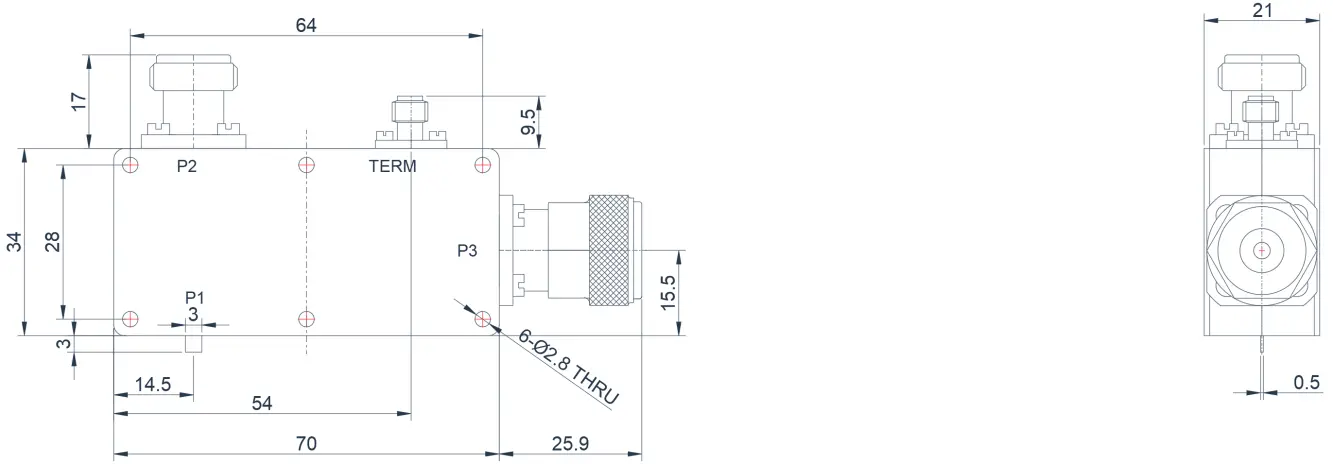

2.9~3.4GHz High Power Coaxial Dual-Junction Circulator
Product Overview
The following products are Coaxial Dual-Junction Circulators designed with high-power solutions. These are high-power case products with customizable ports such as N-type connectors, SMA connectors, and TAB connectors. High-power products can be customized according to your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/PW/Duty cycle(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCDUA29T34G⬇ | 2.9~3.4 | FULL | P1→P2:0.3(0.4) P2→P3:0.6(0.8) |
P2→P1:20.0(17.0) P3→P2:40.0(34.0) |
1.25(1.35) | N-K N-J SMA TAB |
-30~+95℃ | 5000/500us/10% | Clockwise |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
