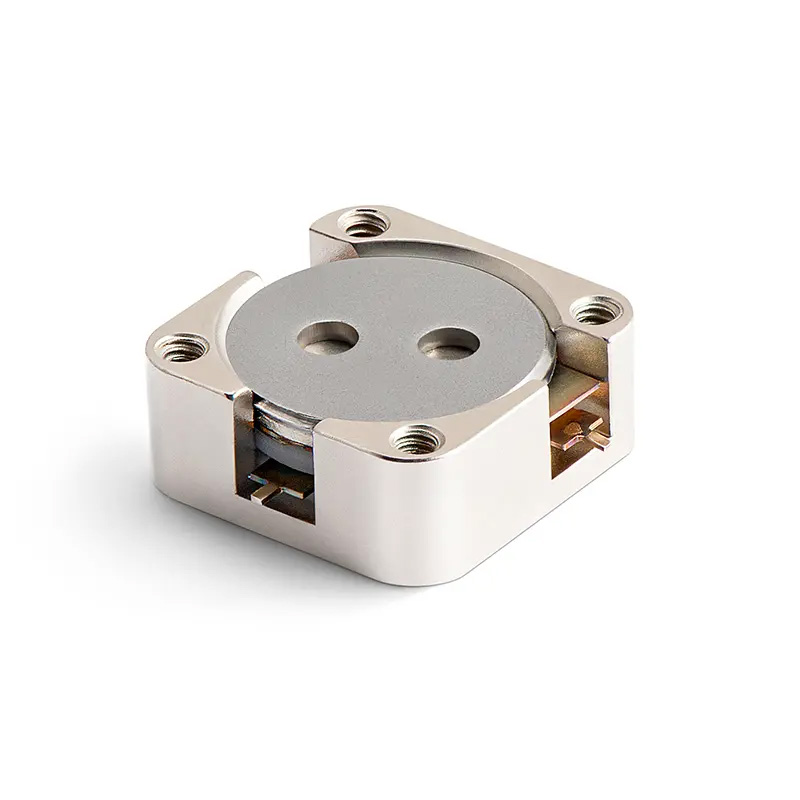

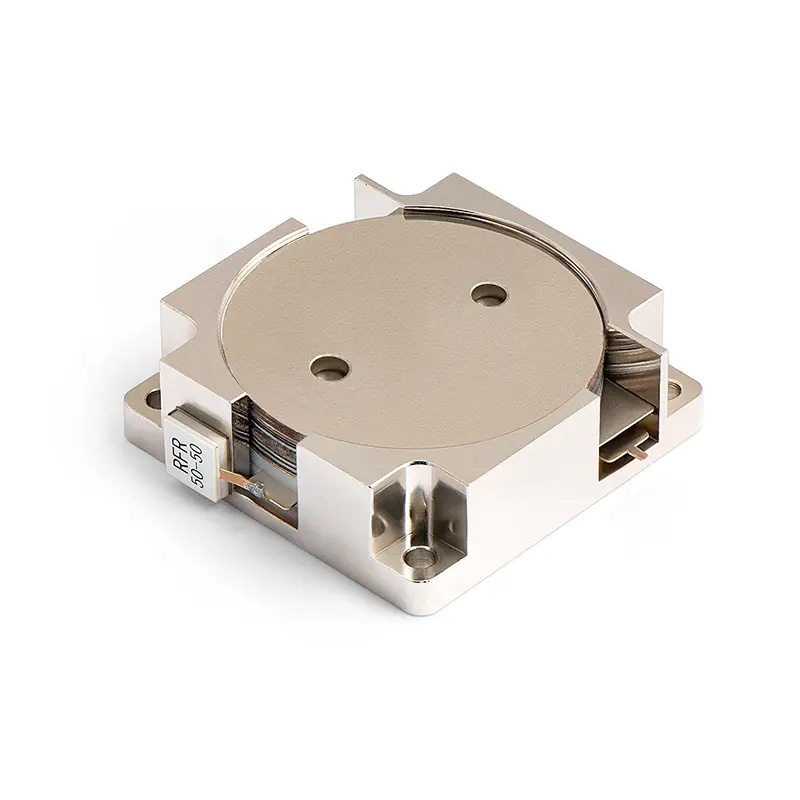

Typical Drop-in Isolator
Frequency up to 40GHz.
- Typical embedded isolators are essential components in RF and microwave systems designed to provide necessary signal isolation and prevent unwanted reflections.
Key Features & Advantages
- High Isolation, Low Insertion Loss: Effectively protects preceding circuits while minimally impacting the system link budget.
- Excellent VSWR: Provides good matching with the system, reducing oscillations and instability caused by signal reflections.
- Small Size, Light Weight: The stripline structure is ideal for integration into compact modules and PCBs.
- High Reliability & Long Lifespan: Solid-state, passive design with no moving parts ensures stable performance and long life.
- Good Power Handling Capability: Models can be designed for different power levels according to requirements.
Typical Applications
- Transmitter Output Protection
- Frequency Source Stabilization
- Improving System Stability
- Communication Systems
- Test & Measurement

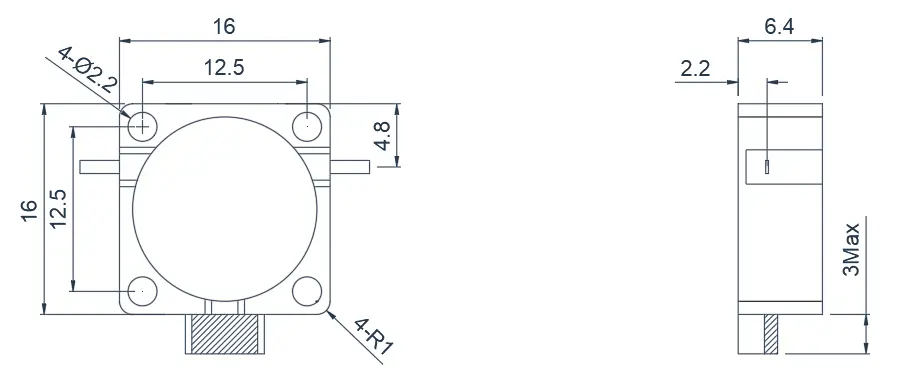

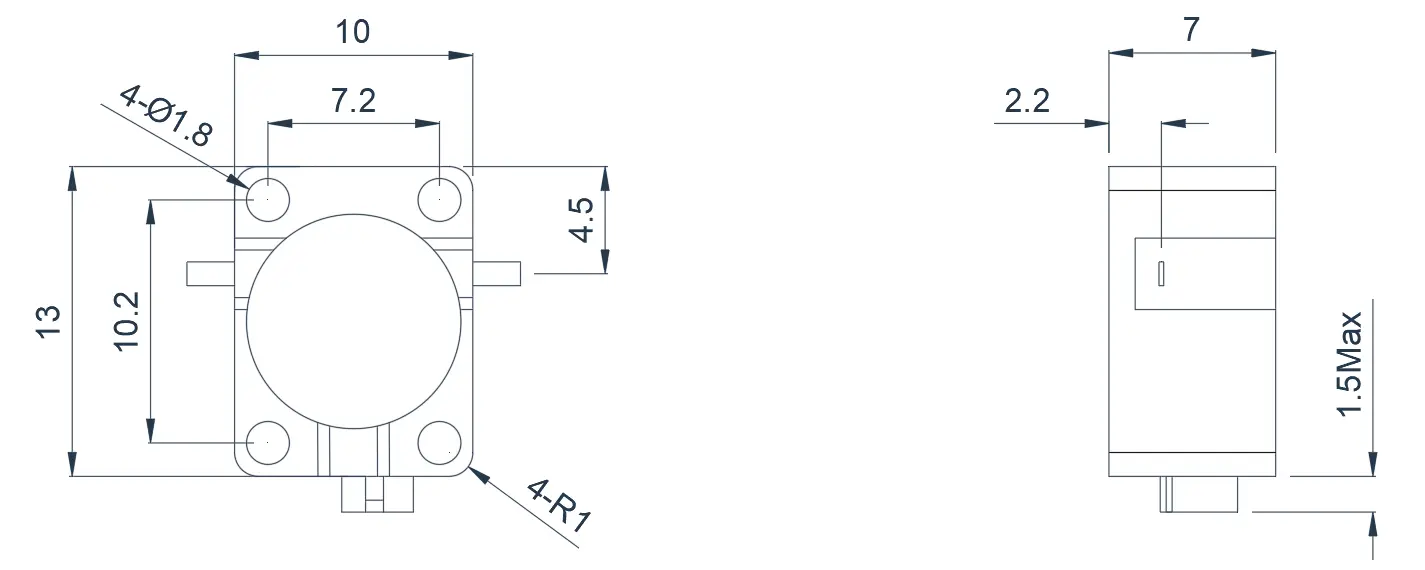

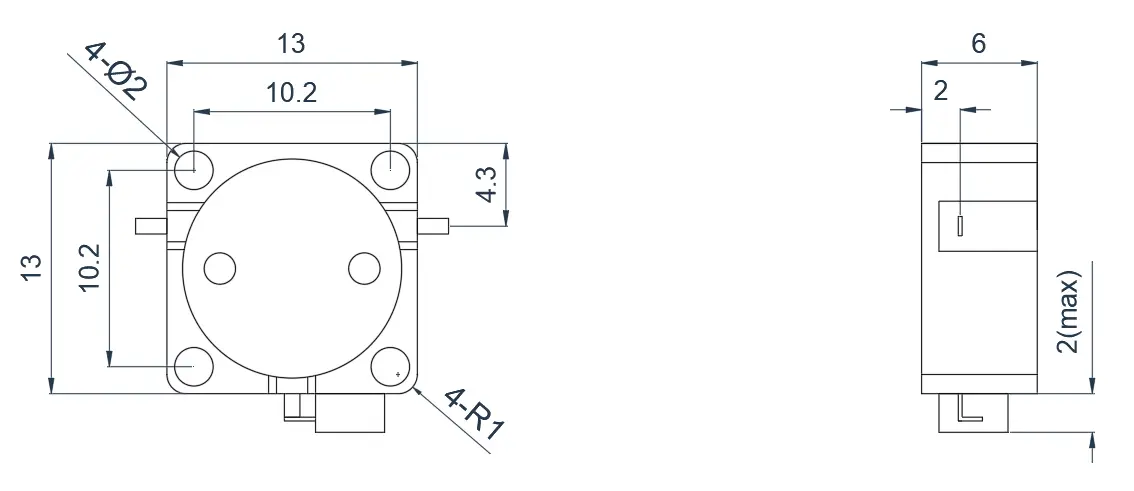

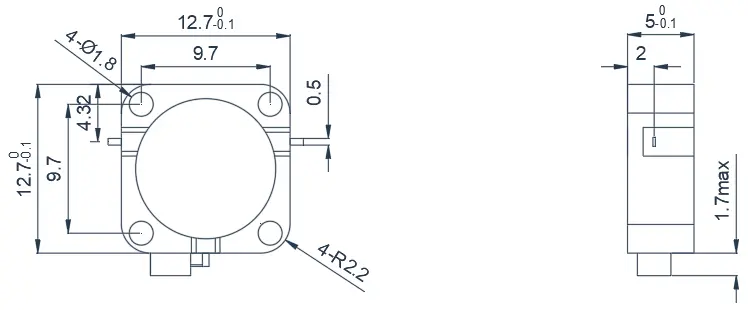

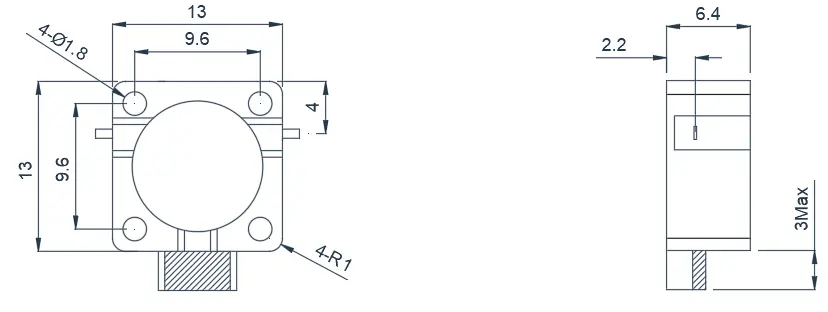

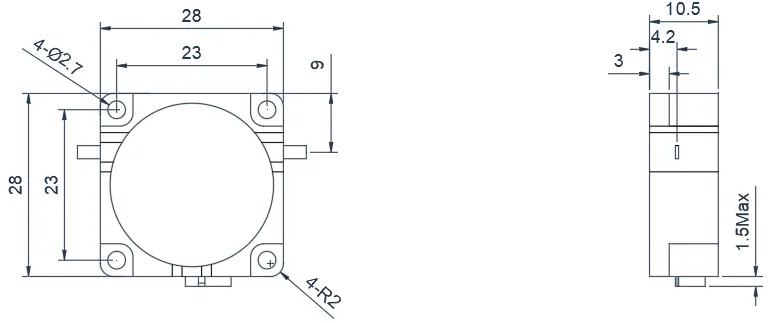

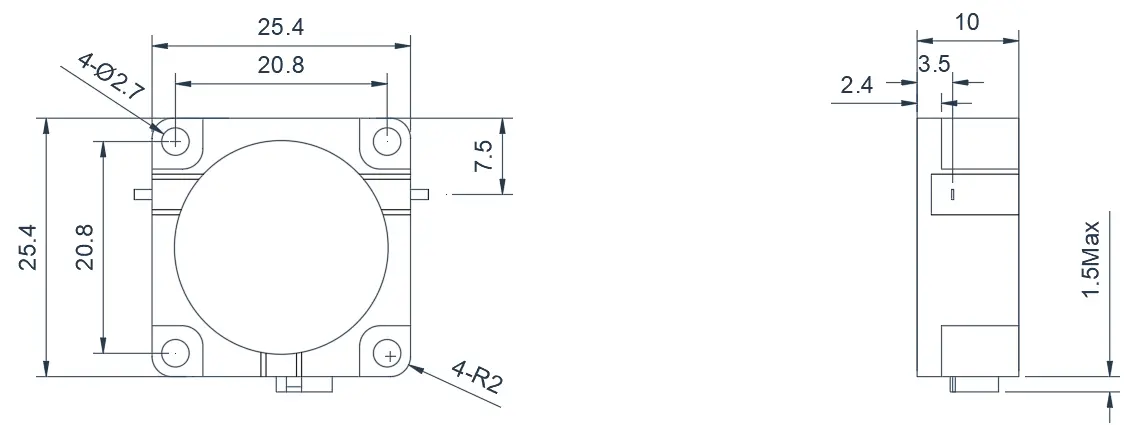

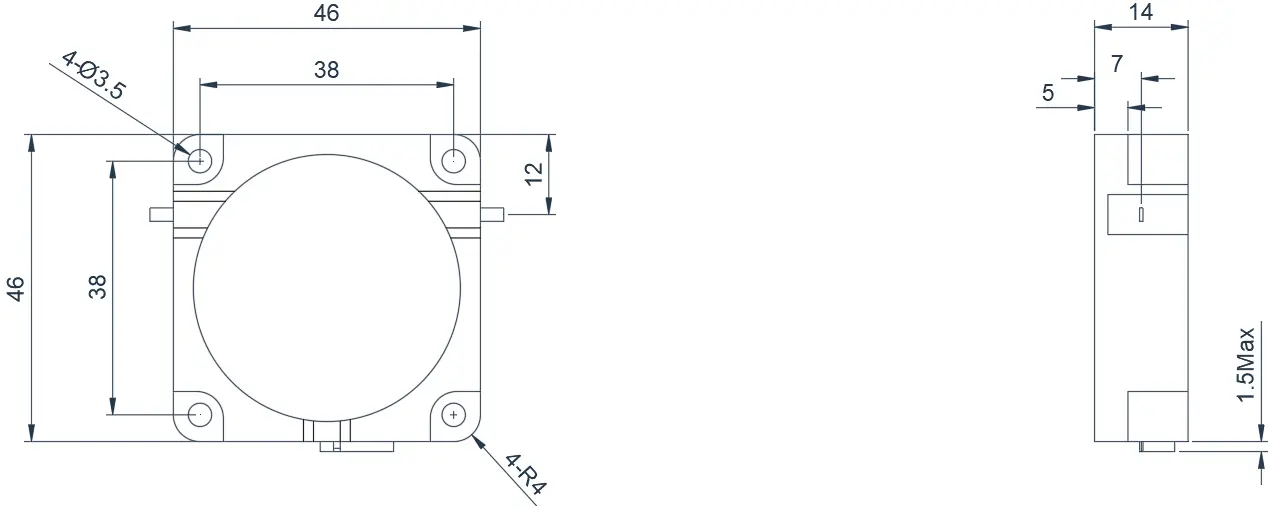

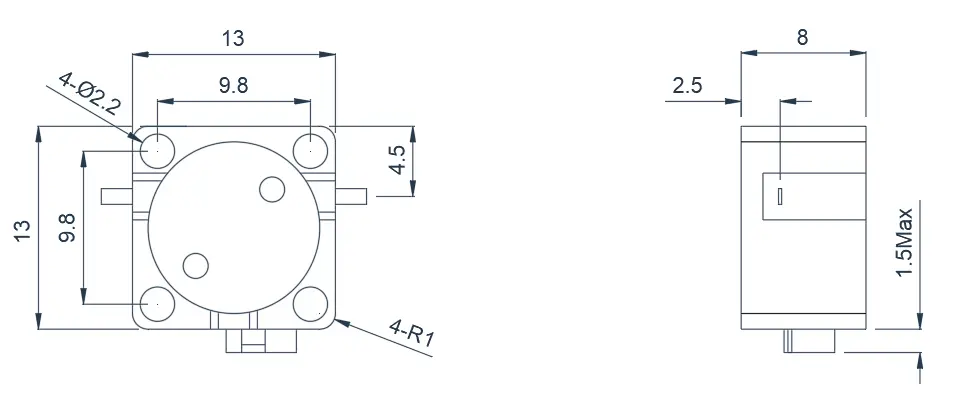

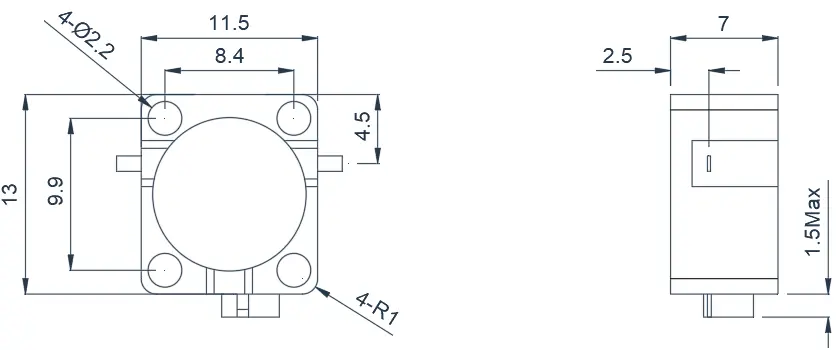

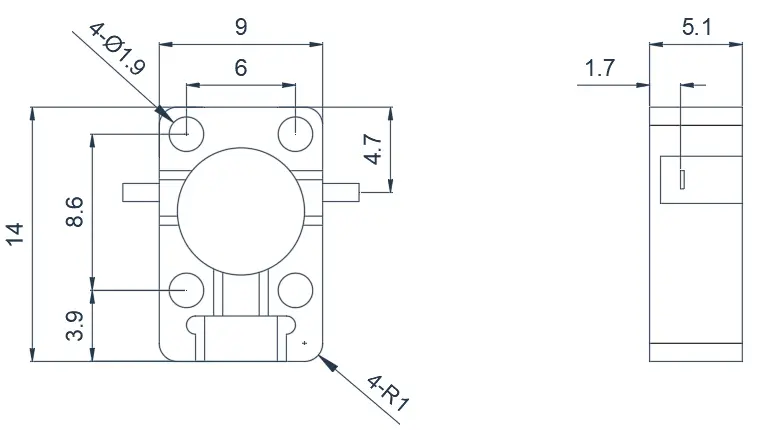

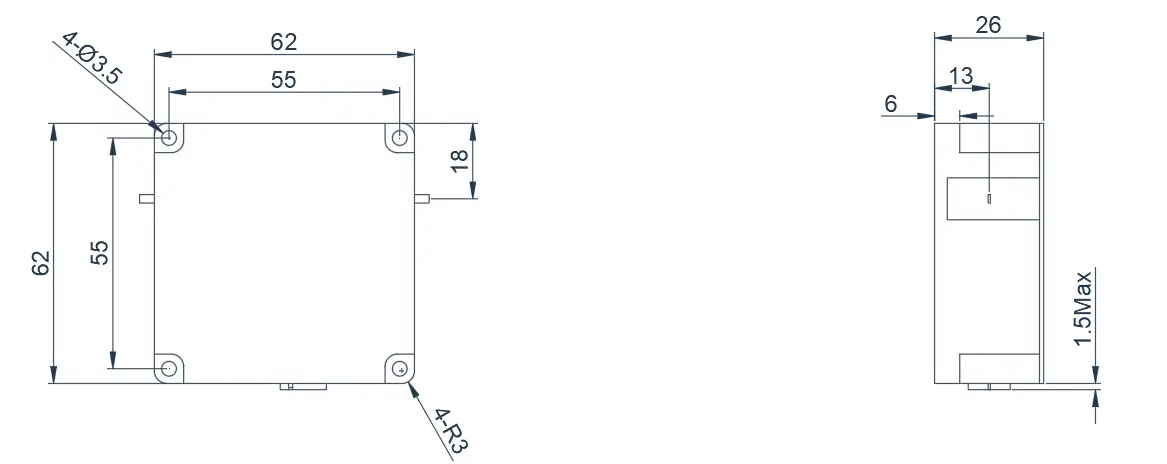

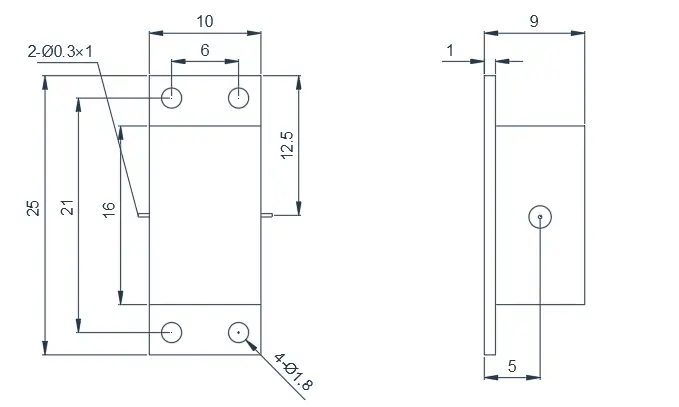

Electrical Performance Table and Product Appearance
0.05~0.3GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC50T300M⬇
0.05~0.3
10%
0.4
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD50T300M⬇
0.05~0.3
10%
0.4
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC50T300M⬇
0.05~0.3
10%
0.5
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD50T300M⬇
0.05~0.3
10%
0.5
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.15~0.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC150T400M⬇
0.15~0.4
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD150T400M⬇
0.15~0.4
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC150T400M⬇
0.15~0.4
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD150T400M⬇
0.15~0.4
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.25~0.6GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.45~1.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC50T300M⬇ | 0.05~0.3 | 10% | 0.4 | 20 | 1.20 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD50T300M⬇ | 0.05~0.3 | 10% | 0.4 | 20 | 1.20 | -55~+85℃ | 1000/100 | Counter Clockwise |
| HDITC50T300M⬇ | 0.05~0.3 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD50T300M⬇ | 0.05~0.3 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 1000/100 | Counter Clockwise |
0.15~0.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC150T400M⬇
0.15~0.4
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD150T400M⬇
0.15~0.4
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC150T400M⬇
0.15~0.4
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD150T400M⬇
0.15~0.4
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.25~0.6GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.45~1.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC150T400M⬇ | 0.15~0.4 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD150T400M⬇ | 0.15~0.4 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Counter Clockwise |
| HDITC150T400M⬇ | 0.15~0.4 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD150T400M⬇ | 0.15~0.4 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Counter Clockwise |
0.25~0.6GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD250T600M⬇
0.25~0.6
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.45~1.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Circulator. This product covers the VHF~UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC250T600M⬇ | 0.25~0.6 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD250T600M⬇ | 0.25~0.6 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Counter Clockwise |
| HDITC250T600M⬇ | 0.25~0.6 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD250T600M⬇ | 0.25~0.6 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Counter Clockwise |
0.45~1.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
10%
0.3
20
1.20
-55~+85℃
1000/100
Counter Clockwise
HDITC450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Clockwise
HDITD450T1000M⬇
0.45~1.0
20%
0.4
20
1.25
-55~+85℃
1000/100
Counter Clockwise
0.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC450T1000M⬇ | 0.45~1.0 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD450T1000M⬇ | 0.45~1.0 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 1000/100 | Counter Clockwise |
| HDITC450T1000M⬇ | 0.45~1.0 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Clockwise |
| HDITD450T1000M⬇ | 0.45~1.0 | 20% | 0.4 | 20 | 1.25 | -55~+85℃ | 1000/100 | Counter Clockwise |
0.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD08T35G⬇
0.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the UHF~S band range with a relative bandwidth of up to 10~20%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC08T35G⬇ | 0.8~3.5 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 500/100 | Clockwise |
| HDITD08T35G⬇ | 0.8~3.5 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 500/100 | Counter Clockwise |
| HDITD08T35G⬇ | 0.8~3.5 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/100 | Clockwise |
| HDITD08T35G⬇ | 0.8~3.5 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/100 | Counter Clockwise |
1.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
10%
0.3
20
1.20
-55~+85℃
500/100
Counter Clockwise
HDITC10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Clockwise
HDITD10T35G⬇
1.0~3.5
15%
0.4
20
1.25
-55~+85℃
500/100
Counter Clockwise
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC10T35G⬇ | 1.0~3.5 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 500/100 | Clockwise |
| HDITD10T35G⬇ | 1.0~3.5 | 10% | 0.3 | 20 | 1.20 | -55~+85℃ | 500/100 | Counter Clockwise |
| HDITC10T35G⬇ | 1.0~3.5 | 15% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/100 | Clockwise |
| HDITD10T35G⬇ | 1.0~3.5 | 15% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/100 | Counter Clockwise |
1.2~1.4GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Clockwise
HDITD12T14G⬇
1.2~1.4
FULL
0.5
20
1.20
-55~+85℃
/100
Counter Clockwise
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 15~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC12T14G⬇ | 1.2~1.4 | FULL | 0.5 | 20 | 1.20 | -55~+85℃ | /100 | Clockwise |
| HDITD12T14G⬇ | 1.2~1.4 | FULL | 0.5 | 20 | 1.20 | -55~+85℃ | /100 | Counter Clockwise |
1.8~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
5%
0.3
20
1.2
-55~+85℃
500/50
Counter Clockwise
HDITC18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Clockwise
HDITD18T35G⬇
1.8~3.5
10%
0.4
20
1.25
-55~+85℃
500/50
Counter Clockwise
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the L~S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC18T35G⬇ | 1.8~3.5 | 5% | 0.3 | 20 | 1.2 | -55~+85℃ | 500/50 | Clockwise |
| HDITD18T35G⬇ | 1.8~3.5 | 5% | 0.3 | 20 | 1.2 | -55~+85℃ | 500/50 | Counter Clockwise |
| HDITC18T35G⬇ | 1.8~3.5 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/50 | Clockwise |
| HDITD18T35G⬇ | 1.8~3.5 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 500/50 | Counter Clockwise |
2.0~3.5GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
10%
0.5
20
1.25
-55~+85℃
200/40
Counter Clockwise
HDITC20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Clockwise
HDITD20T35G⬇
2.0~3.5
5%
0.4
20
1.2
-55~+85℃
200/40
Counter Clockwise
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC20T35G⬇ | 2.0~3.5 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 200/40 | Clockwise |
| HDITD20T35G⬇ | 2.0~3.5 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 200/40 | Counter Clockwise |
| HDITC20T35G⬇ | 2.0~3.5 | 5% | 0.4 | 20 | 1.2 | -55~+85℃ | 200/40 | Clockwise |
| HDITD20T35G⬇ | 2.0~3.5 | 5% | 0.4 | 20 | 1.2 | -55~+85℃ | 200/40 | Counter Clockwise |
2.5~5.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD25T50G⬇
2.5~5.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the S~C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC25T50G⬇ | 2.5~5.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 200/50 | Clockwise |
| HDITD25T50G⬇ | 2.5~5.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 200/50 | Counter Clockwise |
| HDITC25T50G⬇ | 2.5~5.0 | 5% | 0.35 | 20 | 1.2 | -55~+85℃ | 200/50 | Clockwise |
| HDITD25T50G⬇ | 2.5~5.0 | 5% | 0.35 | 20 | 1.2 | -55~+85℃ | 200/50 | Counter Clockwise |
2.6~4.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
10%
0.5
20
1.25
-55~+85℃
200/20
Counter Clockwise
HDITC26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Clockwise
HDITD26T40G⬇
2.6~4.0
5%
0.4
20
1.2
-55~+85℃
200/20
Counter Clockwise
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in isolator. This product covers the S band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC26T40G⬇ | 2.6~4.0 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 200/20 | Clockwise |
| HDITD26T40G⬇ | 2.6~4.0 | 10% | 0.5 | 20 | 1.25 | -55~+85℃ | 200/20 | Counter Clockwise |
| HDITC26T40G⬇ | 2.6~4.0 | 5% | 0.4 | 20 | 1.2 | -55~+85℃ | 200/20 | Clockwise |
| HDITD26T40G⬇ | 2.6~4.0 | 5% | 0.4 | 20 | 1.2 | -55~+85℃ | 200/20 | Counter Clockwise |
4.0~8.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
10%
0.4
20
1.25
-55~+85℃
200/50
Counter Clockwise
HDITC40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Clockwise
HDITD40T80G⬇
4.0~8.0
5%
0.35
20
1.2
-55~+85℃
200/50
Counter Clockwise
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC40T80G⬇ | 4.0~8.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 200/50 | Clockwise |
| HDITD40T80G⬇ | 4.0~8.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 200/50 | Counter Clockwise |
| HDITC40T80G⬇ | 4.0~8.0 | 5% | 0.35 | 20 | 1.2 | -55~+85℃ | 200/50 | Clockwise |
| HDITD40T80G⬇ | 4.0~8.0 | 5% | 0.35 | 20 | 1.2 | -55~+85℃ | 200/50 | Counter Clockwise |
5.0~6.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Clockwise
HDITD40T80G⬇
5.0~6.0
FULL
0.4
20
1.20
-55~+85℃
/50
Counter Clockwise
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C band range with a relative bandwidth of up to 18%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC40T80G⬇ | 5.0~6.0 | FULL | 0.4 | 20 | 1.20 | -55~+85℃ | /50 | Clockwise |
| HDITD40T80G⬇ | 5.0~6.0 | FULL | 0.4 | 20 | 1.20 | -55~+85℃ | /50 | Counter Clockwise |
6.0~18.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC60T180G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
5%
0.35
20
1.20
-55~+85℃
100/20
Counter Clockwise
HDITC60T180G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Clockwise
HDITD40T80G⬇
6.0~18.0
10%
0.4
20
1.25
-55~+85℃
100/20
Counter Clockwise
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the C~Ku band range with a relative bandwidth of up to 5~10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC60T180G⬇ | 6.0~18.0 | 5% | 0.35 | 20 | 1.20 | -55~+85℃ | 100/20 | Clockwise |
| HDITD40T80G⬇ | 6.0~18.0 | 5% | 0.35 | 20 | 1.20 | -55~+85℃ | 100/20 | Counter Clockwise |
| HDITC60T180G⬇ | 6.0~18.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 100/20 | Clockwise |
| HDITD40T80G⬇ | 6.0~18.0 | 10% | 0.4 | 20 | 1.25 | -55~+85℃ | 100/20 | Counter Clockwise |
18.0~40.0GHz Typical Drop-in Isolator
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
Model
Frequency(GHz)
BW Max
Insertion loss(dB) Max
Isolation(dB)Min
VSWR Max
operating temperature(℃)
PK/CW/RP(Watt)
Direction
HDITC180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Clockwise
HDITD180T400G⬇
18.0~40.0
10%
0.6
18
1.35
-55~+85℃
20/5
Counter Clockwise
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
Questions? Feel Free to Reach Out Via Message.
Tell us frequency band, target IL/Isolation/VSWR, power level and timeline — we’ll match the best topology and deliver S-parameters.We will contact you within 24 hours.
Product Overview
Here are commonly used products of Drop-in Isolator. This product covers the K~Ka band range with a relative bandwidth of up to 10%. Dimensions and frequency bands can be customized based on your requirements.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|
| HDITC180T400G⬇ | 18.0~40.0 | 10% | 0.6 | 18 | 1.35 | -55~+85℃ | 20/5 | Clockwise |
| HDITD180T400G⬇ | 18.0~40.0 | 10% | 0.6 | 18 | 1.35 | -55~+85℃ | 20/5 | Counter Clockwise |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
