High Power Coaxial Isolator
Custom design
- High Power Coaxial Isolator is a crucial component in RF and microwave systems, specifically designed to handle high power levels while providing efficient signal isolation and protection within a coaxial transmission line.
Characteristics and Applications
The High Power Coaxial Isolator is a critical RF component designed to isolate high-power RF signals and protect devices from reflections and interference. It maintains signal integrity and low loss under high power conditions, making it ideal for demanding RF applications where power handling is essential.
Its robust construction and high-quality materials ensure reliable, durable performance in high-power RF environments. The compact and efficient design enables seamless integration into various RF systems, enhancing overall system performance. Designed to meet stringent industry standards, the isolator ensures regulatory compliance and consistent operation, making it a valuable asset for modern high-power RF applications requiring high reliability and signal quality.
Key Features & Advantages
- Protects Amplifiers, Ensures System Reliability.
- High Power Handling, Robust & Durable.
- High-Efficiency Transmission, Excellent Performance.
- Plug-and-Play, Easy Installation.
Typical Applications
- Broadcast Transmission Systems (FM/TV/DAB/DTMB).
- Mobile Communication Base Stations (4G/5G).
- Radar Systems.
- Industrial Heating & Medical Equipment (RF Plasma, MRI, Semiconductor Manufacturing).
- Scientific Research (Particle Accelerators, Nuclear Fusion Devices)

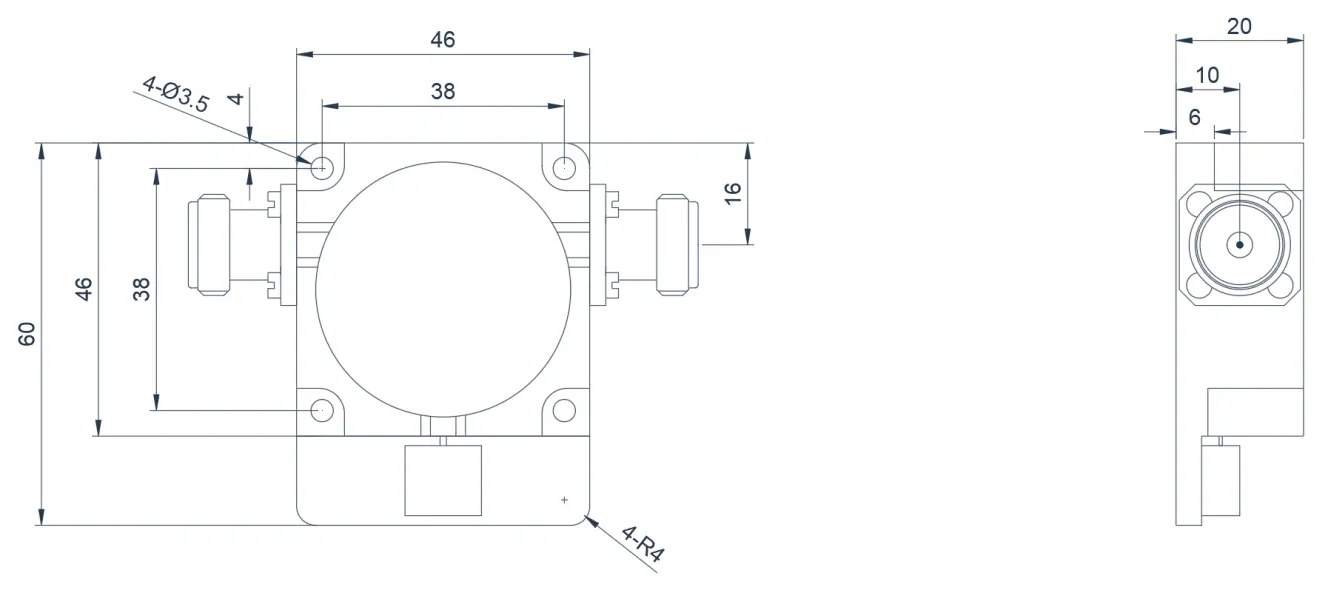

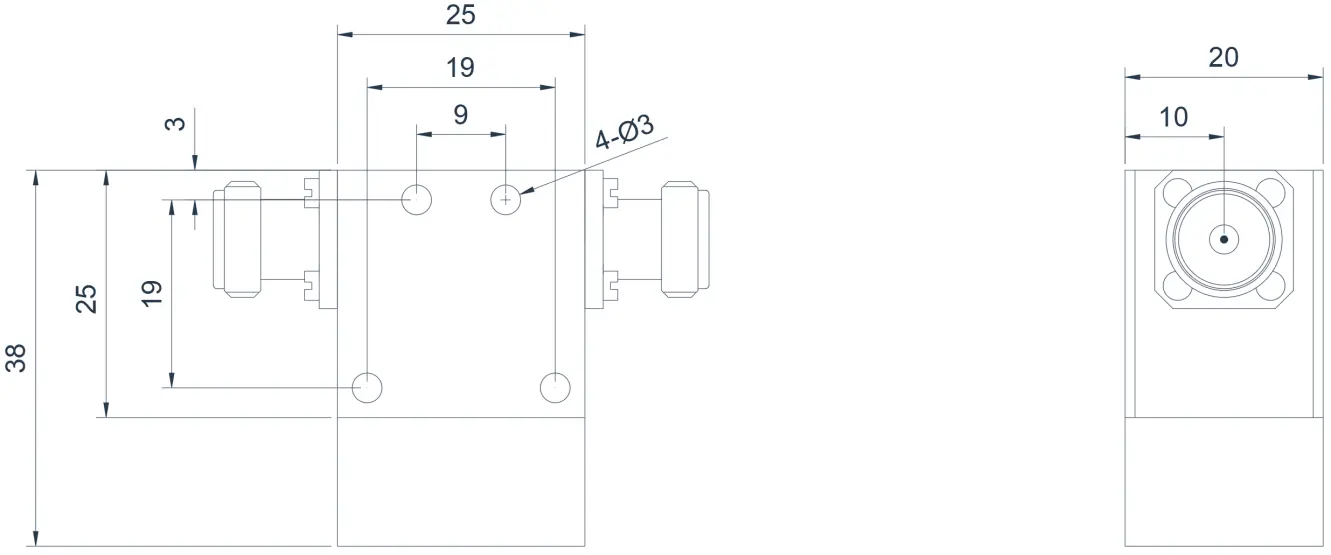

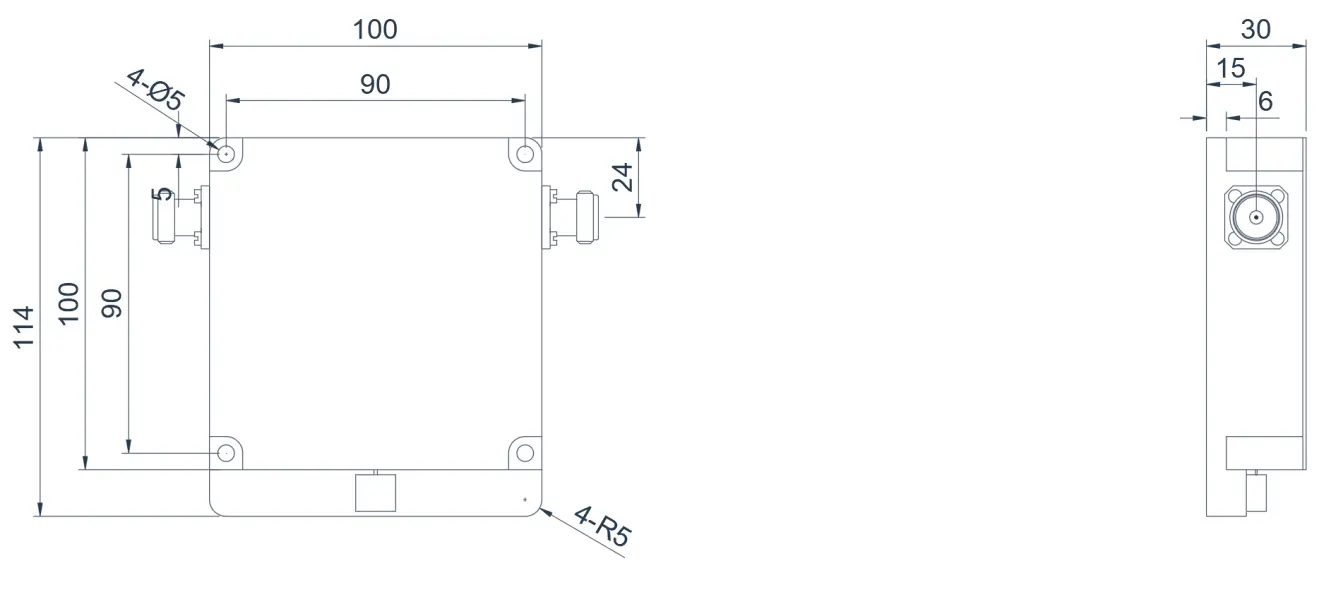

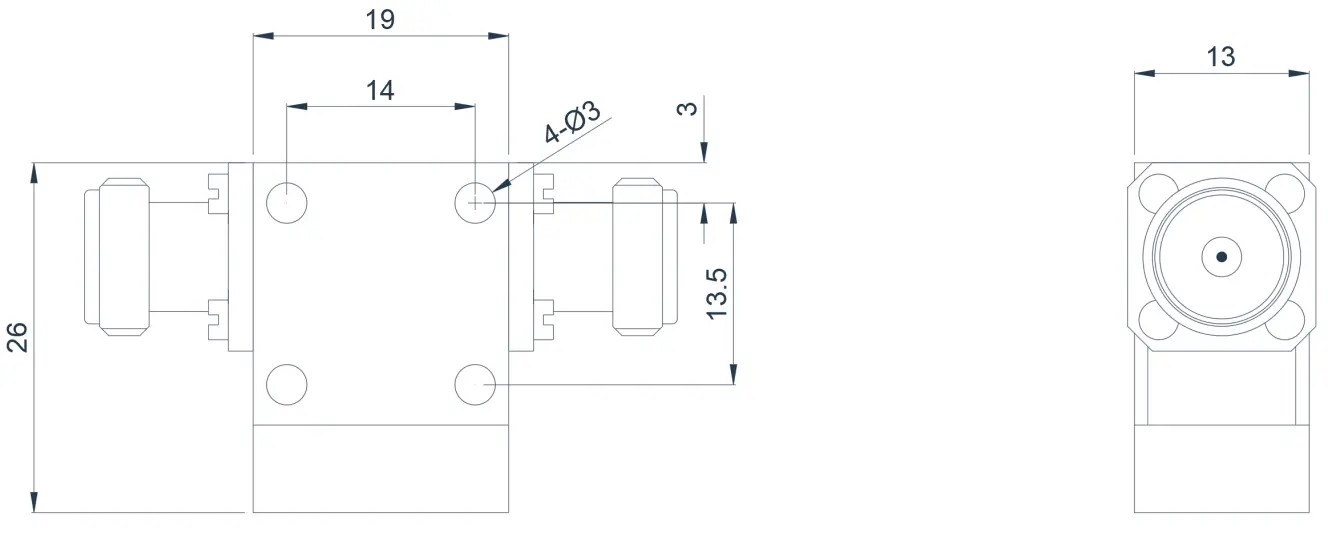

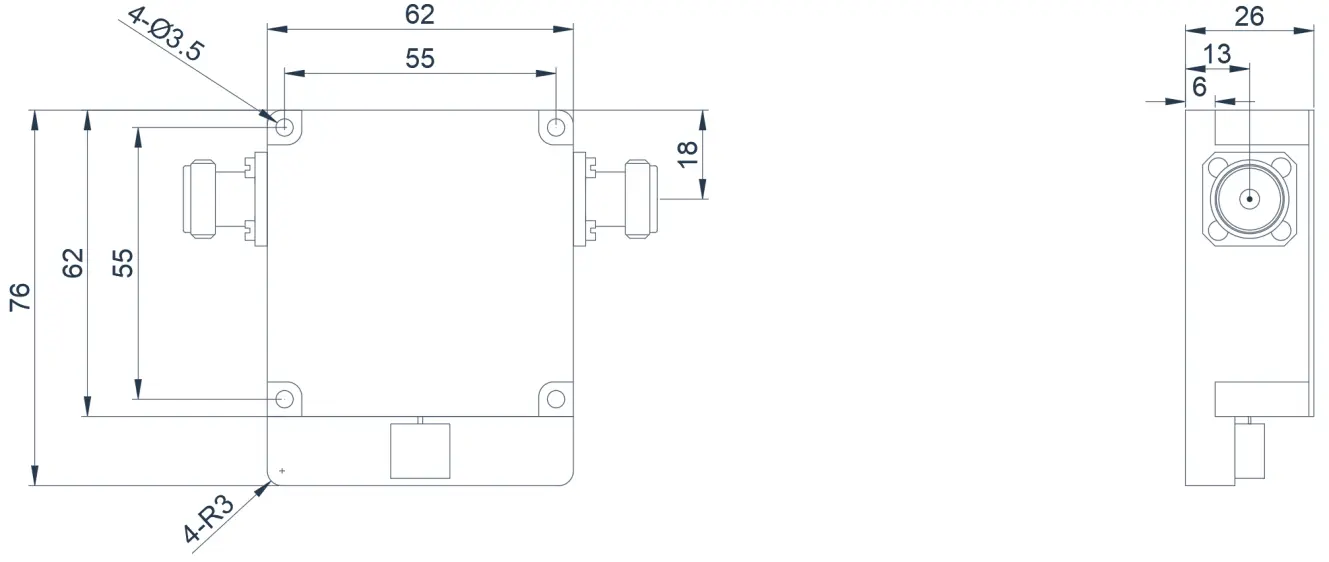

Electrical Performance Table and Product Appearance
0.05~0.25GHz High Power Coaxial Isolator
Product Overview
The following products are case examples of VHF band High Power Coaxial Isolators. Product dimensions and port configurations can be customized based on high-power requirements and high reflected power.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA50T250M-H⬇ | 0.05~0.25 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 5000/500/300 | Clockwise |
| HCITB50T250M-H⬇ | 0.05~0.25 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 5000/500/300 | Counter Clockwise |
0.2~0.5GHz High Power Coaxial Isolator
Product Overview
The following products are case examples of VHF to UHF band High Power Coaxial Isolators. Product dimensions and port configurations can be customized based on high-power requirements and high reflected power.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA02T05G-H⬇ | 0.2~0.5 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 5000/500/300 | Clockwise |
| HCITB02T05G-H⬇ | 0.2~0.5 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 5000/500/300 | Counter Clockwise |
0.4~1.0GHz High Power Coaxial Isolator
Product Overview
The following products are case examples of UHF to S band High Power Coaxial Isolators. Product dimensions and port configurations can be customized based on high-power requirements and high reflected power.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA04T10G-H⬇ | 0.4~1.0 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 3000/300/300 | Clockwise |
| HCITB04T10G-H⬇ | 0.4~1.0 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 3000/300/300 | Counter Clockwise |
0.8~2.5GHz High Power Coaxial Isolator
Product Overview
The following products are case examples of S to X band High Power Coaxial Isolators. Product dimensions and port configurations can be customized based on high-power requirements and high reflected power.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA08T25G-H⬇ | 0.8~2.5 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 2000/200/150 | Clockwise |
| HCITB08T25G-H⬇ | 0.8~2.5 | 10% | 0.4 | 20 | 1.2 | N-K | -55~+85℃ | 2000/200/150 | Counter Clockwise |
3.0~12.0GHz High Power Coaxial Isolator
Product Overview
The following products are case examples of UHF to S band High Power Coaxial Isolators. Product dimensions and port configurations can be customized based on high-power requirements and high reflected power.
| Model | Frequency(GHz) | BW Max | Insertion loss(dB) Max | Isolation(dB)Min | VSWR Max | Connector | operating temperature(℃) | PK/CW/RP(Watt) | Direction |
|---|---|---|---|---|---|---|---|---|---|
| HCITA30T120G-H⬇ | 3.0~12.0 | 10% | 0.4 | 20 | 1.2 | N-K | -40~+70℃ | 800/100/80 | Clockwise |
| HCITB30T120G-H⬇ | 3.0~12.0 | 10% | 0.4 | 20 | 1.2 | N-K | -40~+70℃ | 800/100/80 | Counter Clockwise |
About HzBeat
HzBeat is a leading RF component manufacturer specializing in RF circulators and isolators, as a global supplier of RF circulators and isolators (20MHz–200GHz), we providing microstrip, drop-in, coaxial, and waveguide solutions for communication systems, radar, satellite, and medical imaging.
For detailed technical documentation, sample requests, or customization needs, please do not hesitate to contact us. — we respond within 24 hours to ensure you get precise solutions for your design.
Customization & Selection Guide
- Operating Band:Ensure it covers all frequencies required by your system.
- Power Handling Capacity:Select based on your system's transmit power (average and peak), allowing a certain margin.
- Performance Requirements:Define specific requirements for Insertion Loss, Isolation, and VSWR/Return Loss.
- Environmental Conditions:Consider operating temperature range, vibration, humidity, etc.
- Cost & Delivery:Balance cost and project timeline while meeting performance requirements.
Why Choose Our Product
- Profound Technical Expertise:We have over 18 years of R&D experience in ferrite materials and microwave magnetics.
- Fully Automated Production Lines:Ensure consistent excellence and reliability in every unit.
- Professional Application Support:Our engineering team provides timely technical selection, customization, and failure analysis services.
- Competitive Pricing & Lead Times:Economies of scale from mass production enable us to respond quickly to your orders.
